Here you will find all available parts and drawings of the 'Makita DF031D'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

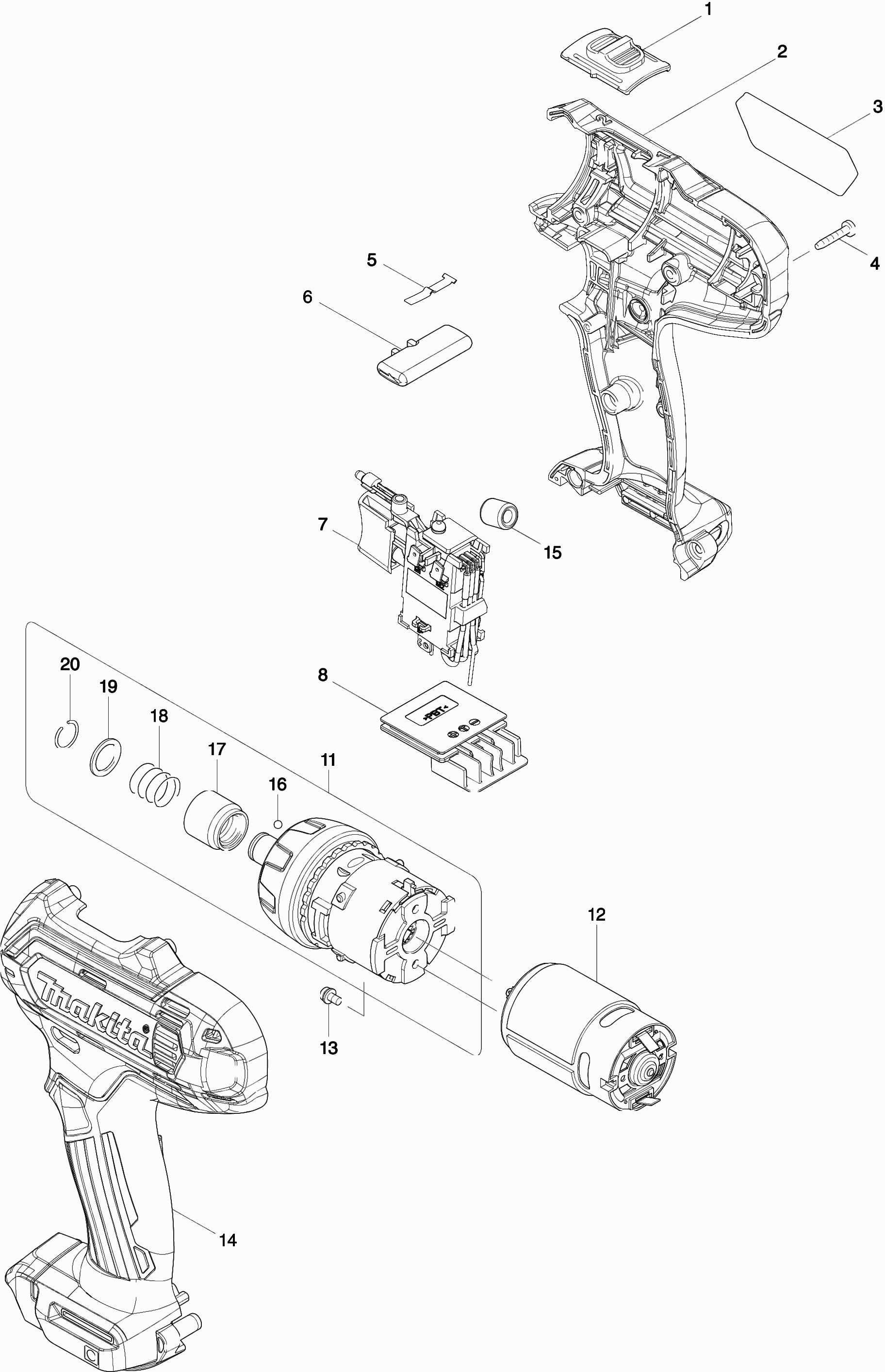

Technical drawing of model Makita DF031D
Spare parts list of model Makita DF031D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| High/low speed slide | ||||
| 001 | 126233-0 | 2.40 | 2.90 | |
| Compression Spring 4 | ||||
| 001A | 231433-0 | 1.00 | 1.21 | |
| Motorhuis set | ||||
| 002 | 183B50-3 | 9.60 | 11.62 | |
| Lock Nut M4x7mm | ||||
| 002A | 252126-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 003 | 851H56-2 | |||
| Tapping Screw 3x16 | ||||
| 004 | 266130-9 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 005 | 232239-9 | 1.00 | 1.21 | |
| F/r switch button | ||||
| 006 | 456039-5 | 1.00 | 1.21 | |
| Switch Df/Hp331 A | ||||
| 007 | 632J76-5 | 26.40 | 31.94 | |
| LED Circuit | ||||
| 007A | 620463-0 | 2.40 | 2.90 | |
| Line filter | ||||
| 007B | 688161-2 | 1.00 | 1.21 | |
| Connection unit | ||||
| 008 | 644813-5 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 011 | 123504-6 | |||
| Motor 10.8v | ||||
| 012 | 629167-1 | 11.00 | 13.31 | |
| Screw 3x6 | ||||
| 013 | 911003-8 | 1.00 | 1.21 | |
| Motorhuis set | ||||
| 014 | 183B50-3 | 9.60 | 11.62 | |
| Lock Nut M4x7mm | ||||
| 014B | 252126-6 | 1.00 | 1.21 | |
| Line filter unit | ||||
| 015 | 632F65-6 | 3.60 | 4.36 | |
| Line filter | ||||
| 015C10 | 688164-6 | 1.00 | 1.21 | |
| Steel ball 3 | ||||
| 016 | 216019-1 | 1.00 | 1.21 | |
| Bit Holder | ||||
| 017 | 324919-2 | 2.40 | 2.90 | |
| Compression Spring 13 | ||||
| 018 | 233005-7 | 1.00 | 1.21 | |
| Flat washer | ||||
| 019 | 267143-3 | 1.20 | 1.45 | |
| Spring Washer 10 | ||||
| 020 | 231965-7 | 1.00 | 1.21 | |
