Here you will find all available parts and drawings of the 'Makita DF012D'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

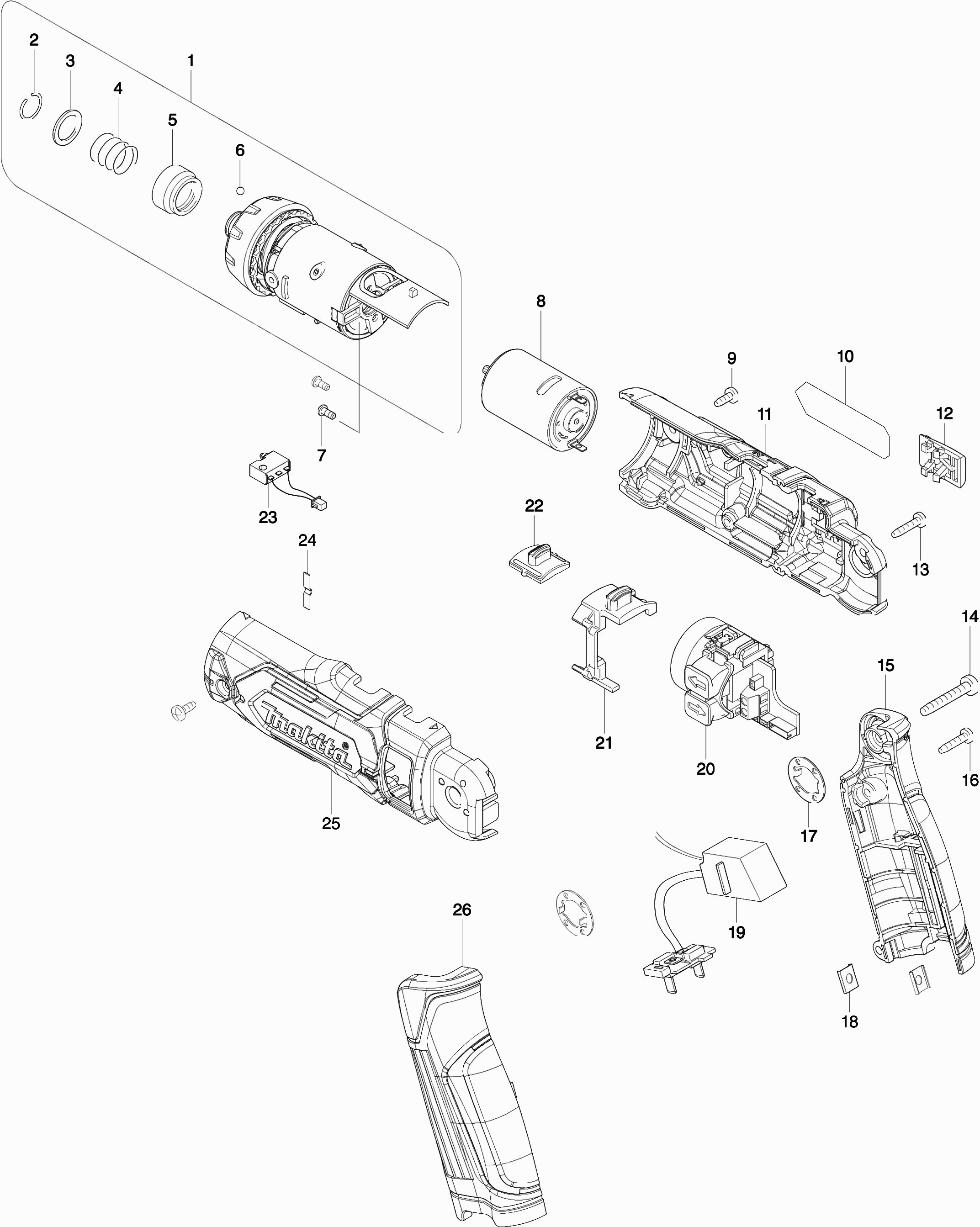

Technical drawing of model Makita DF012D
Spare parts list of model Makita DF012D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Gear set | ||||
| 001 | 123914-7 | 34.10 | 41.26 | |
| Coupling ring Df012D | ||||
| 001C10 | 450558-3 | 2.40 | 2.90 | |
| Spring Washer 10 | ||||
| 002 | 231965-7 | 1.00 | 1.21 | |
| Flat washer | ||||
| 003 | 267143-3 | 1.20 | 1.45 | |
| Compression Spring 13 | ||||
| 004 | 233005-7 | 1.00 | 1.21 | |
| Bit Holder | ||||
| 005 | 324711-6 | 2.40 | 2.90 | |
| Steel ball 3 | ||||
| 006 | 216019-1 | 1.00 | 1.21 | |
| Screw M2.6x6 | ||||
| 007 | 265172-0 | 1.00 | 1.21 | |
| Dc Motor Df012D | ||||
| 008 | 629266-9 | 8.40 | 10.16 | |
| Self-tapping Screw Pt3X8 | ||||
| 009 | 265954-0 | 1.00 | 1.21 | |
| Label | ||||
| 010 | 853C22-5 | 3.60 | 4.36 | |
| Motor Housing Set | ||||
| 011 | 183F98-9 | 4.80 | 5.81 | |
| Shift Plate | ||||
| 012 | 450590-7 | 1.00 | 1.21 | |
| Screw M3x14 | ||||
| 013 | 266404-8 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 014 | 266374-1 | |||
| Handle set | ||||
| 015 | 183G00-8 | 3.60 | 4.36 | |
| Screw M3x14 | ||||
| 016 | 266404-8 | 1.00 | 1.21 | |
| Spring retaining ring | ||||
| 017 | 267803-7 | 2.40 | 2.90 | |
| Mounting Plate | ||||
| 018 | 345749-8 | 1.00 | 1.21 | |
| Speed control circuit | ||||
| 019 | 631811-8 | 28.60 | 34.61 | |
| Switching Unit | ||||
| 020 | 638605-2 | 14.30 | 17.30 | |
| Slide Button | ||||
| 021 | 450553-3 | 1.20 | 1.45 | |
| High/low speed slide | ||||
| 022 | 125465-6 | 1.20 | 1.45 | |
| Compression Spring 3 | ||||
| 022C10 | 233018-8 | 1.00 | 1.21 | |
| Switching Unit | ||||
| 023 | 638609-4 | 8.40 | 10.16 | |
| Compression Spring | ||||
| 024 | 232369-6 | 1.00 | 1.21 | |
| Motor Housing Set | ||||
| 025 | 183F98-9 | 4.80 | 5.81 | |
| Handle set | ||||
| 026 | 183G00-8 | 3.60 | 4.36 | |
