Here you will find all available parts and drawings of the 'Makita DCS342'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

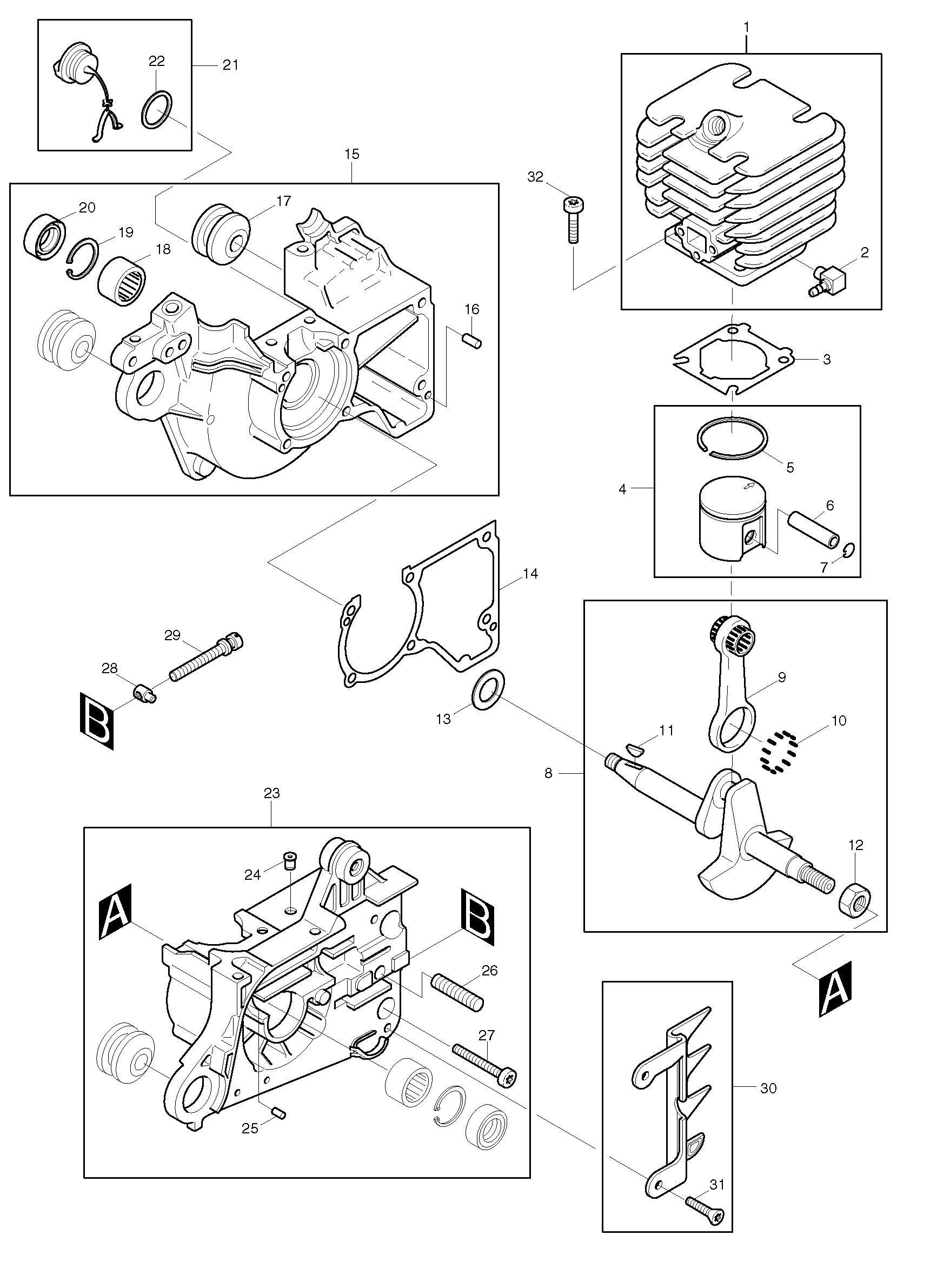

Technical drawing of model Makita DCS342

Spare parts list of model Makita DCS342

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Cylinder 37 *
001 021131160 124.80 151.01
Nipple *
002 001151670 3.96 4.79
Gasket
003 965524043 2.84 3.44
Piston Set Dcs/Ps34 A
004 021132111 33.36 40.37
Piston ring Dcs430/431/4300I A
005 021132230 15.60 18.88
Piston Pin *
006 021132020 12.22 14.79
Spring retaining ring
007 108132050 1.24 1.50
Crankshaft 6_93 *
008 957120028 148.53 179.72
Connecting Rod *
009 021123010 19.23 23.27
Roller Bearing 4x6
010 962640061 0.98 1.19
Key for crankshaft
011 939615260 1.02 1.23
Hexagon nut 8x1 L
012 920108044 1.02 1.23
Washer
013 108121010 2.36 2.86
Gasket
014 965524011 3.28 3.97
Crankcase Ms
015 028111640 87.86 106.31
Tension pin 3x16
016 936430160 0.98 1.19
Rubber damper
017 965403491 6.38 7.72
Needle-roller Cage
018 962300011 5.71 6.91
Lock Ring 105/108
019 929319101 0.94 1.14
Oil Seal Ring 13x19x4
020 962900049 6.38 7.72
No information available, not orderable
021 965450042
No longer available, no replacement
022 963100043
Crankcase Ks A
023 028111630 92.17 111.53
Vent Valve A
024 010245010 5.98 7.24
No information available, not orderable
025 021245070
Pin screw 8x25
026 905808254 1.67 2.02
Torx screw 5x30
027 908005305 0.98 1.19
Chain tensioner cam Dcs34 A
028 001213042 3.12 3.78
Tensioning screw
029 389213081 3.54 4.28
Log Stop Dcs340/41/42 *
030 957250015 9.67 11.70
Torx screw 5x12
031 908105124 0.98 1.19
Met.Screw M5X25mm PS35
032 266880-6 0.83 1.00
No information available, not orderable
033 028142021
Short Circuit Cable *
034 028147000 3.97 4.80
Spark plug lead 100cm
035 970310200 6.38 7.72
Isolatieleiding 6X0,5X1000MM P
036 970502120 6.38 7.72
No information available, not orderable
037 957604260
Stator spring EK8100 A
038 234358-7 0.83 1.00
Spark plug Bpmr6f
039 965603018 8.27 10.01
Screw 5x14
040 266947-0 0.83 1.00
Start grip
041 965404031 3.28 3.97
Friction Washer
042 900004375 1.24 1.50
No longer available, no replacement
043 021160001
Starter cord *
044 985000150 71.38 86.37
No longer available, no replacement
045 028166030
Lock Ring
046 021166040 1.02 1.23
Flywheel Dcs341 A
047 021141012 161.29 195.16
Washer 8mm EA3201S A
048 267822-3 0.83 1.00
No information available, not orderable
049 264022-6
Flywheel Housing *
050 028112630 23.04 27.88
Met.screw Ck M5x16mm
051 266605-8 0.98 1.19
Hand Protection *
052 028213615 16.35 19.78
"Warning" label
053 810449-4 2.84 3.44
Spring *
054 028213560 5.98 7.24
Chain Brake A
055 028213600 71.38 86.37
Brake band Des Series New A
056 028213502 6.38 7.72
Brake instruction label
057 980114251 1.75 2.12
No information available, not orderable
058 923208004
Oil pump A
059 021245007 23.06 27.90
Oil intake line
060 965451962 9.67 11.70
No longer available, no replacement
061 021245040
Oil Pump sealing cap
062 021245080 0.83 1.00
No information available, not orderable
063 021111037
Start-up Disc A
064 021224011 1.39 1.68
Clutch Drum Assembly A
065 028223100 17.38 21.03
No longer available, no replacement
066 021180210
No information available, not orderable
067 028184020
Torx screw 5x60
069 908205605 1.39 1.68
Clamping Ring
070 267821-5 0.83 1.00
Exhaust gasket
075 965524062 2.84 3.44
Cover Zwt Start&Go Dcs342 *
076 028118490 38.75 46.89
No information available, not orderable
077 028118180
Nut
078 001118062 3.28 3.97
Air Filter Nylon A
079 028173041 10.50 12.70
Label Start&Go *
080 980114625 4.45 5.38
Torx screw 5x60
081 908205605 1.39 1.68
Cover Cap *
082 028118310 15.52 18.78
Met.screw Ck M5x16mm
083 266605-8 0.98 1.19
Bow Handle Assembly Dcs341/42/44 *
084 028310050 11.34 13.72
No information available, not orderable
085 913455454
No information available, not orderable
086 028114710
No information available, not orderable
087 369114220
No information available, not orderable
088 028114730
No information available, not orderable
089 957114010
Gasstang Dcs342 *
090 028117245 23.04 27.88
Rubber damper
091 965403491 6.38 7.72
No information available, not orderable
092 913455204
No information available, not orderable
093 021114051
Torx screw 5x30
094 908005305 0.98 1.19
Torx Screw 5,5X30 *
095 913455304 1.18 1.43
No information available, not orderable
096 980003583
Filter
097 163499-1 7.22 8.74
Complete Tank Cap
098 010114050 5.71 6.91
O-ring 28x3
099 963228030 1.75 2.12
Hex nut M5
100 920205000 0.83 1.00
Carburetor gasket
101 965524120 2.84 3.44
Petrol hose 2,5x5,5mm 100cm
102 965452090 17.38 21.03
Isolatieleiding 6X0,5X1000MM P
103 970502120 6.38 7.72
Washer
104 965524092 1.24 1.50
Inlet gasket
105 965524131 2.10 2.54
Intermediate Flange *
106 028131063 2.71 3.28
Flange Gasket
107 965524082 2.48 3.00
No information available, not orderable
108 028118271
Rubber Sleeve
109 965401011 1.46 1.77
Hexagon bolt 5X55 *
110 900205554 0.98 1.19
Torx screw 5x30
111 908005305 0.98 1.19
Switch Handle Start&Go *
112 028155010 2.36 2.86
Multihandel Start&Go *
113 028117011 9.67 11.70
Stopschakelaar A
114 028118122 1.39 1.68
Gasket *
115 965404421 0.98 1.19
No information available, not orderable
116 028118160
No information available, not orderable
117 028118112
Met.screw Ck M5x16mm
118 266605-8 0.98 1.19
Switch Spring Start&Go *
119 028155020 1.39 1.68
Fuel Pump DCS230T A
120 168398-2 4.45 5.38
PUMP PLATE START&GO DCS342
121 028118410 3.12 3.78
Fuel Line Start&Go *
122 965404530 3.97 4.80
Carburetor Dcs344 *
123 028150011 130.74 158.20
COVER
124 020150160 8.21 9.93
Cylinder screw
125 020150170 2.36 2.86
Diaphragm Cover *
126 104150120 9.26 11.20
Screw *
127 001150520 3.12 3.78
No information available, not orderable
128 001150700
Throttle valve shaft Start&Go Dcs342 *
130 001150410 5.06 6.12
Spring set start & go
131 957150180 8.27 10.01
No information available, not orderable
132 001150321
Screw *
133 001150650 3.12 3.78
Throttle Handle Start&Go *
134 028155040 2.38 2.88
Lock Pin Start&Go Dcs342 *
135 001150430 1.99 2.41
Injection Valve Cpl Start&Go *
136 001150691 30.69 37.13
Screw *
137 113150220 2.71 3.28
Injection Handle Start&Go *
138 028155031 2.71 3.28
Adjusting Screw L
140 020150520 12.22 14.79
Adjusting Screw H
141 020150470 12.22 14.79
Idle screw *
142 020150240 7.22 8.74
Spring *
143 001150480 3.12 3.78
Spring *
144 001150480 3.12 3.78
Steering parts set start & go
145 957150171 13.82 16.72
Main nozzle Start&Go Dcs342
146 020150420 19.29 23.34
Locking Plate *
148 100150040 2.38 2.88
Torx screw 5x60
152 908205605 1.39 1.68
Clamping Ring
153 267821-5 0.83 1.00
Muffler Dcs341 A
154 021174301 32.99 39.92
Exhaust gasket
155 965524062 2.84 3.44
