Here you will find all available parts and drawings of the 'Makita DCM501'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

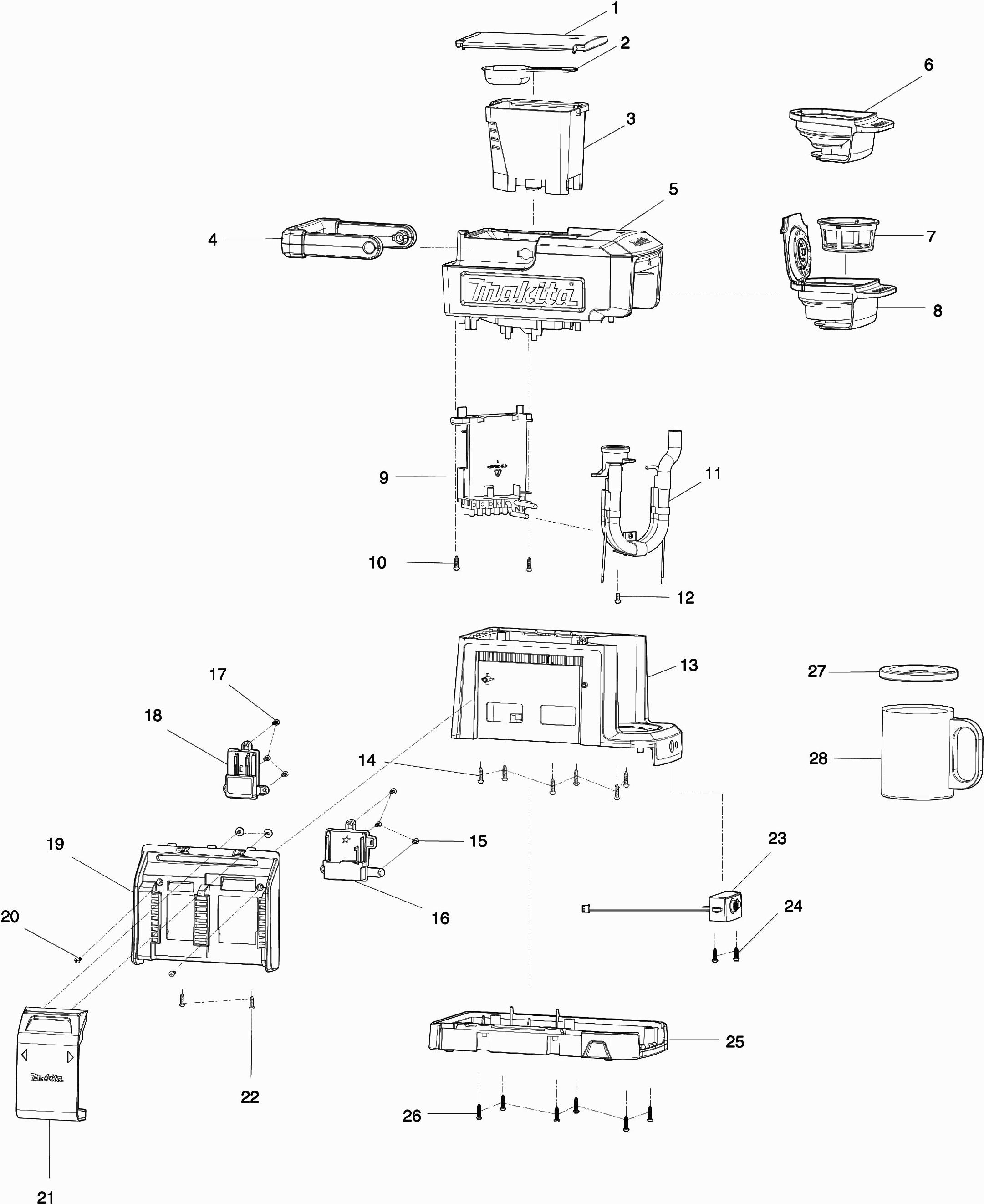

Technical drawing of model Makita DCM501
Spare parts list of model Makita DCM501
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Water tank cover DCM501 | ||||
| 001 | KF00000034 | 3.60 | 4.36 | |
| Water Spoon DCM501 | ||||
| 002 | KF00000033 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 003 | KF00000019 | |||
| Handle DCM501 | ||||
| 004 | KF00000017 | 9.60 | 11.62 | |
| Setting House DCM501 A | ||||
| 005 | KF00000063 | 28.60 | 34.61 | |
| Coffee pad holder DCM501 A | ||||
| 006 | KF00000067 | 2.40 | 2.90 | |
| Filter set DCM501 A | ||||
| 007 | KF00000066 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 008 | KF00000012 | |||
| Printed circuit board DCM501 | ||||
| 009 | KF00000008 | 69.30 | 83.85 | |
| Countersunk screw 3x12mm | ||||
| 010 | KF00000002 | 1.00 | 1.21 | |
| Battery Holder for 10.8 V | ||||
| 011 | KF00000062 | 30.80 | 37.27 | |
| Countersunk screw 3x12mm | ||||
| 012 | KF00000002 | 1.00 | 1.21 | |
| Housing DCM501 | ||||
| 013 | KF00000003 | 10.52 | 12.73 | |
| Countersunk screw 3x12mm | ||||
| 014 | KF00000002 | 1.00 | 1.21 | |
| Countersunk screw 3x12mm | ||||
| 015 | KF00000002 | 1.00 | 1.21 | |
| Connection Unit 18/14.4V DCM501 | ||||
| 016 | KF00000032 | 14.30 | 17.30 | |
| Countersunk screw 3x12mm | ||||
| 017 | KF00000002 | 1.00 | 1.21 | |
| Connection Unit 10.8V DCM501 | ||||
| 018 | KF00000031 | 11.00 | 13.31 | |
| Battery Case DCM501 | ||||
| 019 | KF00000029 | 11.00 | 13.31 | |
| Tap screw 3x10mm | ||||
| 020 | KF00000007 | 1.00 | 1.21 | |
| Battery housing cover DCM501 | ||||
| 021 | KF00000006 | 6.00 | 7.26 | |
| Countersunk screw 3x12mm | ||||
| 022 | KF00000002 | 1.00 | 1.21 | |
| Switch A/U DCM501 | ||||
| 023 | KF00000005 | 10.80 | 13.07 | |
| Countersunk screw 3x12mm | ||||
| 024 | KF00000002 | 1.00 | 1.21 | |
| Base plate DCM501 | ||||
| 025 | KF00000001 | 9.60 | 11.62 | |
| Foot Caps DCM501 | ||||
| 025C10 | KF00000028 | 1.00 | 1.21 | |
| Countersunk screw 3x12mm | ||||
| 026 | KF00000002 | 1.00 | 1.21 | |
| Cover for drinking cup DCM501 | ||||
| 027 | KF00000069 | 2.40 | 2.90 | |
| Drinking cup DCM501 | ||||
| 028 | KF00000020 | 12.22 | 14.79 | |
