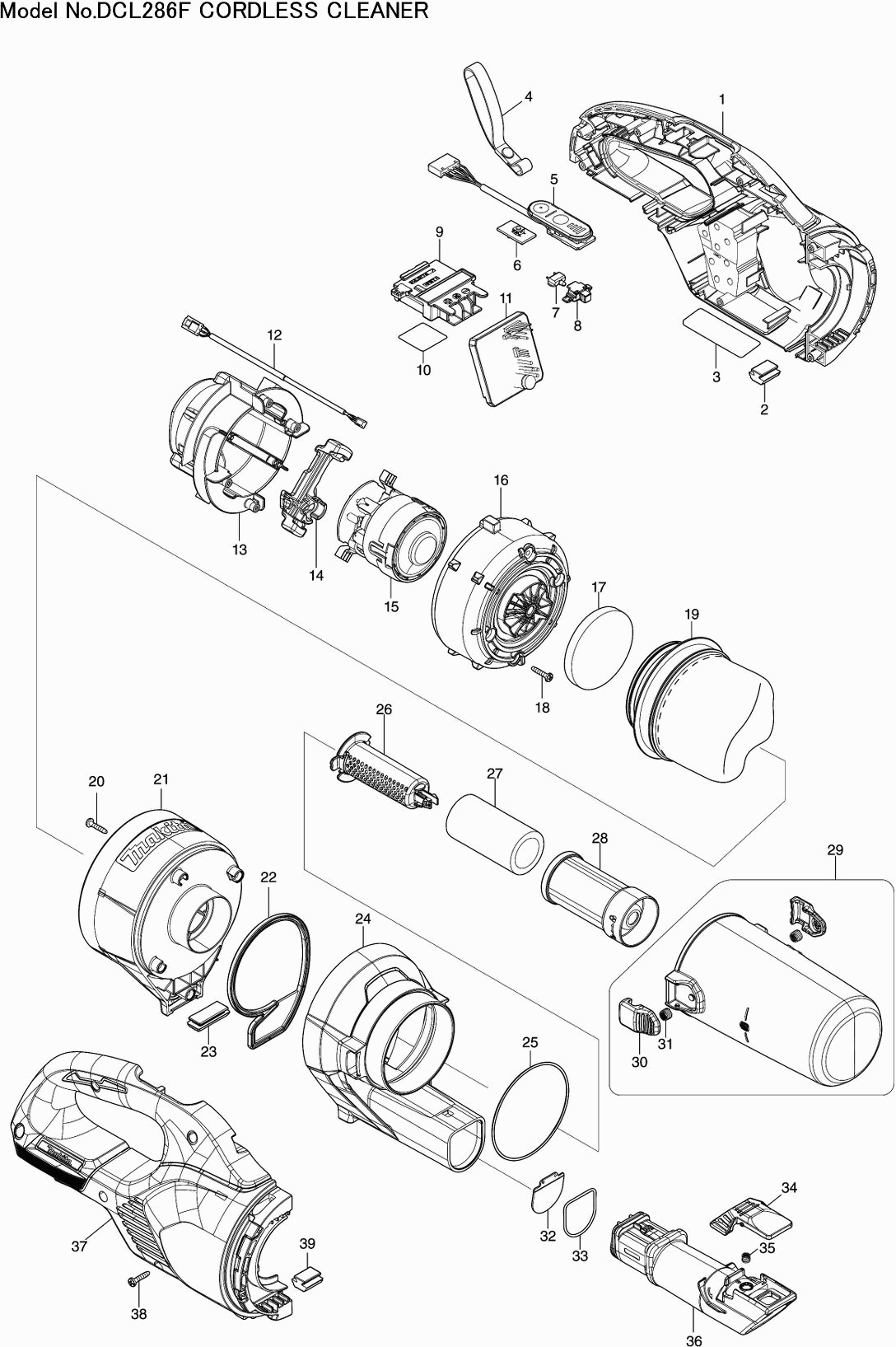

Technical drawing of model Makita DCL286FZW
Spare parts list of model Makita DCL286FZW
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| BEHUIZING TRP DCL284F, DCL286F | ||||
| 001A | 183Y66-6 | 13.20 | 15.97 | |
| BEHUIZING BLW DCL284F, DCL286F | ||||
| 001B | 183Y52-7 | 13.20 | 15.97 | |
| BEHUIZING ZWT DCL284F, DCL286F | ||||
| 001C | 183Y67-4 | 13.20 | 15.97 | |
| Rubber pen 6 | ||||
| 001C10 | 263005-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 001C20 | 422974-9 | |||
| Rubber plate DCL281 | ||||
| 002 | 422460-0 | 1.00 | 1.21 | |
| NAAMPLAAT DCL286F | ||||
| 003 | 8588M1-9 | 1.00 | 1.21 | |
| Circuit indication CL001G | ||||
| 005 | 141B54-1 | 11.00 | 13.31 | |
| Switch CL001G | ||||
| 006 | 620E74-1 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 007 | 620E82-2 | |||
| Led housing complete CL002G | ||||
| 008 | 141H09-2 | 1.20 | 1.45 | |
| Connection unit | ||||
| 009 | 643874-2 | 3.60 | 4.36 | |
| LABEL SERIENR. DCL286F | ||||
| 010 | 8588N3-2 | 2.40 | 2.90 | |
| CONTROLLER DCL284F/ 285F P | ||||
| 011 | 620L20-6 | 44.00 | 53.24 | |
| No information available, not orderable | ||||
| 011-1 | 620S51-7 | |||
| Line filter | ||||
| 011C10 | 688163-8 | 1.20 | 1.45 | |
| Wire harness CL001G | ||||
| 012 | 632S32-9 | 2.40 | 2.90 | |
| Engine Cover R CL001G | ||||
| 013 | 141E55-7 | 2.40 | 2.90 | |
| Rubber Pin 4 | ||||
| 013C10 | 263002-9 | 1.00 | 1.21 | |
| Motor cover rubber CL001G | ||||
| 014 | 422723-4 | 1.20 | 1.45 | |
| MOTOR ASSY DCL283F/284 | ||||
| 015 | 629B87-1 | 71.50 | 86.52 | |
| Motor Cover F CL001G | ||||
| 016 | 413645-9 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 017 | 422909-0 | |||
| Tapping Screw 3x16 | ||||
| 018 | 266130-9 | 1.00 | 1.21 | |
| LINNEN STOFFILTER MET FRAME STEELSTOFZUIGER | ||||
| 019 | 1910C7-9 | 8.00 | 9.68 | |
| Tapping Screw 3x16 | ||||
| 020 | 266130-9 | 1.00 | 1.21 | |
| Filter housing CL003G | ||||
| 021A | 413H37-0 | 4.80 | 5.81 | |
| Filter housing CL003G | ||||
| 021B | 413H34-6 | 4.80 | 5.81 | |
| Filter housing CL003G | ||||
| 021C | 413H18-4 | 4.80 | 5.81 | |
| Gasket CL003G | ||||
| 022 | 422884-0 | 1.20 | 1.45 | |
| Shock rubber CL003G | ||||
| 023 | 422885-8 | 1.00 | 1.21 | |
| Front House CL003G | ||||
| 024A | 413H38-8 | 3.60 | 4.36 | |
| Front House CL003G | ||||
| 024B | 413H35-4 | 3.60 | 4.36 | |
| Front House CL003G | ||||
| 024C | 413H19-2 | 3.60 | 4.36 | |
| O-ring 72mm | ||||
| 025 | 213884-9 | 1.00 | 1.21 | |
| Dirt Tube White CL003G | ||||
| 026 | 413H21-5 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 027 | 422908-2 | |||
| Prefilter CL003G | ||||
| 028 | 413H29-9 | 2.40 | 2.90 | |
| Dust Case CL003G | ||||
| 029 | 136713-8 | 17.60 | 21.30 | |
| Lock button zwt | ||||
| 030 | 459106-5 | 1.20 | 1.45 | |
| Compression Spring | ||||
| 031 | 232460-0 | 1.00 | 1.21 | |
| Valve CL003G | ||||
| 032 | 422886-6 | 1.00 | 1.21 | |
| O-Ring 29 CL003G | ||||
| 033 | 213837-8 | 1.00 | 1.21 | |
| Switch Button CL003G | ||||
| 034 | 413H20-7 | 1.20 | 1.45 | |
| Compression Spring 5 | ||||
| 035 | 232485-4 | 1.00 | 1.21 | |
| Inlet Piece CL003G | ||||
| 036A | 413H39-6 | 2.40 | 2.90 | |
| Inlet Piece CL003G | ||||
| 036B | 413H36-2 | 2.40 | 2.90 | |
| Inlet Piece CL003G | ||||
| 036C | 413H25-7 | 2.40 | 2.90 | |
| BEHUIZING TRP DCL284F, DCL286F | ||||
| 037A | 183Y66-6 | 13.20 | 15.97 | |
| BEHUIZING BLW DCL284F, DCL286F | ||||
| 037B | 183Y52-7 | 13.20 | 15.97 | |
| BEHUIZING ZWT DCL284F, DCL286F | ||||
| 037C | 183Y67-4 | 13.20 | 15.97 | |
| Rubber pen 6 | ||||
| 037C10 | 263005-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 037C20 | 422974-9 | |||
| Tapping Screw 3x16 | ||||
| 038 | 266130-9 | 1.00 | 1.21 | |
| Rubber plate DCL281 | ||||
| 039 | 422460-0 | 1.00 | 1.21 | |
