Here you will find all available parts and drawings of the 'Makita DCF300'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

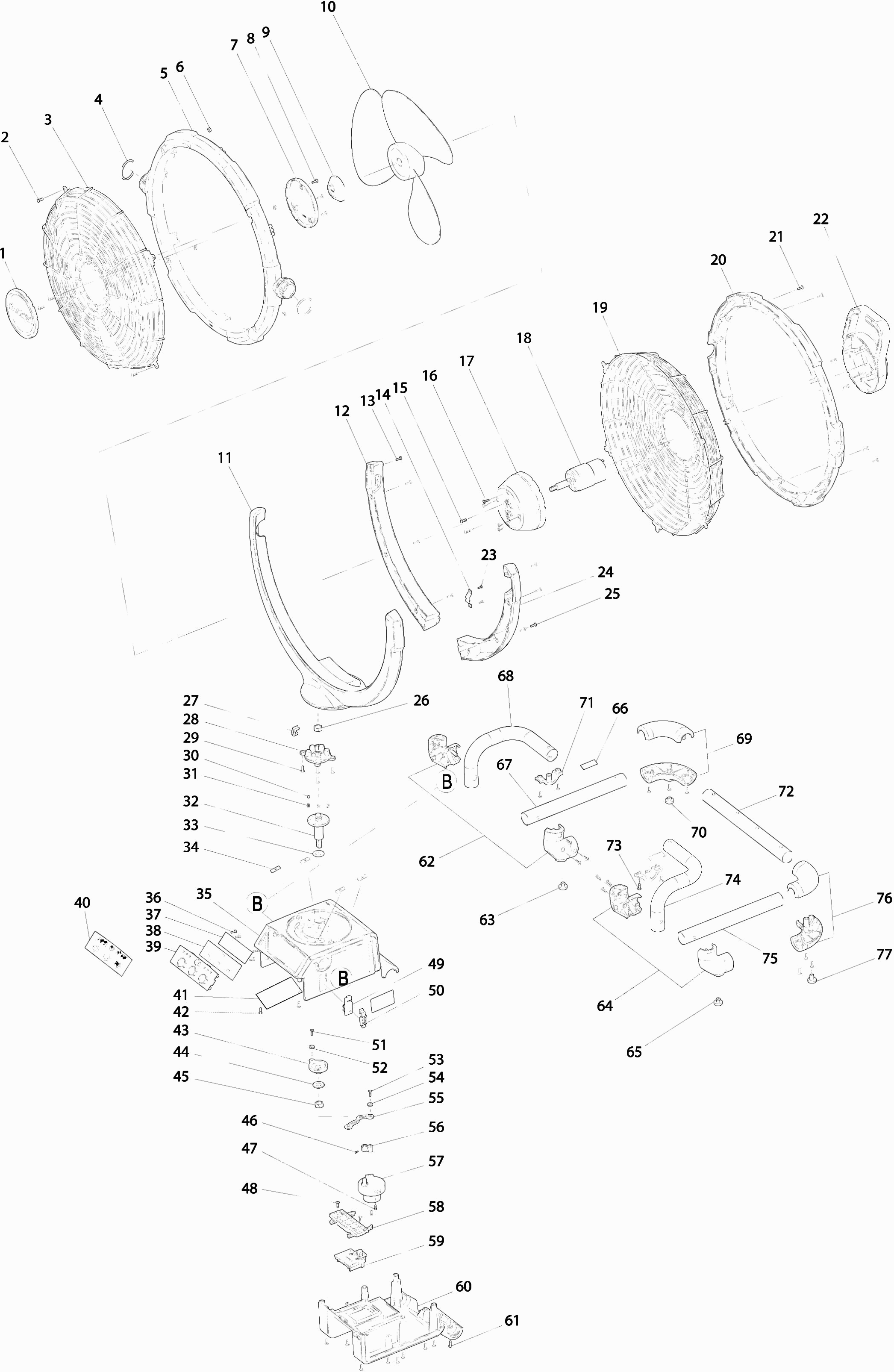

Technical drawing of model Makita DCF300
Spare parts list of model Makita DCF300
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Logo plate "makita" | ||||
| 001 | TE00000046 | 4.80 | 5.81 | |
| Met. Screw M4x10mm | ||||
| 002 | TE00000101 | 1.00 | 1.21 | |
| Grill "front" | ||||
| 003 | TE00000047 | 34.10 | 41.26 | |
| O-ring 32mm | ||||
| 004 | TE00000048 | 1.20 | 1.45 | |
| Cage frame | ||||
| 005 | TE00000049 | 9.60 | 11.62 | |
| Nut M4 | ||||
| 006 | TE00000092 | 1.00 | 1.21 | |
| Label | ||||
| 007 | TE00000050 | 3.60 | 4.36 | |
| Parker 3x10mm | ||||
| 008 | TE00000104 | 1.00 | 1.21 | |
| Fan nut | ||||
| 009 | TE00000051 | 2.40 | 2.90 | |
| Fan | ||||
| 010 | TE00000052 | 11.00 | 13.31 | |
| Arm | ||||
| 011 | TE00000053 | 17.60 | 21.30 | |
| Side arm "L" | ||||
| 012 | TE00000054 | 13.20 | 15.97 | |
| Parker 3x14mm | ||||
| 013 | TE00000103 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 014 | TE00000055 | 2.40 | 2.90 | |
| Met. Screw M4x10mm | ||||
| 015 | TE00000101 | 1.00 | 1.21 | |
| Parker 3x14mm | ||||
| 016 | TE00000103 | 1.00 | 1.21 | |
| Motor cover cap | ||||
| 017 | TE00000056 | 11.00 | 13.31 | |
| Motor | ||||
| 018 | TE00000057 | 30.80 | 37.27 | |
| Grille "back" | ||||
| 019 | TE00000058 | 34.10 | 41.26 | |
| Frame | ||||
| 020 | TE00000059 | 10.80 | 13.07 | |
| Parker 3x14mm | ||||
| 021 | TE00000103 | 1.00 | 1.21 | |
| Motor Hood | ||||
| 022 | TE00000060 | 3.60 | 4.36 | |
| Parker 3x10mm | ||||
| 023 | TE00000104 | 1.00 | 1.21 | |
| Rear arm | ||||
| 024 | TE00000100 | 13.20 | 15.97 | |
| Parker 3x14mm | ||||
| 025 | TE00000103 | 1.00 | 1.21 | |
| Locknut M10 | ||||
| 026 | TE00000069 | 1.20 | 1.45 | |
| Cord Protector | ||||
| 027 | TE00000061 | 2.40 | 2.90 | |
| Coupling plate | ||||
| 028 | TE00000062 | 3.60 | 4.36 | |
| Parker 3x14mm | ||||
| 029 | TE00000103 | 1.00 | 1.21 | |
| Ball 6mm | ||||
| 030 | TE00000063 | 1.00 | 1.21 | |
| Compression spring 5mm | ||||
| 031 | TE00000064 | 1.00 | 1.21 | |
| Drive Shaft | ||||
| 032 | TE00000065 | 17.60 | 21.30 | |
| Lock Washer 16mm | ||||
| 033 | TE00000090 | 1.00 | 1.21 | |
| Stop Plate | ||||
| 034 | TE00000089 | 1.20 | 1.45 | |
| Base plate cover | ||||
| 035 | TE00000066 | 13.20 | 15.97 | |
| Parker 3x10mm | ||||
| 036 | TE00000104 | 1.00 | 1.21 | |
| Mounting Plate | ||||
| 037 | TE00000088 | 2.40 | 2.90 | |
| Switch circuit board | ||||
| 038 | TE00000154 | 34.10 | 41.26 | |
| Switch panel | ||||
| 039 | TE00000067 | 2.40 | 2.90 | |
| SCHILD-BEDIENF. RM 45/70LE-EC 302001825 | ||||
| 040 | TE00000093 | 2.40 | 2.90 | |
| Printed Circuit Board | ||||
| 041 | TE00000086 | 17.60 | 21.30 | |
| Parker 3x14mm | ||||
| 042 | TE00000103 | 1.00 | 1.21 | |
| Flange Plate | ||||
| 043 | TE00000068 | 2.40 | 2.90 | |
| Washer 10mm | ||||
| 044 | TE00000091 | 1.00 | 1.21 | |
| Locknut M10 | ||||
| 045 | TE00000069 | 1.20 | 1.45 | |
| Met.screw Ck M3x14mm | ||||
| 046 | TE00000102 | 1.00 | 1.21 | |
| Parker 3x14mm | ||||
| 047 | TE00000105 | 1.00 | 1.21 | |
| Parker 3x14mm | ||||
| 048 | TE00000103 | 1.00 | 1.21 | |
| Adapter Plate | ||||
| 049 | TE00000070 | 3.60 | 4.36 | |
| Mounting cap | ||||
| 050 | TE00000071 | 3.60 | 4.36 | |
| Parker 3x10mm | ||||
| 051 | TE00000104 | 1.00 | 1.21 | |
| Washer 3mm | ||||
| 052 | TE00000087 | 1.20 | 1.45 | |
| Parker 3x10mm | ||||
| 053 | TE00000104 | 1.00 | 1.21 | |
| Washer 3mm | ||||
| 054 | TE00000087 | 1.20 | 1.45 | |
| Connecting plate A | ||||
| 055 | TE00000072 | 1.20 | 1.45 | |
| Connecting plate B | ||||
| 056 | TE00000073 | 1.20 | 1.45 | |
| Motor "sub" | ||||
| 057 | TE00000155 | 16.50 | 19.96 | |
| Holder | ||||
| 058 | TE00000075 | 3.60 | 4.36 | |
| Connection unit | ||||
| 059 | TE00000076 | 3.60 | 4.36 | |
| Base plate | ||||
| 060 | TE00000077 | 13.20 | 15.97 | |
| Parker 3x14mm | ||||
| 061 | TE00000103 | 1.00 | 1.21 | |
| Coupling L | ||||
| 062 | TE00000079 | 3.60 | 4.36 | |
| Impact cap B | ||||
| 063 | TE00000084 | 1.20 | 1.45 | |
| Coupling piece R | ||||
| 064 | TE00000078 | 3.60 | 4.36 | |
| Impact cap B | ||||
| 065 | TE00000084 | 1.20 | 1.45 | |
| Foot rubber | ||||
| 066 | TE00000097 | 1.00 | 1.21 | |
| Fall handle | ||||
| 067 | TE00000094 | 16.50 | 19.96 | |
| Fall handle R | ||||
| 068 | TE00000095 | 19.80 | 23.96 | |
| Coupling "rear" | ||||
| 069 | TE00000082 | 6.00 | 7.26 | |
| Foot "A" | ||||
| 070 | TE00000083 | 1.20 | 1.45 | |
| Bracket Holder | ||||
| 071 | TE00000080 | 1.20 | 1.45 | |
| Fall bar "rear" | ||||
| 072 | TE00000081 | 14.30 | 17.30 | |
| Parker 3x14mm | ||||
| 073 | TE00000103 | 1.00 | 1.21 | |
| Fall handle "l" | ||||
| 074 | TE00000096 | 19.80 | 23.96 | |
| Fall handle | ||||
| 075 | TE00000094 | 16.50 | 19.96 | |
| Coupling "rear" | ||||
| 076 | TE00000082 | 6.00 | 7.26 | |
| Foot "A" | ||||
| 077 | TE00000083 | 1.20 | 1.45 | |
| Moer M3 DCF300 | ||||
