Here you will find all available parts and drawings of the 'Makita DC40RC'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

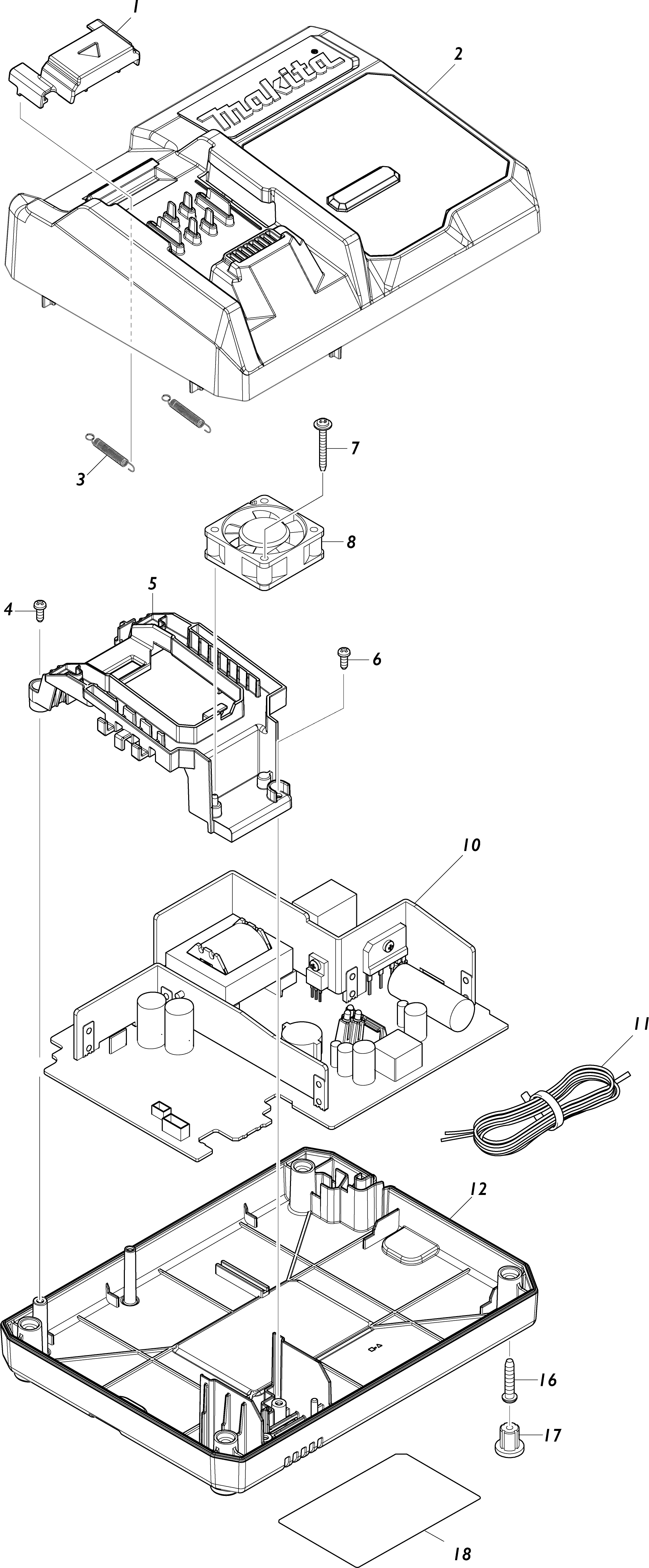

Technical drawing of model Makita DC40RC
Spare parts list of model Makita DC40RC
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Lens DC40RA | ||||
| C10 | 459476-2 | 6.00 | 7.26 | |
| Capacitor | ||||
| C10 | 647306-1 | 6.00 | 7.26 | |
| Fuse DC10SB | ||||
| C20 | 652804-2 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| F01 | 191M91-1 | |||
| Cover cap DC40 | ||||
| 001 | 459475-4 | 4.80 | 5.81 | |
| Charger house DC40RC | ||||
| 002 | 140Y70-8 | 28.60 | 34.61 | |
| Compression spring 4mm | ||||
| 003 | 232565-6 | 1.20 | 1.45 | |
| Parker 3x8mm ADP10 | ||||
| 004 | 265B02-7 | 1.20 | 1.45 | |
| DC40RC Connection Base | ||||
| 005 | 413184-9 | 90.20 | 109.14 | |
| Parker 3x8mm ADP10 | ||||
| 006 | 265B02-7 | 1.20 | 1.45 | |
| Parker Screw 3x25mm DC40RA | ||||
| 007 | 265A61-5 | 1.20 | 1.45 | |
| Fan 1 40mm DC40RA | ||||
| 008 | 632P24-0 | 11.00 | 13.31 | |
| Charging circuit DC40RC | ||||
| 010 | 620E60-2 | 85.80 | 103.82 | |
| Power Cable 2x0,75 2mtr. | ||||
| 011 | 667985-9 | 8.40 | 10.16 | |
| DC40RC Charger Cover Cap | ||||
| 012 | 413183-1 | 16.50 | 19.96 | |
| Parker 4x20mm ADP10 | ||||
| 016 | 265B01-9 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 017 | 286255-3 | |||
| No information available, not orderable | ||||
| 018 | 811B67-3 | |||
