Here you will find all available parts and drawings of the 'Makita DBO482'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

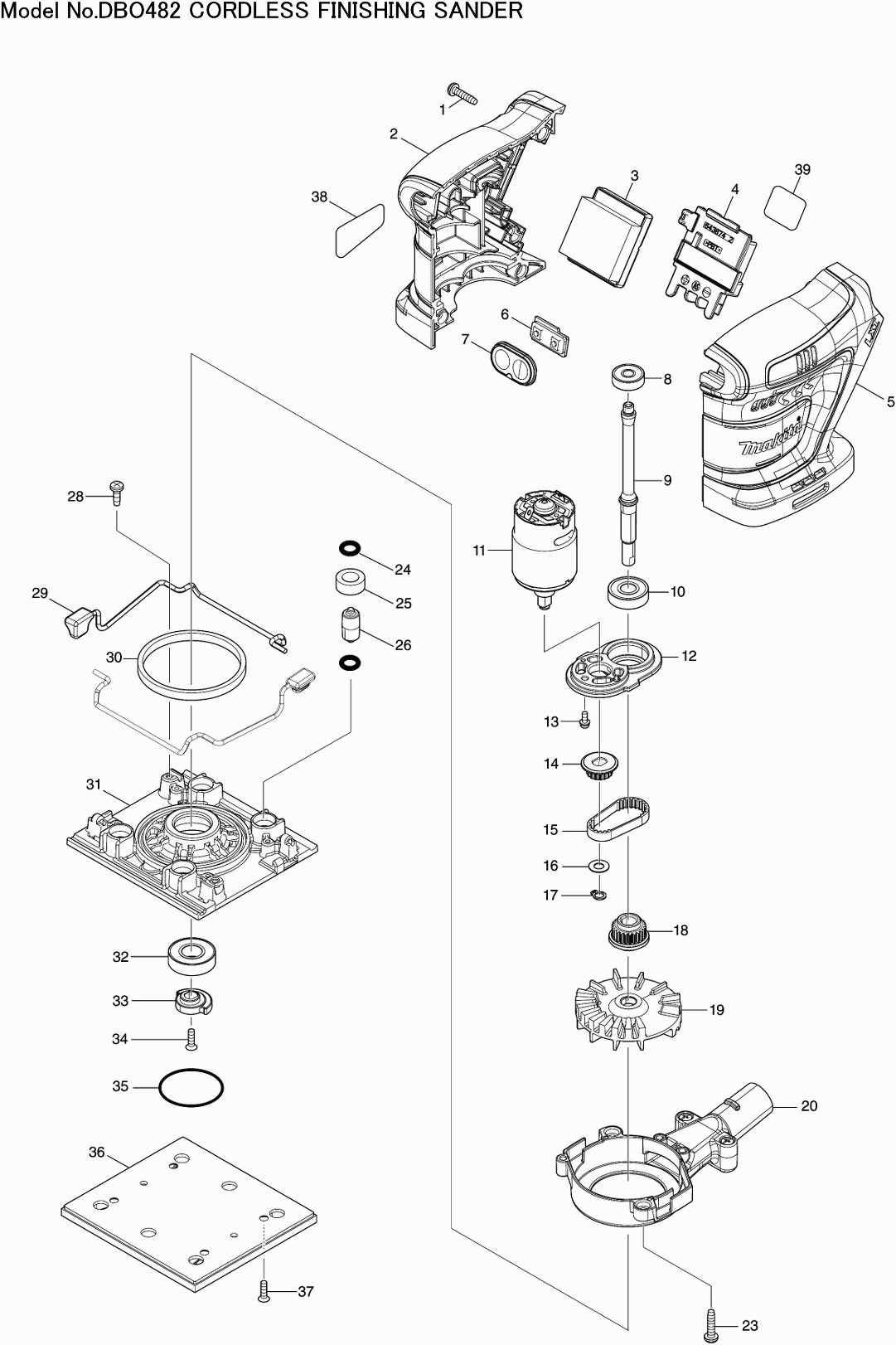

Technical drawing of model Makita DBO482
Spare parts list of model Makita DBO482
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tap screw 4x18 | ||||
| 001 | 265A48-7 | 1.00 | 1.21 | |
| Motor Housing Set DBO480 | ||||
| 002 | 183U93-9 | 10.80 | 13.07 | |
| Rubber pen 6 | ||||
| 002C10 | 263005-3 | 1.00 | 1.21 | |
| Control unit DBO480 | ||||
| 003 | 632S79-3 | 41.80 | 50.58 | |
| Line filter | ||||
| 003C10 | 688164-6 | 1.00 | 1.21 | |
| Connection unit | ||||
| 004 | 643874-2 | 3.60 | 4.36 | |
| Motor Housing Set DBO480 | ||||
| 005 | 183U93-9 | 10.80 | 13.07 | |
| Rubber pen 6 | ||||
| 005C10 | 263005-3 | 1.00 | 1.21 | |
| Switch unit | ||||
| 006 | 632K92-3 | 7.20 | 8.71 | |
| Switch plate DBO480 | ||||
| 007 | 141B15-1 | 2.40 | 2.90 | |
| Ball bearing 626zz | ||||
| 008 | 210143-2 | 3.60 | 4.36 | |
| As DBO480 | ||||
| 009 | 327807-2 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 010 | 211491-2 | |||
| DC Motor DBO480 | ||||
| 011 | 629B07-5 | 14.30 | 17.30 | |
| Motor Mount DBO480 | ||||
| 012 | 413619-0 | 1.00 | 1.21 | |
| Screw M3x8 | ||||
| 013 | 265173-8 | 1.00 | 1.21 | |
| Pulley 7.5x15.5 DBO480 | ||||
| 014 | 222200-4 | 4.80 | 5.81 | |
| Multi-belt 6x108 DBO480 | ||||
| 015 | 225105-7 | 3.60 | 4.36 | |
| Washer 6 | ||||
| 016 | 253715-0 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 017 | 961022-4 | |||
| Pulley 7.5x20.3 DBO480 | ||||
| 018 | 222199-3 | 7.20 | 8.71 | |
| Fan 63mm DBO480 | ||||
| 019 | 240224-8 | 6.00 | 7.26 | |
| Fan Guide assembly DBO480 | ||||
| 020 | 122B40-1 | 3.60 | 4.36 | |
| Tap screw 4x18 | ||||
| 023 | 265A48-7 | 1.00 | 1.21 | |
| O-ring 4 | ||||
| 024 | 213983-7 | 1.00 | 1.21 | |
| Sponge case | ||||
| 025 | 424023-8 | 1.00 | 1.21 | |
| Footrest | ||||
| 026 | 318151-8 | 1.00 | 1.21 | |
| Screw 4x12 | ||||
| 028 | 266398-7 | 1.00 | 1.21 | |
| Lever BO4558 | ||||
| 029 | 162299-6 | 2.40 | 2.90 | |
| Rubber Ring | ||||
| 030 | 424684-4 | 1.00 | 1.21 | |
| Base Plate Bo4558 | ||||
| 031 | 318543-1 | 8.40 | 10.16 | |
| Ball Bearing 6001dw | ||||
| 032 | 211131-2 | 9.60 | 11.62 | |
| Counterweight | ||||
| 033 | 313141-6 | 1.00 | 1.21 | |
| Countersunk screw 4x12 | ||||
| 034 | 912117-6 | 1.00 | 1.21 | |
| O-ring 39 | ||||
| 035 | 213513-4 | 1.00 | 1.21 | |
| STEUNZOOL VIERKANT KLEM | ||||
| 036 | 191Y25-6 | 3.00 | 3.63 | |
| Countersunk screw 4x12 | ||||
| 037 | 912117-6 | 1.00 | 1.21 | |
| Nameplate DBO482 | ||||
| 038 | 8115V8-1 | 1.00 | 1.21 | |
| Serial number label DBO482 | ||||
| 039 | 8115W0-4 | 2.40 | 2.90 | |
