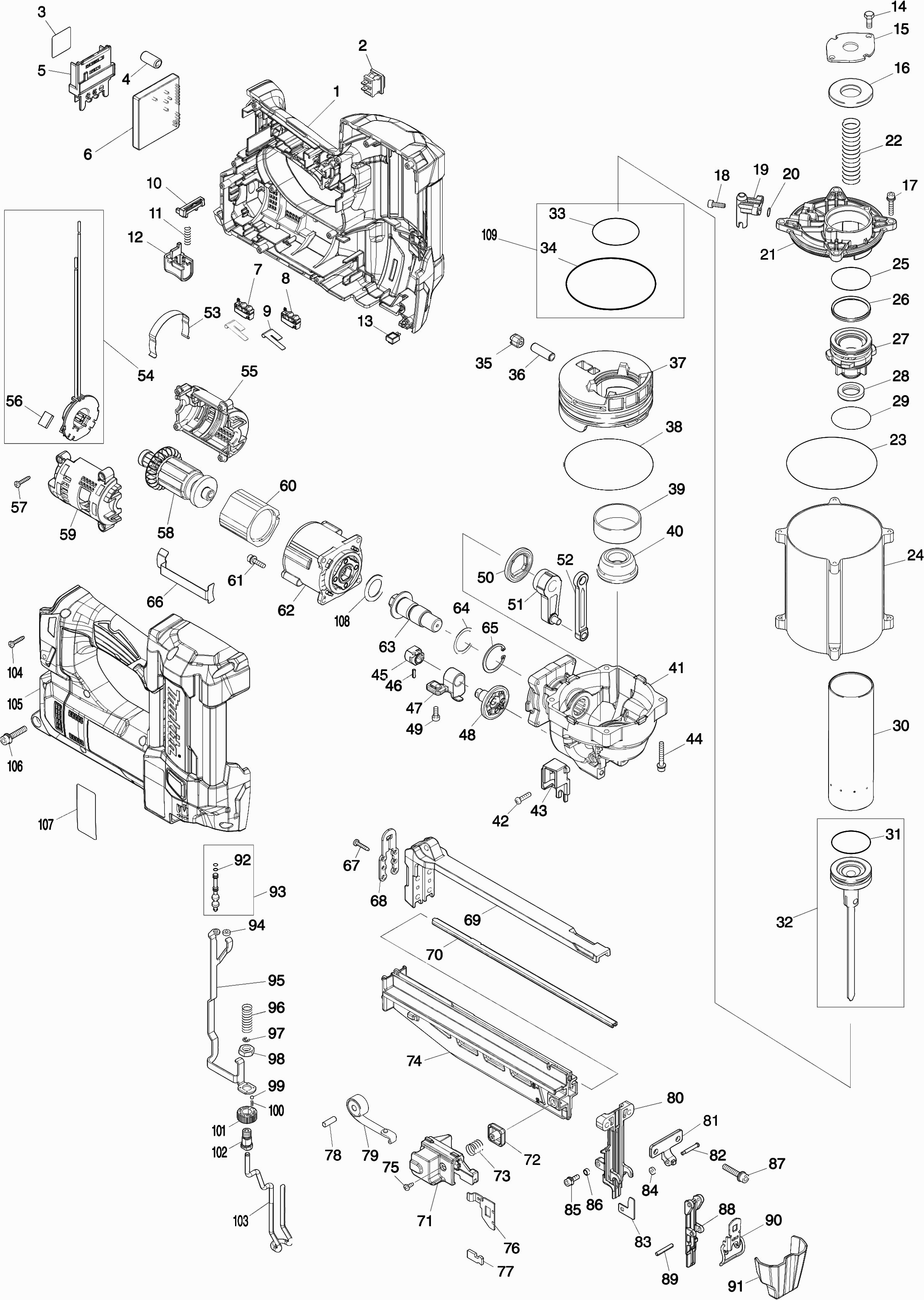

Technical drawing of model Makita DBN600
Spare parts list of model Makita DBN600
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing set DBN600 | ||||
| 001 | 183J18-7 | 41.80 | 50.58 | |
| Rubber pen 6 | ||||
| 001C10 | 263005-3 | 1.00 | 1.21 | |
| Lock Nut M4x7mm | ||||
| 001C20 | 252126-6 | 1.00 | 1.21 | |
| Hex lock nut 5x8 | ||||
| 001C30 | 252103-8 | 1.20 | 1.45 | |
| Warning label DBN600 | ||||
| 001C40 | 816B59-7 | 2.40 | 2.90 | |
| Switch sle6a2-33 | ||||
| 002 | 651533-4 | 3.60 | 4.36 | |
| Serial Number Label DBN600 | ||||
| 003 | 853V47-3 | 2.40 | 2.90 | |
| Line filter | ||||
| 004 | 688161-2 | 1.00 | 1.21 | |
| Connection unit Bcl182D(3 Cont) A | ||||
| 005 | 643523-1 | 6.00 | 7.26 | |
| Connection unit DTD153 3cont | ||||
| 005 | 643860-3 | 4.80 | 5.81 | |
| Controller DBN600 | ||||
| 006 | 620581-4 | 106.70 | 129.11 | |
| Switch Unit DBN600 | ||||
| 007 | 632L06-8 | 8.40 | 10.16 | |
| Switch Unit DBN600 | ||||
| 008 | 632L07-6 | 8.40 | 10.16 | |
| Leaf Spring DBN600 | ||||
| 009 | 232409-0 | 2.40 | 2.90 | |
| Locking plate DBN600 | ||||
| 010 | 458070-7 | 2.40 | 2.90 | |
| Compression Spring 5 | ||||
| 011 | 231372-4 | 1.00 | 1.21 | |
| Locking button DBN600 | ||||
| 012 | 458071-5 | 2.40 | 2.90 | |
| Light Circuit DBN600 | ||||
| 013 | 620582-2 | 7.20 | 8.71 | |
| Hex bolt M5x12mm | ||||
| 014 | 265660-7 | 1.00 | 1.21 | |
| Spring plate DBN600 | ||||
| 015 | 347293-1 | 4.80 | 5.81 | |
| Bumper Cushion DBN600 | ||||
| 016 | 422214-5 | 2.40 | 2.90 | |
| Hex socket head screw m5x18 | ||||
| 017 | 265853-6 | 1.00 | 1.21 | |
| Allen bolt m4x12 | ||||
| 018 | 922118-6 | 1.00 | 1.21 | |
| Holder DBN600 | ||||
| 019 | 319644-8 | 7.20 | 8.71 | |
| HOUDER DBN600 A | ||||
| 019 | 319990-9 | 6.10 | 7.38 | |
| O-ring 6 | ||||
| 020 | 213017-6 | 1.00 | 1.21 | |
| Top Cover DBN600 | ||||
| 021 | 319643-0 | 13.82 | 16.72 | |
| Compression spring 15 DBN600 | ||||
| 022 | 232405-8 | 1.20 | 1.45 | |
| O-Ring 85 * | ||||
| 023 | 213803-5 | 2.40 | 2.90 | |
| Main Cylinder DBN600 | ||||
| 024 | 327028-6 | 78.10 | 94.50 | |
| O-Ring 35 DBN600 A | ||||
| 025 | 213898-8 | 1.20 | 1.45 | |
| D-ring 34 Ar411Hr | ||||
| 026 | 424536-9 | 1.20 | 1.45 | |
| Main valve DBN600 | ||||
| 027 | 458062-6 | 3.60 | 4.36 | |
| Dbn500 protection | ||||
| 028 | 421551-4 | 4.80 | 5.81 | |
| O-Ring 35 DBN600 A | ||||
| 029 | 213898-8 | 1.20 | 1.45 | |
| Cylinder DBN600 | ||||
| 030 | 327029-4 | 30.80 | 37.27 | |
| O-ring 34 | ||||
| 031 | 213475-6 | 1.00 | 1.21 | |
| Strike Pin DBN600 | ||||
| 032 | 135945-4 | 72.60 | 87.85 | |
| O-ring 42 | ||||
| 033 | 213558-2 | 1.00 | 1.21 | |
| O-ring 80mm DBN600 | ||||
| 034 | 213863-7 | 6.00 | 7.26 | |
| Stopper DBN600 | ||||
| 035 | 458074-9 | 2.40 | 2.90 | |
| Piston Pin 8 DBN600 P | ||||
| 036 | 268287-2 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 036-1 | 257A12-2 | |||
| Main vacuum DBN600 | ||||
| 037 | 458061-8 | 9.60 | 11.62 | |
| O-ring 80 | ||||
| 038 | 213757-6 | 1.20 | 1.45 | |
| Sealing Ring DBN600 | ||||
| 039 | 422215-3 | 1.20 | 1.45 | |
| SHOCK PAD | ||||
| 040 | 424440-2 | 12.10 | 14.64 | |
| Crankcase Cover DBN600 | ||||
| 041 | 144883-9 | 63.80 | 77.20 | |
| Metal screw M6x16mm DBN600 | ||||
| 042 | 265638-0 | 1.00 | 1.21 | |
| Adjustment base DBN600 | ||||
| 043 | 458063-4 | 2.40 | 2.90 | |
| Allen bolt M4x28mm DBN600 | ||||
| 044 | 251578-8 | 1.00 | 1.21 | |
| Holder cpl DBN500 | ||||
| 045 | 144758-2 | 6.00 | 7.26 | |
| Split Pin 2.5-8 | ||||
| 046 | 258018-7 | 1.00 | 1.21 | |
| Plate DBN600 | ||||
| 047 | 458064-2 | 2.40 | 2.90 | |
| Gear 44 DBN600 | ||||
| 048 | 221583-9 | 2.40 | 2.90 | |
| Allen bolt m4x12 | ||||
| 049 | 922118-6 | 1.00 | 1.21 | |
| Gear 44 DBN600 | ||||
| 050 | 221584-7 | 2.40 | 2.90 | |
| Crankshaft DBN600 | ||||
| 051 | 144760-5 | 11.00 | 13.31 | |
| Crank rod DBN600 | ||||
| 052 | 310840-1 | 4.80 | 5.81 | |
| Leaf Spring DBN600 | ||||
| 053 | 232408-2 | 3.60 | 4.36 | |
| Carbon brush holder DBN600 | ||||
| 054 | 539233-5 | 6.00 | 7.26 | |
| Motor Housing DBN600 | ||||
| 055 | 183H57-5 | 4.80 | 5.81 | |
| Brush set Cb448 | ||||
| 056 | 196855-0 | 3.60 | 4.36 | |
| Tapping Screw 3x16 | ||||
| 057 | 266130-9 | 1.00 | 1.21 | |
| Armature 18V DBN600 | ||||
| 058 | 619456-2 | 30.80 | 37.27 | |
| Motor Housing DBN600 | ||||
| 059 | 183H57-5 | 4.80 | 5.81 | |
| Magnet holder | ||||
| 060 | 638989-8 | 20.90 | 25.29 | |
| Hex bolt 4x16 | ||||
| 061 | 266437-3 | 1.00 | 1.21 | |
| Drive Eccentric Dbn600 | ||||
| 062 | 126683-9 | 56.10 | 67.88 | |
| Drive Shaft DBN600 | ||||
| 063 | 327030-9 | 19.80 | 23.96 | |
| Washer 22 DBN600 | ||||
| 064 | 267108-5 | 1.20 | 1.45 | |
| Lock washer R-28 | ||||
| 065 | 962106-1 | 1.20 | 1.45 | |
| Plate DBN600 | ||||
| 066 | 347287-6 | 4.80 | 5.81 | |
| Tapping Screw 3x16 | ||||
| 067 | 266130-9 | 1.00 | 1.21 | |
| End plate DBN600 | ||||
| 068 | 347292-3 | 3.60 | 4.36 | |
| Magazine cover DBN600 | ||||
| 069 | 458065-0 | 6.00 | 7.26 | |
| Nail rail DBN600 | ||||
| 070 | 347289-2 | 14.30 | 17.30 | |
| Pressure plate DBN600 | ||||
| 071 | 458072-3 | 3.60 | 4.36 | |
| Button DBN600 | ||||
| 072 | 458073-1 | 2.40 | 2.90 | |
| Compression Spring 9 DBN600 | ||||
| 073 | 232407-4 | 1.00 | 1.21 | |
| Magazine DBN600 | ||||
| 074 | 458066-8 | 17.60 | 21.30 | |
| Self-tapping screw 3x8mm | ||||
| 075 | 266492-5 | 1.00 | 1.21 | |
| Pressure plate DBN600 | ||||
| 076 | 347290-7 | 8.40 | 10.16 | |
| Stopper DBN600 | ||||
| 077 | 347291-5 | 2.40 | 2.90 | |
| Pen 5 | ||||
| 078 | 268225-4 | 1.00 | 1.21 | |
| Return spring | ||||
| 079 | 141005-2 | 11.00 | 13.31 | |
| Strike pen guide DBN600 | ||||
| 080 | 310804-5 | 39.60 | 47.92 | |
| Nose plate DBN600 | ||||
| 081 | 310806-1 | 11.00 | 13.31 | |
| Flat pin 3mm DBN600 | ||||
| 082 | 256378-1 | 2.40 | 2.90 | |
| Guide plate DBN600 | ||||
| 083 | 347294-9 | 2.40 | 2.90 | |
| Washer | ||||
| 084 | 261118-4 | 1.00 | 1.21 | |
| Hexagon bolt 4x12 | ||||
| 085 | 266273-7 | 1.00 | 1.21 | |
| Sleeve 4 | ||||
| 086 | 257754-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 087 | 922243-3 | |||
| Door for nose DBN600 | ||||
| 088 | 310805-3 | 13.20 | 15.97 | |
| Cotter Pin 3-22 A | ||||
| 089 | 258033-1 | 1.00 | 1.21 | |
| Closure DBN600 | ||||
| 090 | 161781-2 | 11.00 | 13.31 | |
| Cover cap DBN600 | ||||
| 091 | 458067-6 | 2.40 | 2.90 | |
| O-Ring 3 blw A | ||||
| 092 | 213A17-2 | 1.20 | 1.45 | |
| Valve rod DBN600 | ||||
| 093 | 135946-2 | 6.00 | 7.26 | |
| Urethane Washer 3 | ||||
| 094 | 262054-7 | 1.20 | 1.45 | |
| Arm DBN600 | ||||
| 095 | 347288-4 | 13.20 | 15.97 | |
| Compression Spring 9 DBN600 | ||||
| 096 | 232406-6 | 1.00 | 1.21 | |
| Stopring E-3 | ||||
| 097 | 961017-7 | 1.00 | 1.21 | |
| Hex nut M8 | ||||
| 098 | 931403-6 | 1.00 | 1.21 | |
| Steel ball 3 | ||||
| 099 | 216019-1 | 1.00 | 1.21 | |
| Pressure Spring 2 | ||||
| 100 | 233491-2 | 1.20 | 1.45 | |
| Adjuster | ||||
| 101 | 452909-6 | 2.40 | 2.90 | |
| Adjusting Rod DBN600 | ||||
| 102 | 327033-3 | 6.00 | 7.26 | |
| Safety Catch DBN600 | ||||
| 103 | 327032-5 | 23.10 | 27.95 | |
| Tapping Screw 3x16 | ||||
| 104 | 266130-9 | 1.00 | 1.21 | |
| Housing set DBN600 | ||||
| 105 | 183J18-7 | 41.80 | 50.58 | |
| Rubber pen 6 | ||||
| 105C10 | 263005-3 | 1.00 | 1.21 | |
| Lock Nut M4x7mm | ||||
| 105C20 | 252126-6 | 1.00 | 1.21 | |
| Hex lock nut 5x8 | ||||
| 105C30 | 252103-8 | 1.20 | 1.45 | |
| Screw 5x28 | ||||
| 106 | 911248-8 | 1.00 | 1.21 | |
| Nameplate DBN600 | ||||
| 107 | 853V44-9 | 3.60 | 4.36 | |
| Flat Washer 23 Hr2010 * | ||||
| 108 | 267148-3 | 1.20 | 1.45 | |
| O-ring set for piston DBN600 | ||||
| 109 | 199165-4 | 7.20 | 8.71 | |
