Here you will find all available parts and drawings of the 'Makita DBC3310'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

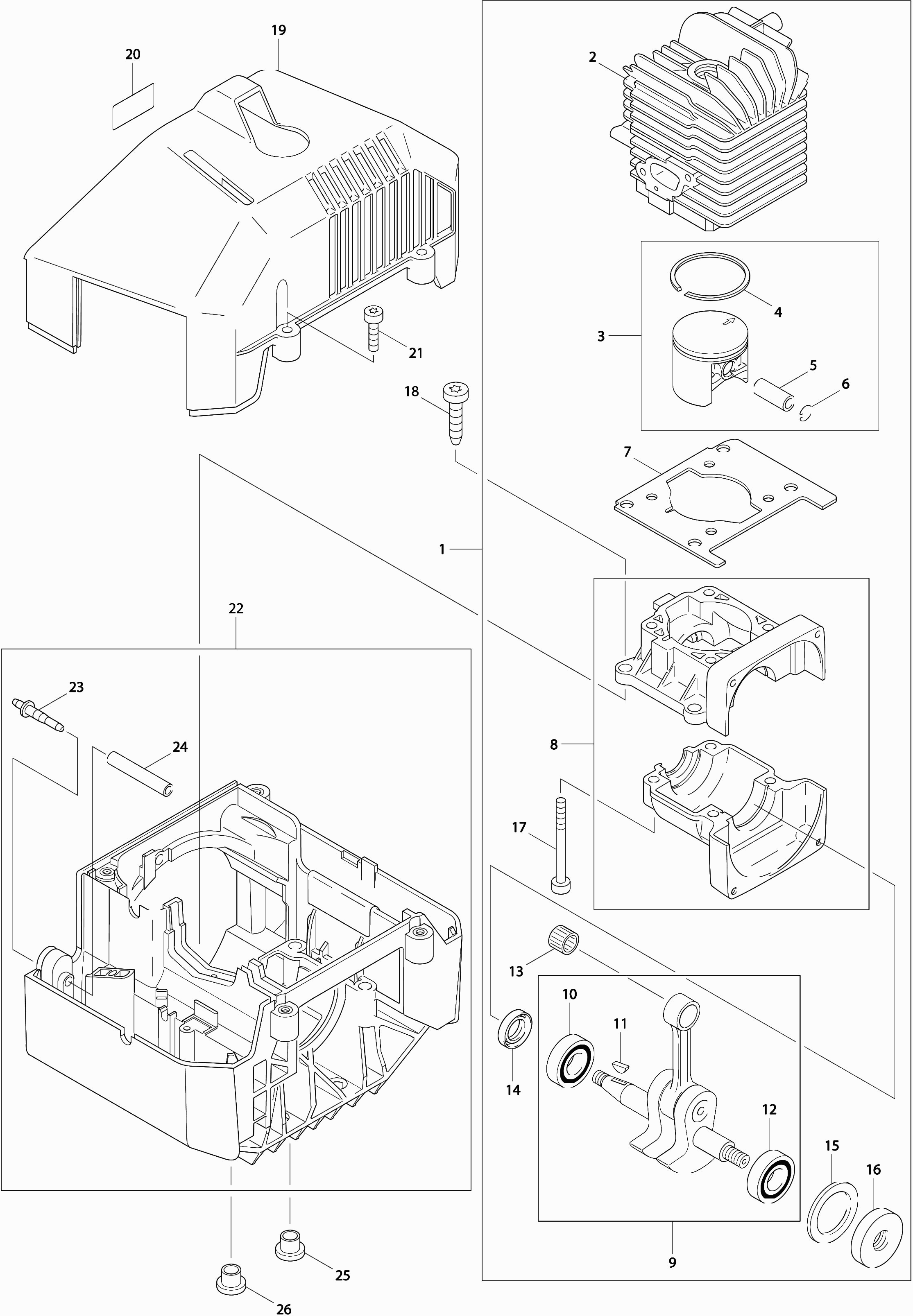

Technical drawing of model Makita DBC3310

Spare parts list of model Makita DBC3310

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
No information available, not orderable
001 384100100
Cylinder D=37
002 384131012 197.37 238.82
Piston 37mm
003 957132384 34.82 42.13
Piston Ring
004 021132030 16.35 19.78
Piston Pin
005 385132030 8.21 9.93
Spring retaining ring
006 385132040 1.67 2.02
Cylinder gasket Dbc3300 A
007 965527010 8.59 10.39
Crankcase set
008 385111102 64.89 78.52
Crank Shaft
009 385120100 194.04 234.79
Ball Bearing 6201
010 211109-5 4.45 5.38
Key 2.0x3.7
011 939620371 1.02 1.23
Ball Bearing 6201
012 211109-5 4.45 5.38
Needle-roller Bearing
013 962211033 7.22 8.74
Seal 12-20x5
014 962900057 5.06 6.12
Ring
015 900006217 1.18 1.43
Keerring
016 962900060 6.38 7.72
No information available, not orderable
017 908505555
Cylinder Screw 6.7x30
018 913467304 0.98 1.19
Cover housing
019 385118613 36.08 43.66
Metal Screw Ck M5x20mm
021 266607-4 0.83 1.00
Motor Housing
022 386110313 72.58 87.82
Nippel A
023 001131020 5.06 6.12
Petrol hose 2,5x5,5mm 100cm
024 965452090 17.38 21.03
Stopper Dbc *
025 965404240 1.39 1.68
Stopper Dbc *
026 965404240 1.39 1.68
Clutch Housing
027 385217000 72.58 87.82
Buffer
028 965403380 5.71 6.91
Clamping ring for clutch
029 965903062 11.34 13.72
Torx screw 6x25
030 908006255 1.18 1.43
Cylinder Screw 6.7x25
031 913467254 0.98 1.19
No information available, not orderable
032 010181000
Spring
033 385184020 2.02 2.44
No information available, not orderable
034 385141012
Washer 8mm EA3201S A
035 267822-3 0.83 1.00
No information available, not orderable
036 264022-6
Ignition Dbc3300-4000 A
037 385143032 68.13 82.44
Plug *
038 965605411 0.98 1.19
Metal Screw Ck M5x20mm
039 266607-4 0.83 1.00
Isolatieleiding 6X0,5X1000MM P
040 970502120 6.38 7.72
Spark plug lead 100cm
041 970310200 6.38 7.72
Spark plug cap incl clamp
042 385147100 9.24 11.18
SPARK PLUG A
043 168517-0 5.06 6.12
Starting device DBC3300
044 385160304 30.70 37.15
Cable
045 387164010 6.41 7.76
No information available, not orderable
046 957404691
Starter repair kit
047 957160385 10.99 13.30
Starter drum
048 385162020 11.34 13.72
Return spring
049 385163100 10.99 13.30
Starter wheel
050 385166040 6.38 7.72
No information available, not orderable
051 264022-6
Metal Screw Ck M5x20mm
052 266607-4 0.83 1.00
Label (Startinr.) Dbc *
053 980114147 9.26 11.20
Muffler
057 957174385 59.21 71.64
Allen Bolt M5X14Mm Pc-6114 A
058 266986-0 0.83 1.00
Gasket
059 965527040 1.39 1.68
No information available, not orderable
060 385174012
Gasket
061 965527030 1.75 2.12
Intermediate Piece
062 385131071 41.77 50.54
Gasket
064 965527020 1.24 1.50
Setting guide
065 385154011 5.06 6.12
Choke Switch
066 028150740 2.48 3.00
Choke Rod Dbc3300-4000
067 385150030 2.36 2.86
Spring Plate Dbc3300-4000
068 385150020 1.67 2.02
Torx Screw 3.5X13 Des300-350-400
069 915135130 1.18 1.43
Nut Ehw120
070 001173060 1.75 2.12
Seal
071 965527060 1.24 1.50
Air filter Dbc3300-4000
072 385173100 10.50 12.70
Air filter cover
073 385118060 22.09 26.73
Screw 5x14
074 266947-0 0.83 1.00
Carburetor
075 957151110 92.95 112.47
No information available, not orderable
076 021151160
Idle Adjusting Screw *
077 001151400 5.06 6.12
Pressure Spring Stat.
078 021151230 3.12 3.78
Screw
079 118151190 2.71 3.28
Membrane set
080 957151010 11.82 14.30
Diaphragm Cover
081 021151120 10.50 12.70
Screw
082 378151220 1.18 1.43
Screw
083 378151220 1.18 1.43
Regulation diaphragm set
084 957151020 11.82 14.30
Throttle valve shaft
085 385151040 12.19 14.75
Spring *
086 371151310 2.71 3.28
Throttle Valve
087 001151680 3.28 3.97
No information available, not orderable
088 118151060
No information available, not orderable
089 118151060
Locking plate Wj-105
090 108151350 2.71 3.28
Choke Handle With Valve Dbc4510
091 385151020 12.22 14.79
Choke Valve
092 001151350 6.38 7.72
Ball *
093 118151170 2.71 3.28
Spring H *
094 118151160 3.12 3.78
Spring
095 021151530 2.71 3.28
Spring L
096 021151480 3.72 4.50
Filter
097 021151180 2.10 2.54
Steering parts set
098 957150040 10.99 13.30
Adjusting Screw H
099 001151420 10.50 12.70
Adjusting Screw L
100 001151410 10.50 12.70
No information available, not orderable
101 385114611
No information available, not orderable
102 957114010
Petrol hose 2,5x5,5mm 100cm
103 965452090 17.38 21.03
Gas cap Dbc340 A
104 010114091 6.38 7.72
Suction Head
105 010114150 12.22 14.79
Gasoline filter
106 963601150 11.84 14.33
Washer
107 928605500 2.10 2.54
No information available, not orderable
108 965452480
Clamping sleeve Dbc3300
109 385310631 6.38 7.72
Screw Dbc3300-4000 *
110 908006305 0.98 1.19
Ring Dbc3300-4000 *
111 924106400 0.83 1.00
No longer available, no replacement
112 931303-0
Plate
113 385365010 8.21 9.93
Buffer
114 965403380 5.71 6.91
Plate
115 385316011 10.67 12.91
No information available, not orderable
116 913467164
Label Dbc3310 *
117 980114671 5.09 6.16
No information available, not orderable
119 385726061
No information available, not orderable
120 385310060
Screw Dbc3300-4000 *
126 915435254 0.83 1.00
Screw 5X30 *
127 908605305 1.18 1.43
Hex nut M5
128 920205000 0.83 1.00
Cable Cleat
129 385176010 2.02 2.44
No information available, not orderable
130 913455204
Passage Ehw120 *
131 965401018 2.38 2.88
No information available, not orderable
132 387311100
Clamping Plates Set *
133 957310610 27.90 33.76
Screw
134 900108555 1.18 1.43
Rivet 8.4mm A
135 924108410 1.39 1.68
Met.screw Ck M5x16mm
136 266605-8 0.98 1.19
Main Pipe
138 010261020 184.34 223.05
REAR BRACKET
139 385228030 43.75 52.94
Label Ms340/400
140 980114628 7.21 8.72
No information available, not orderable
141 980114148
Safety Label
142 980114119 1.99 2.41
Protective Cap "thread spool"
143 010341612 38.00 45.98
Met.screw Ck M5x16mm
144 266605-8 0.98 1.19
Washer (a2)
145 385341070 20.15 24.38
Cutting knife for wire
146 957341010 9.24 11.18
Beschermkap 200mm mes
147 010341630 59.00 71.39
No information available, not orderable
148 908005125
Drive at right angles
149 385200203 300.16 363.19
Blockade set
150 957385272 14.48 17.52
Oil Seal Ring 20x5x35
151 962900055 6.38 7.72
Screw
152 900210104 7.21 8.72
Gasket
153 963604084 2.48 3.00
No information available, not orderable
154 908005125
Hex screw M5x25mm
155 266984-4 0.83 1.00
Ring
156 385228020 14.48 17.52
Rewind Protection
157 385224411 6.70 8.11
Support plate
158 385224012 48.40 58.56
Pressure Plate
159 385224022 30.70 37.15
Safety nut
160 385228041 4.45 5.38
Guide Bowl
161 385218020 11.82 14.30
Cap Reinforcement Dbc300+301 *
163 957341020 9.24 11.18
Bumper Ring
164 385224521 13.82 16.72
No longer available, no replacement
165 385224130
No longer available, no replacement
166 385224171
Transportbescherming slagmes
167 385341411 9.00 10.89
No information available, not orderable
168 370341450
Combisleutel 13-19mm
169 958501633 6.00 7.26
Schroevendraaier carburateur
170 783012-5 3.00 3.63
Torx sleutel T27
171 782025-3 4.00 4.84
No information available, not orderable
172 950004001
No information available, not orderable
173 384260100
No information available, not orderable
175 385260040
Safety pin
176 385260030 2.36 2.86
Shoulder pad (2 pcs)
177 385260050 23.04 27.88
Plastic clamp
178 385260060 12.19 14.75
No information available, not orderable
179 385224500
No longer available, no replacement
180 378224020
No information available, not orderable
181 385224510
No information available, not orderable
182 384224500
Spool for Wire
183 385224570 15.60 18.88
Threaded Fitting
184 385224560 5.06 6.12
Adaptor
185 385224550 14.88 18.00
Draadkop 4x2,4 Man M12x1,50L
186 385224541 44.00 53.24
