Here you will find all available parts and drawings of the 'Makita DBC300'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

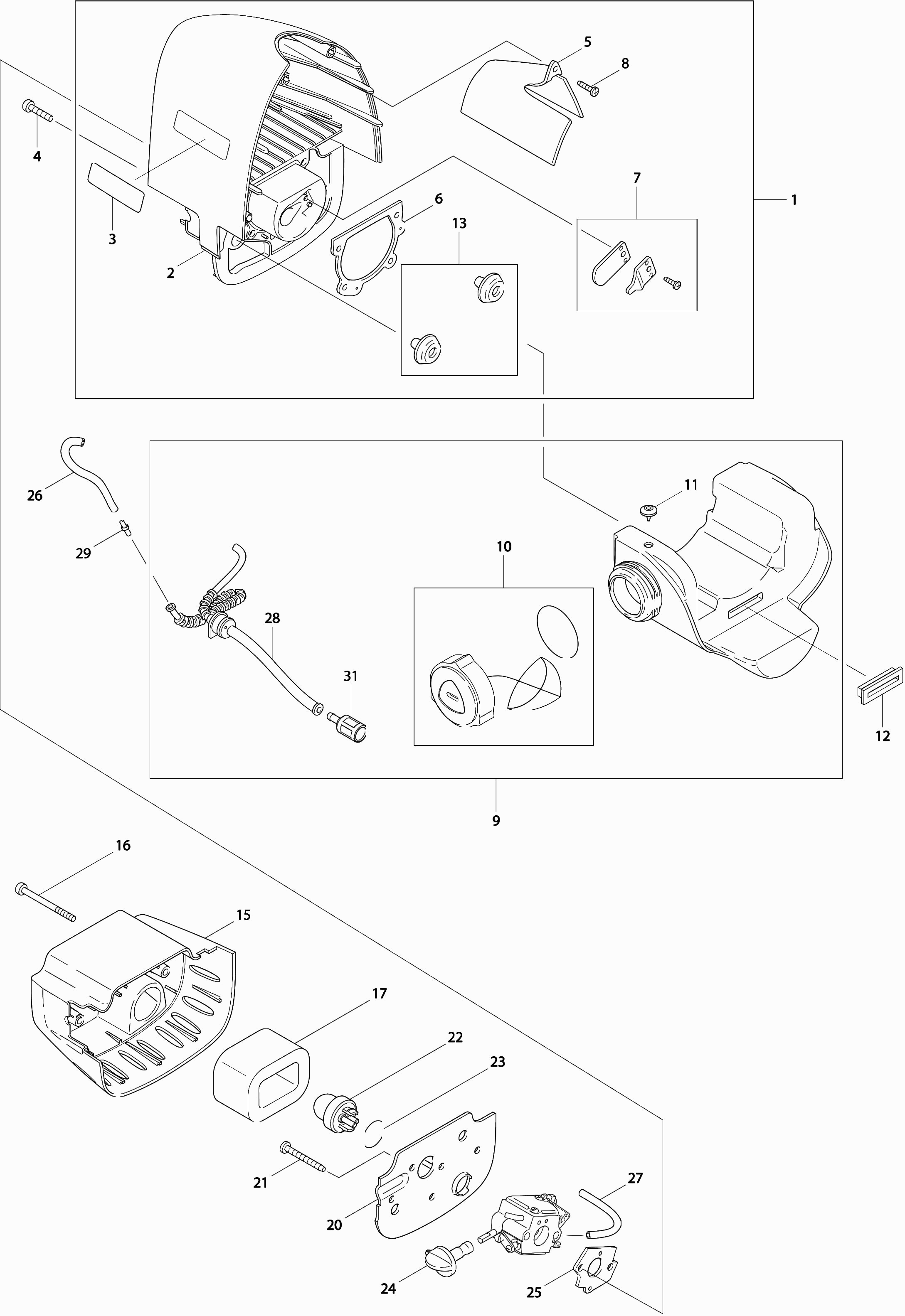

Technical drawing of model Makita DBC300
Spare parts list of model Makita DBC300
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Cover Cap Dst300 * | ||||
| 001 | 369118602 | 36.30 | 43.92 | |
| Sticker Dst Etc * | ||||
| 003 | 980114296 | 1.20 | 1.45 | |
| Screw 5x25 | ||||
| 004 | 913205255 | 1.20 | 1.45 | |
| Heat Shield Dst Etc | ||||
| 005 | 369118041 | 8.40 | 10.16 | |
| Gasket | ||||
| 006 | 965527100 | 2.40 | 2.90 | |
| Dbc300 Series Membrane * | ||||
| 007 | 957179010 | 6.00 | 7.26 | |
| Screw 4X18 | ||||
| 008 | 913540185 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 009 | 369114300 | |||
| No information available, not orderable | ||||
| 010 | 010114049 | |||
| Vent Valve | ||||
| 011 | 965404222 | 6.00 | 7.26 | |
| Rubber Buffer (1) | ||||
| 012 | 965404941 | 3.60 | 4.36 | |
| Nippel A | ||||
| 013 | 001131020 | 6.00 | 7.26 | |
| No longer available, no replacement | ||||
| 015 | 369118321 | |||
| Screw 5X60 * | ||||
| 016 | 904905605 | 1.20 | 1.45 | |
| Air Filter Element | ||||
| 017 | 369173050 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 020 | 369173030 | |||
| Screw 5x25 | ||||
| 021 | 913205255 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 022 | 369155010 | |||
| O Ring 25X2 * | ||||
| 023 | 963225020 | 1.20 | 1.45 | |
| Choke Handle | ||||
| 024 | 369155020 | 4.80 | 5.81 | |
| Gasket series | ||||
| 025 | 965527110 | 1.20 | 1.45 | |
| Petrol hose 2,5x5,5mm 100cm | ||||
| 026 | 965452090 | 17.38 | 21.03 | |
| Petrol hose 2,5x5,5mm 100cm | ||||
| 027 | 965452090 | 17.38 | 21.03 | |
| No information available, not orderable | ||||
| 028 | 369114220 | |||
| No information available, not orderable | ||||
| 029 | 001131030 | |||
| No information available, not orderable | ||||
| 031 | 963601380 | |||
| Cylinder Dbc300+301+Dst300 * | ||||
| 032 | 369131100 | 124.30 | 150.40 | |
| Piston | ||||
| 033 | 369132021 | 78.10 | 94.50 | |
| Piston Ring | ||||
| 034 | 021132030 | 16.50 | 19.96 | |
| Screw 5x25 | ||||
| 035 | 913205255 | 1.20 | 1.45 | |
| Cylinder gasket Dst300 * | ||||
| 036 | 965527081 | 8.40 | 10.16 | |
| Krukashuis Dst300 Mod.Set * | ||||
| 037 | 369111040 | 72.60 | 87.85 | |
| No longer available, no replacement | ||||
| 038 | 939615260 | |||
| Spring plate Dst 300 series * | ||||
| 039 | 928025005 | 1.20 | 1.45 | |
| Ignition+flywheel | ||||
| 040 | 369140010 | 72.60 | 87.85 | |
| No information available, not orderable | ||||
| 041 | 369143010 | |||
| No information available, not orderable | ||||
| 042 | 913204255 | |||
| SPARK PLUG A | ||||
| 043 | 168517-0 | 6.00 | 7.26 | |
| Short-circuit cable Dst300 Series * | ||||
| 044 | 970311450 | 3.60 | 4.36 | |
| Plug * | ||||
| 045 | 965605411 | 1.20 | 1.45 | |
| Distance Bus Dst300 Series * | ||||
| 046 | 369129010 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 047 | 369160608 | |||
| No information available, not orderable | ||||
| 048 | 369118072 | |||
| No information available, not orderable | ||||
| 049 | 965404710 | |||
| Starter cord * | ||||
| 050 | 985000150 | 71.50 | 86.52 | |
| Cord Drum+Spring Complete | ||||
| 051 | 369162201 | 11.34 | 13.72 | |
| Cord Drum+Spring Complete | ||||
| 052 | 369162201 | 11.34 | 13.72 | |
| Lining With Screws Dst300 Series* | ||||
| 053 | 369162050 | 4.80 | 5.81 | |
| Screw 4X18 | ||||
| 054 | 913540185 | 1.00 | 1.21 | |
| Screw 5x25 | ||||
| 055 | 913205255 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 056 | 369188010 | |||
| Clutch Lamella Dst300 * | ||||
| 057 | 369180210 | 34.10 | 41.26 | |
| Clutch Drum | ||||
| 058 | 369223102 | 28.60 | 34.61 | |
| Clutch Housing Dst300/301 * | ||||
| 059 | 369217614 | 16.50 | 19.96 | |
| Screw 6X25 * | ||||
| 060 | 913660254 | 1.20 | 1.45 | |
| Clamp ring Dst300 series * | ||||
| 061 | 965903080 | 6.00 | 7.26 | |
| Torx screw 6x25 | ||||
| 062 | 908006255 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 064 | 369153003 | |||
| Carburetor Overhaul Kit Dst300 | ||||
| 065 | 010153100 | 30.80 | 37.27 | |
| Filter Dst300 Series | ||||
| 066 | 001153180 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 067 | 001153010 | |||
| Membrane Set Dst300 Series | ||||
| 068 | 010153010 | 16.50 | 19.96 | |
| No information available, not orderable | ||||
| 069 | 001153190 | |||
| Screw Pm45 | ||||
| 070 | 001153020 | 2.40 | 2.90 | |
| Throttle | ||||
| 071 | 369311106 | 69.30 | 83.85 | |
| Throttle | ||||
| 072 | 369311106 | 69.30 | 83.85 | |
| Throttle | ||||
| 073 | 369311106 | 69.30 | 83.85 | |
| No information available, not orderable | ||||
| 074 | 369311043 | |||
| Gas Spring | ||||
| 075 | 369311071 | 2.40 | 2.90 | |
| Short circuit switch | ||||
| 076 | 975001241 | 6.00 | 7.26 | |
| Screw 3,5x10 | ||||
| 077 | 915735100 | 1.20 | 1.45 | |
| Screw 3,5x10 | ||||
| 078 | 915735100 | 1.20 | 1.45 | |
| Clamp ring Dst300 series * | ||||
| 079 | 965903080 | 6.00 | 7.26 | |
| Torx screw 6x25 | ||||
| 080 | 908006255 | 1.20 | 1.45 | |
| Throttle | ||||
| 081 | 369311106 | 69.30 | 83.85 | |
| Cord Clamp | ||||
| 082 | 980600100 | 1.20 | 1.45 | |
| Cord Clamp | ||||
| 083 | 980600100 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 084 | 387311100 | |||
| No information available, not orderable | ||||
| 085 | 369310051 | |||
| No information available, not orderable | ||||
| 086 | 387310030 | |||
| Clamp block holder Dbc300 * | ||||
| 087 | 369310020 | 17.60 | 21.30 | |
| Dbc Clamp Block * | ||||
| 088 | 010310030 | 11.00 | 13.31 | |
| Screw 5x25 | ||||
| 089 | 913205255 | 1.20 | 1.45 | |
| Screw 5x25 | ||||
| 090 | 913205255 | 1.20 | 1.45 | |
| Steel Dbc300/301 with Shaft | ||||
| 091 | 010261040 | 69.30 | 83.85 | |
| No information available, not orderable | ||||
| 092 | 369228141 | |||
| Safety label for brushcutters * | ||||
| 093 | 980114484 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 094 | 980114148 | |||
| No information available, not orderable | ||||
| 095 | 369260300 | |||
| Belt clamp bracket | ||||
| 096 | 957260010 | 9.60 | 11.62 | |
| Hex nut M5 | ||||
| 097 | 920205000 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 098 | 908005125 | |||
| No information available, not orderable | ||||
| 099 | 010341202 | |||
| Cutting knife for wire | ||||
| 100 | 957341010 | 9.60 | 11.62 | |
| Cap Reinforcement Dbc300+301 * | ||||
| 101 | 957341020 | 9.60 | 11.62 | |
| Washer (a2) | ||||
| 102 | 385341070 | 20.90 | 25.29 | |
| Torx Screw M5X9 Pc-6114 A | ||||
| 103 | 266474-7 | 1.00 | 1.21 | |
| Flange Plate | ||||
| 104 | 387341031 | 11.00 | 13.31 | |
| Hex screw M5x25mm | ||||
| 105 | 266984-4 | 1.00 | 1.21 | |
| Gear Set Complete | ||||
| 106 | 369200201 | 93.50 | 113.14 | |
| Torx Screw M5X9 Pc-6114 A | ||||
| 107 | 266474-7 | 1.00 | 1.21 | |
| Bolt M8X10 * | ||||
| 108 | 900208104 | 7.20 | 8.71 | |
| Sealing ring 7603 * | ||||
| 109 | 963604306 | 2.40 | 2.90 | |
| Mounting Disc Uh7020 | ||||
| 110 | 387224011 | 16.50 | 19.96 | |
| Pressure Plate | ||||
| 111 | 387224021 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 112 | 387228040 | |||
| Spacer bush | ||||
| 113 | 387228020 | 9.60 | 11.62 | |
| Protective Washer * | ||||
| 114 | 387224050 | 8.40 | 10.16 | |
| Torx Screw M5X9 Pc-6114 A | ||||
| 115 | 266474-7 | 1.00 | 1.21 | |
