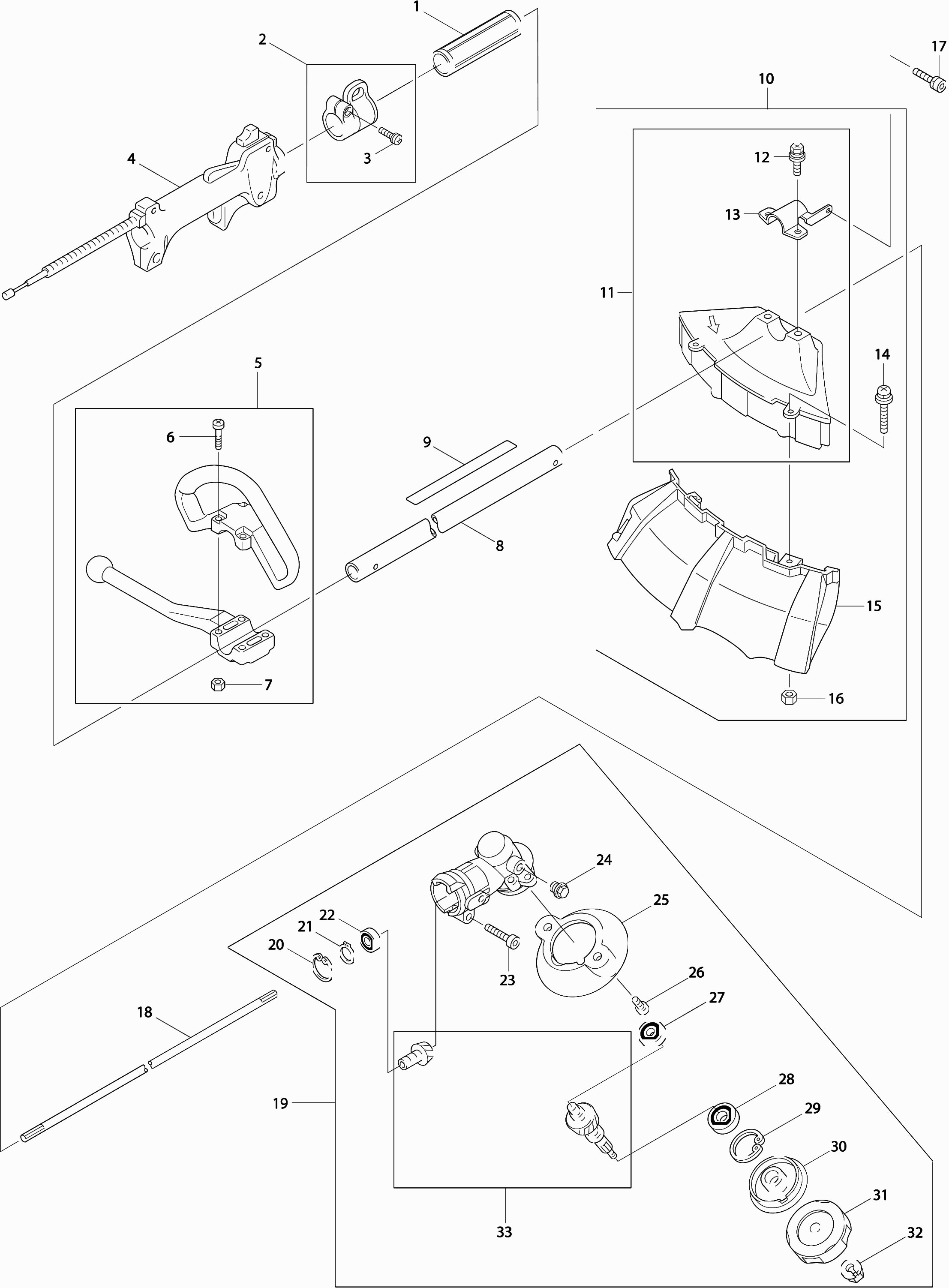

Technical drawing of model Makita DBC260L
Spare parts list of model Makita DBC260L
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spacer | ||||
| 001 | 450659-7 | 3.60 | 4.36 | |
| Carry Hook | ||||
| 002 | 126378-4 | 3.00 | 3.63 | |
| Screw | ||||
| 003 | 266788-4 | 1.00 | 1.21 | |
| Control handle | ||||
| 004 | 6255070000 | 39.60 | 47.92 | |
| No information available, not orderable | ||||
| 005 | 6214016000 | |||
| No information available, not orderable | ||||
| 006 | 6214016030 | |||
| No information available, not orderable | ||||
| 007 | 264093-3 | |||
| Pipe | ||||
| 008 | 6251056000 | 30.80 | 37.27 | |
| No information available, not orderable | ||||
| 009 | 6259549600 | |||
| No information available, not orderable | ||||
| 010 | 6258064000 | |||
| No information available, not orderable | ||||
| 011 | 6258065000 | |||
| No information available, not orderable | ||||
| 012 | 266575-1 | |||
| Clamp, protector- | ||||
| 013 | 6258509400 | 4.80 | 5.81 | |
| Screw Ms22C/U | ||||
| 014 | 0140059380 | 1.20 | 1.45 | |
| Protective cap edge blade drdk | ||||
| 015 | 140424-9 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 016 | 0021805000 | |||
| Screw 5X14 P | ||||
| 017 | 0043605140 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 018 | 6191500401 | |||
| Gearbox Housing A | ||||
| 019 | 123820-6 | 36.30 | 43.92 | |
| Seeger Ring R24 | ||||
| 020 | 962113-4 | 1.00 | 1.21 | |
| Lock washer A | ||||
| 021 | 257986-1 | 3.60 | 4.36 | |
| Ball Bearing 609zz | ||||
| 022 | 210049-4 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 023 | 266805-0 | |||
| Oil Bolt Em4250 A | ||||
| 024 | 265578-2 | 2.40 | 2.90 | |
| Protective Washer | ||||
| 025 | 450653-9 | 2.40 | 2.90 | |
| Screw 5x12 | ||||
| 026 | 911213-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 027 | 0600069990 | |||
| Ball bearing 6000ddu | ||||
| 028 | 210020-8 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 029 | 0031426000 | |||
| No information available, not orderable | ||||
| 030 | 6218501601 | |||
| Tension ring Rbc230-260 A | ||||
| 031 | 168797-8 | 3.60 | 4.36 | |
| Nut Em4250 A | ||||
| 032 | 264018-7 | 1.20 | 1.45 | |
| Transmission M8 | ||||
| 033 | 195350-7 | 35.20 | 42.59 | |
| Control handle | ||||
| 034 | 6255070000 | 39.60 | 47.92 | |
| Screw 4x20 | ||||
| 035 | 6195006060 | 1.20 | 1.45 | |
| Hex Bolt 5X20 Rpt250 P | ||||
| 036 | 0119059720 | 1.20 | 1.45 | |
| Cable Set | ||||
| 037 | 6255070010 | 26.40 | 31.94 | |
| No information available, not orderable | ||||
| 038 | 6255070020 | |||
| Lever | ||||
| 039 | 6195006030 | 9.60 | 11.62 | |
| Spring | ||||
| 040 | 6195006050 | 2.40 | 2.90 | |
| Handle Ms3202 A | ||||
| 041 | 452278-5 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 042 | 6415011160 | |||
| Cover cap | ||||
| 043 | 6195006150 | 2.40 | 2.90 | |
| Inlet Manifold Gasket | ||||
| 044 | 413157-2 | 1.20 | 1.45 | |
| Insulation plate, carburetor- | ||||
| 045 | S135173092 | 3.60 | 4.36 | |
| Inlet Manifold Gasket | ||||
| 046 | S135993842 | 1.20 | 1.45 | |
| Metal Screw Ck M5x25mm | ||||
| 047 | 266749-4 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 048 | 141700-4 | |||
| Insulator | ||||
| 049 | S199513670 | 9.60 | 11.62 | |
| Gasket, insulator- | ||||
| 050 | S135994490 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 051 | 0119059630 | |||
| No information available, not orderable | ||||
| 052 | 424491-5 | |||
| SPARK PLUG A | ||||
| 053 | 168517-0 | 6.00 | 7.26 | |
| Cylinder | ||||
| 054 | S110213770 | 30.80 | 37.27 | |
| Exhaust Gasket | ||||
| 055 | 5263501200 | 3.60 | 4.36 | |
| Muffler | ||||
| 056 | S135043271 | 93.50 | 113.14 | |
| Bolt | ||||
| 057 | 266754-1 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 058 | S199513451 | |||
| Exhaust Cap | ||||
| 059 | 450399-7 | 7.20 | 8.71 | |
| Lid, cylinder- | ||||
| 060 | 450397-1 | 11.00 | 13.31 | |
| Screw | ||||
| 061 | 266788-4 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 062 | 0736309870 | |||
| Spark plug cap | ||||
| 063 | 424079-1 | 2.40 | 2.90 | |
| Bougieveer Ebh253U A | ||||
| 064 | 324891-8 | 1.20 | 1.45 | |
| Hexagon socket screw M4x20 Ck | ||||
| 065 | 922138-0 | 1.00 | 1.21 | |
| Ignition | ||||
| 066 | S150053510 | 30.80 | 37.27 | |
| Complete cable | ||||
| 067 | S185603500 | 3.60 | 4.36 | |
| Startinrichting | ||||
| 068 | 5265009000 | 29.70 | 35.94 | |
| Stopper | ||||
| 069 | 5315001030 | 2.40 | 2.90 | |
| Starter Handle Ms335.4U A | ||||
| 070 | 424317-1 | 3.60 | 4.36 | |
| Starter Spring | ||||
| 071 | 232258-5 | 6.00 | 7.26 | |
| Reel | ||||
| 072 | 5265007030 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 073 | 5265007050 | |||
| Cam disc | ||||
| 074 | 5265007040 | 3.60 | 4.36 | |
| Screw set | ||||
| 075 | 5195002060 | 2.40 | 2.90 | |
| Pulley | ||||
| 076 | 5195018000 | 7.20 | 8.71 | |
| Start Cord | ||||
| 077 | 5265007110 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 079 | 0140059330 | |||
| Seal, cylinder- | ||||
| 080 | S110993460 | 2.40 | 2.90 | |
| Piston Ring | ||||
| 081 | 257334-4 | 3.60 | 4.36 | |
| Piston | ||||
| 082 | 318858-6 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 083 | S115323041 | |||
| No information available, not orderable | ||||
| 084 | S198343210 | |||
| Needle roller bearing | ||||
| 085 | S042709008 | 6.00 | 7.26 | |
| Crank Shaft | ||||
| 086 | 5262004000 | 82.50 | 99.82 | |
| Magneto Rotor Comp. | ||||
| 087 | S150103600 | 19.80 | 23.96 | |
| Nut | ||||
| 088 | S020109107 | 1.20 | 1.45 | |
| Ring | ||||
| 089 | 5928500300 | 1.20 | 1.45 | |
| Clutch shoe | ||||
| 090 | 5928500000 | 10.80 | 13.07 | |
| Spring | ||||
| 091 | 5928500600 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 092 | 0200089911 | |||
| Clutch Screw | ||||
| 093 | 5928500400 | 3.60 | 4.36 | |
| Clutch Drum | ||||
| 094 | 6252022000 | 23.10 | 27.95 | |
| Clutch housing | ||||
| 095 | 450395-5 | 56.10 | 67.88 | |
| No information available, not orderable | ||||
| 096 | 0119059630 | |||
| Outer Lock Ring Rbc260-310-Rbk | ||||
| 097 | 0031512000 | 1.00 | 1.21 | |
| Damping rubber | ||||
| 098 | 424123-4 | 2.40 | 2.90 | |
| Holder, pipe | ||||
| 099 | 318249-1 | 3.60 | 4.36 | |
| Damping rubber | ||||
| 100 | 424082-2 | 2.40 | 2.90 | |
| Bolt 5X12 A | ||||
| 101 | 0119059900 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 102 | 0119059630 | |||
| Holder, pipe | ||||
| 103 | 318250-6 | 3.60 | 4.36 | |
| Damping rubber | ||||
| 104 | 424083-0 | 2.40 | 2.90 | |
| Stand | ||||
| 105 | 345882-6 | 3.60 | 4.36 | |
| Screw 4x12 | ||||
| 106 | 265C54-4 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 107 | 0851209981 | |||
| Hose clamp IAS 3 | ||||
| 108 | 345920-4 | 1.00 | 1.21 | |
| Fuel filter | ||||
| 109 | 163447-0 | 11.00 | 13.31 | |
| Damping rubber | ||||
| 110 | 424080-6 | 1.20 | 1.45 | |
| FUEL TANK | ||||
| 111 | 450400-8 | 15.40 | 18.63 | |
| Damping rubber | ||||
| 112 | 424081-4 | 1.20 | 1.45 | |
| Fuel Cap Dbc260L/U/Ms26C/U | ||||
| 113 | 5266008001 | 44.00 | 53.24 | |
| No information available, not orderable | ||||
| 114 | 5266010000 | |||
| Petrol/Oil cap cpl | ||||
| 115 | 168668-9 | 24.20 | 29.28 | |
| Crankcase | ||||
| 116 | 5261003000 | 126.50 | 153.06 | |
| Bolt M5x30mm | ||||
| 117 | 922253-0 | 1.20 | 1.45 | |
| Oil seal | ||||
| 118 | S050209070 | 2.40 | 2.90 | |
| Ball Bearing 6201 | ||||
| 119 | 211109-5 | 4.80 | 5.81 | |
| Crankcase Gasket | ||||
| 120 | S110993450 | 1.20 | 1.45 | |
| Seal Ring 12mm | ||||
| 121 | 213682-1 | 2.40 | 2.90 | |
| Carburetor Dbc260 | ||||
| 122 | 5266009000 | 51.70 | 62.56 | |
| Swivel element | ||||
| 123 | 5246001210 | 7.20 | 8.71 | |
| Rivet for adjusting needle | ||||
| 124 | 5426005030 | 2.40 | 2.90 | |
| Screw | ||||
| 125 | 5266009020 | 1.20 | 1.45 | |
| CABLE SUPPORT | ||||
| 126 | 5266009030 | 9.60 | 11.62 | |
| Seegering E-3 A | ||||
| 127 | 257964-1 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 128 | 5926002040 | |||
| Pump diaphragm | ||||
| 129 | WJ00009599 | 3.96 | 4.79 | |
| Pump Housing | ||||
| 130 | 5266002010 | 99.00 | 119.79 | |
| No information available, not orderable | ||||
| 131 | 352010-6 | |||
| Diaphragm Gasket | ||||
| 132 | 442154-1 | 7.20 | 8.71 | |
| Diaphragm | ||||
| 133 | 168620-7 | 38.50 | 46.58 | |
| No information available, not orderable | ||||
| 134 | 5236046060 | |||
| Booster pump | ||||
| 135 | 424314-7 | 11.00 | 13.31 | |
| Pump cover Ebh253U A | ||||
| 136 | 346270-0 | 7.20 | 8.71 | |
| Parker 3X24Mm Ck A | ||||
| 137 | 266582-4 | 3.60 | 4.36 | |
| Plate for air filter | ||||
| 138 | 5263005000 | 6.00 | 7.26 | |
| Gasket, carburetor | ||||
| 139 | 413158-0 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 140 | 5013502400 | |||
| No information available, not orderable | ||||
| 141 | 5263501300 | |||
| No information available, not orderable | ||||
| 142 | 0043105603 | |||
| Cover for air filter | ||||
| 143 | 450403-2 | 2.40 | 2.90 | |
| Screw | ||||
| 144 | 266788-4 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 145 | 6197004000 | |||
| No information available, not orderable | ||||
| 146 | 6218020001 | |||
| No information available, not orderable | ||||
| 147 | 6119019001 | |||
| No information available, not orderable | ||||
| 148 | 783223-2 | |||
