Here you will find all available parts and drawings of the 'Makita DA332D'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

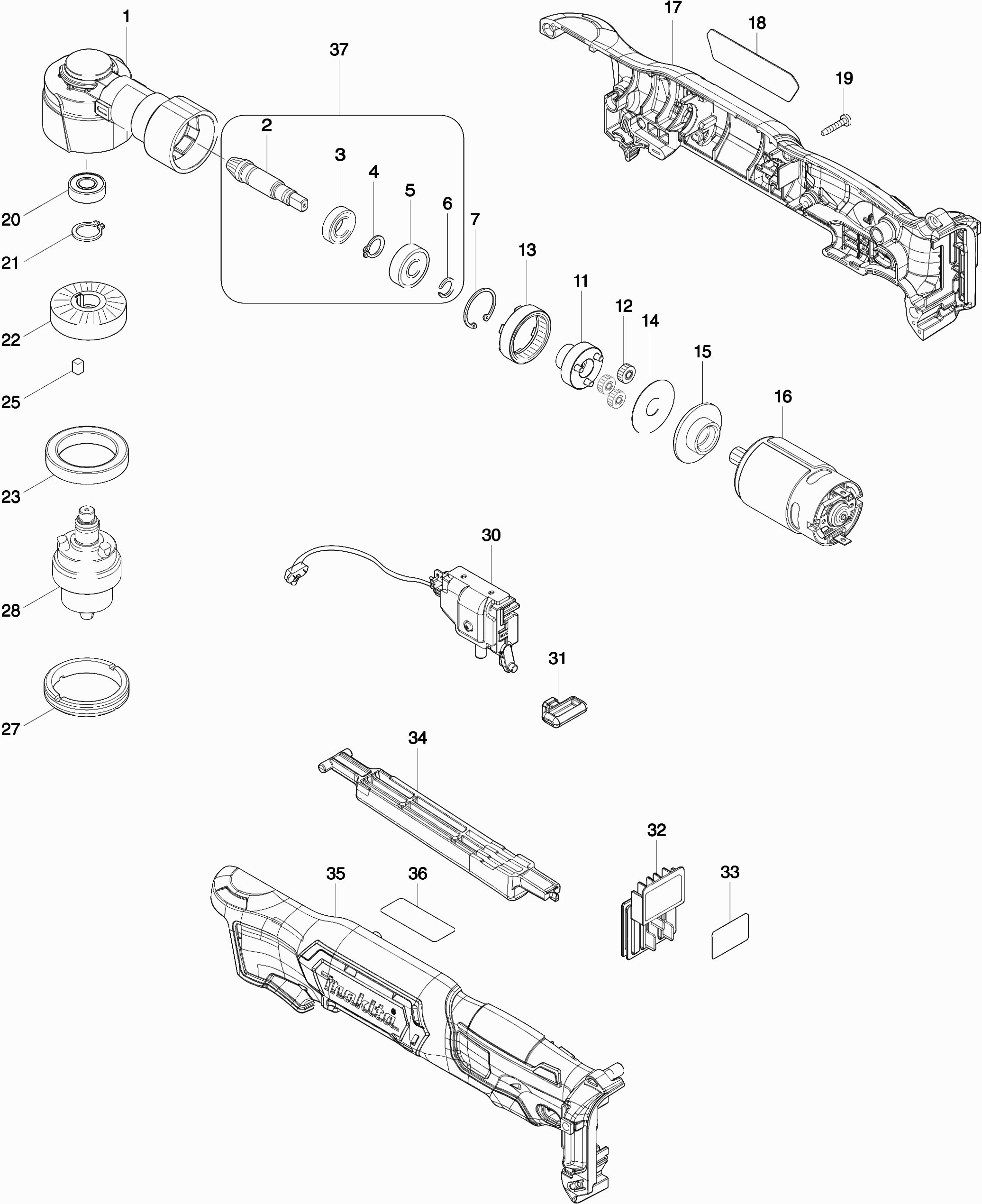

Technical drawing of model Makita DA332D
Spare parts list of model Makita DA332D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Gearbox Da341D | ||||
| 001 | 319634-1 | 14.30 | 17.30 | |
| Gear 6 DA332D P | ||||
| 002 | 221570-8 | 13.20 | 15.97 | |
| Ball Bearing 6800llb | ||||
| 003 | 210076-1 | 8.40 | 10.16 | |
| Locking Ring S-10 | ||||
| 004 | 257408-1 | 1.20 | 1.45 | |
| Ball Bearing 608Zz A | ||||
| 005 | 210046-0 | 1.20 | 1.45 | |
| Spring retaining ring | ||||
| 006 | 961034-7 | 1.00 | 1.21 | |
| Lock Ring R-22 | ||||
| 007 | 962102-9 | 1.00 | 1.21 | |
| Complete Gear Carrier Da334D | ||||
| 011 | 144701-1 | 4.80 | 5.81 | |
| Gear 17 Da339D | ||||
| 012 | 221572-4 | 1.00 | 1.21 | |
| Internal Gear 48 Da336D | ||||
| 013 | 221569-3 | 2.40 | 2.90 | |
| Washer 10 Da340D | ||||
| 014 | 253396-0 | 1.00 | 1.21 | |
| Motor support Da342D | ||||
| 015 | 457972-4 | 2.40 | 2.90 | |
| Dc Motor Da332/333 | ||||
| 016 | 629291-0 | 14.30 | 17.30 | |
| Motorhuisset Da346D | ||||
| 017 | 183H38-9 | 16.50 | 19.96 | |
| Lock Nut M4x7mm | ||||
| 017C10 | 252126-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 018 | 853T57-8 | |||
| Tapping Screw 3x16 | ||||
| 019 | 266130-9 | 1.00 | 1.21 | |
| Ball Bearing 698Ddw | ||||
| 020 | 211166-3 | 1.20 | 1.45 | |
| Lock washer S-12 | ||||
| 021 | 961052-5 | 1.00 | 1.21 | |
| Gear 31 | ||||
| 022 | 227601-1 | 10.80 | 13.07 | |
| Ball bearing 6806ddw | ||||
| 023 | 211423-9 | 4.80 | 5.81 | |
| Feather Key 4 | ||||
| 025 | 254201-4 | 1.00 | 1.21 | |
| Bearing lock ring 36-43 | ||||
| 027 | 285842-5 | 3.60 | 4.36 | |
| Drill chuck S10 Da345D | ||||
| 028 | 763245-8 | 30.80 | 37.27 | |
| Switch Da344D | ||||
| 030 | 651097-8 | 36.30 | 43.92 | |
| L/r Switch head | ||||
| 031 | 450126-2 | 2.40 | 2.90 | |
| Connection unit | ||||
| 032 | 644813-5 | 2.40 | 2.90 | |
| Serial number label Da332D | ||||
| 033 | 853T61-7 | 2.40 | 2.90 | |
| Switch handle Da343D | ||||
| 034 | 457973-2 | 2.40 | 2.90 | |
| Motorhuisset Da346D | ||||
| 035 | 183H38-9 | 16.50 | 19.96 | |
| Lock Nut M4x7mm | ||||
| 035 | 252126-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 037 | 135922-6 | |||
| Thin Washer 10 | ||||
| 038 | 253310-6 | 1.00 | 1.21 | |
