Here you will find all available parts and drawings of the 'Makita DA330DWJ'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

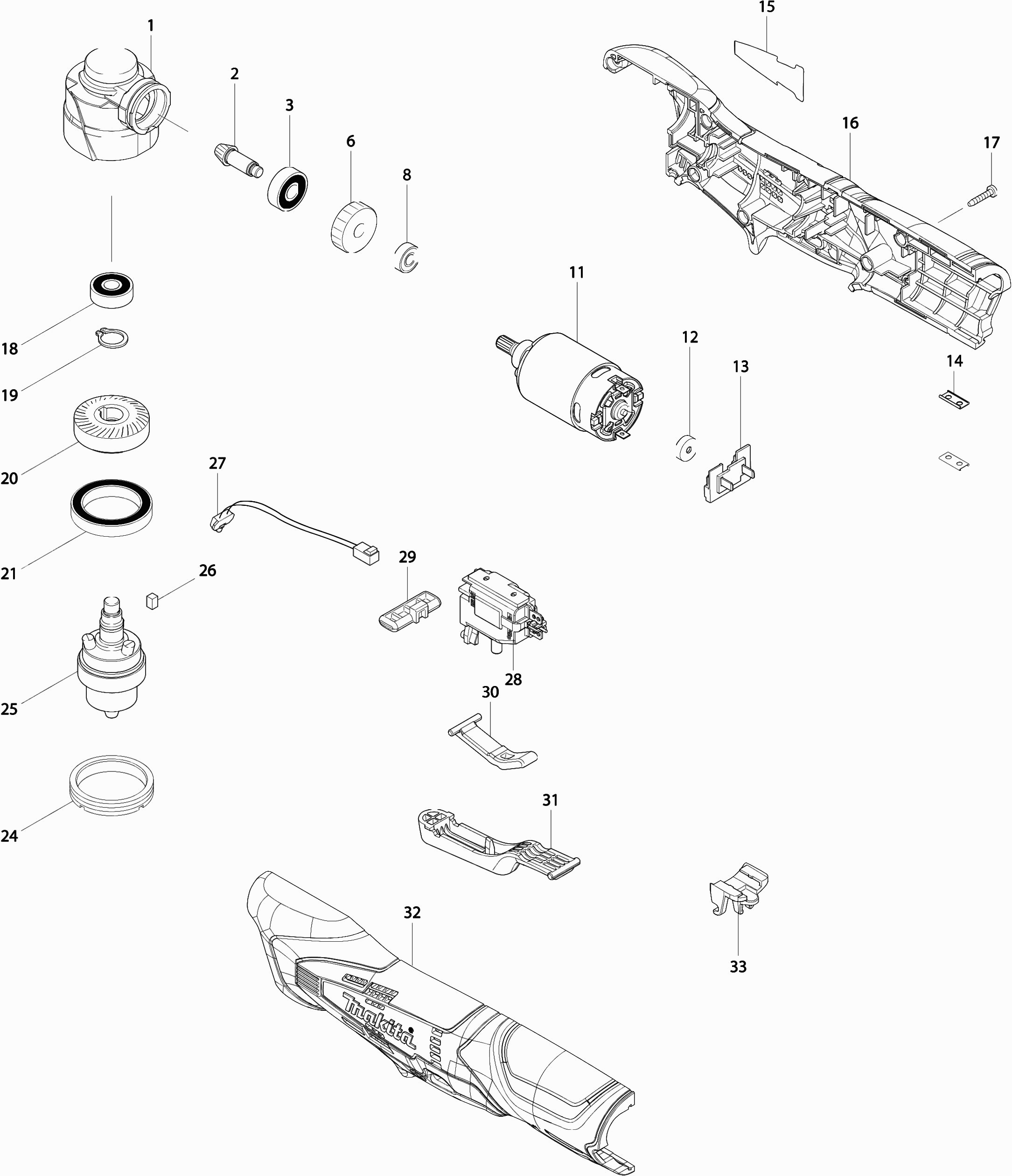

Technical drawing of model Makita DA330DWJ
Spare parts list of model Makita DA330DWJ
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Gear Cover | ||||
| 001 | 318933-8 | 9.60 | 11.62 | |
| Gear 6 | ||||
| 002 | 227600-3 | 6.00 | 7.26 | |
| Ball Bearing 608Zz A | ||||
| 003 | 210046-0 | 1.20 | 1.45 | |
| Gear 42 | ||||
| 006 | 227328-3 | 4.80 | 5.81 | |
| Ball bearing 696ZZ A | ||||
| 008 | 210026-6 | 2.40 | 2.90 | |
| Dc Motor 10.8v | ||||
| 011 | 629978-4 | 26.55 | 32.13 | |
| Baffle | ||||
| 012 | 424529-6 | 1.00 | 1.21 | |
| Motor connection | ||||
| 013 | 643830-2 | 1.20 | 1.45 | |
| Clamp Plate Set | ||||
| 014 | 345998-7 | 1.00 | 1.21 | |
| Label | ||||
| 015 | 814B93-1 | 3.60 | 4.36 | |
| Motor Housing | ||||
| 016 | 187528-6 | 11.00 | 13.31 | |
| Tapping Screw 3x16 | ||||
| 017 | 266130-9 | 1.00 | 1.21 | |
| Ball Bearing 608Zz A | ||||
| 018 | 210046-0 | 1.20 | 1.45 | |
| Lock washer S-12 | ||||
| 019 | 961052-5 | 1.00 | 1.21 | |
| Gear 31 | ||||
| 020 | 227601-1 | 10.80 | 13.07 | |
| Ball bearing 6806ddw | ||||
| 021 | 211423-9 | 4.80 | 5.81 | |
| Bearing lock ring 36-43 | ||||
| 024 | 285842-5 | 3.60 | 4.36 | |
| BOORKOP TANDKRANS 1-10MM | ||||
| 025 | 766018-8 | 23.00 | 27.83 | |
| Feather Key 4 | ||||
| 026 | 254201-4 | 1.00 | 1.21 | |
| Light circuit | ||||
| 027 | 620177-1 | 6.00 | 7.26 | |
| Switch | ||||
| 028 | 650666-2 | 30.80 | 37.27 | |
| F/r switch button | ||||
| 029 | 450610-7 | 2.40 | 2.90 | |
| Sponge rubber seal | ||||
| 029A | 424248-4 | 1.00 | 1.21 | |
| Connection Plate | ||||
| 030 | 454100-2 | 1.00 | 1.21 | |
| Switch handle | ||||
| 031 | 454102-8 | 1.20 | 1.45 | |
| Motor Housing | ||||
| 032 | 187528-6 | 11.00 | 13.31 | |
| Drill chuck key holder | ||||
| 033 | 454099-1 | 1.20 | 1.45 | |
| Sponge rubber seal | ||||
| 034 | 424248-4 | 1.00 | 1.21 | |
