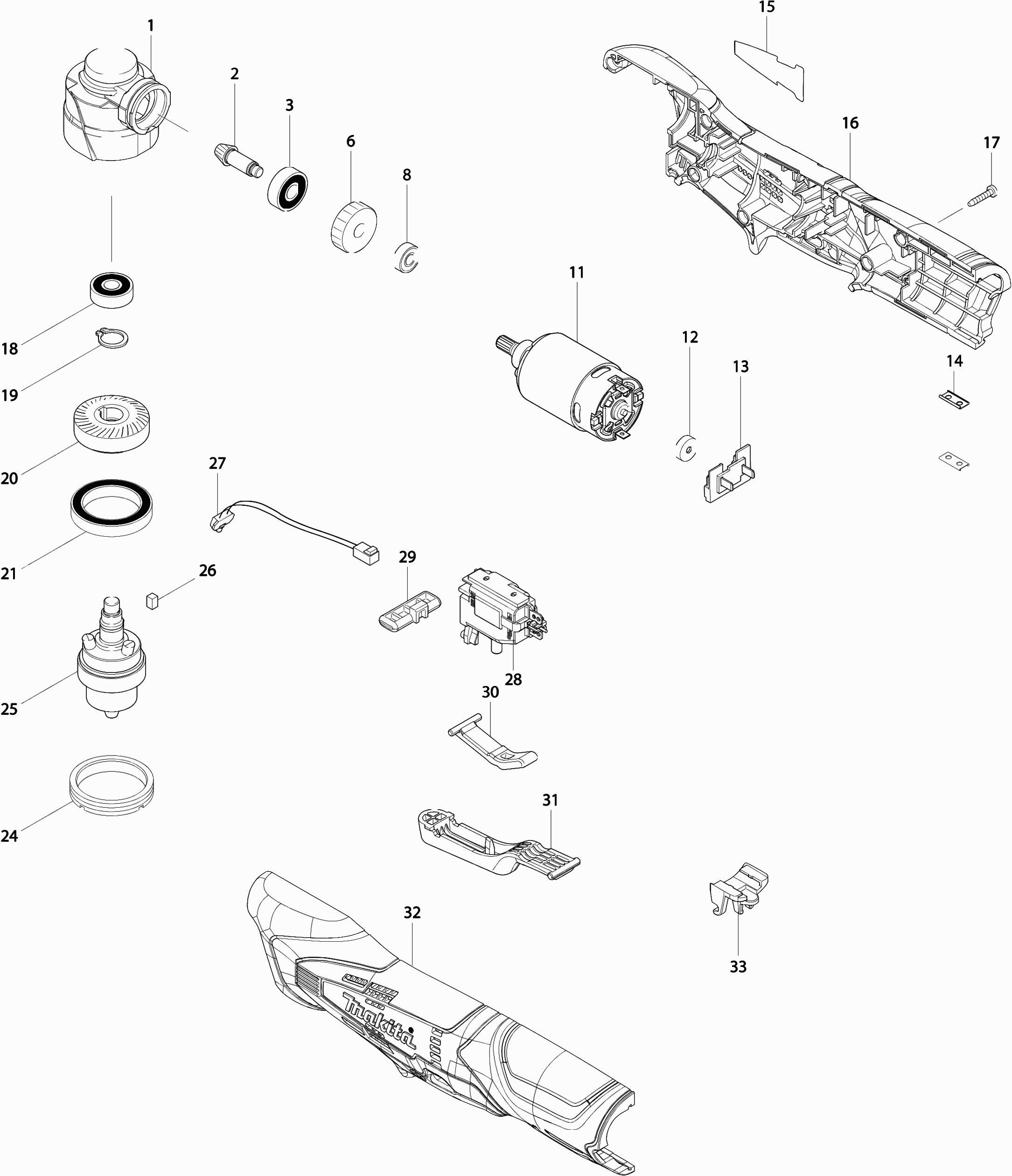

Technical drawing of model Makita DA330D
Spare parts list of model Makita DA330D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Gear Cover | ||||
| 001 | 318933-8 | 9.24 | 11.18 | |
| Gear 6 | ||||
| 002 | 227600-3 | 5.71 | 6.91 | |
| Ball Bearing 608Zz A | ||||
| 003 | 210046-0 | 0.83 | 1.00 | |
| Gear 42 | ||||
| 006 | 227328-3 | 4.45 | 5.38 | |
| Ball bearing 696ZZ A | ||||
| 008 | 210026-6 | 1.99 | 2.41 | |
| Dc Motor 10.8v | ||||
| 011 | 629978-4 | 26.55 | 32.13 | |
| Baffle | ||||
| 012 | 424529-6 | 0.83 | 1.00 | |
| Motor connection | ||||
| 013 | 643830-2 | 1.18 | 1.43 | |
| Clamp Plate Set | ||||
| 014 | 345998-7 | 0.83 | 1.00 | |
| Label | ||||
| 015 | 814B93-1 | 2.71 | 3.28 | |
| Motor Housing | ||||
| 016 | 187528-6 | 11.82 | 14.30 | |
| Tapping Screw 3x16 | ||||
| 017 | 266130-9 | 0.83 | 1.00 | |
| Ball Bearing 608Zz A | ||||
| 018 | 210046-0 | 0.83 | 1.00 | |
| Lock washer S-12 | ||||
| 019 | 961052-5 | 0.83 | 1.00 | |
| Gear 31 | ||||
| 020 | 227601-1 | 10.50 | 12.70 | |
| Ball bearing 6806ddw | ||||
| 021 | 211423-9 | 3.96 | 4.79 | |
| Bearing lock ring 36-43 | ||||
| 024 | 285842-5 | 3.12 | 3.78 | |
| Boorkop tandkrans 1-10mm | ||||
| 025 | 766018-8 | 28.00 | 33.88 | |
| Feather Key 4 | ||||
| 026 | 254201-4 | 0.83 | 1.00 | |
| Light circuit | ||||
| 027 | 620177-1 | 5.71 | 6.91 | |
| Switch | ||||
| 028 | 650666-2 | 30.70 | 37.15 | |
| F/r switch button | ||||
| 029 | 450610-7 | 1.39 | 1.68 | |
| Sponge rubber seal | ||||
| 029A | 424248-4 | 0.83 | 1.00 | |
| Connection Plate | ||||
| 030 | 454100-2 | 0.83 | 1.00 | |
| Switch handle | ||||
| 031 | 454102-8 | 1.18 | 1.43 | |
| Motor Housing | ||||
| 032 | 187528-6 | 11.82 | 14.30 | |
| Drill chuck key holder | ||||
| 033 | 454099-1 | 0.98 | 1.19 | |
| Sponge rubber seal | ||||
| 034 | 424248-4 | 0.83 | 1.00 | |
