Here you will find all available parts and drawings of the 'Makita CS004G'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

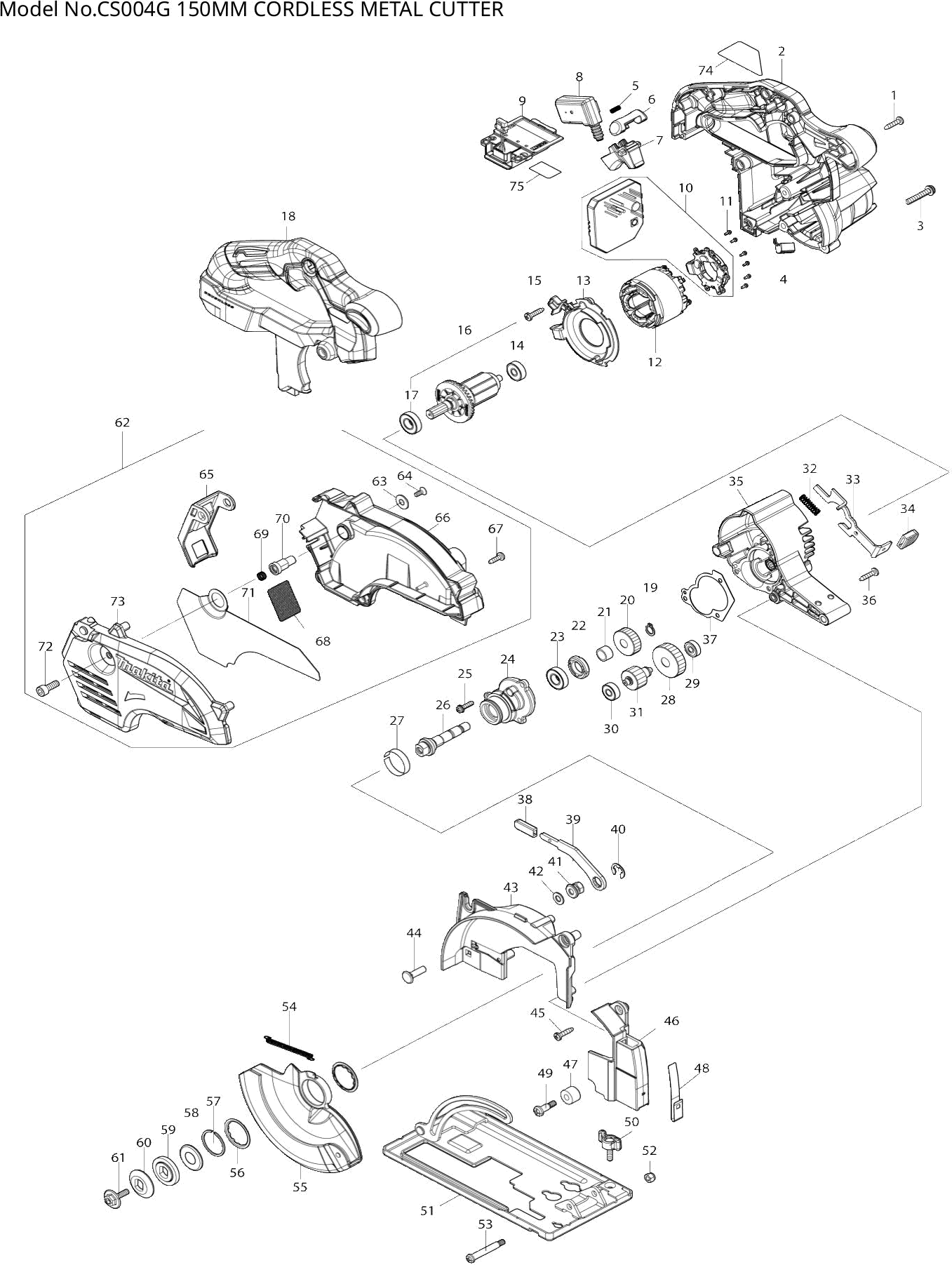

Technical drawing of model Makita CS004G
Spare parts list of model Makita CS004G
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tap screw 4x18 | ||||
| 001 | 265A48-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 002 | 1832R4-6 | |||
| Rubber pen 6 | ||||
| 002C10 | 263005-3 | 1.00 | 1.21 | |
| Screw 5x30 | ||||
| 003 | 911253-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 004 | 620T57-1 | |||
| Compression Spring 4 | ||||
| 005 | 231433-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 006 | 459264-7 | |||
| SCHAKELHENDEL HS012G | ||||
| 007 | 413N46-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 008 | 650039-9 | |||
| Control unit GA-40V series | ||||
| 009 | 632P65-6 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 010 | 620T43-2 | |||
| MET.SCHR M2X6MM | ||||
| 011 | 652119-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 012 | 629D27-1 | |||
| No information available, not orderable | ||||
| 013 | 4134X2-3 | |||
| Ball bearing 626zz | ||||
| 014 | 210143-2 | 3.60 | 4.36 | |
| Tap screw 4x18 | ||||
| 015 | 265A48-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 016 | 510436-0 | |||
| Ball Bearing 6900Ddw Bcs550 A | ||||
| 017 | 210214-5 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 018 | 1832R4-6 | |||
| Rubber pen 6 | ||||
| 018C10 | 263005-3 | 1.00 | 1.21 | |
| Lock ring S-9 | ||||
| 019 | 961005-4 | 1.00 | 1.21 | |
| Gear 24 | ||||
| 020 | 227808-9 | 4.80 | 5.81 | |
| Guide bush 10mm | ||||
| 021 | 257728-3 | 2.40 | 2.90 | |
| Bearing Locking Ring 14-23 | ||||
| 022 | 285847-5 | 4.80 | 5.81 | |
| Ball Bearing 6900Ddw Bcs550 A | ||||
| 023 | 210214-5 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 024 | 137489-0 | |||
| Rubber Pin 4 | ||||
| 024C10 | 263002-9 | 1.00 | 1.21 | |
| Screw 4x16 A | ||||
| 025 | 911526-6 | 1.00 | 1.21 | |
| Spindle Ass'y | ||||
| 026 | 326540-3 | 4.80 | 5.81 | |
| Compensating washer | ||||
| 027 | 345470-9 | 1.20 | 1.45 | |
| Gear 30 | ||||
| 028 | 227809-7 | 6.00 | 7.26 | |
| KOGELLAGER 625ZZ DBN601/610 | ||||
| 029 | 210231-5 | 1.00 | 1.21 | |
| Ball bearing 606Zz A | ||||
| 030 | 210137-7 | 1.20 | 1.45 | |
| Gear 17 | ||||
| 031 | 227807-1 | 6.00 | 7.26 | |
| Compression Spring 6x29mm | ||||
| 032 | 233117-6 | 1.00 | 1.21 | |
| Locking Button | ||||
| 033 | 346885-3 | 1.20 | 1.45 | |
| Baffle | ||||
| 034 | 286039-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 035 | 1412V6-6 | |||
| Tap screw 4x18 | ||||
| 036 | 265A48-7 | 1.00 | 1.21 | |
| Gasket | ||||
| 037 | 424715-9 | 2.40 | 2.90 | |
| Cap DHS660/661 | ||||
| 038 | 286036-5 | 1.00 | 1.21 | |
| Lever plate DCS553 | ||||
| 039 | 347418-7 | 1.20 | 1.45 | |
| Lock washer E-8 | ||||
| 040 | 257982-9 | 1.00 | 1.21 | |
| Nut M6 DCS553 | ||||
| 041 | 252265-2 | 1.20 | 1.45 | |
| Washer 6x12mm | ||||
| 042 | 941151-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 043 | 4134X4-9 | |||
| Carriage bolt M6x20mm | ||||
| 044 | 266737-1 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 045 | 265A48-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 046 | 4134X3-1 | |||
| Rubber bush 6 | ||||
| 047 | 262511-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 048 | 347E81-6 | |||
| Metal Screw M5 | ||||
| 049 | 265115-2 | 1.00 | 1.21 | |
| Thumb screw M5x16 | ||||
| 050 | 265761-1 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 051 | 162E43-1 | |||
| Hex lock nut 5x8 | ||||
| 052 | 252103-8 | 1.20 | 1.45 | |
| Screw M5 | ||||
| 053 | 265056-2 | 2.40 | 2.90 | |
| Tension spring 3 | ||||
| 054 | 231792-2 | 2.40 | 2.90 | |
| Spring Guard DCS553 | ||||
| 055 | 140C92-6 | 7.20 | 8.71 | |
| Rivet | ||||
| 056 | 345739-1 | 1.00 | 1.21 | |
| Seegering E-26 | ||||
| 057 | 257938-2 | 1.00 | 1.21 | |
| Bowl Ring | ||||
| 058 | 267802-9 | 2.40 | 2.90 | |
| Inner Flange 30 | ||||
| 059 | 224391-7 | 1.20 | 1.45 | |
| Outer flange 30 | ||||
| 060 | 224404-4 | 3.60 | 4.36 | |
| Hex bolt 6x18 | ||||
| 061 | 266458-5 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 062 | 122L33-8 | |||
| Washer 6mm DHS900 | ||||
| 063 | 347577-7 | 1.00 | 1.21 | |
| Countersunk screw 4x10 | ||||
| 064 | 265135-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 065 | 413J78-8 | |||
| No information available, not orderable | ||||
| 066 | 4134X5-7 | |||
| Tapping screw 4X14 Ga7020 A | ||||
| 067 | 266385-6 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 068 | 347A18-9 | |||
| DRUKVEER 7 DRC300 | ||||
| 069 | 232690-3 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 070 | 327G84-8 | |||
| No information available, not orderable | ||||
| 071 | 347E80-8 | |||
| No information available, not orderable | ||||
| 072 | 265F16-0 | |||
| No information available, not orderable | ||||
| 073 | 4134X6-5 | |||
| No information available, not orderable | ||||
| 074 | 8157E0-2 | |||
| No information available, not orderable | ||||
| 075 | 8157E1-0 | |||
