Here you will find all available parts and drawings of the 'Makita CS-246.4C'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

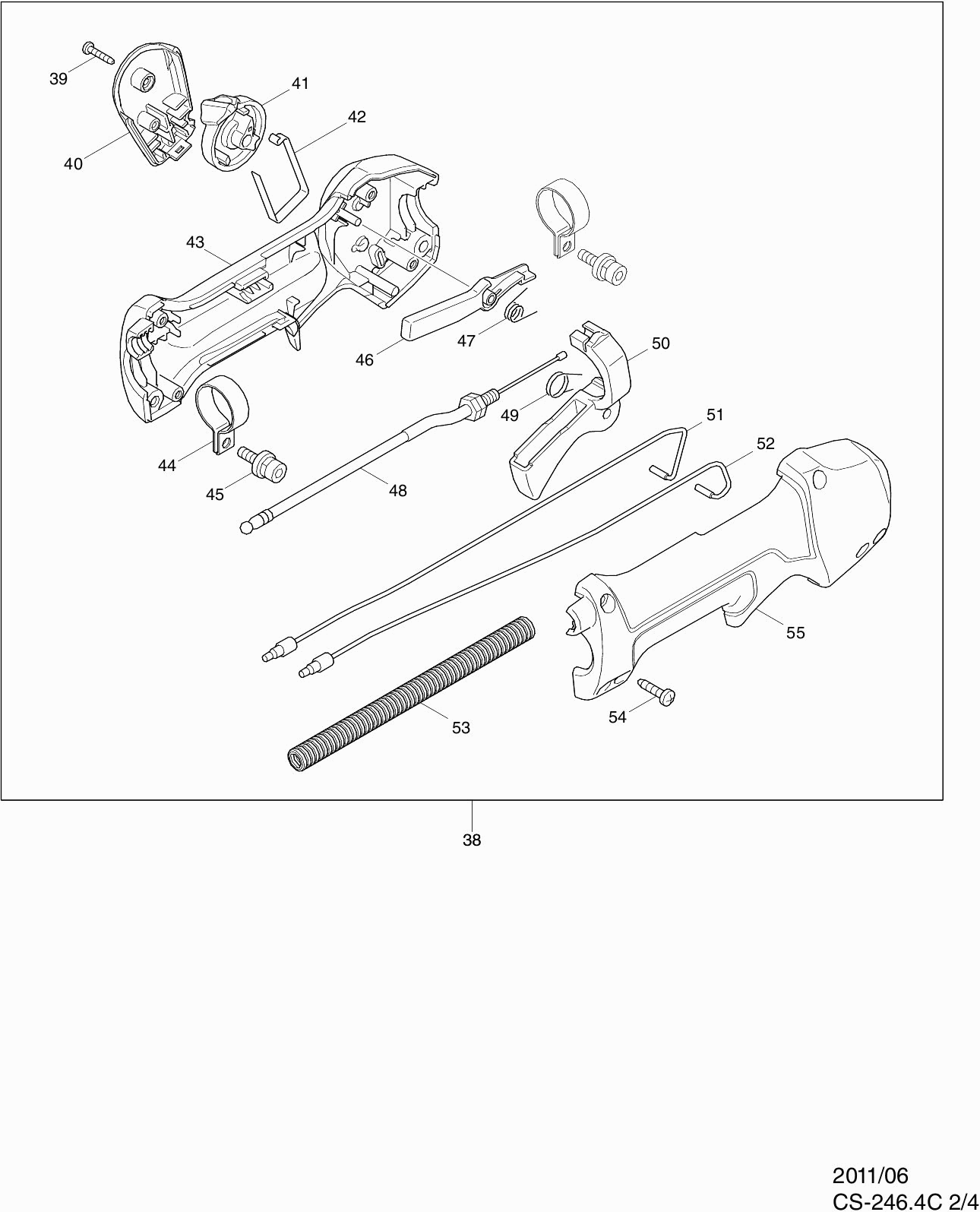

Technical drawing of model Makita CS-246.4C
Spare parts list of model Makita CS-246.4C
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Label "Take Note" | ||||
| 001 | 893509-7 | 2.40 | 2.90 | |
| Label "Take Note" | ||||
| 1 | 893509-7 | 2.40 | 2.90 | |
| Spacer | ||||
| 002 | 451601-1 | 2.40 | 2.90 | |
| Spacer | ||||
| 2 | 451601-1 | 2.40 | 2.90 | |
| Inner Shaft | ||||
| 003 | 141238-9 | 16.50 | 19.96 | |
| Inner Shaft | ||||
| 3 | 141238-9 | 16.50 | 19.96 | |
| Mounting Bracket | ||||
| 004 | 195143-2 | 3.60 | 4.36 | |
| Mounting Bracket | ||||
| 4 | 195143-2 | 3.60 | 4.36 | |
| Screw Vk 20mm | ||||
| 005 | 911233-1 | 1.00 | 1.21 | |
| Screw Vk 20mm | ||||
| 5 | 911233-1 | 1.00 | 1.21 | |
| Steel | ||||
| 006 | 141008-6 | 19.80 | 23.96 | |
| Steel | ||||
| 6 | 141008-6 | 19.80 | 23.96 | |
| Tapping Screw Ct4x16 | ||||
| 007 | 266034-5 | 1.00 | 1.21 | |
| Tapping Screw Ct4x16 | ||||
| 7 | 266034-5 | 1.00 | 1.21 | |
| Cover for release button | ||||
| 008 | 452840-6 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 008-1 | 4133K8-4 | |||
| Cover for release button | ||||
| 8 | 452840-6 | 1.20 | 1.45 | |
| Release button | ||||
| 009 | 452839-1 | 1.20 | 1.45 | |
| Release button | ||||
| 9 | 452839-1 | 1.20 | 1.45 | |
| Hex bolt M6X40 | ||||
| 010 | 265596-0 | 1.00 | 1.21 | |
| Hex bolt M6X40 | ||||
| 10 | 265596-0 | 1.00 | 1.21 | |
| Connector | ||||
| 011 | 312D49-5 | 15.40 | 18.63 | |
| Connector | ||||
| 11 | 312D49-5 | 15.40 | 18.63 | |
| Allen Bolt 5x12 | ||||
| 012 | 922211-6 | 1.00 | 1.21 | |
| Allen Bolt 5x12 | ||||
| 12 | 922211-6 | 1.00 | 1.21 | |
| Hex Bolt M6x25mm | ||||
| 013 | 266087-4 | 1.00 | 1.21 | |
| Hex Bolt M6x25mm | ||||
| 13 | 266087-4 | 1.00 | 1.21 | |
| Hex Nut M6 | ||||
| 014 | 931302-2 | 1.00 | 1.21 | |
| Hex Nut M6 | ||||
| 14 | 931302-2 | 1.00 | 1.21 | |
| Lever | ||||
| 015 | 272268-0 | 2.40 | 2.90 | |
| Lever | ||||
| 15 | 272268-0 | 2.40 | 2.90 | |
| Thin Washer 6 | ||||
| 016 | 253332-6 | 1.00 | 1.21 | |
| Thin Washer 6 | ||||
| 16 | 253332-6 | 1.00 | 1.21 | |
| O-ring 11 | ||||
| 017 | 213105-9 | 1.00 | 1.21 | |
| O-ring 11 | ||||
| 17 | 213105-9 | 1.00 | 1.21 | |
| Hex nut M6 | ||||
| 018 | 252159-1 | 2.40 | 2.90 | |
| Hex nut M6 | ||||
| 18 | 252159-1 | 2.40 | 2.90 | |
| E8 retaining ring | ||||
| 019 | 961014-3 | 1.00 | 1.21 | |
| E8 retaining ring | ||||
| 19 | 961014-3 | 1.00 | 1.21 | |
| Lock washer S-12 | ||||
| 020 | 961052-5 | 1.00 | 1.21 | |
| Lock washer S-12 | ||||
| 20 | 961052-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 032 | 806902-6 | |||
| No information available, not orderable | ||||
| 32 | 806902-6 | |||
| Label "Series" | ||||
| 033 | 816567-6 | 2.40 | 2.90 | |
| Label "Series" | ||||
| 33 | 816567-6 | 2.40 | 2.90 | |
| Warning Label | ||||
| 034 | 819430-2 | 2.40 | 2.90 | |
| Warning Label | ||||
| 34 | 819430-2 | 2.40 | 2.90 | |
| Label "cs246.4c" | ||||
| 036 | 893508-9 | 2.40 | 2.90 | |
| Label "cs246.4c" | ||||
| 36 | 893508-9 | 2.40 | 2.90 | |
| LABEL DATUM SN400MP | ||||
| 037 | 814A82-0 | 2.40 | 2.90 | |
| LABEL DATUM SN400MP | ||||
| 37 | 814A82-0 | 2.40 | 2.90 | |
| Control Handle | ||||
| 038 | 126488-7 | 20.90 | 25.29 | |
| Control Handle | ||||
| 38 | 126488-7 | 20.90 | 25.29 | |
| Tapping Screw 3x16 | ||||
| 039 | 266130-9 | 1.00 | 1.21 | |
| Tapping Screw 3x16 | ||||
| 39 | 266130-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 040 | 451595-0 | |||
| No information available, not orderable | ||||
| 40 | 451595-0 | |||
| No information available, not orderable | ||||
| 041 | 451594-2 | |||
| No information available, not orderable | ||||
| 41 | 451594-2 | |||
| Leaf Spring | ||||
| 042 | 232251-9 | 1.20 | 1.45 | |
| Leaf Spring | ||||
| 42 | 232251-9 | 1.20 | 1.45 | |
| Tube Grip Bracket | ||||
| 044 | 346248-3 | 1.20 | 1.45 | |
| Tube Grip Bracket | ||||
| 44 | 346248-3 | 1.20 | 1.45 | |
| Allen bolt Ck M5x14mm | ||||
| 045 | 922218-2 | 1.00 | 1.21 | |
| Allen bolt Ck M5x14mm | ||||
| 45 | 922218-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 046 | 451593-4 | |||
| No information available, not orderable | ||||
| 46 | 451593-4 | |||
| Torsion Spring 7 | ||||
| 047 | 233541-3 | 1.20 | 1.45 | |
| Torsion Spring 7 | ||||
| 47 | 233541-3 | 1.20 | 1.45 | |
| Throttle Wire Comp. | ||||
| 048 | 168571-4 | 6.00 | 7.26 | |
| Throttle Wire Comp. | ||||
| 48 | 168571-4 | 6.00 | 7.26 | |
| Torsion Spring 11 | ||||
| 049 | 233540-5 | 2.40 | 2.90 | |
| Torsion Spring 11 | ||||
| 49 | 233540-5 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 050 | 451592-6 | |||
| No information available, not orderable | ||||
| 50 | 451592-6 | |||
| No information available, not orderable | ||||
| 051 | 638714-7 | |||
| No information available, not orderable | ||||
| 51 | 638714-7 | |||
| No information available, not orderable | ||||
| 052 | 638713-9 | |||
| No information available, not orderable | ||||
| 52 | 638713-9 | |||
| External cable | ||||
| 053 | 452071-7 | 3.60 | 4.36 | |
| External cable | ||||
| 53 | 452071-7 | 3.60 | 4.36 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 054 | 265B67-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 54 | 266326-2 | |||
| No information available, not orderable | ||||
| 055 | 188832-6 | |||
| No information available, not orderable | ||||
| 55 | 188832-6 | |||
| No information available, not orderable | ||||
| 060 | 126202-1 | |||
| No information available, not orderable | ||||
| 60 | 126202-1 | |||
| Wing bolt M4 | ||||
| 061 | 265791-2 | 1.00 | 1.21 | |
| Wing bolt M4 | ||||
| 61 | 265791-2 | 1.00 | 1.21 | |
| Cleaner Element | ||||
| 062 | 443141-3 | 2.71 | 3.28 | |
| Cleaner Element | ||||
| 62 | 443141-3 | 2.71 | 3.28 | |
| Cleaner Element | ||||
| 063 | 443140-5 | 3.60 | 4.36 | |
| Cleaner Element | ||||
| 63 | 443140-5 | 3.60 | 4.36 | |
| Allen bolt M5x60 | ||||
| 064 | 266618-9 | 1.00 | 1.21 | |
| Allen bolt M5x60 | ||||
| 64 | 266618-9 | 1.00 | 1.21 | |
| Air Filter Housing Er2650Lh A | ||||
| 065 | 123501-2 | 22.00 | 26.62 | |
| No information available, not orderable | ||||
| 65 | 126198-6 | |||
| Separation plate | ||||
| 066 | 162346-3 | 8.40 | 10.16 | |
| Separation plate | ||||
| 66 | 162346-3 | 8.40 | 10.16 | |
| O-ring 15 | ||||
| 67 | 213540-1 | 1.00 | 1.21 | |
| O-ring 15 | ||||
| 068 | 213540-1 | 1.00 | 1.21 | |
| O-ring 15 | ||||
| 68 | 213540-1 | 1.00 | 1.21 | |
| Air Pipe | ||||
| 069 | 422099-9 | 3.60 | 4.36 | |
| Overpressure valve | ||||
| 069 | 424316-3 | 3.60 | 4.36 | |
| Air Pipe | ||||
| 69 | 422099-9 | 3.60 | 4.36 | |
| Connecting Bushing | ||||
| 070 | 325665-0 | 1.20 | 1.45 | |
| Connecting Bushing | ||||
| 70 | 325665-0 | 1.20 | 1.45 | |
| Inlet Manifold Gasket | ||||
| 071 | 442153-3 | 1.20 | 1.45 | |
| Inlet Manifold Gasket | ||||
| 71 | 442153-3 | 1.20 | 1.45 | |
| Allen bolt M5x18mm | ||||
| 072 | 266787-6 | 1.00 | 1.21 | |
| Allen bolt M5x18mm | ||||
| 72 | 266787-6 | 1.00 | 1.21 | |
| Clamp | ||||
| 073 | 451825-9 | 1.00 | 1.21 | |
| Clamp | ||||
| 73 | 451825-9 | 1.00 | 1.21 | |
| Manifold | ||||
| 074 | 451729-5 | 2.40 | 2.90 | |
| Manifold | ||||
| 74 | 451729-5 | 2.40 | 2.90 | |
| O-ring 12 | ||||
| 075 | 213547-7 | 1.20 | 1.45 | |
| O-ring 12 | ||||
| 75 | 213547-7 | 1.20 | 1.45 | |
| Vent Pipe | ||||
| 076 | 422109-2 | 6.00 | 7.26 | |
| Vent Pipe | ||||
| 76 | 422109-2 | 6.00 | 7.26 | |
| Hose clamp IAS 3 | ||||
| 077 | 345918-1 | 1.00 | 1.21 | |
| Hose clamp IAS 3 | ||||
| 77 | 345918-1 | 1.00 | 1.21 | |
| Valve Cover | ||||
| 078 | 318745-9 | 7.20 | 8.71 | |
| Valve Cover | ||||
| 78 | 318745-9 | 7.20 | 8.71 | |
| Allen bolt 5x16 | ||||
| 079 | 922221-3 | 1.00 | 1.21 | |
| Allen bolt 5x16 | ||||
| 79 | 922221-3 | 1.00 | 1.21 | |
| Valve cover "inside" | ||||
| 080 | 453860-3 | 1.20 | 1.45 | |
| Valve cover "inside" | ||||
| 80 | 453860-3 | 1.20 | 1.45 | |
| Valve cover gasket | ||||
| 081 | 162304-9 | 1.20 | 1.45 | |
| Valve cover gasket | ||||
| 81 | 162304-9 | 1.20 | 1.45 | |
| Spark plug cap | ||||
| 082 | 424302-4 | 3.60 | 4.36 | |
| Spark plug cap | ||||
| 82 | 424302-4 | 3.60 | 4.36 | |
| Bougieveer Ebh253U A | ||||
| 83 | 324891-8 | 1.20 | 1.45 | |
| Spark Plug | ||||
| 084 | 168534-0 | 11.00 | 13.31 | |
| Spark Plug | ||||
| 84 | 168534-0 | 11.00 | 13.31 | |
| Valve arm | ||||
| 085 | 125554-7 | 4.80 | 5.81 | |
| Valve arm | ||||
| 85 | 125554-7 | 4.80 | 5.81 | |
| Pen 5mm | ||||
| 086 | 256200-2 | 1.00 | 1.21 | |
| Pen 5mm | ||||
| 86 | 256200-2 | 1.00 | 1.21 | |
| Valve pin | ||||
| 087 | 256865-0 | 1.00 | 1.21 | |
| Valve pin | ||||
| 87 | 256865-0 | 1.00 | 1.21 | |
| Valve Locking Ring | ||||
| 088 | 325668-4 | 2.40 | 2.90 | |
| Valve Locking Ring | ||||
| 88 | 325668-4 | 2.40 | 2.90 | |
| Clutch Housing Em2653Lh A | ||||
| 089 | 143823-4 | 19.80 | 23.96 | |
| Clutch Housing Em2653Lh A | ||||
| 89 | 143823-4 | 19.80 | 23.96 | |
| No information available, not orderable | ||||
| 090 | 922228-9 | |||
| No information available, not orderable | ||||
| 90 | 922228-9 | |||
| Spacer | ||||
| 091 | 450569-8 | 1.20 | 1.45 | |
| Spacer | ||||
| 91 | 450569-8 | 1.20 | 1.45 | |
| Lock washer S-12 | ||||
| 092 | 961052-5 | 1.00 | 1.21 | |
| Lock washer S-12 | ||||
| 92 | 961052-5 | 1.00 | 1.21 | |
| Ball Bearing 6201ddu | ||||
| 093 | 210111-5 | 6.00 | 7.26 | |
| Bougieveer Ebh253U A | ||||
| 093 | 324891-8 | 1.20 | 1.45 | |
| Ball Bearing 6201ddu | ||||
| 93 | 210111-5 | 6.00 | 7.26 | |
| Lock washer r-32 | ||||
| 094 | 962151-6 | 1.00 | 1.21 | |
| Lock washer r-32 | ||||
| 94 | 962151-6 | 1.00 | 1.21 | |
| Clutch Drum | ||||
| 095 | 165704-2 | 16.50 | 19.96 | |
| Clutch Drum | ||||
| 95 | 165704-2 | 16.50 | 19.96 | |
| Allen screw M6x25mm | ||||
| 096 | 266864-4 | 2.40 | 2.90 | |
| Allen screw M6x25mm | ||||
| 96 | 266864-4 | 2.40 | 2.90 | |
| Washer 8 | ||||
| 097 | 267817-6 | 1.00 | 1.21 | |
| Washer 8 | ||||
| 97 | 267817-6 | 1.00 | 1.21 | |
| Clutch cpl | ||||
| 098 | 126135-0 | 11.00 | 13.31 | |
| Clutch cpl | ||||
| 98 | 126135-0 | 11.00 | 13.31 | |
| Clutch shoe | ||||
| 099 | 168498-8 | 8.40 | 10.16 | |
| Clutch shoe | ||||
| 99 | 168498-8 | 8.40 | 10.16 | |
| Pull Spring 7mm | ||||
| 100 | 231881-3 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 101 | 267812-6 | |||
| Lock Nut | ||||
| 102 | 264039-9 | 1.00 | 1.21 | |
| Magneto Rotor Comp. | ||||
| 103 | 318569-3 | 11.00 | 13.31 | |
| Hose Ms246.4 A | ||||
| 104 | 444021-6 | 1.20 | 1.45 | |
| Inbusbout M4x20mm | ||||
| 105 | 266602-4 | 1.20 | 1.45 | |
| Spacer | ||||
| 106 | 452049-0 | 1.00 | 1.21 | |
| Ignition | ||||
| 107 | 161483-0 | 30.80 | 37.27 | |
| Pen 5Mm Ebh253U A | ||||
| 108 | 268238-5 | 1.00 | 1.21 | |
| Rocker gear | ||||
| 109 | 125552-1 | 23.10 | 27.95 | |
| Cam Tiller | ||||
| 110 | 313169-4 | 3.60 | 4.36 | |
| Pin 4mm Ebh253U A | ||||
| 112 | 268239-3 | 1.00 | 1.21 | |
| Crankcase cover gasket | ||||
| 113 | 162274-2 | 2.40 | 2.90 | |
| Housing Cover | ||||
| 114 | 318443-5 | 4.80 | 5.81 | |
| Allen bolt 5x16 | ||||
| 115 | 922221-3 | 1.00 | 1.21 | |
| Cylinder block assy | ||||
| 116 | 135478-9 | 130.90 | 158.39 | |
| Allen bolt 5x16 | ||||
| 117 | 922221-3 | 1.00 | 1.21 | |
| Control valve | ||||
| 118 | 424201-0 | 2.40 | 2.90 | |
| Exhaust Gasket Ms246.4 A | ||||
| 119 | 346331-6 | 3.60 | 4.36 | |
| Muffler | ||||
| 120 | 168554-4 | 8.40 | 10.16 | |
| Allen bolt M5x40mm Ck | ||||
| 121 | 266440-4 | 1.20 | 1.45 | |
| Start pulley | ||||
| 122 | 168483-1 | 2.40 | 2.90 | |
| Exhaust plate | ||||
| 123 | 451731-8 | 1.20 | 1.45 | |
| Allen bolt Ck M5x14mm | ||||
| 124 | 922218-2 | 1.00 | 1.21 | |
| Cable harness | ||||
| 125 | 638707-4 | 2.40 | 2.90 | |
| Cable harness | ||||
| 126 | 638708-2 | 3.60 | 4.36 | |
| Allen bolt Ck M5x14mm | ||||
| 128 | 922218-2 | 1.00 | 1.21 | |
| Cylinder cover | ||||
| 129 | 453569-7 | 10.80 | 13.07 | |
| Allen bolt Ck M5x14mm | ||||
| 130 | 922218-2 | 1.00 | 1.21 | |
| Damping rubber | ||||
| 131 | 424082-2 | 2.40 | 2.90 | |
| Allen Bolt 5x12 | ||||
| 132 | 922211-6 | 1.00 | 1.21 | |
| Allen bolt 5x18 | ||||
| 133 | 922226-3 | 1.00 | 1.21 | |
| Holder, pipe | ||||
| 134 | 318249-1 | 3.60 | 4.36 | |
| Holder, pipe | ||||
| 135 | 318250-6 | 3.60 | 4.36 | |
| Damping rubber | ||||
| 136 | 424083-0 | 2.40 | 2.90 | |
| Spacer Ebh253U A | ||||
| 137 | 424200-2 | 1.00 | 1.21 | |
| Compression Spring 9 | ||||
| 138 | 234108-0 | 2.40 | 2.90 | |
| Exhaust valve | ||||
| 140 | 326366-3 | 4.80 | 5.81 | |
| Intake valve | ||||
| 143 | 326367-1 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 144 | 257298-2 | |||
| Parts Set | ||||
| 145 | 196595-0 | 22.00 | 26.62 | |
| No information available, not orderable | ||||
| 146 | 257300-1 | |||
| Piston | ||||
| 147 | 318441-9 | 9.60 | 11.62 | |
| Inlegspie 3 | ||||
| 148 | 254040-2 | 3.60 | 4.36 | |
| Crank Shaft | ||||
| 149 | 123774-7 | 30.80 | 37.27 | |
| No longer available, no replacement | ||||
| 150 | 213148-1 | |||
| Washer 23 | ||||
| 151 | 267400-9 | 2.40 | 2.90 | |
| Seal ring 12 | ||||
| 152 | 213147-3 | 2.40 | 2.90 | |
| Piston Pin | ||||
| 153 | 257781-9 | 3.60 | 4.36 | |
| Lock ring for piston pin | ||||
| 154 | 233976-8 | 1.00 | 1.21 | |
| Crankcase gasket | ||||
| 155 | 162345-5 | 2.40 | 2.90 | |
| Feed valve | ||||
| 156 | 346083-9 | 2.40 | 2.90 | |
| Holding Plate | ||||
| 157 | 318910-0 | 2.40 | 2.90 | |
| Allen bolt M4x10 | ||||
| 158 | 922112-8 | 1.00 | 1.21 | |
| Crankcase Cover | ||||
| 159 | 318588-9 | 8.40 | 10.16 | |
| Allen bolt 5x16 | ||||
| 160 | 922221-3 | 1.00 | 1.21 | |
| Impact Buffer | ||||
| 161 | 424344-8 | 1.00 | 1.21 | |
| Washer | ||||
| 162 | 346305-7 | 1.00 | 1.21 | |
| Housing screw M6x8mm | ||||
| 163 | 266611-3 | 1.00 | 1.21 | |
| O-ring 20 | ||||
| 164 | 213548-5 | 2.40 | 2.90 | |
| Connecting Bushing | ||||
| 165 | 325665-0 | 1.20 | 1.45 | |
| Hose clamp IAS 3 | ||||
| 166 | 282020-8 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 167 | 325666-8 | |||
| Oil Pipe | ||||
| 168 | 424301-6 | 3.60 | 4.36 | |
| Oil Cap | ||||
| 169 | 452047-4 | 2.40 | 2.90 | |
| Gasket | ||||
| 170 | 424343-0 | 1.20 | 1.45 | |
| Oil Pipe | ||||
| 171 | 452048-2 | 3.60 | 4.36 | |
| Allen bolt Ck M5x14mm | ||||
| 172 | 922218-2 | 1.00 | 1.21 | |
| Tank Cap Assy Ms246.4 A | ||||
| 173 | 127112-5 | 12.22 | 14.79 | |
| No information available, not orderable | ||||
| 174 | 451739-2 | |||
| Feeding tube | ||||
| 175 | 168755-4 | 6.00 | 7.26 | |
| Hose clamp IAS 3 | ||||
| 176 | 282020-8 | 1.00 | 1.21 | |
| Fuel filter | ||||
| 177 | 163518-3 | 14.30 | 17.30 | |
| FUEL TANK | ||||
| 178 | 451736-8 | 10.80 | 13.07 | |
| Damping rubber | ||||
| 179 | 424080-6 | 1.20 | 1.45 | |
| Damping rubber | ||||
| 180 | 424081-4 | 1.20 | 1.45 | |
| Tank Support | ||||
| 181 | 451737-6 | 2.40 | 2.90 | |
| Allen bolt Ck M5x14mm | ||||
| 182 | 922218-2 | 1.00 | 1.21 | |
| Startinrichting | ||||
| 183 | 195308-6 | 16.50 | 19.96 | |
| Starter Handle | ||||
| 184 | 424319-7 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 185 | 424359-5 | |||
| No information available, not orderable | ||||
| 187 | 266585-8 | |||
| Swing arm | ||||
| 188 | 325923-4 | 2.40 | 2.90 | |
| Inner Bush | ||||
| 189 | 451938-6 | 2.40 | 2.90 | |
| Starter cord drum | ||||
| 190 | 451937-8 | 4.80 | 5.81 | |
| Starter Spring | ||||
| 191 | 232258-5 | 6.00 | 7.26 | |
| Starter cord | ||||
| 192 | 444023-2 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 193 | 451733-4 | |||
| Met. Screw Ph2 M5X16Mm Ck A | ||||
| 194 | 922223-9 | 1.00 | 1.21 | |
| Label "dolmar" | ||||
| 196 | 891121-7 | 2.40 | 2.90 | |
| Carburetor | ||||
| 197 | 168762-7 | 82.50 | 99.82 | |
| Swivel element | ||||
| 198 | 325922-6 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 199 | 413140-9 | |||
| Met.screw Ph2 M3x18mm Ck | ||||
| 200 | 266581-6 | 1.20 | 1.45 | |
| Seegering E-3 A | ||||
| 201 | 257964-1 | 7.20 | 8.71 | |
| O-ring 2 | ||||
| 202 | 213538-8 | 4.80 | 5.81 | |
| Gas needle | ||||
| 203 | 325985-2 | 14.30 | 17.30 | |
| Compression Spring 5-9mm | ||||
| 204 | 234183-6 | 4.80 | 5.81 | |
| Diaphragm Gasket | ||||
| 205 | 442155-9 | 7.20 | 8.71 | |
| Pump diaphragm | ||||
| 206 | WJ00009599 | 3.96 | 4.79 | |
| Pump Housing | ||||
| 207 | 141737-1 | 45.10 | 54.57 | |
| No information available, not orderable | ||||
| 208 | 352010-6 | |||
| Diaphragm Gasket | ||||
| 209 | 442154-1 | 7.20 | 8.71 | |
| Diaphragm | ||||
| 210 | 168620-7 | 38.50 | 46.58 | |
| Air Purifier Case Ebh253U A | ||||
| 211 | 140438-8 | 27.50 | 33.28 | |
| Booster pump | ||||
| 212 | 424314-7 | 11.00 | 13.31 | |
| Pump cover Ebh253U A | ||||
| 213 | 346270-0 | 7.20 | 8.71 | |
| Parker 3X24Mm Ck A | ||||
| 214 | 266582-4 | 3.60 | 4.36 | |
| Warning label "fuel" | ||||
| 215 | 810455-9 | 2.40 | 2.90 | |
| Label "indication" | ||||
| 216 | 800F73-7 | 2.40 | 2.90 | |
| Washer 6mm A | ||||
| 217 | 267214-6 | 1.00 | 1.21 | |
| Screw 4x12 | ||||
| 223 | 265C54-4 | 1.00 | 1.21 | |
| Tapping screw 4X12 Ms246.4 | ||||
| 223 | 266427-6 | 0.83 | 1.00 | |
| Choke plate | ||||
| 224 | 452219-1 | 3.60 | 4.36 | |
| Choke Handle | ||||
| 231 | 452220-6 | 3.60 | 4.36 | |
| Tapping screw Pt3x10 | ||||
| 232 | 266007-8 | 1.00 | 1.21 | |
| Distributor | ||||
| 233 | 352020-3 | 3.60 | 4.36 | |
| Distributor | ||||
| 234 | 453865-3 | 2.40 | 2.90 | |
| Crankcase plate | ||||
| 235 | 453862-9 | 2.40 | 2.90 | |
