Here you will find all available parts and drawings of the 'Makita CL117FD'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

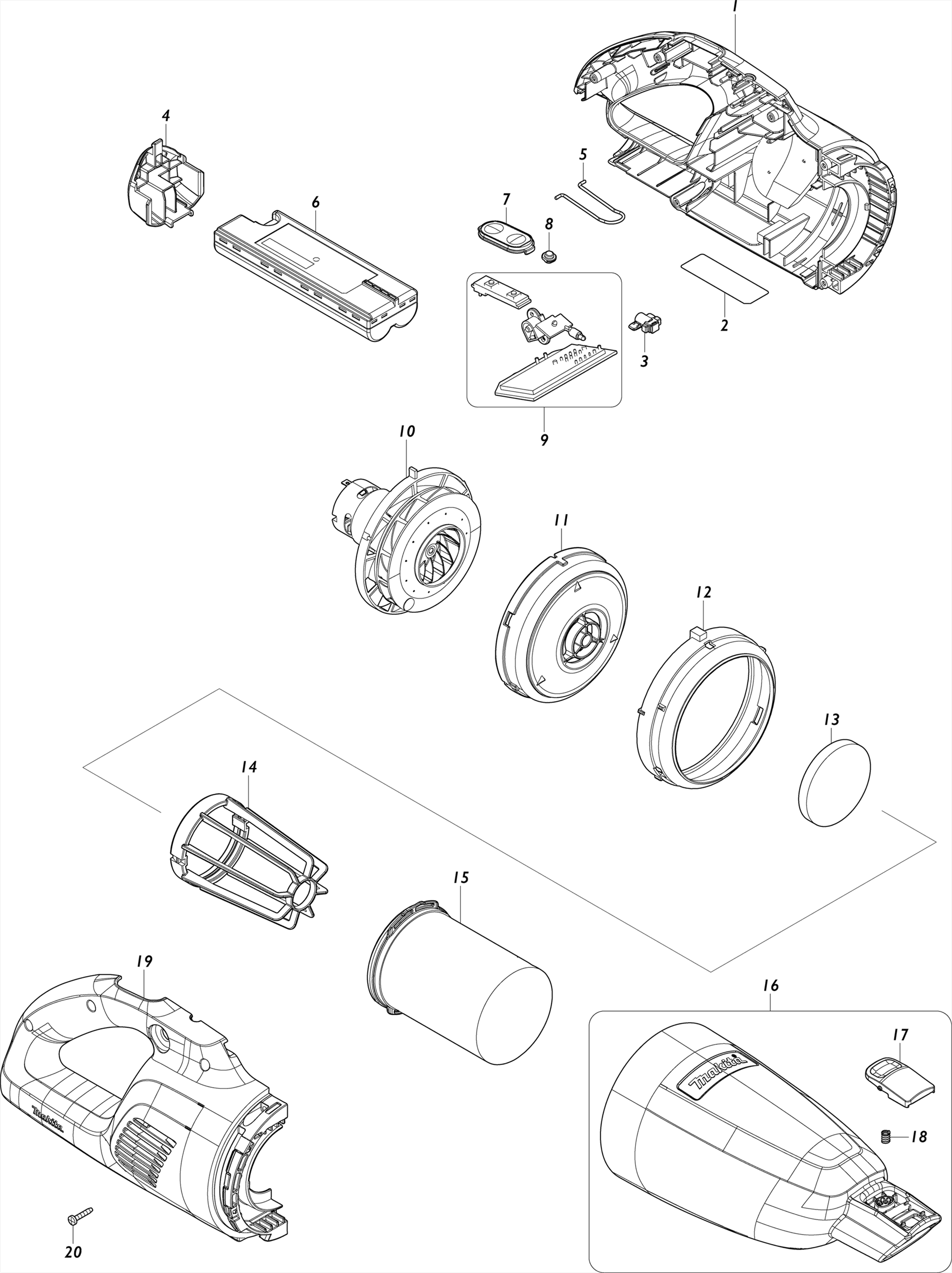

Technical drawing of model Makita CL117FD
Spare parts list of model Makita CL117FD
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| VLOERZUIGMOND TAPIJT WIT | ||||
| A01 | 198528-1 | 11.00 | 13.31 | |
| ZUIGBUIS TELESCOOP WIT | ||||
| A02B | 1910Y3-1 | 10.00 | 12.10 | |
| KIERZUIGMOND KORT WIT | ||||
| A03 | 413770-6 | 6.00 | 7.26 | |
| ZUIGBUIS WIT | ||||
| A04 | 459353-8 | 2.00 | 2.42 | |
| HOUDER KIERZUIGMOND WIT | ||||
| A05 | 459354-6 | 2.00 | 2.42 | |
| No information available, not orderable | ||||
| A05B | 413K53-0 | |||
| No information available, not orderable | ||||
| A06 | ***DC1002 | |||
| Switch label CL121 | ||||
| C10 | 810P35-7 | 2.40 | 2.90 | |
| VOORFILTER | ||||
| C10 | 4131K6-6 | 2.00 | 2.42 | |
| SPONSRUBBER 48-60 CL117FD | ||||
| C10 | 422925-2 | 1.00 | 1.21 | |
| Brush CL114FD | ||||
| C20 | 743108-4 | 2.40 | 2.90 | |
| 4 Washer | ||||
| C20 | 941051-3 | 1.00 | 1.21 | |
| SPONSRUBBER 6-20 CL117FD | ||||
| C20 | 423293-6 | 1.00 | 1.21 | |
| Valve | ||||
| C30 | 424208-6 | 1.00 | 1.21 | |
| CYCLOON VOORAFSCHEIDER WIT | ||||
| F03 | 191D71-3 | 30.00 | 36.30 | |
| ZUIGBUIS CYCLOON STOFCAPSULE WIT | ||||
| F04 | 191D76-3 | 6.00 | 7.26 | |
| ZUIGBUIS CYCLOON STOFCAPSULE WIT | ||||
| F05 | 191D79-7 | 4.00 | 4.84 | |
| No information available, not orderable | ||||
| F06 | 191X06-4 | |||
| No information available, not orderable | ||||
| F11 | 198751-8 | |||
| No information available, not orderable | ||||
| F11-1 | 1914X5-4 | |||
| LINNEN STOFFILTER STEELSTOFZUIGER | ||||
| F13 | 198753-4 | 5.00 | 6.05 | |
| FLEXIBELE ZUIGBUIS WIT | ||||
| F15 | 198868-7 | 9.00 | 10.89 | |
| BORSTELZUIGMOND WIT | ||||
| F16 | 198873-4 | 7.00 | 8.47 | |
| PLUMEAU WIT | ||||
| F17 | 198878-4 | 9.00 | 10.89 | |
| STOFFILTER STEELSTOFZUIGER | ||||
| F18 | 198915-4 | 5.00 | 6.05 | |
| KIERZUIGMOND LANG WIT | ||||
| F19 | 198919-6 | 6.00 | 7.26 | |
| MEUBELZUIGMOND WIT | ||||
| F20 | 199038-1 | 7.00 | 8.47 | |
| KIERZUIGMOND EXTRA LANG WIT | ||||
| F21 | 199439-3 | 7.00 | 8.47 | |
| No information available, not orderable | ||||
| F22 | 199491-1 | |||
| No information available, not orderable | ||||
| F23 | 199900-0 | |||
| TAS STEELSTOFZUIGERS | ||||
| F24 | 199901-8 | 17.00 | 20.57 | |
| No information available, not orderable | ||||
| F26 | 199971-7 | |||
| No information available, not orderable | ||||
| F27-1 | 1914X6-2 | |||
| STEELSTOFZUIGERSTANDAARD | ||||
| F92 | 1911L1-0 | 20.00 | 24.20 | |
| No information available, not orderable | ||||
| F94 | 1915A8-3 | |||
| BEHUIZING CL117D P | ||||
| 001 | 183W36-3 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 001-1 | 183X67-8 | |||
| NAAMPLAAT CL117FD | ||||
| 002 | 858L99-9 | 1.00 | 1.21 | |
| Lens Cap CL114 | ||||
| 003 | 140K40-3 | 1.00 | 1.21 | |
| AFDEKKAP CL117FD | ||||
| 004 | 413K49-1 | 1.20 | 1.45 | |
| Hanger | ||||
| 005 | 324885-3 | 1.00 | 1.21 | |
| Battery 10.8V Cl114D | ||||
| 006 | 632R12-9 | 45.10 | 54.57 | |
| Shift Plate | ||||
| 007 | 144096-2 | 2.40 | 2.90 | |
| VIEWING GLASS | ||||
| 008 | 450522-4 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 009 | 620J03-4 | |||
| MOTOR UNIT CL117FD | ||||
| 010 | 122C96-0 | 15.02 | 18.17 | |
| Fan plate CL108F | ||||
| 011 | 458834-9 | 1.20 | 1.45 | |
| Rubber ring CL108FD | ||||
| 012 | 422377-7 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 013 | 422268-2 | |||
| No information available, not orderable | ||||
| 014 | 458467-0 | |||
| LINNEN STOFFILTER MET FRAME STEELSTOFZUIGER | ||||
| 015 | 199966-0 | 4.00 | 4.84 | |
| FRONT HOUSING TRP-W CL117FD * | ||||
| 016 | 136781-1 | 10.80 | 13.07 | |
| Front housing trp-grn CL117FD | ||||
| 016C | 136782-9 | 11.52 | 13.94 | |
| FRONT HOUSING TRP-PAA CL117FD * | ||||
| 016D | 136783-7 | 11.00 | 13.31 | |
| Switch button A DCL281F | ||||
| 017 | 458939-5 | 1.00 | 1.21 | |
| Compression Spring 5 | ||||
| 018 | 232485-4 | 1.00 | 1.21 | |
| BEHUIZING CL117D P | ||||
| 019 | 183W36-3 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 019-1 | 183X67-8 | |||
| Tapping Screw 3x16 | ||||
| 020 | 266130-9 | 1.00 | 1.21 | |
