Here you will find all available parts and drawings of the 'Makita CL111D'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

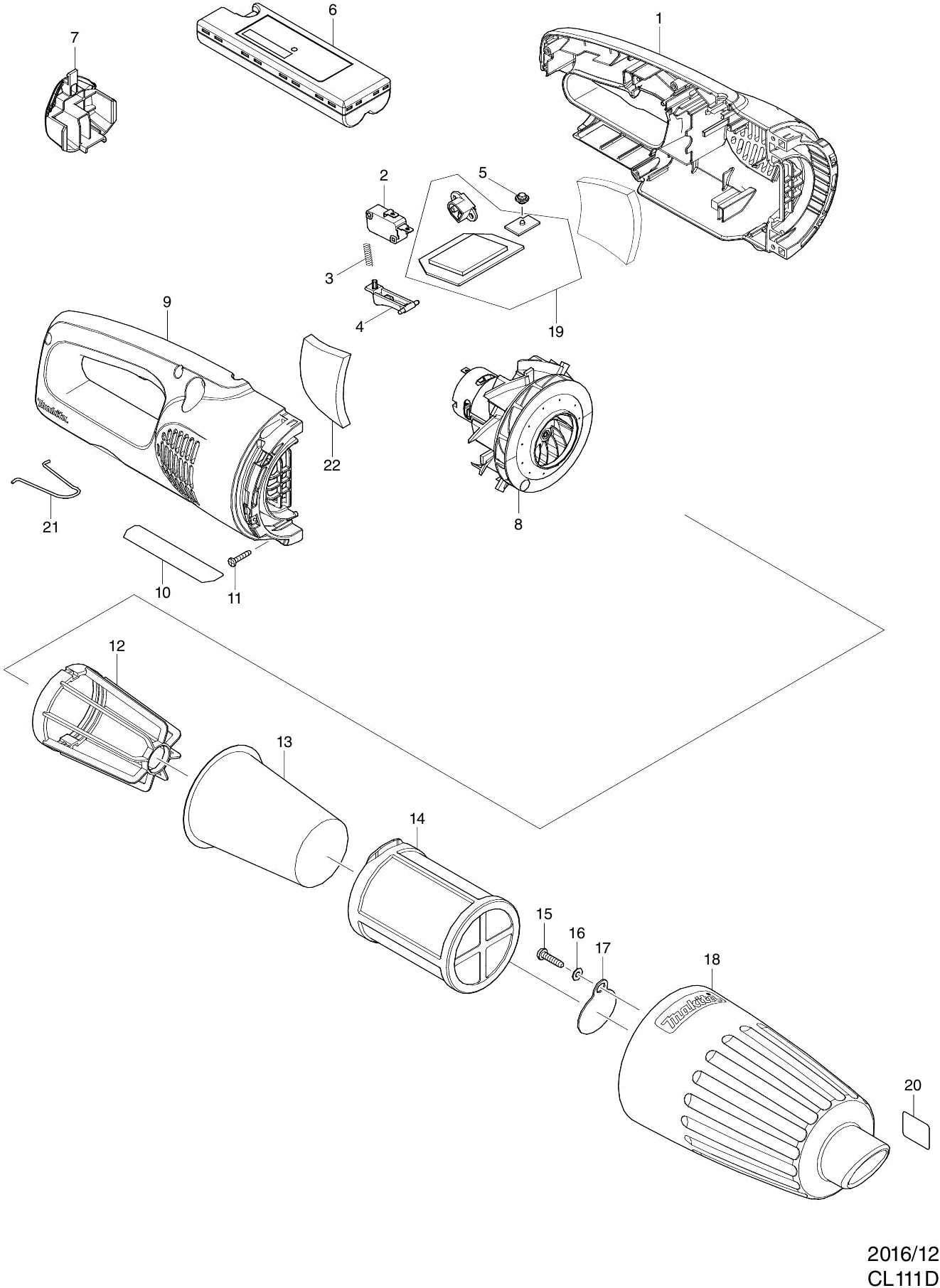

Technical drawing of model Makita CL111D
Spare parts list of model Makita CL111D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| CL111D Housing | ||||
| 001 | 183G27-8 | 10.80 | 13.07 | |
| Switch D3V-16-3C26 A | ||||
| 002 | 650744-8 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 003 | 231473-8 | |||
| Switch Button | ||||
| 004 | 451210-6 | 1.00 | 1.21 | |
| VIEWING GLASS | ||||
| 005 | 450522-4 | 1.00 | 1.21 | |
| Battery 10.8V Cl104D | ||||
| 006 | 632C23-4 | 48.40 | 58.56 | |
| Cover Cap CL111D | ||||
| 007 | 454080-2 | 1.00 | 1.21 | |
| Motor 111D | ||||
| 008 | 123997-7 | 19.80 | 23.96 | |
| CL111D Housing | ||||
| 009 | 183G27-8 | 10.80 | 13.07 | |
| Nameplate CL111D | ||||
| 010 | 853L55-4 | 1.00 | 1.21 | |
| Tapping Screw 3x16 | ||||
| 011 | 266130-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 012 | 410237-5 | |||
| No information available, not orderable | ||||
| 013 | 443060-3 | |||
| No information available, not orderable | ||||
| 014 | 451208-3 | |||
| VOORFILTER | ||||
| 014-1 | 4131K6-6 | 2.00 | 2.42 | |
| Tap screw 4x18 | ||||
| 015 | 265A48-7 | 1.00 | 1.21 | |
| 4 Washer | ||||
| 016 | 941051-3 | 1.00 | 1.21 | |
| Valve | ||||
| 017 | 424208-6 | 1.00 | 1.21 | |
| Nose piece CL111D | ||||
| 018 | 457643-3 | 6.00 | 7.26 | |
| Controller CL111D | ||||
| 019 | 632K45-2 | 45.10 | 54.57 | |
| Line filter | ||||
| 019C10 | 688161-2 | 1.00 | 1.21 | |
| Info label Cl183d | ||||
| 020 | 809293-4 | 2.40 | 2.90 | |
| Hanger | ||||
| 021 | 324885-3 | 1.00 | 1.21 | |
| Bumper CL111D | ||||
| 022 | 422152-1 | 1.00 | 1.21 | |
