Here you will find all available parts and drawings of the 'Makita CL107FD'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

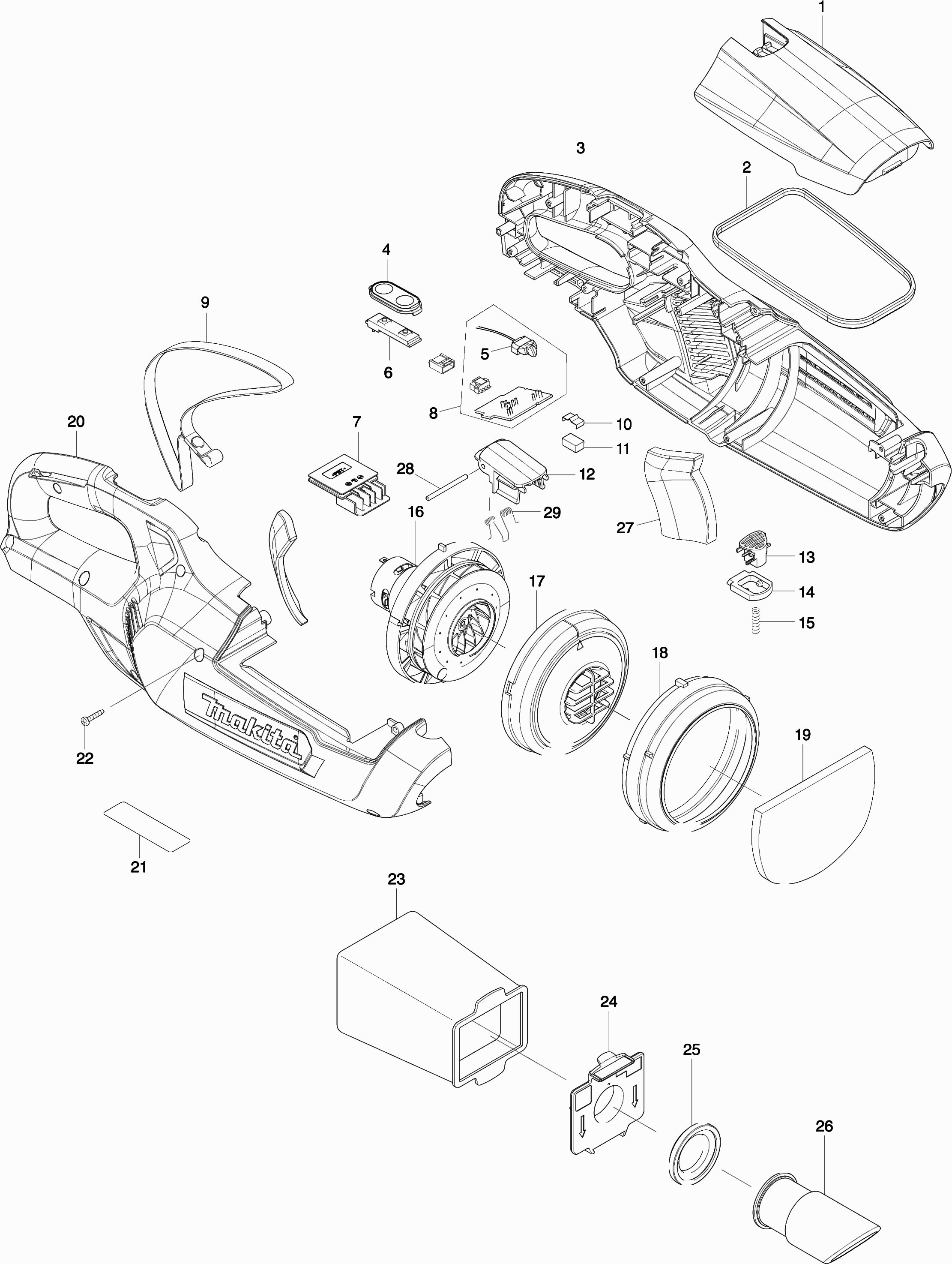

Technical drawing of model Makita CL107FD
Spare parts list of model Makita CL107FD
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Covering hood | ||||
| 001 | 457284-5 | 3.60 | 4.36 | |
| Motor Housing Set | ||||
| 003 | 183E89-4 | 14.30 | 17.30 | |
| Shift Plate | ||||
| 004 | 144096-2 | 2.40 | 2.90 | |
| Light Circuit CL106FD A | ||||
| 005 | 620E97-9 | 4.80 | 5.81 | |
| Switching unit Bub360 | ||||
| 006 | 631973-2 | 7.20 | 8.71 | |
| Connection unit | ||||
| 007 | 644813-5 | 2.40 | 2.90 | |
| Control unit | ||||
| 008 | 632H51-9 | 26.40 | 31.94 | |
| Line filter | ||||
| 008 | 688161-2 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 010 | 232264-0 | 1.00 | 1.21 | |
| Leg | ||||
| 011 | 424367-6 | 1.00 | 1.21 | |
| Knob | ||||
| 012 | 455249-1 | 1.20 | 1.45 | |
| Pushing Button | ||||
| 013 | 452363-4 | 1.20 | 1.45 | |
| Blocking frame | ||||
| 014 | 452352-9 | 1.00 | 1.21 | |
| Compression Spring 4 HR2450 black | ||||
| 015 | 233344-5 | 1.00 | 1.21 | |
| Motor cpl | ||||
| 016 | 123293-3 | 14.30 | 17.30 | |
| Fan plate | ||||
| 017 | 454084-4 | 1.20 | 1.45 | |
| Rubber Ring | ||||
| 018 | 424320-2 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 019 | 424804-0 | |||
| Motor Housing Set | ||||
| 020 | 183E89-4 | 14.30 | 17.30 | |
| Nameplate "cl107fd" | ||||
| 021 | 852S30-9 | 3.60 | 4.36 | |
| Tapping Screw 3x16 | ||||
| 022 | 266130-9 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 023 | 194566-1 | |||
| No information available, not orderable | ||||
| 024 | 143677-9 | |||
| Gasket | ||||
| 025 | 424094-5 | 1.00 | 1.21 | |
| Hose socket | ||||
| 026 | 451400-1 | 3.60 | 4.36 | |
| Foam Rubber 35-70 | ||||
| 027 | 424913-5 | 1.00 | 1.21 | |
| Pen 3 | ||||
| 028 | 268271-7 | 1.20 | 1.45 | |
| Torsion Spring | ||||
| 029 | 233580-3 | 1.00 | 1.21 | |
