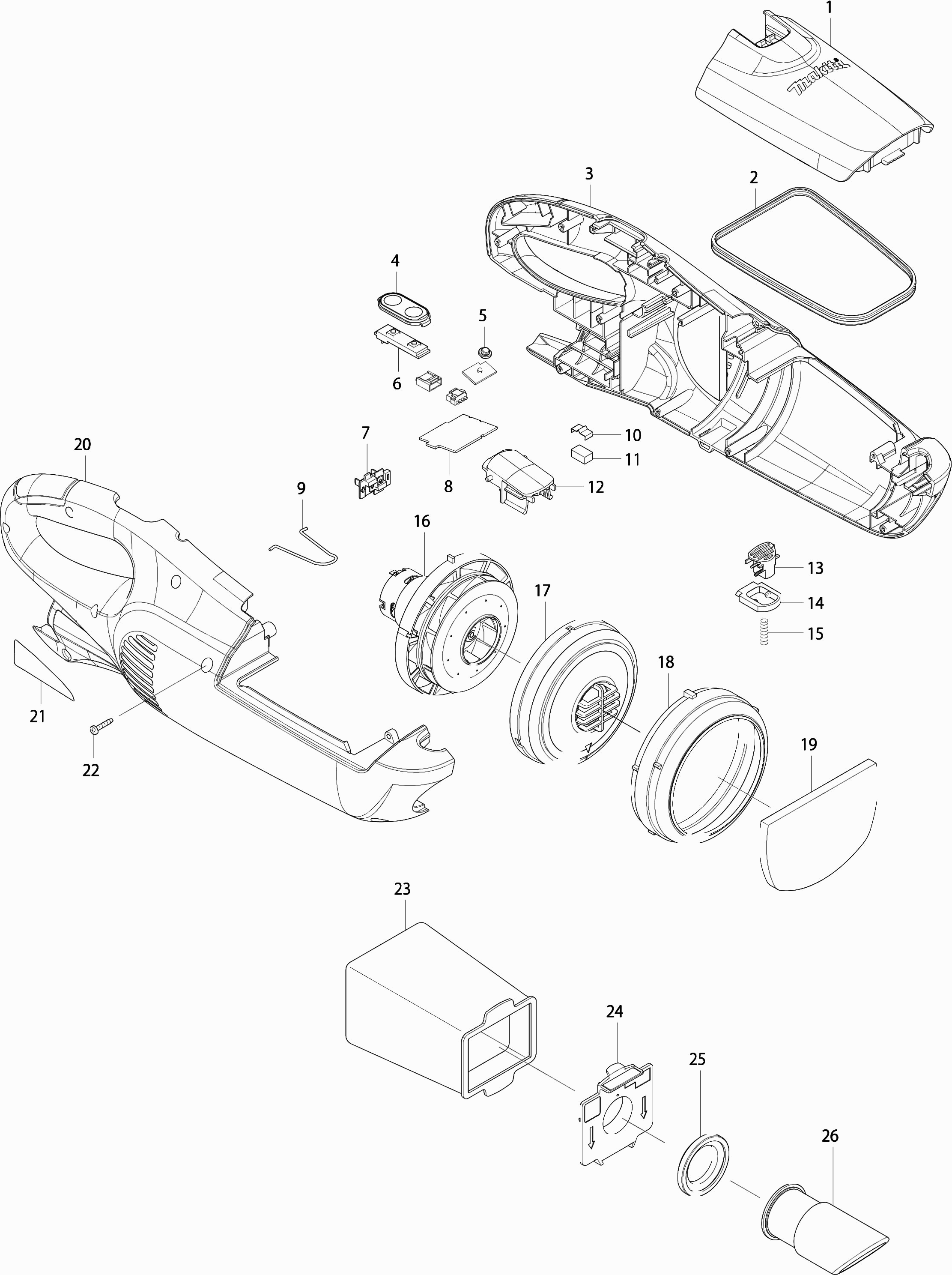

Technical drawing of model Makita CL102D
Spare parts list of model Makita CL102D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cover | ||||
| 001 | 452361-8 | 3.60 | 4.36 | |
| Seal | ||||
| 002 | 424093-7 | 1.20 | 1.45 | |
| Motor Housing Set | ||||
| 003 | 188997-4 | 13.20 | 15.97 | |
| Sponge rubber Cl102D | ||||
| 003A | 452359-5 | 1.20 | 1.45 | |
| Switch Slider Bub360 | ||||
| 004 | 140463-9 | 3.60 | 4.36 | |
| Switch label | ||||
| 004A | 816528-6 | 2.40 | 2.90 | |
| VIEWING GLASS | ||||
| 005 | 450522-4 | 1.00 | 1.21 | |
| Switching unit Bub360 | ||||
| 006 | 631973-2 | 7.20 | 8.71 | |
| Connection unit | ||||
| 007 | 643817-4 | 2.40 | 2.90 | |
| Control unit | ||||
| 008 | 539194-9 | 23.10 | 27.95 | |
| Line filter | ||||
| 008A | 688164-6 | 1.00 | 1.21 | |
| Motor connection | ||||
| 008B | 654069-2 | 1.00 | 1.21 | |
| Hanger | ||||
| 009C | 324885-3 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 010 | 232264-0 | 1.00 | 1.21 | |
| Leg | ||||
| 011 | 424367-6 | 1.00 | 1.21 | |
| Covering hood | ||||
| 012 | 452365-0 | 2.40 | 2.90 | |
| Torsion Spring | ||||
| 012A | 233580-3 | 1.00 | 1.21 | |
| Pen 3 | ||||
| 012B | 268271-7 | 1.20 | 1.45 | |
| Pushing Button | ||||
| 013 | 452363-4 | 1.20 | 1.45 | |
| Blocking frame | ||||
| 014 | 452352-9 | 1.00 | 1.21 | |
| Compression Spring 4 HR2450 black | ||||
| 015 | 233344-5 | 1.00 | 1.21 | |
| Motor cpl | ||||
| 016 | 125862-6 | 11.00 | 13.31 | |
| Fan 82 | ||||
| 016A | 240102-2 | 6.00 | 7.26 | |
| Screw M3x8 | ||||
| 016B | 265199-0 | 1.00 | 1.21 | |
| Motor Plate Cl102D A | ||||
| 016C | 452455-9 | 1.20 | 1.45 | |
| Fan cover | ||||
| 017 | 416030-5 | 2.40 | 2.90 | |
| Rubber Ring | ||||
| 018 | 424320-2 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 019 | 424804-0 | |||
| Motor Housing Set | ||||
| 020 | 188997-4 | 13.20 | 15.97 | |
| Sponge rubber Cl102D | ||||
| 020A | 452359-5 | 1.20 | 1.45 | |
| Label | ||||
| 021 | 868815-9 | 3.60 | 4.36 | |
| Tapping Screw 3x16 | ||||
| 022 | 266130-9 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 023 | 194566-1 | |||
| No information available, not orderable | ||||
| 024 | 143677-9 | |||
| Gasket | ||||
| 025 | 424094-5 | 1.00 | 1.21 | |
| Hose socket | ||||
| 026 | 451400-1 | 3.60 | 4.36 | |
