Here you will find all available parts and drawings of the 'Makita CL002G'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

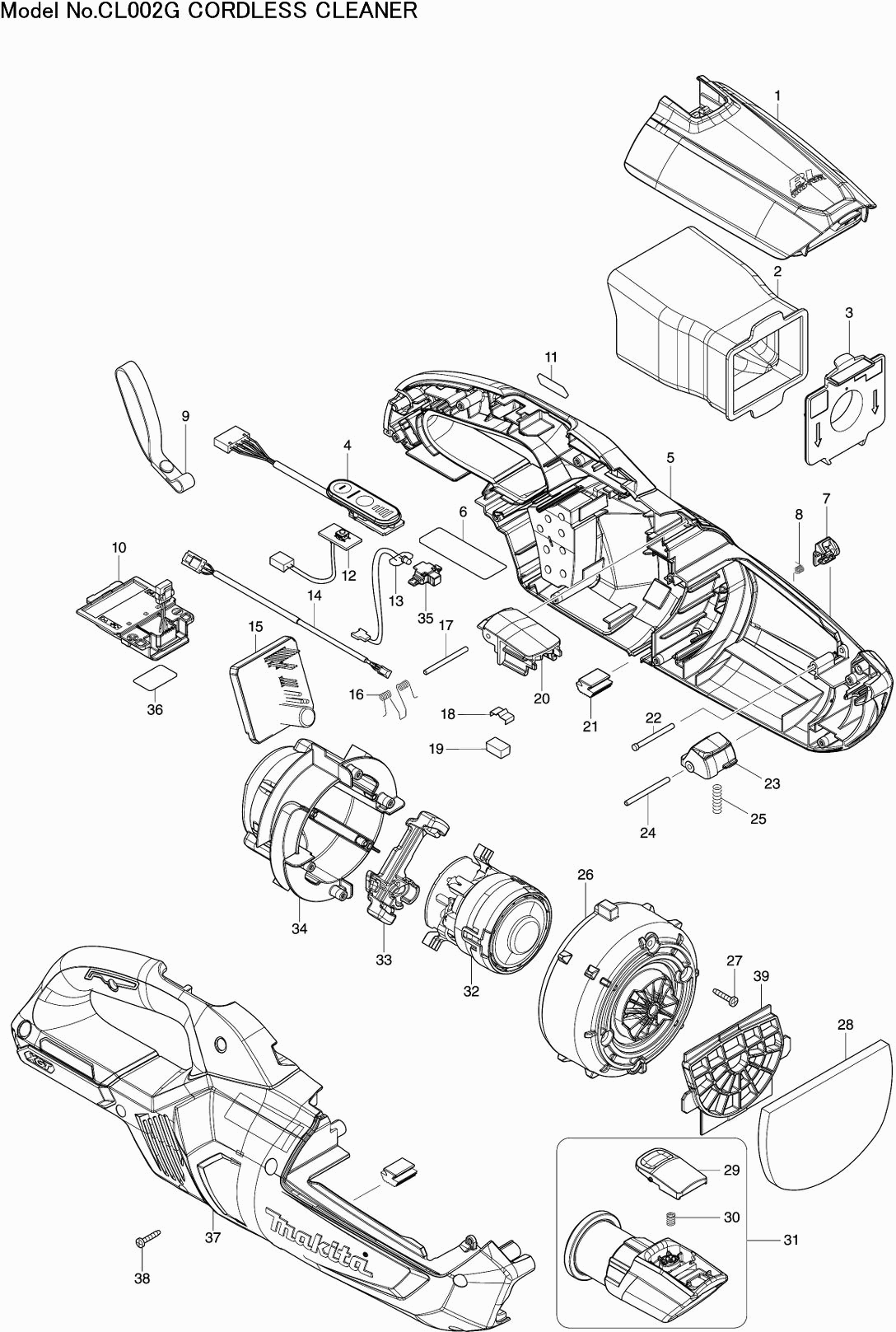

Technical drawing of model Makita CL002G
Spare parts list of model Makita CL002G
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Complete White Housing CL002G | ||||
| 001A | 141F22-8 | 3.60 | 4.36 | |
| Complete Black Housing CL002G | ||||
| 001B | 141F21-0 | 3.60 | 4.36 | |
| Front housing cpl white CL002G | ||||
| 001C10 | 141F10-5 | 3.60 | 4.36 | |
| Seal | ||||
| 001C10 | 424093-7 | 1.20 | 1.45 | |
| LINNEN STOFZAK (MAKKELIJK UITKLOPBAAR) | ||||
| 002 | 198749-5 | 5.00 | 6.05 | |
| LINNEN STOFZAK STEELSTOFZUIGER | ||||
| 002-1 | 1910M4-5 | 6.00 | 7.26 | |
| STOFZAKHOUDER STEELSTOFZUIGER | ||||
| 003 | 140K23-3 | 1.00 | 1.21 | |
| Circuit indication CL001G | ||||
| 004 | 141B54-1 | 11.00 | 13.31 | |
| Label A/U CL001G | ||||
| 004C10 | 8031J2-9 | 2.40 | 2.90 | |
| Full blue housing CL002G | ||||
| 005A | 183U76-9 | 14.30 | 17.30 | |
| Full black housing CL002G | ||||
| 005B | 183U75-1 | 14.30 | 17.30 | |
| Housing cpl white CL002G | ||||
| 005C10 | 183U26-4 | 14.30 | 17.30 | |
| Rubber pen 6 | ||||
| 005C10 | 263005-3 | 1.00 | 1.21 | |
| Nameplate CL002G | ||||
| 006 | 8115A3-4 | 1.00 | 1.21 | |
| Stop plate CL002G | ||||
| 007A | 459327-9 | 1.20 | 1.45 | |
| Spacer DCL281F | ||||
| 007B | 459352-0 | 1.20 | 1.45 | |
| Black spacer DCL281F | ||||
| 007C | 459302-5 | 1.20 | 1.45 | |
| Torsion Spring 4 DCL281 | ||||
| 008 | 232484-6 | 1.00 | 1.21 | |
| Control unit GA-40V series | ||||
| 010 | 632P65-6 | 8.40 | 10.16 | |
| Label XGT logo | ||||
| 011 | 8005T5-8 | 2.40 | 2.90 | |
| Switch CL001G | ||||
| 012 | 620E74-1 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 013 | 620E82-2 | |||
| Wire harness CL001G | ||||
| 014 | 632S32-9 | 2.40 | 2.90 | |
| Speed control CL001G | ||||
| 015 | 620E90-3 | 63.80 | 77.20 | |
| Torsion Spring | ||||
| 016 | 233580-3 | 1.00 | 1.21 | |
| Pen 3 | ||||
| 017 | 268271-7 | 1.20 | 1.45 | |
| Leaf Spring | ||||
| 018 | 232264-0 | 1.00 | 1.21 | |
| Leg | ||||
| 019 | 424367-6 | 1.00 | 1.21 | |
| Cover cap CL002G | ||||
| 020A | 459330-0 | 1.20 | 1.45 | |
| Connection block black DCL281F | ||||
| 020B | 459351-2 | 2.40 | 2.90 | |
| Connection block DCL281F | ||||
| 020C | 459350-4 | 1.20 | 1.45 | |
| Rubber plate DCL281 | ||||
| 021 | 422460-0 | 1.00 | 1.21 | |
| Pen 3mm DCL281F | ||||
| 022 | 256590-3 | 1.00 | 1.21 | |
| Button B CL002G | ||||
| 023A | 459329-5 | 1.00 | 1.21 | |
| Switch button B black DCL281F | ||||
| 023B | 459349-9 | 1.20 | 1.45 | |
| Switch button B DCL281F | ||||
| 023C | 459348-1 | 1.20 | 1.45 | |
| Pen 3 | ||||
| 024 | 268271-7 | 1.20 | 1.45 | |
| Compression Spring 4 HR2450 black | ||||
| 025 | 233344-5 | 1.00 | 1.21 | |
| Motor Cover F CL001G | ||||
| 026 | 413645-9 | 4.80 | 5.81 | |
| Tapping Screw 3x16 | ||||
| 027 | 266130-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 028 | 424804-0 | |||
| Button C CL002G | ||||
| 029 | 413F33-6 | 1.00 | 1.21 | |
| Compression Spring 5 | ||||
| 030 | 232485-4 | 1.00 | 1.21 | |
| Inlet Assembly Blue CL002G | ||||
| 031A | 136587-7 | 3.60 | 4.36 | |
| Inlet Assembly Black CL002G | ||||
| 031B | 136586-9 | 3.60 | 4.36 | |
| Inlet Assembly White CL002G | ||||
| 031C10 | 136585-1 | 3.60 | 4.36 | |
| Gasket | ||||
| 031C10 | 424094-5 | 1.00 | 1.21 | |
| Motor CL001G | ||||
| 032 | 629A46-9 | 78.10 | 94.50 | |
| Motor cover rubber CL001G | ||||
| 033 | 422723-4 | 1.20 | 1.45 | |
| Engine Cover R CL001G | ||||
| 034 | 141E55-7 | 2.40 | 2.90 | |
| Rubber Pin 4 | ||||
| 034C10 | 263002-9 | 1.00 | 1.21 | |
| Led housing complete CL002G | ||||
| 035 | 141H09-2 | 1.20 | 1.45 | |
| Serial number Label. CL002G | ||||
| 036 | 8115A9-2 | 2.40 | 2.90 | |
| Full blue housing CL002G | ||||
| 037A | 183U76-9 | 14.30 | 17.30 | |
| Full black housing CL002G | ||||
| 037B | 183U75-1 | 14.30 | 17.30 | |
| Housing cpl white CL002G | ||||
| 037C | 183U26-4 | 14.30 | 17.30 | |
| Rubber pen 6 | ||||
| 037C10 | 263005-3 | 1.00 | 1.21 | |
| Buffer CL001G | ||||
| 037C20 | 422714-5 | 1.20 | 1.45 | |
| Tapping Screw 3x16 | ||||
| 038 | 266130-9 | 1.00 | 1.21 | |
| Guide CL002G | ||||
| 039 | 413J77-0 | 2.40 | 2.90 | |
