Here you will find all available parts and drawings of the 'Makita BVR450'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

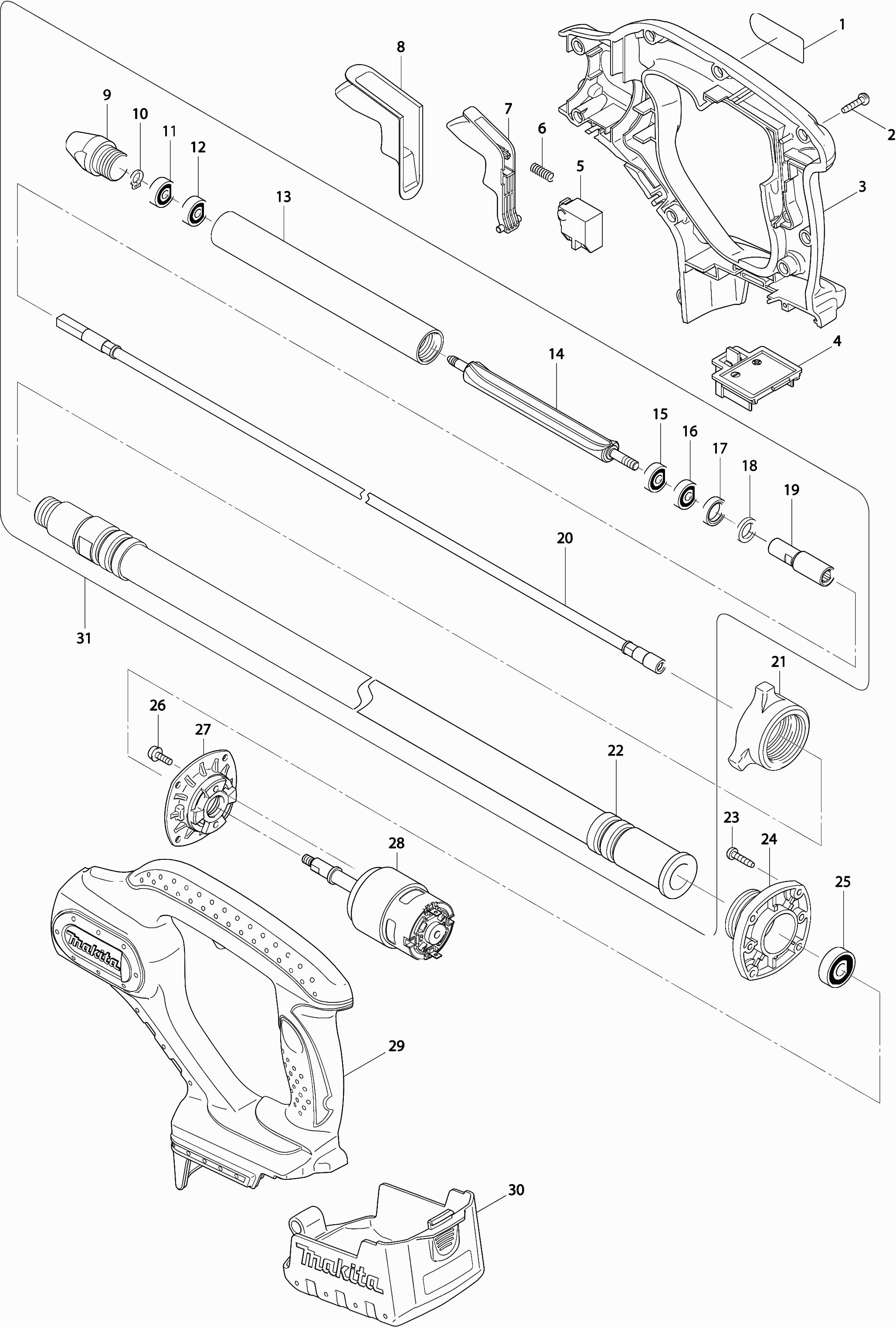

Technical drawing of model Makita BVR450
Spare parts list of model Makita BVR450
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 001 | 862644-2 | |||
| Tapping screw Pt4x20 | ||||
| 002 | 266045-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 003 | 188121-9 | |||
| Connection Unit (2 contacts) | ||||
| 004 | 643844-1 | 3.60 | 4.36 | |
| Switch | ||||
| 005 | 650580-2 | 8.40 | 10.16 | |
| Compression Spring 6 | ||||
| 006 | 231298-0 | 1.00 | 1.21 | |
| Switch handle | ||||
| 007 | 419511-8 | 4.80 | 5.81 | |
| Switch cover | ||||
| 008 | 421961-5 | 6.00 | 7.26 | |
| Baffle | ||||
| 009 | 322935-8 | 10.80 | 13.07 | |
| Lock ring S-6 | ||||
| 010 | 961002-0 | 1.00 | 1.21 | |
| Ball bearing 626 | ||||
| 011 | 210018-5 | 3.60 | 4.36 | |
| Ball bearing 626 | ||||
| 012 | 210018-5 | 3.60 | 4.36 | |
| Intermediate piece 25 | ||||
| 013 | 331503-6 | 17.60 | 21.30 | |
| Unbalance Vr250Dw * | ||||
| 014 | 322934-0 | 30.80 | 37.27 | |
| Ball bearing 626llb | ||||
| 015 | 211016-2 | 6.00 | 7.26 | |
| Ball bearing 626llb | ||||
| 016 | 211016-2 | 6.00 | 7.26 | |
| Rubber Ring | ||||
| 017 | 421578-4 | 1.20 | 1.45 | |
| Felt Ring Vr250Dwb * | ||||
| 018 | 443101-5 | 1.20 | 1.45 | |
| Connector BVR450 | ||||
| 019 | 326203-1 | 28.60 | 34.61 | |
| No information available, not orderable | ||||
| 020 | 163420-0 | |||
| Connecting Nut | ||||
| 021 | 416244-6 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 022 | 163419-5 | |||
| Tapping screw Pt4x20 | ||||
| 023 | 266045-0 | 1.00 | 1.21 | |
| Bearing Housing | ||||
| 024 | 316893-8 | 23.10 | 27.95 | |
| Ball bearing 629llb | ||||
| 025 | 210042-8 | 2.40 | 2.90 | |
| Screw 4x12 | ||||
| 026 | 911116-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 027 | 318038-4 | |||
| No information available, not orderable | ||||
| 028 | 629836-4 | |||
| No information available, not orderable | ||||
| 029 | 188121-9 | |||
| Battery cover | ||||
| 030 | 158051-8 | 11.00 | 13.31 | |
| Warning Label | ||||
| 030A | 810196-7 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 031 | 192954-6 | |||
