Here you will find all available parts and drawings of the 'Makita BVF104Z'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

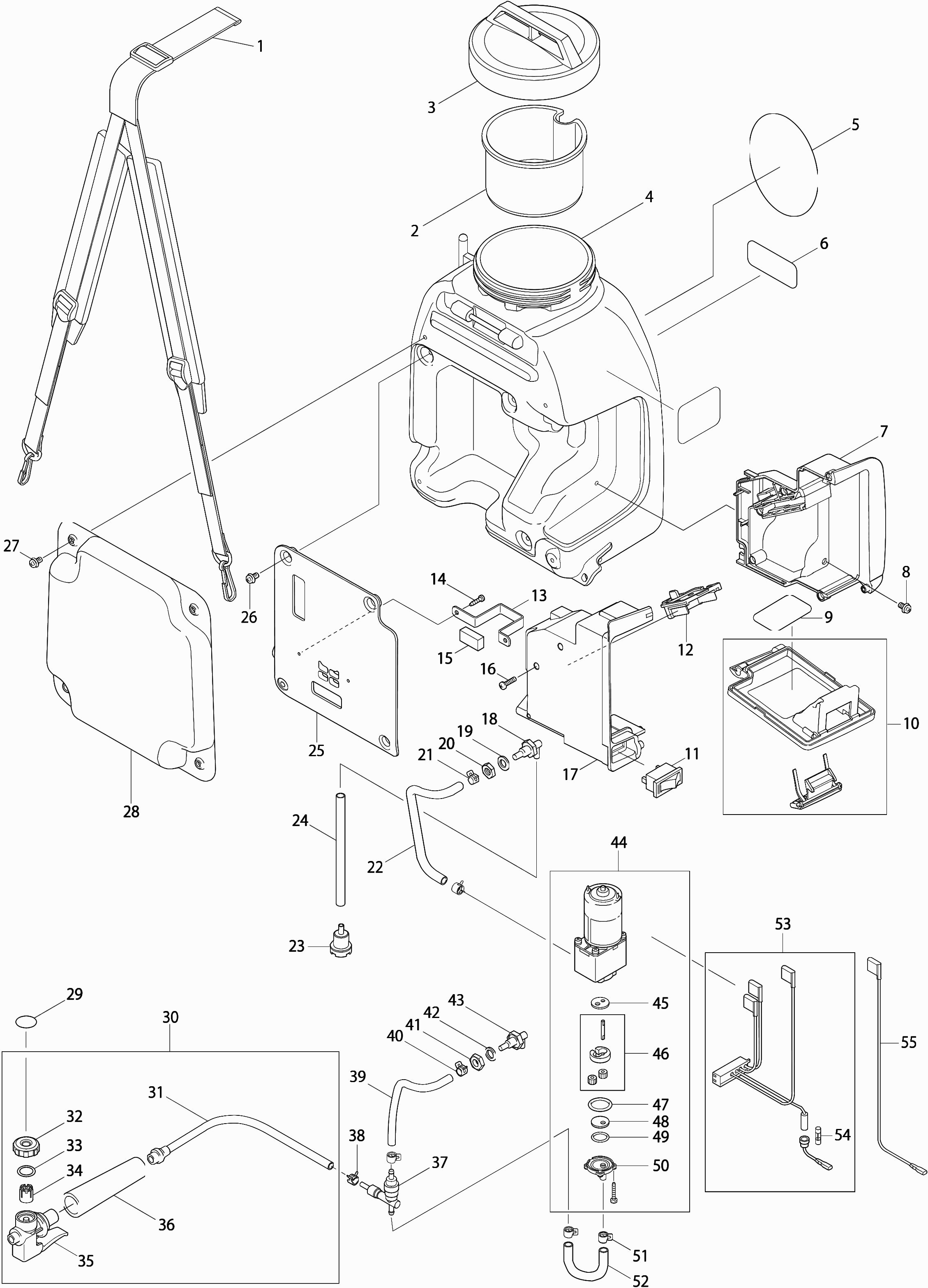

Technical drawing of model Makita BVF104Z
Spare parts list of model Makita BVF104Z
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Filter tank | ||||
| 002 | 6904503601 | 6.00 | 7.26 | |
| Tank cap Bvf154 A | ||||
| 003 | 6954023000 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 004-2 | 6954017004 | |||
| No information available, not orderable | ||||
| 006-1 | 806Y36-5 | |||
| Battery case Re | ||||
| 007 | 6951504600 | 13.20 | 15.97 | |
| Screw Assy M5X10Mm Bvf154 A | ||||
| 008-1 | 0140059260 | 1.20 | 1.45 | |
| Label "indication" | ||||
| 009 | 6954513200 | 2.40 | 2.90 | |
| Battery cover Bvf154 A | ||||
| 010-1 | 6951036000 | 11.00 | 13.31 | |
| Switch | ||||
| 011 | 651531-8 | 4.80 | 5.81 | |
| Connection Unit (2 contacts) | ||||
| 012 | 643843-3 | 4.80 | 5.81 | |
| Bow | ||||
| 013 | 6951503501 | 3.60 | 4.36 | |
| Tap screw 4x18 | ||||
| 014-1 | 265A48-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 015-1 | 424891-9 | |||
| Tap screw 4x18 | ||||
| 016-1 | 265A48-7 | 1.00 | 1.21 | |
| Battery case Li | ||||
| 017 | 6951504300 | 17.60 | 21.30 | |
| No information available, not orderable | ||||
| 018 | 6951022000 | |||
| Gasket | ||||
| 019 | 6951023000 | 1.20 | 1.45 | |
| Nut | ||||
| 020 | 6951024001 | 3.60 | 4.36 | |
| Hose Clamp Eg-Series | ||||
| 021 | 0561100030 | 1.20 | 1.45 | |
| Hose | ||||
| 022 | 6951503601 | 2.40 | 2.90 | |
| Sieve for suction head | ||||
| 023 | 6954021000 | 8.40 | 10.16 | |
| Hose | ||||
| 024 | 6951503900 | 2.40 | 2.90 | |
| Pump holder Bvf154 A | ||||
| 025-1 | 6951503101 | 14.30 | 17.30 | |
| Screw Assy M5X10Mm Bvf154 A | ||||
| 026-1 | 0140059260 | 1.20 | 1.45 | |
| Screw Assy M5X10Mm Bvf154 A | ||||
| 027-1 | 0140059260 | 1.20 | 1.45 | |
| Back Cushion | ||||
| 028-1 | 6954025000 | 12.10 | 14.64 | |
| Label "warning" | ||||
| 029 | 6954513100 | 2.40 | 2.90 | |
| Spray hose cpl | ||||
| 030-1 | 6957029001 | 26.40 | 31.94 | |
| Cap | ||||
| 032 | 6957025060 | 2.40 | 2.90 | |
| Seal O-ring | ||||
| 033 | 6957025050 | 2.40 | 2.90 | |
| Sieve Bvf154 | ||||
| 034 | 6957025040 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 035-2 | 6957029010 | |||
| Handle | ||||
| 036 | 6957025020 | 8.40 | 10.16 | |
| Control unit Bvf154 | ||||
| 037 | 6951021001 | 27.50 | 33.28 | |
| Hose Clamp Bvf154 | ||||
| 038 | 0561089980 | 1.20 | 1.45 | |
| Hose | ||||
| 039 | 6951503800 | 2.40 | 2.90 | |
| Hose clamp IAS 3 | ||||
| 040-1 | 345918-1 | 1.00 | 1.21 | |
| Nut | ||||
| 041 | 6951024001 | 3.60 | 4.36 | |
| Gasket | ||||
| 042 | 6951023000 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 043 | 6951022000 | |||
| Valve Plate | ||||
| 045 | 6951502900 | 14.30 | 17.30 | |
| No information available, not orderable | ||||
| 046 | 6951019000 | |||
| Seal O-ring | ||||
| 047 | 6951502600 | 3.60 | 4.36 | |
| Valve Plate | ||||
| 048 | 6951503000 | 22.00 | 26.62 | |
| Seal O-ring | ||||
| 049 | 6951502700 | 3.60 | 4.36 | |
| Pump Cover | ||||
| 050 | 6951502800 | 9.60 | 11.62 | |
| Hose Clamp Eg-Series | ||||
| 051 | 0561100030 | 1.20 | 1.45 | |
| Hose | ||||
| 052 | 6951503700 | 2.40 | 2.90 | |
| Speed control circuit | ||||
| 053-1 | 620140-4 | 30.80 | 37.27 | |
| Fuse Bvf154 A | ||||
| 054-1 | 652063-8 | 2.40 | 2.90 | |
| Cable harness | ||||
| 055 | 638670-1 | 3.60 | 4.36 | |
