Here you will find all available parts and drawings of the 'Makita BVC340'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

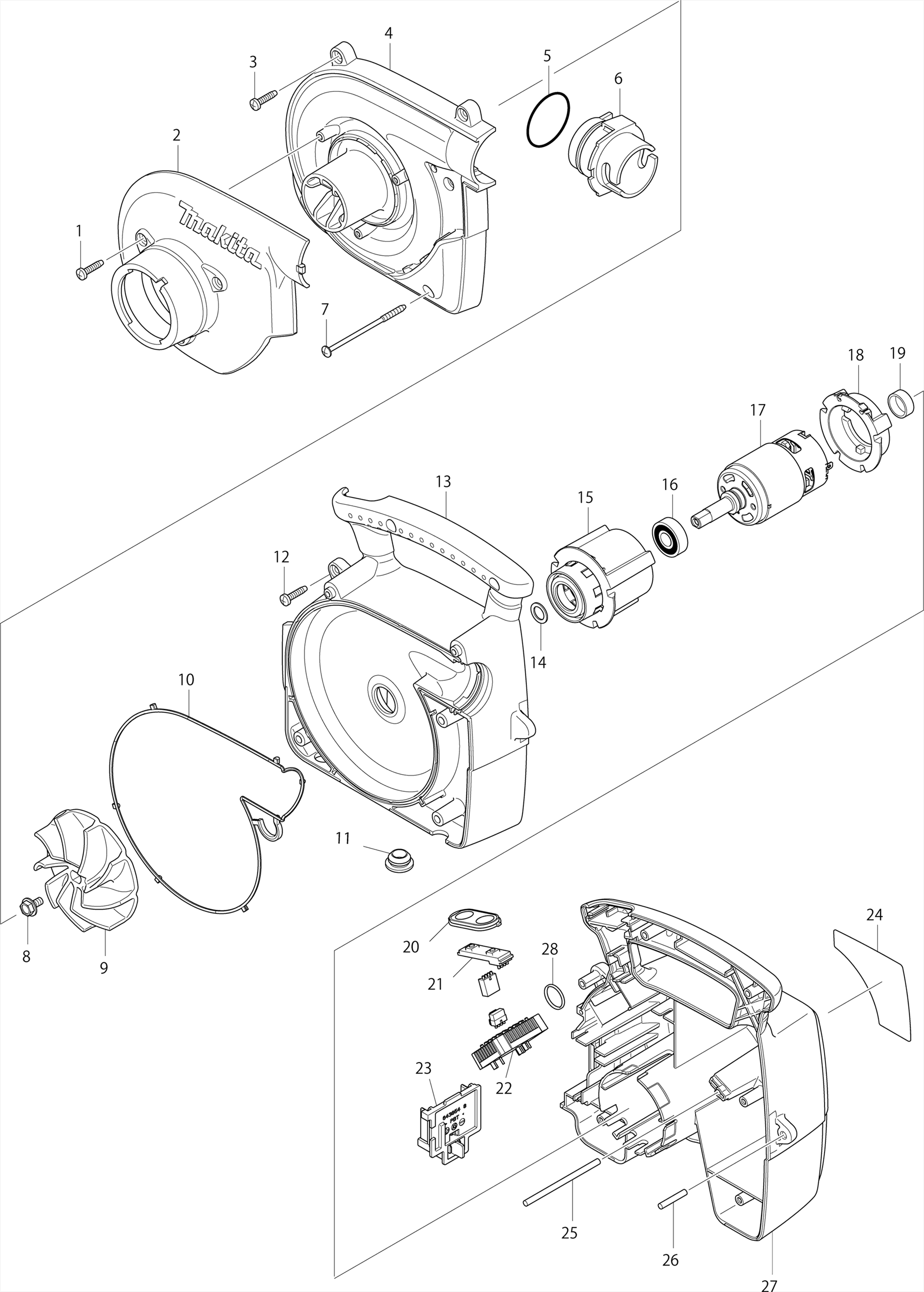

Technical drawing of model Makita BVC340
Spare parts list of model Makita BVC340
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| BAG DUST | ||||
| A01 | 122918-6 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| A01-1 | 122G96-4 | |||
| No information available, not orderable | ||||
| A02 | 140456-6 | |||
| DRAAGRIEM DIVERSE MACHINES | ||||
| A03 | 166094-6 | 2.00 | 2.42 | |
| Nozzle (a) | ||||
| A04 | 123245-4 | 4.00 | 4.84 | |
| No information available, not orderable | ||||
| A05 | 417766-9 | |||
| Connecting Washer | ||||
| C10 | 414145-2 | 2.00 | 2.42 | |
| No information available, not orderable | ||||
| F03 | 198533-8 | |||
| Inslagdop VC006GM | ||||
| F96 | 422A02-6 | 2.15 | 2.60 | |
| Tap screw 4x18 | ||||
| 001 | 265A48-7 | 1.00 | 1.21 | |
| Cover Dvc350 | ||||
| 002 | 140642-9 | 17.60 | 21.30 | |
| No information available, not orderable | ||||
| 002-1 | 140455-8 | |||
| Tap screw 4x18 | ||||
| 003 | 265A48-7 | 1.00 | 1.21 | |
| Fan housing Dvc350 | ||||
| 004 | 451989-9 | 14.30 | 17.30 | |
| O-ring 38 | ||||
| 005 | 213508-7 | 1.20 | 1.45 | |
| Connector Sleeve | ||||
| 006 | 452067-8 | 3.60 | 4.36 | |
| TAPSCHROEF PT4X75 | ||||
| 007 | 266049-2 | 1.20 | 1.45 | |
| Bottle screw M5X10Mm Dvc350 | ||||
| 008 | 266614-7 | 1.20 | 1.45 | |
| Fan 86Mm Dvc350 | ||||
| 009 | 240122-6 | 3.60 | 4.36 | |
| Packing Ring Dvc350 | ||||
| 010 | 424332-5 | 2.40 | 2.90 | |
| Cover 19 Dvc350 | ||||
| 011 | 286238-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 011-1 | 286046-2 | |||
| Tap screw 4x18 | ||||
| 012 | 265A48-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 013 | 188899-4 | |||
| Ring 10 | ||||
| 014 | 267047-9 | 1.00 | 1.21 | |
| Motor Rubber Dvc350 | ||||
| 015 | 424330-9 | 2.40 | 2.90 | |
| Ball bearing 6000ddw | ||||
| 016 | 211289-7 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 017 | 629882-7 | |||
| Rubber Ring B | ||||
| 018 | 424331-7 | 2.40 | 2.90 | |
| Cover Dbp181D | ||||
| 019 | 421940-3 | 1.00 | 1.21 | |
| Switch Slider Bub360 | ||||
| 020 | 140463-9 | 3.60 | 4.36 | |
| Switching unit Bub360 | ||||
| 021 | 631973-2 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 022 | 631974-0 | |||
| No information available, not orderable | ||||
| 022-1 | 638850-9 | |||
| Connection unit (3 contacts) | ||||
| 023 | 643854-8 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 024 | 868108-4 | |||
| Pin 4 | ||||
| 025 | 268092-7 | 1.00 | 1.21 | |
| Pen 4 | ||||
| 026 | 256206-0 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 027 | 188899-4 | |||
| Pasring Dvc350 | ||||
| 028 | 259048-1 | 1.00 | 1.21 | |
