Here you will find all available parts and drawings of the 'Makita BUX361'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

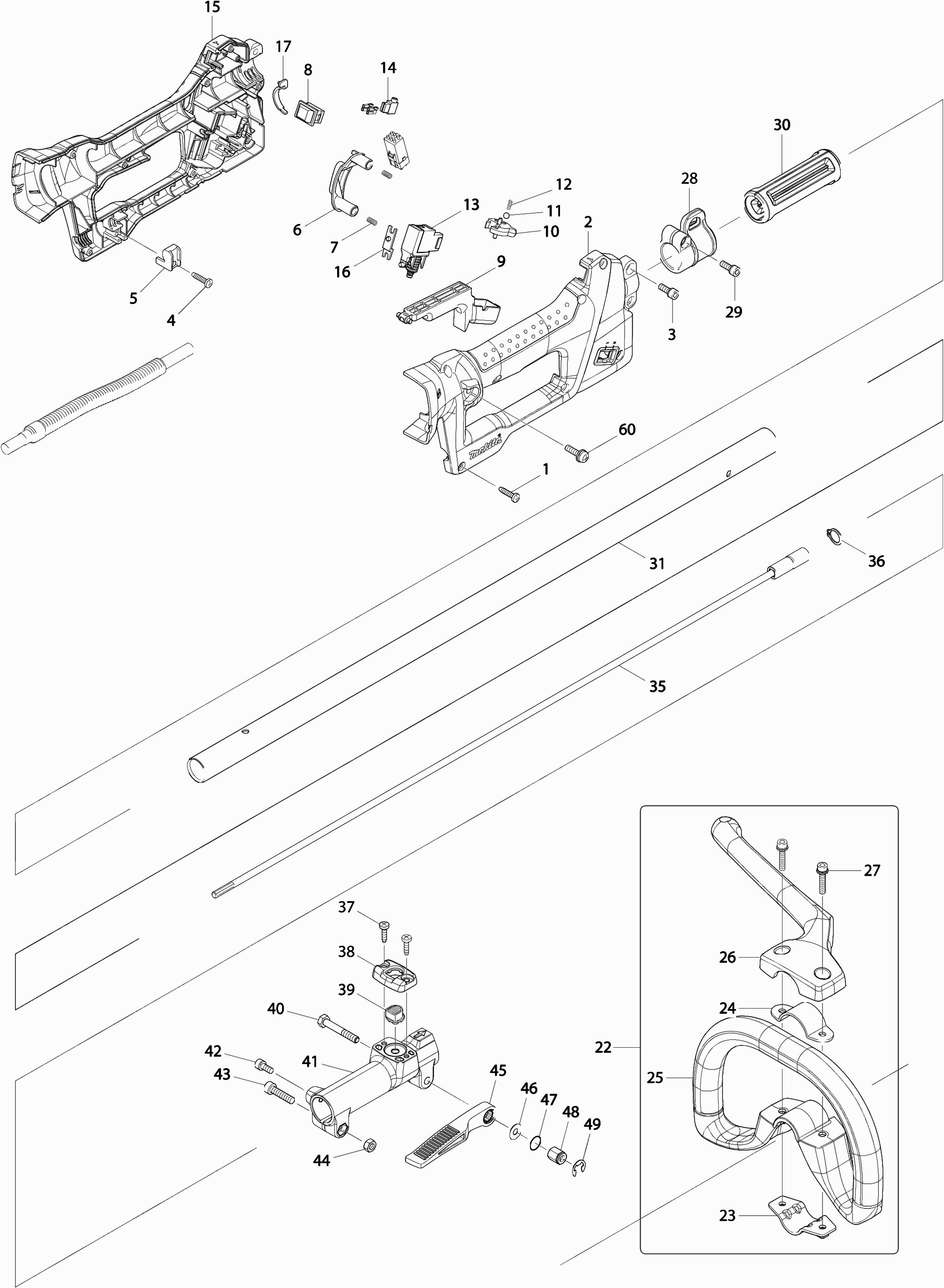

Technical drawing of model Makita BUX361
Spare parts list of model Makita BUX361
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tap screw 4x18 | ||||
| 001 | 265A48-7 | 1.00 | 1.21 | |
| Handle set | ||||
| 002 | 188841-5 | 45.10 | 54.57 | |
| No information available, not orderable | ||||
| 003 | 922228-9 | |||
| Tap screw 4x18 | ||||
| 004 | 265A48-7 | 1.00 | 1.21 | |
| TREKONTLASTER PS001G | ||||
| 005 | 687261-5 | 1.00 | 1.21 | |
| Lock button | ||||
| 006 | 451983-1 | 8.40 | 10.16 | |
| Compression Spring 4 | ||||
| 007 | 233054-4 | 1.00 | 1.21 | |
| Switch sle6a2-33 | ||||
| 008 | 651533-4 | 3.60 | 4.36 | |
| Switch Button | ||||
| 009 | 451984-9 | 16.50 | 19.96 | |
| Power indicator | ||||
| 010 | 451986-5 | 11.00 | 13.31 | |
| Steel ball 5.0 | ||||
| 011 | 216018-3 | 1.00 | 1.21 | |
| Pressure Spring 2 | ||||
| 012 | 233211-4 | 1.00 | 1.21 | |
| Switch Tgr3-3 | ||||
| 013 | 650630-3 | 13.20 | 15.97 | |
| Socket | ||||
| 014 | 686015-7 | 1.00 | 1.21 | |
| Handle set | ||||
| 015 | 188841-5 | 45.10 | 54.57 | |
| Connection Plate | ||||
| 016 | 451982-3 | 8.40 | 10.16 | |
| Cord Protector | ||||
| 017 | 451985-7 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 022 | 195515-1 | |||
| Wire Clamp | ||||
| 023 | 347094-7 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 024 | 346468-9 | |||
| Beugelhandgreep | ||||
| 025 | 452841-4 | 10.80 | 13.07 | |
| Terminal cover | ||||
| 026 | 452842-2 | 4.80 | 5.81 | |
| Wing Screw M5x25mm | ||||
| 027 | 922244-1 | 1.20 | 1.45 | |
| Hanger | ||||
| 028 | 168478-4 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 029 | 922228-9 | |||
| Spacer | ||||
| 030 | 451601-1 | 2.40 | 2.90 | |
| Spindle Ass'y | ||||
| 031 | 141499-1 | 22.00 | 26.62 | |
| Warning Label | ||||
| 031A | 898125-0 | 8.40 | 10.16 | |
| Inner Shaft | ||||
| 035 | 141238-9 | 16.50 | 19.96 | |
| Lock washer S-12 | ||||
| 036 | 961052-5 | 1.00 | 1.21 | |
| Tapping Screw Ct4x16 | ||||
| 037 | 266034-5 | 1.00 | 1.21 | |
| Cover for release button | ||||
| 038 | 452840-6 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 038-1 | 4133K8-4 | |||
| Release button | ||||
| 039 | 452839-1 | 1.20 | 1.45 | |
| Hex bolt M6X40 | ||||
| 040 | 265596-0 | 1.00 | 1.21 | |
| Connector | ||||
| 041 | 312D49-5 | 15.40 | 18.63 | |
| Allen Bolt 5x12 | ||||
| 042 | 922211-6 | 1.00 | 1.21 | |
| Hex Bolt M6x25mm | ||||
| 043 | 266087-4 | 1.00 | 1.21 | |
| Hex Nut M6 | ||||
| 044 | 931302-2 | 1.00 | 1.21 | |
| Lever | ||||
| 045 | 272268-0 | 2.40 | 2.90 | |
| Thin Washer 6 | ||||
| 046 | 253332-6 | 1.00 | 1.21 | |
| O-ring 11 | ||||
| 047 | 213105-9 | 1.00 | 1.21 | |
| Hex nut M6 | ||||
| 048 | 252159-1 | 2.40 | 2.90 | |
| E8 retaining ring | ||||
| 049 | 961014-3 | 1.00 | 1.21 | |
| Screw Vk 20mm | ||||
| 060 | 911233-1 | 1.00 | 1.21 | |
| Covering hood | ||||
| 061 | 451981-5 | 17.60 | 21.30 | |
| Damper | ||||
| 062 | 424307-4 | 2.40 | 2.90 | |
| Hexagonal bolt 5X20 LF1000 A | ||||
| 063 | 265550-4 | 1.00 | 1.21 | |
| Steel Holder | ||||
| 064 | 318560-1 | 28.60 | 34.61 | |
| Screw Vk 20mm | ||||
| 065 | 911233-1 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 066 | 263002-9 | 1.00 | 1.21 | |
| O-Ring 6 An250/Bo3711 | ||||
| 067 | 213045-1 | 1.00 | 1.21 | |
| Axle Holder | ||||
| 068 | 325811-5 | 17.60 | 21.30 | |
| Ball Bearing 6001zz | ||||
| 069 | 211148-5 | 8.40 | 10.16 | |
| Washer 12 | ||||
| 070 | 253744-3 | 1.00 | 1.21 | |
| Gear 33 | ||||
| 071 | 227720-3 | 42.90 | 51.91 | |
| Washer 12 | ||||
| 072 | 253744-3 | 1.00 | 1.21 | |
| Ball Bearing 6901zz | ||||
| 073 | 211150-8 | 6.00 | 7.26 | |
| Gear Cover | ||||
| 074 | 318559-6 | 34.10 | 41.26 | |
| Tap screw 4x18 | ||||
| 075 | 265A48-7 | 1.00 | 1.21 | |
| Tap Screw 5X25 | ||||
| 076 | 266041-8 | 1.00 | 1.21 | |
| Pedal | ||||
| 077 | 451572-2 | 8.40 | 10.16 | |
| Screw Vk 20mm | ||||
| 078 | 911233-1 | 1.00 | 1.21 | |
| Cable | ||||
| 079 | 699047-5 | 14.30 | 17.30 | |
| Tap screw 4x18 | ||||
| 080 | 265A48-7 | 1.00 | 1.21 | |
| Label | ||||
| 081 | 897196-4 | 3.60 | 4.36 | |
| Screw,M4x12 | ||||
| 082 | 251314-2 | 1.00 | 1.21 | |
| Battery Holder | ||||
| 083 | 346194-0 | 25.30 | 30.61 | |
| Motor Housing Set | ||||
| 084 | 188836-8 | 30.80 | 37.27 | |
| Tap screw 4x18 | ||||
| 085 | 265A48-7 | 1.00 | 1.21 | |
| Motor Housing Set | ||||
| 086 | 188838-4 | 10.80 | 13.07 | |
| O-ring 22 | ||||
| 087 | 213961-7 | 1.00 | 1.21 | |
| Armature | ||||
| 088 | 619254-4 | 71.50 | 86.52 | |
| Field | ||||
| 089 | 629880-1 | 62.70 | 75.87 | |
| Motor Housing Set | ||||
| 090 | 188838-4 | 10.80 | 13.07 | |
| Tap screw 4x18 | ||||
| 091 | 265A48-7 | 1.00 | 1.21 | |
| TREKONTLASTER PS001G | ||||
| 092 | 687261-5 | 1.00 | 1.21 | |
| Support Plate | ||||
| 093 | 346039-2 | 1.20 | 1.45 | |
| Motor Housing Set | ||||
| 094 | 188836-8 | 30.80 | 37.27 | |
| Connection unit | ||||
| 095 | 643849-1 | 4.80 | 5.81 | |
| Speed control circuit | ||||
| 096 | 620497-3 | 162.80 | 196.99 | |
| Speed control circuit | ||||
| 097 | 620497-3 | 162.80 | 196.99 | |
| Indicator label | ||||
| 098 | 140285-7 | 8.40 | 10.16 | |
