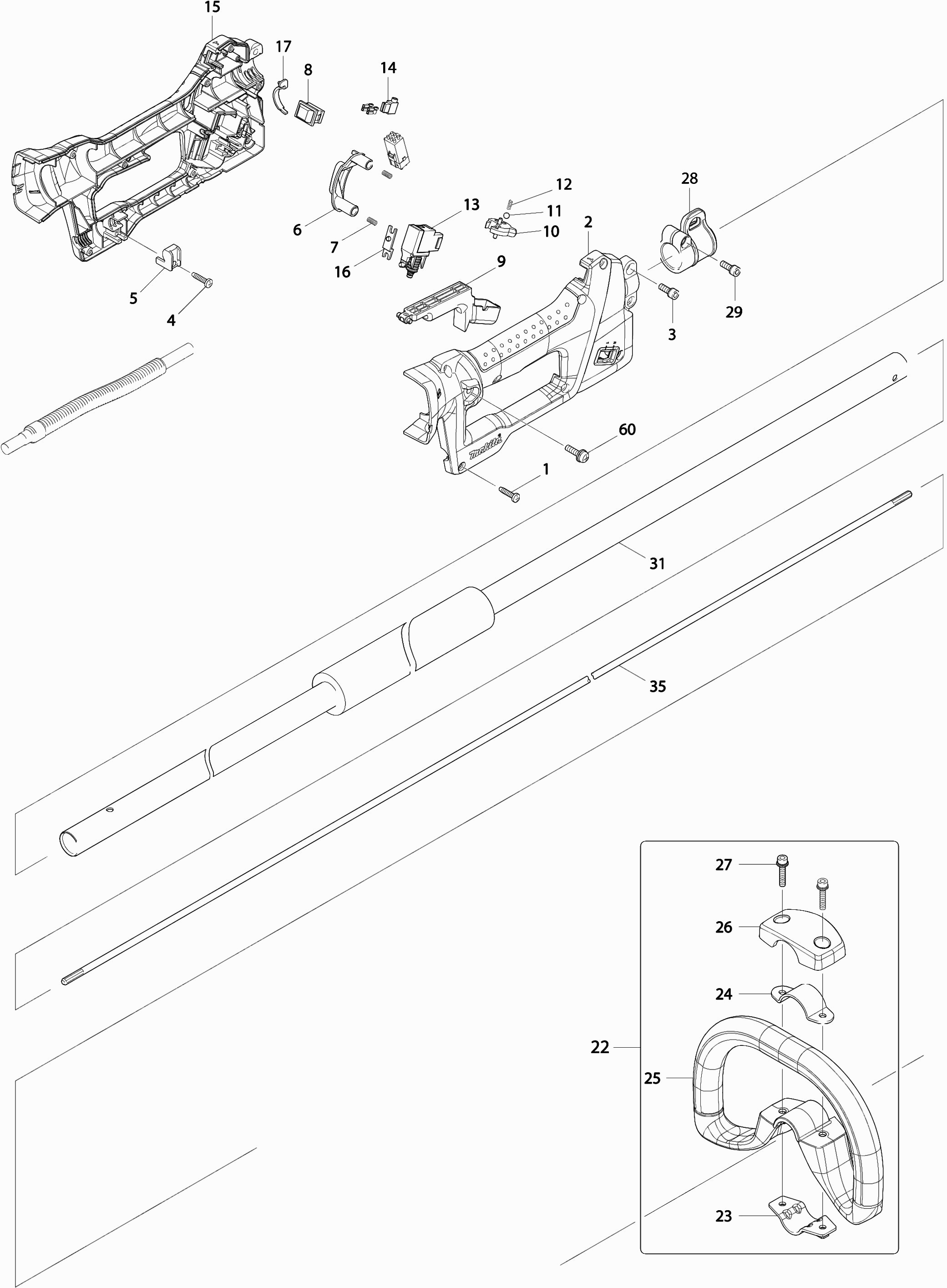

Technical drawing of model Makita BUN490RDE
Spare parts list of model Makita BUN490RDE
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tap screw 4x18 | ||||
| 001 | 265A48-7 | 1.00 | 1.21 | |
| Handle set | ||||
| 002 | 188841-5 | 45.10 | 54.57 | |
| No information available, not orderable | ||||
| 003 | 922228-9 | |||
| Tap screw 4x18 | ||||
| 004 | 265A48-7 | 1.00 | 1.21 | |
| TREKONTLASTER PS001G | ||||
| 005 | 687261-5 | 1.00 | 1.21 | |
| Lock button | ||||
| 006 | 451983-1 | 8.40 | 10.16 | |
| Compression Spring 4 | ||||
| 007 | 233054-4 | 1.00 | 1.21 | |
| Switch sle6a2-33 | ||||
| 008 | 651533-4 | 3.60 | 4.36 | |
| Switch Button | ||||
| 009 | 451984-9 | 16.50 | 19.96 | |
| Power indicator | ||||
| 010 | 451986-5 | 11.00 | 13.31 | |
| Steel ball 5.0 | ||||
| 011 | 216018-3 | 1.00 | 1.21 | |
| Pressure Spring 2 | ||||
| 012 | 233211-4 | 1.00 | 1.21 | |
| Switch Tgr3-3 | ||||
| 013 | 650630-3 | 13.20 | 15.97 | |
| Socket | ||||
| 014 | 686015-7 | 1.00 | 1.21 | |
| Handle set | ||||
| 015 | 188841-5 | 45.10 | 54.57 | |
| Connection Plate | ||||
| 016 | 451982-3 | 8.40 | 10.16 | |
| Cord Protector | ||||
| 017 | 451985-7 | 10.80 | 13.07 | |
| Wire Clamp | ||||
| 023-1 | 347094-7 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 024 | 346468-9 | |||
| Beugelhandgreep | ||||
| 025 | 452841-4 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 026 | 452843-0 | |||
| No information available, not orderable | ||||
| 027 | 922243-3 | |||
| Hanger | ||||
| 028 | 168478-4 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 029 | 922228-9 | |||
| No information available, not orderable | ||||
| 031-1 | 143921-4 | |||
| Spindle Ass'y | ||||
| 035 | 325812-3 | 20.90 | 25.29 | |
| Screw Vk 20mm | ||||
| 060 | 911233-1 | 1.00 | 1.21 | |
| Covering hood | ||||
| 061 | 451981-5 | 17.60 | 21.30 | |
| Damper | ||||
| 062 | 424307-4 | 2.40 | 2.90 | |
| Hexagonal bolt 5X20 LF1000 A | ||||
| 063 | 265550-4 | 1.00 | 1.21 | |
| Steel Holder | ||||
| 064 | 318560-1 | 28.60 | 34.61 | |
| Screw Vk 20mm | ||||
| 065 | 911233-1 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 066 | 263002-9 | 1.00 | 1.21 | |
| O-Ring 6 An250/Bo3711 | ||||
| 067 | 213045-1 | 1.00 | 1.21 | |
| Axle Holder | ||||
| 068 | 325811-5 | 17.60 | 21.30 | |
| Ball Bearing 6001zz | ||||
| 069 | 211148-5 | 8.40 | 10.16 | |
| Washer 12 | ||||
| 070 | 253744-3 | 1.00 | 1.21 | |
| Gear 33 | ||||
| 071 | 227720-3 | 42.90 | 51.91 | |
| Washer 12 | ||||
| 072 | 253744-3 | 1.00 | 1.21 | |
| Ball Bearing 6901zz | ||||
| 073 | 211150-8 | 6.00 | 7.26 | |
| Gear Cover | ||||
| 074 | 318559-6 | 34.10 | 41.26 | |
| Tap screw 4x18 | ||||
| 075 | 265A48-7 | 1.00 | 1.21 | |
| Tap Screw 5X25 | ||||
| 076 | 266041-8 | 1.00 | 1.21 | |
| Pedal | ||||
| 077 | 451572-2 | 8.40 | 10.16 | |
| Screw Vk 20mm | ||||
| 078 | 911233-1 | 1.00 | 1.21 | |
| Cable | ||||
| 079 | 699047-5 | 14.30 | 17.30 | |
| Tap screw 4x18 | ||||
| 080 | 265A48-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 081 | 814U95-1 | |||
| Screw,M4x12 | ||||
| 082 | 251314-2 | 1.00 | 1.21 | |
| Battery Holder | ||||
| 083 | 346194-0 | 25.30 | 30.61 | |
| Motor Housing Set | ||||
| 084-2 | 183C17-7 | 26.40 | 31.94 | |
| Tap screw 4x18 | ||||
| 085 | 265A48-7 | 1.00 | 1.21 | |
| Motor Housing Set | ||||
| 086 | 188838-4 | 10.80 | 13.07 | |
| O-ring 22 | ||||
| 087 | 213961-7 | 1.00 | 1.21 | |
| Armature | ||||
| 088 | 619254-4 | 71.50 | 86.52 | |
| Field | ||||
| 089 | 629880-1 | 62.70 | 75.87 | |
| Motor Housing Set | ||||
| 090 | 188838-4 | 10.80 | 13.07 | |
| Tap screw 4x18 | ||||
| 091 | 265A48-7 | 1.00 | 1.21 | |
| TREKONTLASTER PS001G | ||||
| 092 | 687261-5 | 1.00 | 1.21 | |
| Support Plate | ||||
| 093 | 346039-2 | 1.20 | 1.45 | |
| Motor Housing Set | ||||
| 094-2 | 183C17-7 | 26.40 | 31.94 | |
| Connection unit | ||||
| 095 | 643849-1 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 096-1 | 620496-5 | |||
| Speed control circuit | ||||
| 097-1 | 620497-3 | 162.80 | 196.99 | |
| Indicator label | ||||
| 098 | 140285-7 | 8.40 | 10.16 | |
| Hex bolt M6x85mm | ||||
| 111 | 266817-3 | 1.00 | 1.21 | |
| Washer 6mm | ||||
| 112 | 232279-7 | 1.00 | 1.21 | |
| Washer 6x12mm | ||||
| 113 | 941151-9 | 1.00 | 1.21 | |
| Socket screw M8x8mm | ||||
| 114 | 266818-1 | 1.00 | 1.21 | |
| Bearing Housing EN4950H A | ||||
| 115 | 140B55-6 | 34.10 | 41.26 | |
| Gear 9 | ||||
| 116 | 227604-5 | 23.10 | 27.95 | |
| No information available, not orderable | ||||
| 117 | 211032-4 | |||
| No information available, not orderable | ||||
| 118 | 211032-4 | |||
| Lock Ring R-22 | ||||
| 119 | 962102-9 | 1.00 | 1.21 | |
| Cam A | ||||
| 120 | 310534-8 | 2.40 | 2.90 | |
| Cam B | ||||
| 121 | 310535-6 | 13.20 | 15.97 | |
| Hexagon socket bolt M4x16 | ||||
| 122 | 922126-7 | 1.00 | 1.21 | |
| Mounting Plate | ||||
| 123 | 313254-3 | 1.20 | 1.45 | |
| Retaining Ring E-4 | ||||
| 124 | 961011-9 | 1.00 | 1.21 | |
| Clamping Plate | ||||
| 125 | 346657-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 126 | 231297-2 | |||
| No information available, not orderable | ||||
| 127 | 962103-7 | |||
| Lock ring S-9 | ||||
| 128 | 961005-4 | 1.00 | 1.21 | |
| Ball Bearing 609zz | ||||
| 129 | 210049-4 | 3.60 | 4.36 | |
| Spindle Ass'y | ||||
| 130 | 142000-5 | 19.80 | 23.96 | |
| Rod 5 | ||||
| 131-1 | 326812-6 | 1.20 | 1.45 | |
| Compression Spring 6x29mm | ||||
| 132 | 233117-6 | 1.00 | 1.21 | |
| Covering hood | ||||
| 133 | 187575-7 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 134 | 454249-8 | |||
| Hex bolt 4x20 | ||||
| 135 | 265493-0 | 1.00 | 1.21 | |
| Retaining Ring E-4 | ||||
| 136 | 961011-9 | 1.00 | 1.21 | |
| Connector | ||||
| 137 | 318970-2 | 26.40 | 31.94 | |
| Met. Screw Ph2 M5X16Mm Ck A | ||||
| 138 | 922223-9 | 1.00 | 1.21 | |
| Hex Socket Bolt Ck M5x25mm | ||||
| 139 | 922241-7 | 1.00 | 1.21 | |
| Covering hood | ||||
| 140 | 187575-7 | 2.40 | 2.90 | |
| Tap screw 4x18 | ||||
| 141 | 265A48-7 | 1.00 | 1.21 | |
| Handle Mh246.4D | ||||
| 142-1 | 456369-4 | 2.40 | 2.90 | |
| Screw 4x12 | ||||
| 143-1 | 911516-9 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 144 | 252190-7 | |||
| Socket screw M8x8mm | ||||
| 145 | 266818-1 | 1.00 | 1.21 | |
| 36 Washer | ||||
| 146 | 267467-7 | 1.00 | 1.21 | |
| Hexagon socket bolt M4x16 | ||||
| 147 | 922126-7 | 1.00 | 1.21 | |
| Locking Ring S-10 | ||||
| 148 | 257408-1 | 1.20 | 1.45 | |
| Gear 22 | ||||
| 149 | 227605-3 | 23.10 | 27.95 | |
| Turntable | ||||
| 150 | 310533-0 | 36.30 | 43.92 | |
| Ball Bearing 6001zz | ||||
| 151 | 211148-5 | 8.40 | 10.16 | |
| Ball Bearing 6001zz | ||||
| 152 | 211148-5 | 8.40 | 10.16 | |
| Gear 11 | ||||
| 153 | 227606-1 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 154-4 | 135773-7 | |||
| Gear 12 | ||||
| 155 | 227607-9 | 8.40 | 10.16 | |
| Ball bearing 6000rd | ||||
| 156 | 211062-5 | 4.80 | 5.81 | |
| Ball bearing 6000rd | ||||
| 157 | 211062-5 | 4.80 | 5.81 | |
| Lock ring R-26 A | ||||
| 158 | 962105-3 | 1.00 | 1.21 | |
| Gear 9 | ||||
| 159 | 227317-8 | 8.40 | 10.16 | |
| Lock ring S-8 | ||||
| 160 | 961004-6 | 1.00 | 1.21 | |
| Drive plate | ||||
| 161 | 346658-4 | 1.20 | 1.45 | |
| Connecting Rod | ||||
| 162 | 346251-4 | 8.40 | 10.16 | |
| Gear 43 | ||||
| 163 | 227248-1 | 17.60 | 21.30 | |
| Connecting Rod | ||||
| 164 | 346251-4 | 8.40 | 10.16 | |
| Holder | ||||
| 165 | 346256-4 | 2.40 | 2.90 | |
| Hex Socket Bolt Ck M5x25mm | ||||
| 166 | 922241-7 | 1.00 | 1.21 | |
| Seal | ||||
| 167 | 443159-4 | 4.80 | 5.81 | |
| Drive plate | ||||
| 168 | 346658-4 | 1.20 | 1.45 | |
| Crankcase gasket | ||||
| 169 | 423458-0 | 1.20 | 1.45 | |
| Housing Cover | ||||
| 170 | 318968-9 | 9.60 | 11.62 | |
| Hexagon socket bolt M4x16 | ||||
| 171 | 922126-7 | 1.00 | 1.21 | |
| Guide Plate | ||||
| 172 | 332058-4 | 13.20 | 15.97 | |
| Nut M6x10mm | ||||
| 173 | 264089-4 | 1.00 | 1.21 | |
| Pressure Plate | ||||
| 174 | 346665-7 | 3.60 | 4.36 | |
| SCHAARMES 50CM BOVEN/ONDER | ||||
| 175 | 725187-4 | 17.00 | 20.57 | |
| Bus 5 | ||||
| 176 | 313211-1 | 2.40 | 2.90 | |
| SCHAARMES 50CM BOVEN/ONDER | ||||
| 177 | 725187-4 | 17.00 | 20.57 | |
| Pressure Plate | ||||
| 178 | 346665-7 | 3.60 | 4.36 | |
| Hexagon bolt M6x20mm | ||||
| 179 | 266824-6 | 1.00 | 1.21 | |
| Nose piece | ||||
| 180 | 346629-1 | 6.00 | 7.26 | |
| Hex Bolt M5x6 | ||||
| 181 | 266075-1 | 1.00 | 1.21 | |
| Label 95DB DUB363 | ||||
| 182 | 807950-8 | 2.40 | 2.90 | |
