Here you will find all available parts and drawings of the 'Makita BUK360RDE'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

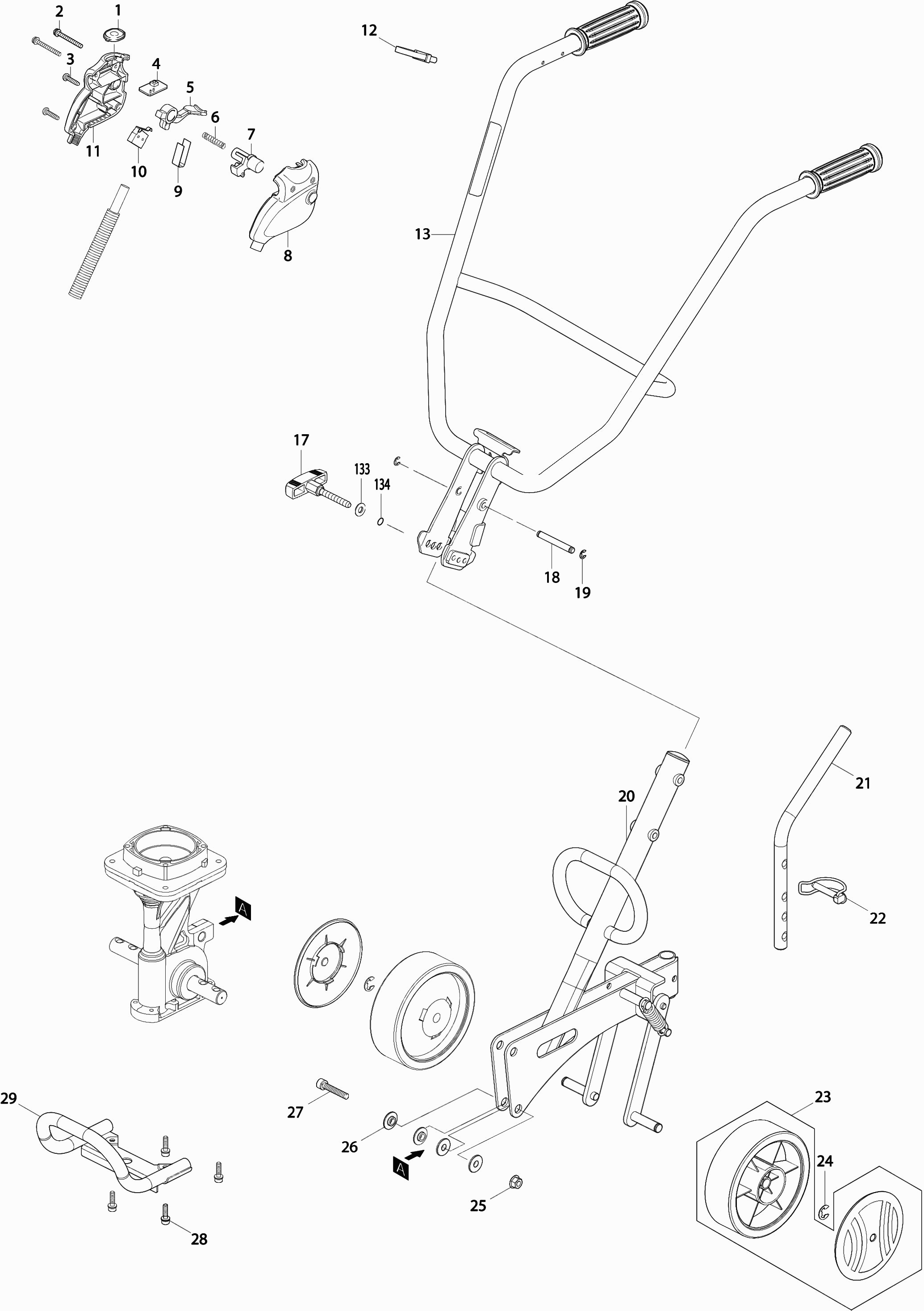

Technical drawing of model Makita BUK360RDE

Spare parts list of model Makita BUK360RDE

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Shift Plate
001 141627-8 12.20 14.76
Screw 4x35
002 911163-6 0.83 1.00
Tap screw 4x18
003 265A48-7 0.83 1.00
Switch
004 620155-1 7.21 8.72
Shift lever
005 453745-3 12.19 14.75
Compression Spring 6x29mm
006 233117-6 0.83 1.00
Locking Button
007 453746-1 9.26 11.20
Switch housing
008 187349-6 13.57 16.42
Leaf Spring
009 346607-1 4.45 5.38
Switch
010 650612-5 10.50 12.70
Switch housing
011 187349-6 13.57 16.42
Mounting ring
012 687410-4 0.83 1.00
Handle Housing
013 141653-7 101.30 122.57
Knob
017 271615-2 7.22 8.74
Pen 8
018 256531-9 1.67 2.02
No longer available, no replacement
019-1 259053-8
Carrying beam Ak3622
021 326106-9 12.22 14.79
Adjustment Pin
022 126062-1 9.24 11.18
No information available, not orderable
023 125372-3
No information available, not orderable
024-1 259055-4
NUT M8
025 931402-8 0.83 1.00
Ring
026 332037-2 2.36 2.86
Hex socket screw M8x45
027 922466-3 1.02 1.23
Bolt M6X25
028 922343-9 1.18 1.43
Handle
029 165660-6 12.34 14.93
Armature
036 135516-7 146.44 177.19
Set of left teeth
037-1 126228-3 68.53 82.92
Hex bolt + washer M8
038 265598-6 3.54 4.28
Holding Plate
039 165682-6 11.82 14.30
Right scarifying blade
040 346521-1 13.83 16.73
Scarifier blade left
041 346522-9 13.83 16.73
Nut M/socket M8
042 264067-4 2.71 3.28
No information available, not orderable
043 126196-0
Hex bolt + washer M8
044 265598-6 3.54 4.28
Holding Plate
045 165683-4 11.82 14.30
Scarifier blade left
046 346522-9 13.83 16.73
Nut M/socket M8
048 264067-4 2.71 3.28
Pen 8
049 256532-7 2.02 2.44
Holding Pin
050 259052-0 2.02 2.44
Toothed Set A + B right
051-1 126227-5 68.53 82.92
Hex bolt + washer M8
052 265598-6 3.54 4.28
Holding Plate
053 165664-8 11.82 14.30
Scarifier blade left
054 346522-9 13.83 16.73
Right scarifying blade
055 346521-1 13.83 16.73
Nut M/socket M8
056 264067-4 2.71 3.28
No information available, not orderable
057 126195-2
Hex bolt + washer M8
058 265598-6 3.54 4.28
Holding Plate
059 165665-6 11.82 14.30
Right scarifying blade
060 346521-1 13.83 16.73
Nut M/socket M8
062 264067-4 2.71 3.28
Gasket
068 442179-5 2.71 3.28
Line filter
069 688165-4 0.83 1.00
Stop Ring E-8
070-1 259054-6 0.83 1.00
Gear 18
071 227759-6 8.21 9.93
Ball Bearing 6000zz
072 210067-2 1.18 1.43
No longer available, no replacement
073-1 213148-1
Ball bearing 1024
074 211383-5 18.71 22.64
Ring 10
075 257322-1 1.18 1.43
No information available, not orderable
076 211472-6
Worm gear
077 221426-5 19.50 23.60
No information available, not orderable
078 211473-4
Gear unit
079 318896-8 71.56 86.59
Pan
080 346519-8 1.39 1.68
Seal Ring 20
081 213633-4 7.22 8.74
Ball bearing 6004
083 211474-2 3.96 4.79
Worm gear 35
084 221425-7 68.52 82.91
No information available, not orderable
085-1 326330-4
Gasket
086 413156-4 2.71 3.28
Mission unit
087 346520-3 3.54 4.28
No information available, not orderable
089 141619-7
No information available, not orderable
090 898908-8
Tap screw 4x18
091 265A48-7 0.83 1.00
No information available, not orderable
092 897282-1
Allen bolt M6x17
093 265484-1 0.83 1.00
Washer 6
094 253111-2 0.83 1.00
Motor Housing
095 187350-1 51.47 62.28
Switch
096 651534-2 15.60 18.88
Lens Plate
097 141628-6 13.35 16.15
Rubber band
098 421448-7 1.39 1.68
Line filter
099 688165-4 0.83 1.00
Controller
100 620154-3 112.06 135.59
Line filter
101 688165-4 0.83 1.00
Connection unit
102 643849-1 3.96 4.79
Cable harness
104 632A04-6 3.97 4.80
Tap screw 4x18
105 265A48-7 0.83 1.00
Cable
106 699057-2 13.83 16.73
Mounting ring
107 687410-4 0.83 1.00
Tap screw 4x18
108 265A48-7 0.83 1.00
Motor Housing
109 187350-1 51.47 62.28
Washer 6
110 253111-2 0.83 1.00
Allen bolt M6x17
111 265484-1 0.83 1.00
Motor
113 629957-2 202.10 244.54
Gear 13
114 227758-8 7.22 8.74
NUT M8
115 252194-9 0.83 1.00
No information available, not orderable
116 266020-6
4 Washer
117 267099-0 0.83 1.00
Covering hood
118 424507-6 2.71 3.28
Lock
119 162343-9 3.96 4.79
Lock
120 162343-9 3.96 4.79
Housing
121 141651-1 111.55 134.98
No information available, not orderable
122 897517-0
Clamp Bracket
123 687053-2 0.83 1.00
Tap screw 4x18
124 265A48-7 0.83 1.00
Clamp
125 453747-9 5.06 6.12
Tap screw 4x18
126 265A48-7 0.83 1.00
Hexagon bolt M6x35
128 266781-8 2.02 2.44
Mudguard Complete
129 141663-4 33.35 40.35
No information available, not orderable
130 898904-6
No information available, not orderable
131 898903-8
Tapschroef 5x20
132 266021-4 0.83 1.00
Lock washer 10
133 232277-1 3.96 4.79
O-ring 7
134 213026-5 0.83 1.00
