Here you will find all available parts and drawings of the 'Makita BUH550'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

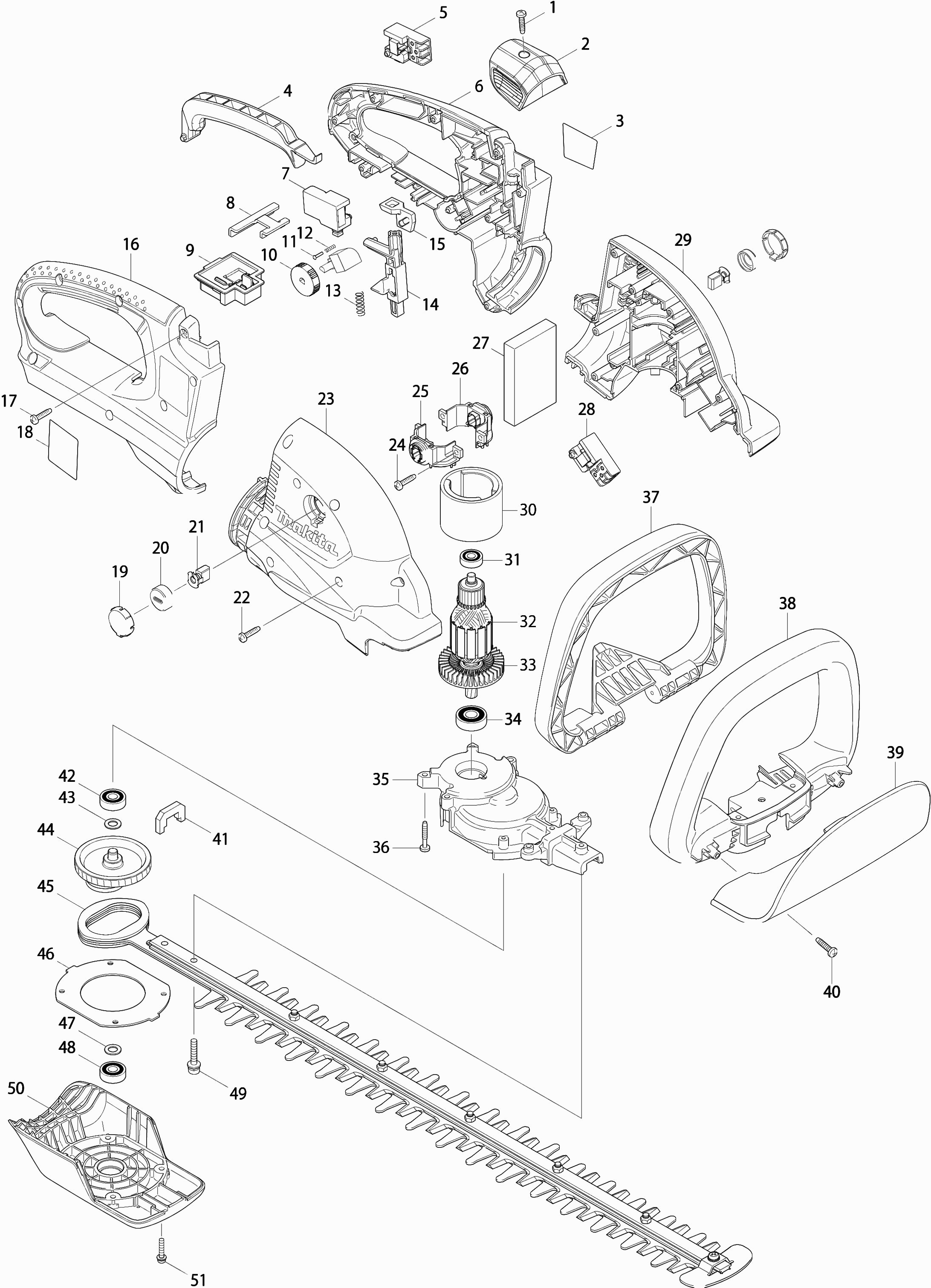

Technical drawing of model Makita BUH550
Spare parts list of model Makita BUH550
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tap screw 4x18 | ||||
| 001 | 265A48-7 | 0.83 | 1.00 | |
| Knob | ||||
| 002 | 452164-0 | 7.22 | 8.74 | |
| Indicator label | ||||
| 003 | 891002-5 | 2.71 | 3.28 | |
| Switch handle | ||||
| 004 | 452159-3 | 9.24 | 11.18 | |
| Switch Tg73bdh | ||||
| 005 | 650635-3 | 12.22 | 14.79 | |
| Housing | ||||
| 006 | 188948-7 | 35.14 | 42.52 | |
| Rubber pen 6 | ||||
| 006A | 263005-3 | 0.83 | 1.00 | |
| Switch Tg73bdh-3 | ||||
| 007 | 650636-1 | 12.22 | 14.79 | |
| Support Plate | ||||
| 008 | 346039-2 | 1.00 | 1.21 | |
| Connection unit | ||||
| 009 | 643849-1 | 3.96 | 4.79 | |
| Knob 28 | ||||
| 010 | 271427-3 | 1.18 | 1.43 | |
| Rivet 2 | ||||
| 011 | 255058-6 | 0.83 | 1.00 | |
| Compression Spring 3 | ||||
| 012 | 233002-3 | 0.83 | 1.00 | |
| Compression Spring 6 | ||||
| 013 | 233138-8 | 0.83 | 1.00 | |
| Deblock handle | ||||
| 014 | 452162-4 | 4.45 | 5.38 | |
| Sliding Plate | ||||
| 015 | 452163-2 | 3.12 | 3.78 | |
| Housing | ||||
| 016 | 188948-7 | 35.14 | 42.52 | |
| Rubber pen 6 | ||||
| 016A | 263005-3 | 0.83 | 1.00 | |
| Tap screw 4x18 | ||||
| 017 | 265A48-7 | 0.83 | 1.00 | |
| Label | ||||
| 018 | 868273-9 | 2.71 | 3.28 | |
| Brush cover | ||||
| 019 | 452145-4 | 1.67 | 2.02 | |
| Brush holder cap | ||||
| 020 | 643941-3 | 2.36 | 2.86 | |
| Koolborstel Set Cb-442 A | ||||
| 021 | 195023-2 | 3.54 | 4.28 | |
| Tap screw 4x18 | ||||
| 022 | 265A48-7 | 0.83 | 1.00 | |
| Housing | ||||
| 023 | 188950-0 | 30.70 | 37.15 | |
| Rubber Pin 4 | ||||
| 023 | 263025-7 | 0.83 | 1.00 | |
| Tap screw 4x18 | ||||
| 024 | 265A48-7 | 0.83 | 1.00 | |
| Brush holder left | ||||
| 025 | 643857-2 | 3.54 | 4.28 | |
| Brush holder Re | ||||
| 026 | 643856-4 | 3.54 | 4.28 | |
| Rpm control unit | ||||
| 027 | 631988-9 | 58.04 | 70.23 | |
| Switch Tg73bdh | ||||
| 028 | 650635-3 | 12.22 | 14.79 | |
| Housing | ||||
| 029 | 188950-0 | 30.70 | 37.15 | |
| Rubber Pin 4 | ||||
| 029A | 263025-7 | 0.83 | 1.00 | |
| Magnet holder | ||||
| 030 | 638020-0 | 17.38 | 21.03 | |
| Ball bearing 607llb | ||||
| 031 | 211021-9 | 4.45 | 5.38 | |
| Armature | ||||
| 032 | 519261-6 | 54.30 | 65.70 | |
| Impeller 55mm | ||||
| 033 | 240045-8 | 2.02 | 2.44 | |
| Ball bearing 6000rd | ||||
| 034 | 211062-5 | 4.45 | 5.38 | |
| Gear housing set | ||||
| 035 | 140604-7 | 40.56 | 49.08 | |
| No information available, not orderable | ||||
| 036 | 265999-8 | |||
| Switch handle B | ||||
| 037 | 452160-8 | 12.22 | 14.79 | |
| Handle | ||||
| 038 | 452158-5 | 10.99 | 13.30 | |
| Hand protection | ||||
| 039 | 452147-0 | 8.21 | 9.93 | |
| Tap screw 4x18 | ||||
| 040 | 265A48-7 | 0.83 | 1.00 | |
| Dust Guide | ||||
| 041 | 443142-1 | 0.83 | 1.00 | |
| Ball Bearing 608Zz A | ||||
| 042 | 210046-0 | 0.83 | 1.00 | |
| Washer 8 x 14 x 1mm | ||||
| 043 | 253835-0 | 0.83 | 1.00 | |
| Complete Gear | ||||
| 044 | 140536-8 | 87.86 | 106.31 | |
| No information available, not orderable | ||||
| 045 | 194671-4 | |||
| Hex lock nut 5x8 | ||||
| 045A | 252103-8 | 0.83 | 1.00 | |
| Bus 5 | ||||
| 045B | 257717-8 | 1.67 | 2.02 | |
| Crosshead screw 5x20mm | ||||
| 045C | 265181-9 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 045D | 345205-8 | |||
| Screw 5x10 | ||||
| 045E | 911208-0 | 0.83 | 1.00 | |
| Oil guide set | ||||
| 045F | 188605-7 | 2.10 | 2.54 | |
| Plate | ||||
| 046 | 346325-1 | 1.75 | 2.12 | |
| Washer 8 x 14 x 1mm | ||||
| 047 | 253835-0 | 0.83 | 1.00 | |
| Ball Bearing 608Zz A | ||||
| 048 | 210046-0 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 049 | 265182-7 | |||
| Cover | ||||
| 050 | 452156-9 | 10.99 | 13.30 | |
| Screw 4x20 | ||||
| 051 | 911138-5 | 0.83 | 1.00 | |
