Here you will find all available parts and drawings of the 'Makita BUB183'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

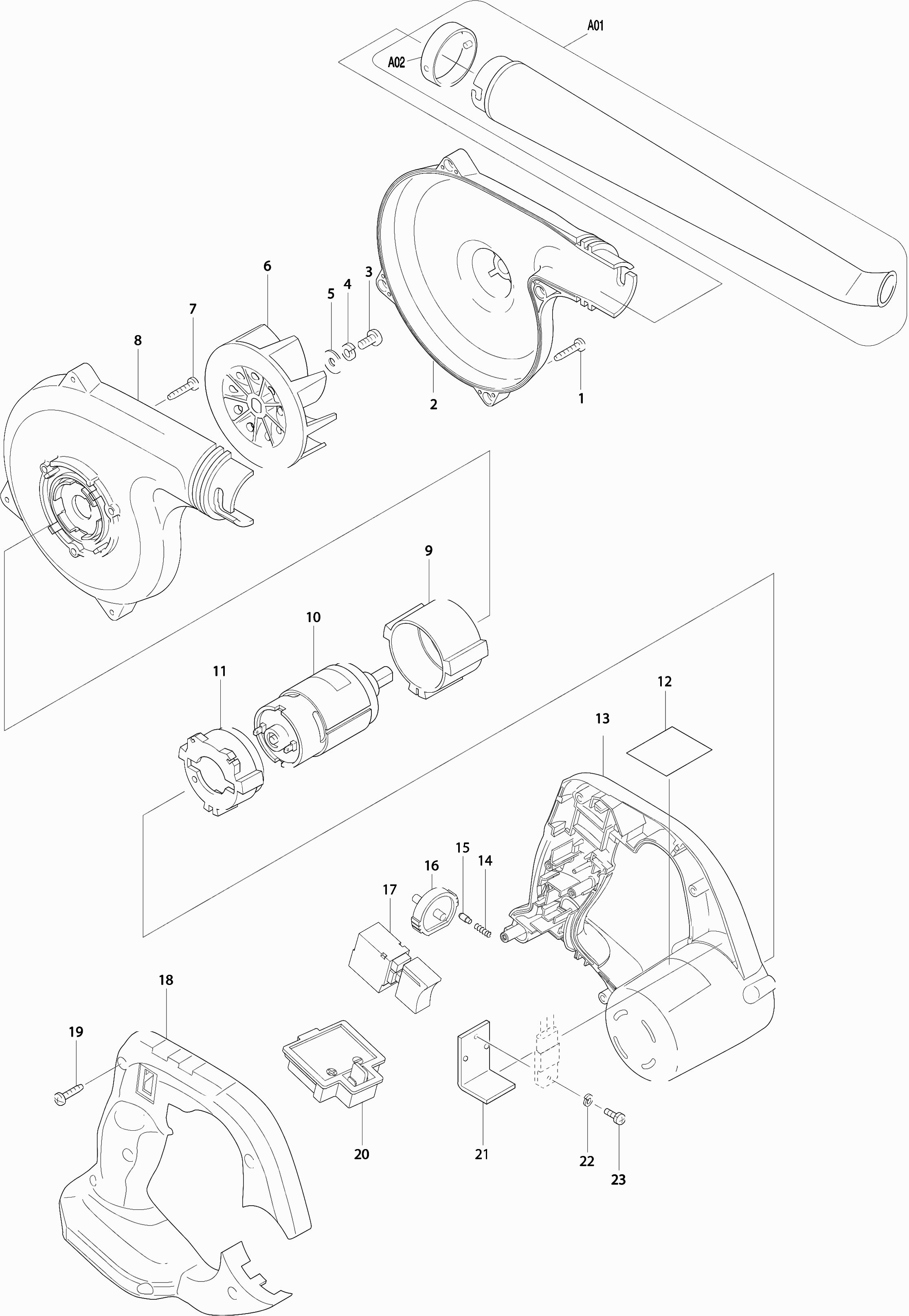

Technical drawing of model Makita BUB183
Spare parts list of model Makita BUB183
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw 4X18 | ||||
| 001 | KW00000210 | 1.00 | 1.21 | |
| Fan housing set | ||||
| 002 | TP00000112 | 22.00 | 26.62 | |
| Screw M5X10 | ||||
| 003 | KW00000220 | 1.00 | 1.21 | |
| Retaining ring m5 | ||||
| 004 | KW00000160 | 1.00 | 1.21 | |
| 5mm Washer | ||||
| 005 | KW00000170 | 1.00 | 1.21 | |
| Fan Bub142 | ||||
| 006 | KW00000100 | 6.00 | 7.26 | |
| Screw 4X18 | ||||
| 007 | KW00000210 | 1.00 | 1.21 | |
| Fan housing set | ||||
| 008 | TP00000112 | 22.00 | 26.62 | |
| Rubber ring a for motor Bub142 | ||||
| 009 | KW00000150 | 2.40 | 2.90 | |
| Motor | ||||
| 010 | TP00000113 | 24.20 | 29.28 | |
| Rubber ring b tbv motor Bub142 | ||||
| 011 | TP00000083 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 013A | TP00000176 | |||
| Motor Housing | ||||
| 013B | TP00000211 | 42.90 | 51.91 | |
| Spring | ||||
| 014 | TP00000084 | 1.00 | 1.21 | |
| Pin | ||||
| 015 | TP00000085 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 016A | TP00000086 | |||
| Knob | ||||
| 016B | TP00000212 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 017A | TP00000204 | |||
| No information available, not orderable | ||||
| 018A | TP00000176 | |||
| Motor Housing | ||||
| 018B | TP00000211 | 42.90 | 51.91 | |
| Screw 4X18 | ||||
| 019 | KW00000210 | 1.00 | 1.21 | |
| Battery holder Bml185 * | ||||
| 020 | GM00001116 | 4.80 | 5.81 | |
| Cooling plate Am-10313 | ||||
| 021 | KW00000200 | 1.20 | 1.45 | |
| Lock ring m3 | ||||
| 022 | KW00000270 | 1.00 | 1.21 | |
| Screw M3x6mm | ||||
| 023 | TP00000081 | 1.00 | 1.21 | |
