Here you will find all available parts and drawings of the 'Makita BTW250'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

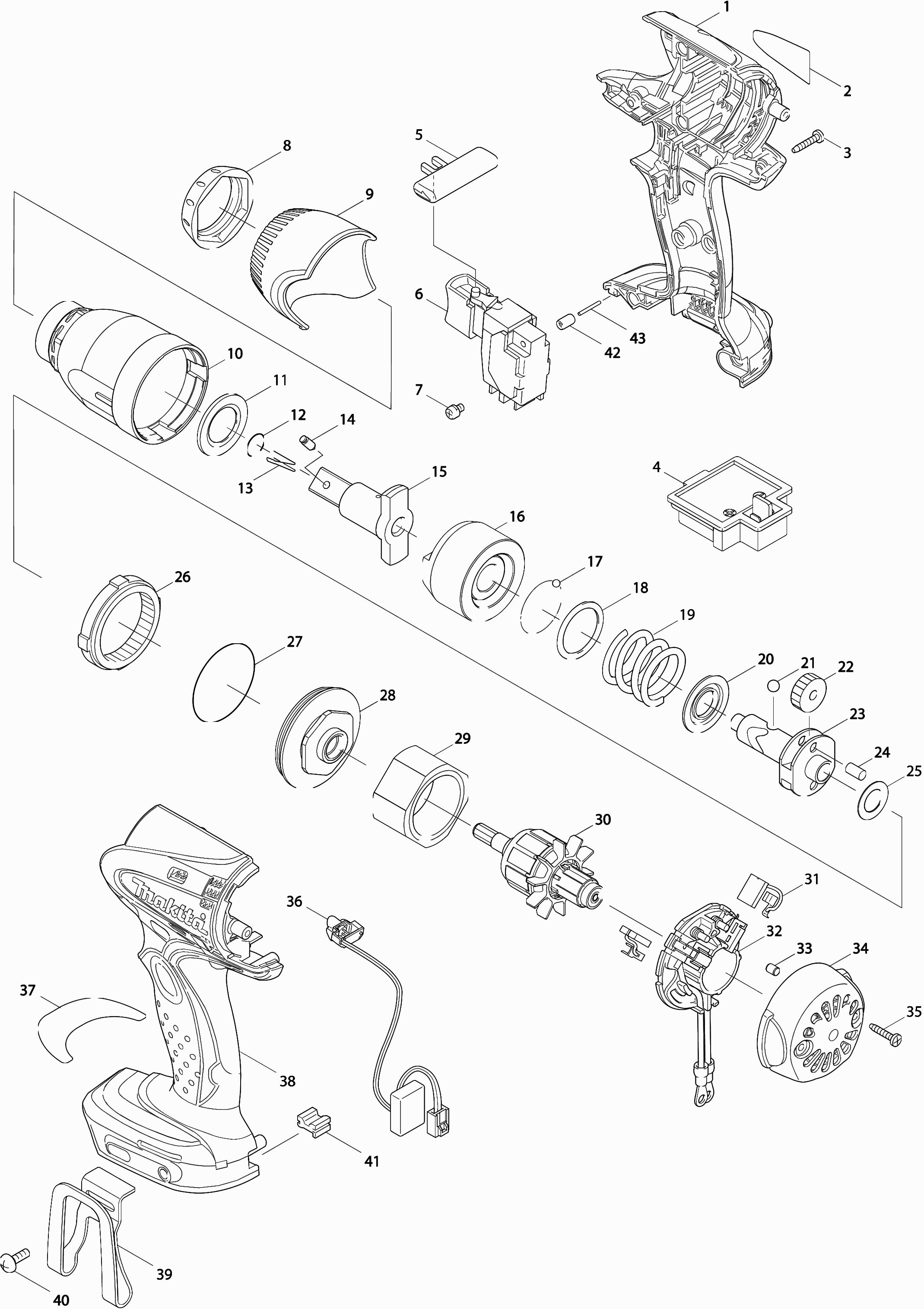

Technical drawing of model Makita BTW250
Spare parts list of model Makita BTW250
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing Btw250 2/3 Cont.A | ||||
| 001 | 187466-2 | 58.30 | 70.54 | |
| Rubber pen 6 | ||||
| 001A | 263005-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 002 | 862816-9 | |||
| Tapping Screw 3x16 | ||||
| 003 | 266130-9 | 1.00 | 1.21 | |
| Connection Unit (2 contacts) | ||||
| 004A | 643847-5 | 3.60 | 4.36 | |
| Connection unit (3 contacts) | ||||
| 004B | 643866-1 | 3.60 | 4.36 | |
| L/R Switch Button | ||||
| 005 | 419041-9 | 1.20 | 1.45 | |
| Switch (2 contacts) | ||||
| 006A | 650564-0 | 26.40 | 31.94 | |
| Switch (3 contacts) | ||||
| 006B | 650652-3 | 30.80 | 37.27 | |
| Screw 3.5x5 | ||||
| 007 | 652045-0 | 1.00 | 1.21 | |
| Leg | ||||
| 008 | 424375-7 | 4.80 | 5.81 | |
| Slaghuis deksel | ||||
| 009 | 452439-7 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 010 | 158144-1 | |||
| Nylon washer 18 Btw250/51 | ||||
| 011 | 261116-8 | 1.20 | 1.45 | |
| Lock washer 10 | ||||
| 012 | 231907-1 | 1.00 | 1.21 | |
| Anvil | ||||
| 015 | 324706-9 | 39.60 | 47.92 | |
| Hammer | ||||
| 016 | 324703-5 | 18.70 | 22.63 | |
| Steel ball 3.5 | ||||
| 017 | 216040-0 | 1.00 | 1.21 | |
| Flat Washer 24 | ||||
| 018 | 267175-0 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 019 | 234082-2 | |||
| Washer 14 | ||||
| 020 | 267766-7 | 1.00 | 1.21 | |
| Steel ball 5.6 | ||||
| 021 | 216041-8 | 1.00 | 1.21 | |
| Gear 22 | ||||
| 022 | 227362-3 | 3.60 | 4.36 | |
| Axis 6916Fd A | ||||
| 023 | 324220-5 | 10.80 | 13.07 | |
| Pen 5 | ||||
| 024 | 256253-1 | 1.00 | 1.21 | |
| Washer 12 | ||||
| 025 | 267212-0 | 1.00 | 1.21 | |
| Gear | ||||
| 026 | 227150-8 | 3.60 | 4.36 | |
| O-ring 40 | ||||
| 027 | 213507-9 | 1.20 | 1.45 | |
| Bearing Housing | ||||
| 028 | 158631-0 | 16.50 | 19.96 | |
| Magnet holder | ||||
| 029 | 638495-3 | 17.60 | 21.30 | |
| Armature | ||||
| 030 | 619251-0 | 23.10 | 27.95 | |
| Brush set Cb448 | ||||
| 031 | 196855-0 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 032 | 632G50-5 | |||
| Rubber Pin 4 | ||||
| 033 | 263032-0 | 1.00 | 1.21 | |
| Motor Housing Cover | ||||
| 034 | 418981-8 | 8.40 | 10.16 | |
| Tapping Screw 3x16 | ||||
| 035 | 266130-9 | 1.00 | 1.21 | |
| LED Circuit | ||||
| 036 | 631631-0 | 14.30 | 17.30 | |
| Motor Housing Btw250 2/3 Cont.A | ||||
| 038 | 187466-2 | 58.30 | 70.54 | |
| Rubber pen 6 | ||||
| 038A | 263005-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 039 | 194654-4 | |||
| Screw,M4x12 | ||||
| 040 | 251314-2 | 1.00 | 1.21 | |
| Damping felt | ||||
| 041 | 424476-1 | 1.00 | 1.21 | |
| Rubber pen 5 | ||||
| 042 | 263036-2 | 1.20 | 1.45 | |
| Pin 1.5 | ||||
| 043 | 268184-2 | 1.00 | 1.21 | |
