Here you will find all available parts and drawings of the 'Makita BTD200'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

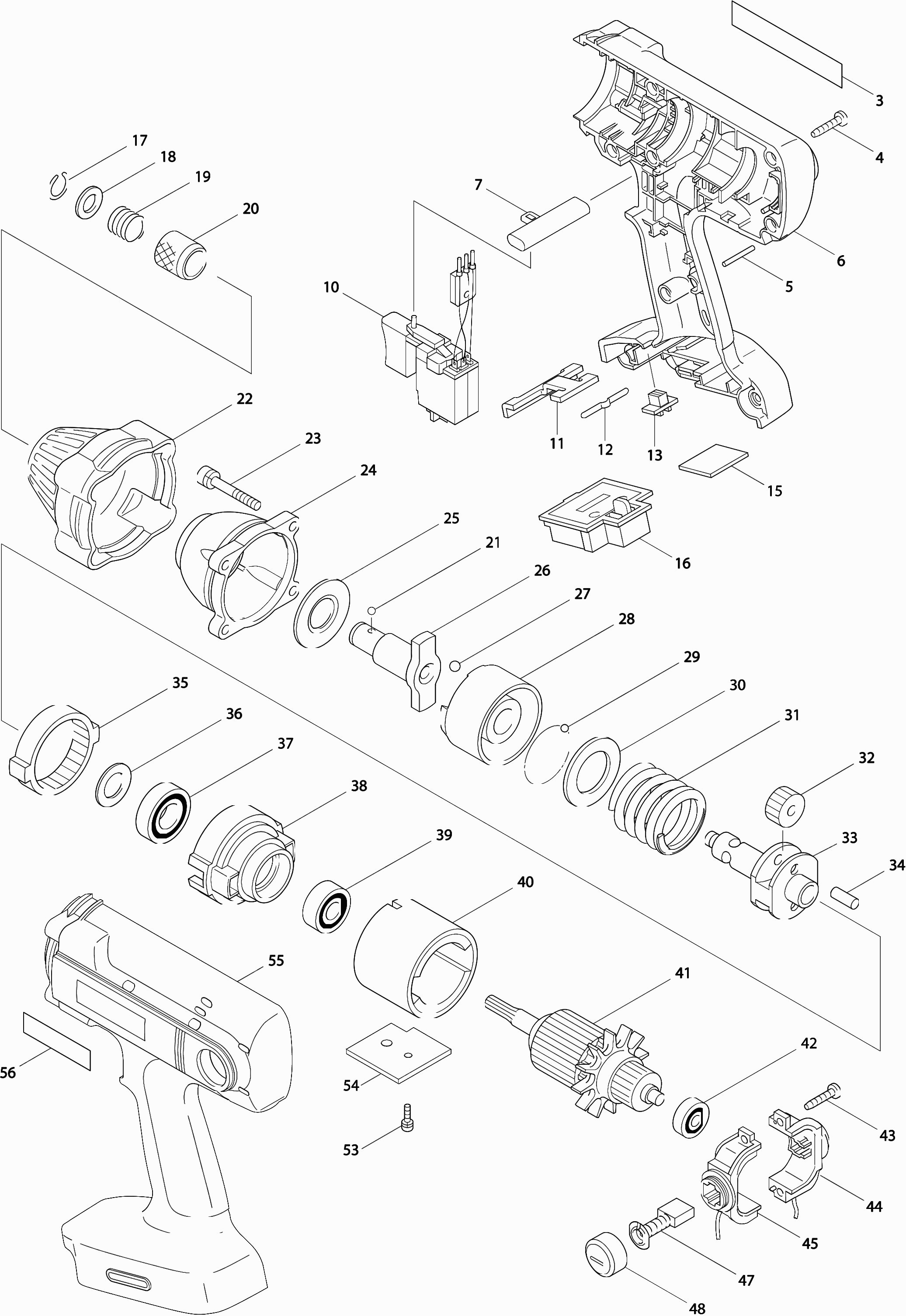

Technical drawing of model Makita BTD200
Spare parts list of model Makita BTD200
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 003 | 852657-1 | |||
| Tap screw 4x18 | ||||
| 004 | 265A48-7 | 1.00 | 1.21 | |
| Pen 2,5 | ||||
| 005 | 256176-3 | 1.00 | 1.21 | |
| Motorhuis set | ||||
| 006 | 183257-9 | 72.60 | 87.85 | |
| L/r adjusting lever | ||||
| 007 | 416079-5 | 1.20 | 1.45 | |
| Switch | ||||
| 010 | 651996-4 | 41.80 | 50.58 | |
| Support Plate | ||||
| 011 | 344898-8 | 2.40 | 2.90 | |
| Leaf Spring | ||||
| 012 | 232198-7 | 2.40 | 2.90 | |
| Adjustment Button | ||||
| 013 | 417337-2 | 3.60 | 4.36 | |
| Plate Btw200 * | ||||
| 015 | 413086-9 | 2.40 | 2.90 | |
| Connection unit | ||||
| 016 | 643983-7 | 4.80 | 5.81 | |
| Lock Washer 12 | ||||
| 017 | 231952-6 | 2.40 | 2.90 | |
| Washer 14 | ||||
| 018 | 267101-9 | 1.00 | 1.21 | |
| Compression Spring 14 | ||||
| 019 | 233042-1 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 020 | 322537-0 | |||
| Steel ball 4 | ||||
| 021 | 216008-6 | 1.00 | 1.21 | |
| Leg | ||||
| 022 | 421757-4 | 6.00 | 7.26 | |
| Hexagon socket screw M5x35 | ||||
| 023 | 266271-1 | 1.20 | 1.45 | |
| Hammer Case | ||||
| 024 | 151981-2 | 23.10 | 27.95 | |
| Seal Ring 18 | ||||
| 024A | 213257-6 | 4.80 | 5.81 | |
| Bus 18 | ||||
| 024B | 321119-5 | 12.10 | 14.64 | |
| Washer 18 | ||||
| 025 | 267054-2 | 3.60 | 4.36 | |
| Aambeeld Btd200 * | ||||
| 026 | 322654-6 | 52.80 | 63.89 | |
| Steel ball 5.6 | ||||
| 027 | 216041-8 | 1.00 | 1.21 | |
| Striker | ||||
| 028 | 322459-4 | 33.00 | 39.93 | |
| Steel ball 4 | ||||
| 029 | 216008-6 | 1.00 | 1.21 | |
| Thin washer 28 | ||||
| 030 | 267088-5 | 3.60 | 4.36 | |
| Compression spring 29 | ||||
| 031 | 233079-8 | 3.60 | 4.36 | |
| Gear 24 Btw200 * | ||||
| 032 | 227005-7 | 2.40 | 2.90 | |
| Spindle Ass'y | ||||
| 033 | 324030-0 | 39.60 | 47.92 | |
| Pin 6 | ||||
| 034 | 256033-5 | 1.20 | 1.45 | |
| Ring gear 55 | ||||
| 035 | 227004-9 | 6.00 | 7.26 | |
| Washer 15 Btw200 | ||||
| 036 | 267215-4 | 1.20 | 1.45 | |
| Ball Bearing 6002llb | ||||
| 037 | 211201-7 | 8.40 | 10.16 | |
| Gearcase Sa | ||||
| 038 | 417336-4 | 6.00 | 7.26 | |
| Ball bearing 6000llb | ||||
| 039 | 211061-7 | 8.40 | 10.16 | |
| Magnet holder | ||||
| 040 | 638020-0 | 17.60 | 21.30 | |
| Armature | ||||
| 041 | 519063-0 | 106.70 | 129.11 | |
| Ball bearing 607llb | ||||
| 042 | 211021-9 | 4.80 | 5.81 | |
| Tap screw 4x18 | ||||
| 043 | 265A48-7 | 1.00 | 1.21 | |
| Brush Holder | ||||
| 044 | 643968-3 | 3.60 | 4.36 | |
| Brush Holder | ||||
| 045 | 643969-1 | 3.60 | 4.36 | |
| Carbon brush set CB-441 A | ||||
| 047 | 195022-4 | 4.80 | 5.81 | |
| Brush holder cap | ||||
| 048 | 643941-3 | 2.40 | 2.90 | |
| Schroef 3x8 | ||||
| 053 | 652066-2 | 1.00 | 1.21 | |
| Cooling Sheet | ||||
| 054 | 689070-8 | 2.71 | 3.28 | |
| Motorhuis set | ||||
| 055 | 183257-9 | 72.60 | 87.85 | |
| Label Makita | ||||
| 056 | 819063-3 | 2.40 | 2.90 | |
