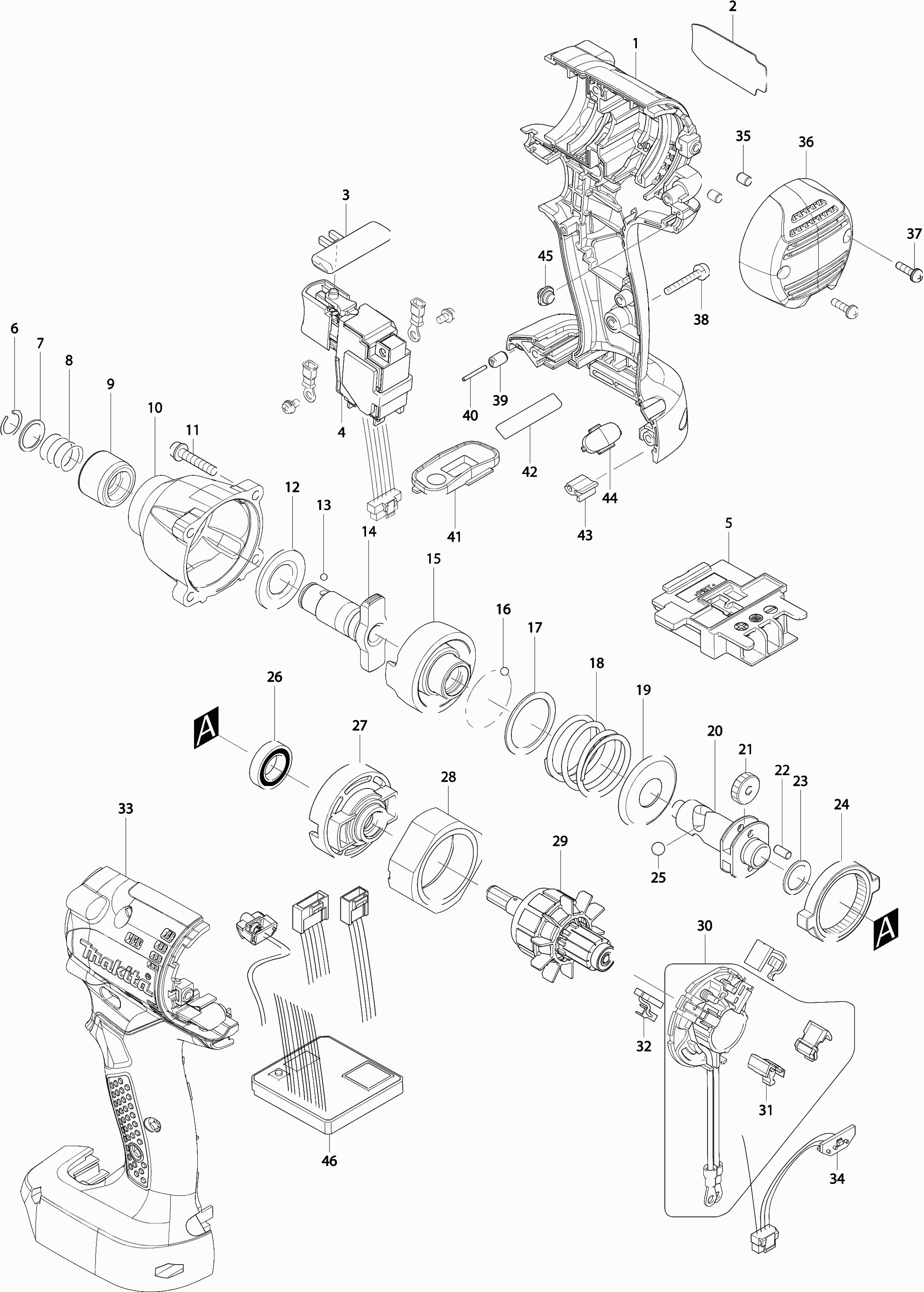

Technical drawing of model Makita BTD104
Spare parts list of model Makita BTD104
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| BTW104Z A Motor Housing | ||||
| 001 | 183K96-3 | 27.90 | 33.76 | |
| No information available, not orderable | ||||
| 001-1 | 183X32-7 | |||
| Rubber pen 6 | ||||
| 001A | 263005-3 | 0.83 | 1.00 | |
| Nameplate Btd104 | ||||
| 002 | 814J79-3 | 2.71 | 3.28 | |
| L/R Switch Button | ||||
| 003 | 419041-9 | 0.98 | 1.19 | |
| Switch Btw104Z A | ||||
| 004 | 651364-1 | 48.40 | 58.56 | |
| Connection unit | ||||
| 005 | 644803-8 | 12.22 | 14.79 | |
| Locking Ring 11 | ||||
| 006 | 231951-8 | 0.83 | 1.00 | |
| Washer 12 | ||||
| 007 | 267085-1 | 0.83 | 1.00 | |
| Compression Spring 13 | ||||
| 008 | 233005-7 | 0.83 | 1.00 | |
| Socket | ||||
| 009 | 162257-2 | 11.84 | 14.33 | |
| Btw104Z A impact housing | ||||
| 010 | 144474-6 | 38.72 | 46.85 | |
| Screw 4x22 | ||||
| 011 | 265145-3 | 0.83 | 1.00 | |
| Nylon ring 14 | ||||
| 012 | 261108-7 | 0.83 | 1.00 | |
| Steel ball 3.5 | ||||
| 013 | 216040-0 | 0.83 | 1.00 | |
| Anvil | ||||
| 014 | 326288-7 | 27.90 | 33.76 | |
| Impactor C | ||||
| 015 | 326284-5 | 38.75 | 46.89 | |
| Steel ball 3.5 | ||||
| 016 | 216040-0 | 0.83 | 1.00 | |
| Flat Washer 24 | ||||
| 017 | 267175-0 | 0.83 | 1.00 | |
| Compression Spring 25 | ||||
| 018 | 234296-3 | 6.38 | 7.72 | |
| Washer 14 | ||||
| 019 | 267851-6 | 1.18 | 1.43 | |
| Drive Shaft | ||||
| 020 | 326286-1 | 12.22 | 14.79 | |
| Gear 16 | ||||
| 021 | 227321-7 | 3.12 | 3.78 | |
| Pen 3,5mm | ||||
| 022 | 268217-3 | 0.83 | 1.00 | |
| Washer 12 | ||||
| 023 | 267104-3 | 0.83 | 1.00 | |
| Gear 39 | ||||
| 024 | 227318-6 | 3.12 | 3.78 | |
| No information available, not orderable | ||||
| 025 | 216011-7 | |||
| Ball Bearing 6801llb | ||||
| 026 | 210112-3 | 5.06 | 6.12 | |
| Gearcase Sa | ||||
| 027 | 454414-9 | 3.54 | 4.28 | |
| No information available, not orderable | ||||
| 028 | 638396-5 | |||
| Armature | ||||
| 029 | 619323-1 | 24.16 | 29.23 | |
| No information available, not orderable | ||||
| 030 | 632A94-9 | |||
| Line filter | ||||
| 030A | 688161-2 | 0.83 | 1.00 | |
| Connection unit | ||||
| 030B | 654409-4 | 0.83 | 1.00 | |
| Spacer | ||||
| 031 | 689181-9 | 0.83 | 1.00 | |
| Brush set Cb448 | ||||
| 032 | 196855-0 | 3.54 | 4.28 | |
| BTW104Z A Motor Housing | ||||
| 033 | 183K96-3 | 27.90 | 33.76 | |
| No information available, not orderable | ||||
| 033-1 | 183X32-7 | |||
| Rubber pen 6 | ||||
| 033A | 263005-3 | 0.83 | 1.00 | |
| Light circuit | ||||
| 034 | 620212-5 | 7.22 | 8.74 | |
| Rubber Pin 4 | ||||
| 035 | 263032-0 | 0.83 | 1.00 | |
| Motor Hood | ||||
| 036 | 455357-8 | 1.75 | 2.12 | |
| Met.screw M3x12mm | ||||
| 037 | 266816-5 | 0.83 | 1.00 | |
| Phillips Screw 3x20 | ||||
| 038 | 265095-2 | 0.83 | 1.00 | |
| Rubber pen 5 | ||||
| 039 | 263036-2 | 1.18 | 1.43 | |
| Pin 1.5 | ||||
| 040 | 268184-2 | 0.83 | 1.00 | |
| Switchplate Btw104Z | ||||
| 041 | 142065-7 | 12.22 | 14.79 | |
| Nameplate ser nr Btd104 | ||||
| 042 | 814J81-6 | 2.71 | 3.28 | |
| Protection AF-DW | ||||
| 043 | 424517-3 | 0.83 | 1.00 | |
| Plate Id Btw104z | ||||
| 044 | 454419-9 | 3.54 | 4.28 | |
| VIEWING GLASS | ||||
| 045 | 450522-4 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 046 | 620211-7 | |||
