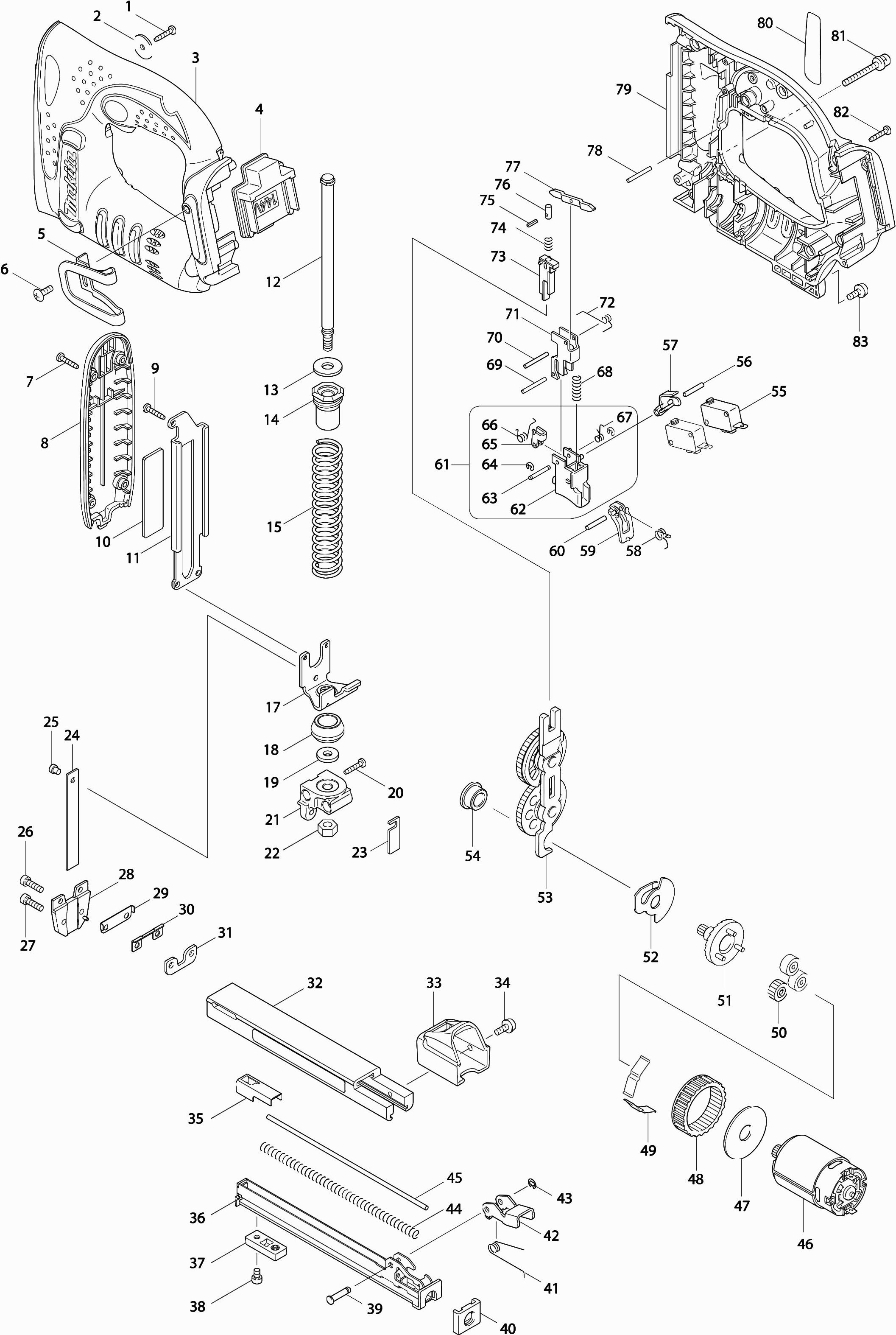

Technical drawing of model Makita BST110
Spare parts list of model Makita BST110
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tapping Screw 3x16 | ||||
| 001 | 266130-9 | 1.00 | 1.21 | |
| 4 Washer | ||||
| 002 | 267071-2 | 1.00 | 1.21 | |
| Motor Housing Set | ||||
| 003A | 188467-3 | 55.00 | 66.55 | |
| Connection Unit (2 contacts) | ||||
| 004A | 643847-5 | 3.60 | 4.36 | |
| Connection Unit (2 contacts) | ||||
| 004B | 643828-9 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 005 | 194654-4 | |||
| Screw,M4x12 | ||||
| 006 | 251314-2 | 1.00 | 1.21 | |
| Tapping Screw 3x16 | ||||
| 007 | 266130-9 | 1.00 | 1.21 | |
| Cover | ||||
| 008 | 419450-2 | 9.60 | 11.62 | |
| Tapping Screw 3x16 | ||||
| 009 | 266130-9 | 1.00 | 1.21 | |
| Sliding Plate | ||||
| 010 | 345704-0 | 2.40 | 2.90 | |
| Nail guide | ||||
| 011 | 345703-2 | 20.90 | 25.29 | |
| Guide Bolt | ||||
| 012 | 324683-5 | 22.00 | 26.62 | |
| Washer 8 | ||||
| 013 | 253762-1 | 1.20 | 1.45 | |
| Spring Holder | ||||
| 014 | 421962-3 | 7.20 | 8.71 | |
| Pressure spring 16 | ||||
| 015 | 234035-1 | 3.60 | 4.36 | |
| Striker | ||||
| 017 | 345865-6 | 13.20 | 15.97 | |
| Damper | ||||
| 018 | 424059-7 | 1.20 | 1.45 | |
| Washer 6 | ||||
| 019 | 253804-1 | 1.00 | 1.21 | |
| Tapping Screw 3x16 | ||||
| 020 | 266130-9 | 1.00 | 1.21 | |
| Damper Holder | ||||
| 021 | 318025-3 | 11.00 | 13.31 | |
| Hex Nut M6 | ||||
| 022 | 931302-2 | 1.00 | 1.21 | |
| Shift Plate | ||||
| 023 | 345864-8 | 1.20 | 1.45 | |
| Float | ||||
| 024 | 345857-5 | 13.20 | 15.97 | |
| Pin 4mm | ||||
| 025 | 268189-2 | 3.60 | 4.36 | |
| Hexagon socket bolt M4x14 | ||||
| 026 | 922122-5 | 1.00 | 1.21 | |
| Hexagon socket bolt M4x14 | ||||
| 027 | 922122-5 | 1.00 | 1.21 | |
| Strike pin guide | ||||
| 028 | 158417-2 | 23.10 | 27.95 | |
| Spacer plate | ||||
| 029 | 345863-0 | 3.60 | 4.36 | |
| Spacer plate holder | ||||
| 030 | 345862-2 | 3.60 | 4.36 | |
| Mounting Plate | ||||
| 031 | 345860-6 | 2.40 | 2.90 | |
| Magazine | ||||
| 032 | 158661-1 | 36.30 | 43.92 | |
| Warning Label | ||||
| 032A | 813728-9 | 3.60 | 4.36 | |
| End cap | ||||
| 033 | 450224-2 | 8.40 | 10.16 | |
| Screw 4X10 | ||||
| 034 | 911113-1 | 1.00 | 1.21 | |
| Pressure Plate | ||||
| 035 | 345858-3 | 13.20 | 15.97 | |
| Rivet Magazine | ||||
| 036 | 165479-3 | 63.80 | 77.20 | |
| Pedal | ||||
| 037 | 450225-0 | 3.60 | 4.36 | |
| Screw Ph M4X4 Bfh/Bht-Series | ||||
| 038 | 265127-5 | 1.00 | 1.21 | |
| Pin 4 | ||||
| 039 | 268029-4 | 1.20 | 1.45 | |
| Magazine Cap Bst110 | ||||
| 040 | 421637-4 | 3.60 | 4.36 | |
| Torsion spring 5 | ||||
| 041 | 233519-6 | 2.40 | 2.90 | |
| Release button | ||||
| 042 | 345861-4 | 9.60 | 11.62 | |
| Stopring E-3 | ||||
| 043 | 961017-7 | 1.00 | 1.21 | |
| Compression Spring 5 | ||||
| 044 | 234036-9 | 6.00 | 7.26 | |
| Sliding Rod | ||||
| 045 | 324836-6 | 2.40 | 2.90 | |
| Motor 14.4V | ||||
| 046 | 629848-7 | 15.40 | 18.63 | |
| Washer 12 | ||||
| 047 | 267053-4 | 1.00 | 1.21 | |
| Gear 69 | ||||
| 048 | 227166-3 | 3.60 | 4.36 | |
| Leaf Spring | ||||
| 049 | 232230-7 | 3.60 | 4.36 | |
| Gear 27 | ||||
| 050 | 221961-3 | 3.60 | 4.36 | |
| Complete 7-gear wheel | ||||
| 051 | 154973-0 | 6.00 | 7.26 | |
| Anti-return plate | ||||
| 052 | 345773-1 | 3.60 | 4.36 | |
| Gear 55 | ||||
| 053 | 158418-0 | 36.30 | 43.92 | |
| Slide Bearing 10 | ||||
| 054 | 214060-8 | 1.20 | 1.45 | |
| Switch D3V-16-3C26 A | ||||
| 055 | 650744-8 | 2.40 | 2.90 | |
| Pen 3 | ||||
| 056 | 256299-7 | 1.00 | 1.21 | |
| Connection Plate | ||||
| 057 | 419453-6 | 3.60 | 4.36 | |
| Rotational spring 4 | ||||
| 058 | 231693-4 | 1.20 | 1.45 | |
| Safety Switch | ||||
| 059 | 419454-4 | 4.80 | 5.81 | |
| Pen 3 | ||||
| 060 | 256299-7 | 1.00 | 1.21 | |
| Switch button set | ||||
| 061 | 188168-3 | 15.40 | 18.63 | |
| No information available, not orderable | ||||
| 062 | 419451-0 | |||
| No information available, not orderable | ||||
| 063 | 256771-9 | |||
| No information available, not orderable | ||||
| 064 | 257926-9 | |||
| No information available, not orderable | ||||
| 065 | 345707-4 | |||
| No information available, not orderable | ||||
| 066 | 231694-2 | |||
| No information available, not orderable | ||||
| 067 | 231695-0 | |||
| Compression Spring 5 | ||||
| 068 | 234037-7 | 1.00 | 1.21 | |
| Pen 2,5 | ||||
| 069 | 256176-3 | 1.00 | 1.21 | |
| Pen 2,5 | ||||
| 070 | 256176-3 | 1.00 | 1.21 | |
| Guide Plate | ||||
| 071 | 345706-6 | 4.80 | 5.81 | |
| Rotational spring 4 | ||||
| 072 | 231692-6 | 1.20 | 1.45 | |
| Switch block Bpt350 A | ||||
| 073 | 168489-9 | 2.40 | 2.90 | |
| Compression Spring 2.4 | ||||
| 074 | 233188-3 | 1.00 | 1.21 | |
| Cotter pin 2-8 | ||||
| 075 | 951001-0 | 1.00 | 1.21 | |
| Push Pin | ||||
| 076 | 324684-3 | 3.60 | 4.36 | |
| Reversing arm | ||||
| 077 | 345708-2 | 3.60 | 4.36 | |
| Pen 2,5 | ||||
| 078 | 256176-3 | 1.00 | 1.21 | |
| Motor Housing Set | ||||
| 079 | 188467-3 | 55.00 | 66.55 | |
| Nameplate Bst110 | ||||
| 080 | 864861-0 | 3.60 | 4.36 | |
| Screw 4x35 | ||||
| 081 | 911163-6 | 1.00 | 1.21 | |
| Tapping Screw 3x16 | ||||
| 082 | 266130-9 | 1.00 | 1.21 | |
| Screw 4X10 | ||||
| 083 | 911113-1 | 1.00 | 1.21 | |
