Here you will find all available parts and drawings of the 'Makita BSR730'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

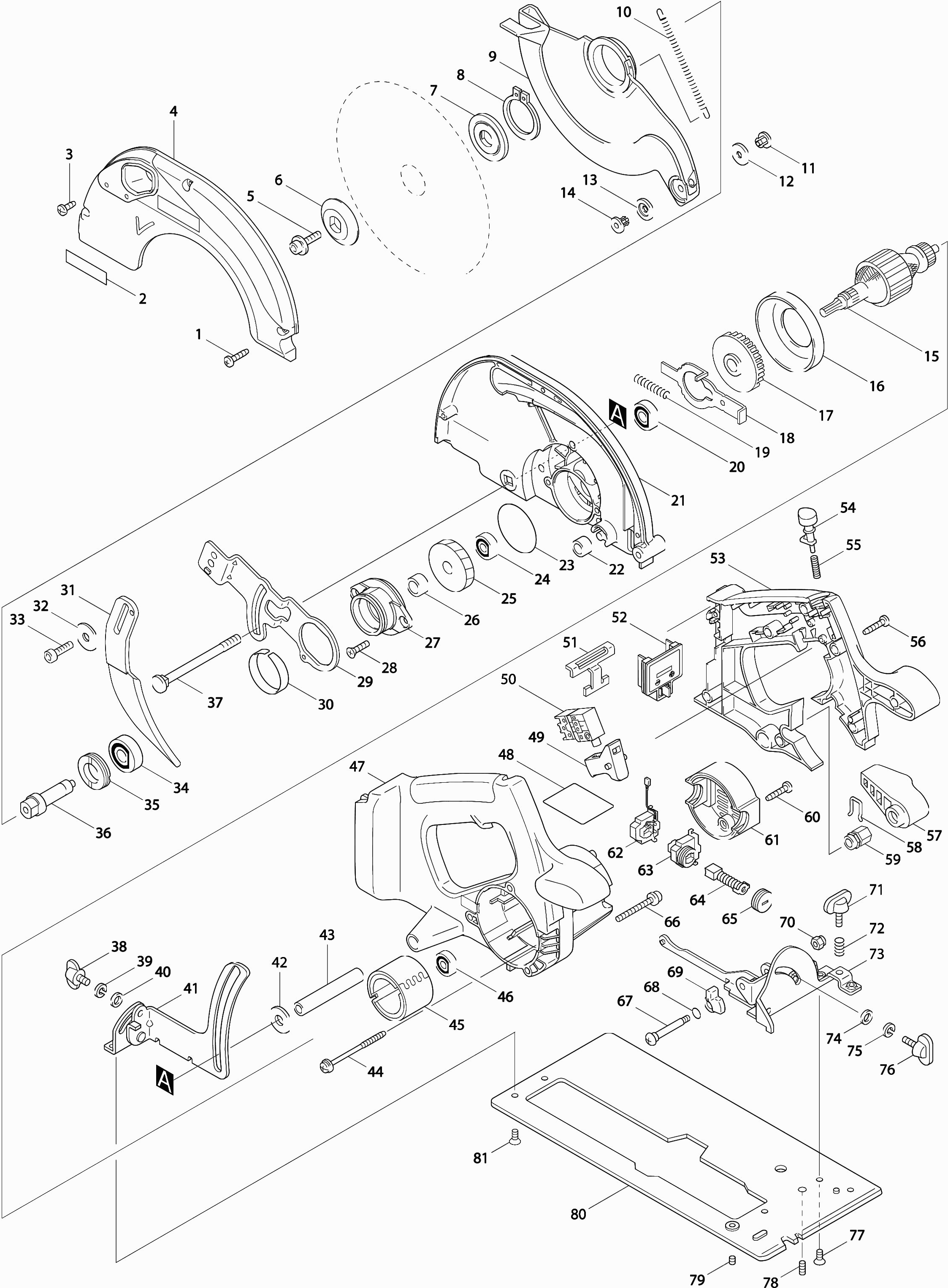

Technical drawing of model Makita BSR730
Spare parts list of model Makita BSR730
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Self-tapping screw 4x20 | ||||
| 001 | 266042-6 | 1.00 | 1.21 | |
| Label Makita | ||||
| 002 | 819063-3 | 2.40 | 2.90 | |
| Tapping screw M4x12mm Ck | ||||
| 003 | 266026-4 | 1.00 | 1.21 | |
| Cover for fixed hood | ||||
| 004 | 317075-5 | 26.40 | 31.94 | |
| Hex Socket Head Cap Screw | ||||
| 005 | 266139-1 | 1.20 | 1.45 | |
| Outer flange 45 Ls800Dwb * | ||||
| 006 | 224362-4 | 7.20 | 8.71 | |
| Inner flange 45 Ls800Dwb * | ||||
| 007 | 224363-2 | 8.40 | 10.16 | |
| Lock Ring S-40 | ||||
| 008 | 961156-3 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 009 | 317408-4 | |||
| Trekveer 4 | ||||
| 010 | 232468-4 | 2.40 | 2.90 | |
| Guide wheel pin 6 | ||||
| 011 | 415437-2 | 1.00 | 1.21 | |
| Spring loaded guide wheel cap | ||||
| 012 | 415438-0 | 1.00 | 1.21 | |
| Spring loaded guide wheel cap | ||||
| 013 | 415438-0 | 1.00 | 1.21 | |
| Guide wheel pin 6 | ||||
| 014 | 415437-2 | 1.00 | 1.21 | |
| Armature Bls820 * | ||||
| 015 | 519059-1 | 52.80 | 63.89 | |
| Intermediate Plate | ||||
| 016 | 416907-4 | 2.40 | 2.90 | |
| Fan 55 | ||||
| 017 | 241869-5 | 3.60 | 4.36 | |
| Axle Lock | ||||
| 018 | 344681-3 | 3.60 | 4.36 | |
| Compression Spring 5 | ||||
| 019 | 233092-6 | 1.00 | 1.21 | |
| Ball bearing 6000ddw | ||||
| 020 | 211088-7 | 10.00 | 12.10 | |
| Ball bearing 6000DDW A | ||||
| 020 | 210315-9 | 6.00 | 7.26 | |
| Fixed Protection Cover Bsr730 * | ||||
| 021 | 317387-6 | 72.60 | 87.85 | |
| Rubber Ring 6 Bsr730 * | ||||
| 022 | 262550-5 | 1.20 | 1.45 | |
| O-ring 46 | ||||
| 023 | 213620-3 | 1.20 | 1.45 | |
| Ball bearing 626llb | ||||
| 024 | 211016-2 | 6.00 | 7.26 | |
| Gear 60 | ||||
| 025 | 226512-7 | 11.00 | 13.31 | |
| Housing 12 Bsr730 * | ||||
| 026 | 257531-2 | 2.40 | 2.90 | |
| Bearing Housing Bsr730 * | ||||
| 027 | 317386-8 | 36.30 | 43.92 | |
| Countersunk screw 5x13 | ||||
| 028 | 265034-2 | 1.00 | 1.21 | |
| Cavity Mesh Holder Bsr730 * | ||||
| 029 | 344914-6 | 14.30 | 17.30 | |
| Filler Washer Bsr730 * | ||||
| 030 | 344917-0 | 3.60 | 4.36 | |
| Riving Knife | ||||
| 031 | 165094-3 | 19.80 | 23.96 | |
| Washer 6 | ||||
| 032 | 253783-3 | 1.20 | 1.45 | |
| Hex socket head screw M6x12 | ||||
| 033 | 922312-0 | 1.00 | 1.21 | |
| Ball Bearing 6201dw1 | ||||
| 034 | 211129-9 | 8.40 | 10.16 | |
| Bearing Lock 19-33 | ||||
| 035 | 285802-7 | 2.40 | 2.90 | |
| Sawshaft Bsr730 * | ||||
| 036 | 324047-3 | 23.10 | 27.95 | |
| Bolt 8x98 | ||||
| 037 | 266019-1 | 3.60 | 4.36 | |
| Wing Bolt 6x10 | ||||
| 038 | 924306-1 | 1.20 | 1.45 | |
| Spring Washer 6 A | ||||
| 039 | 253903-9 | 1.00 | 1.21 | |
| Washer 6x12mm | ||||
| 040 | 941151-9 | 1.00 | 1.21 | |
| Depth setting Bsr730 * | ||||
| 041 | 163427-6 | 14.30 | 17.30 | |
| Ring 10 1902 * | ||||
| 042 | 253796-4 | 1.20 | 1.45 | |
| Spacer | ||||
| 043 | 331432-3 | 2.40 | 2.90 | |
| Tapping screw 4x60 | ||||
| 044 | 266209-6 | 1.20 | 1.45 | |
| Magnet holder | ||||
| 045 | 632828-4 | 23.10 | 27.95 | |
| Ball bearing 627ddw | ||||
| 046 | 210045-2 | 3.60 | 4.36 | |
| Motor Housing Bsr730 * | ||||
| 047 | 152634-6 | 93.50 | 113.14 | |
| No information available, not orderable | ||||
| 048 | 852489-6 | |||
| Switch handle | ||||
| 049 | 416642-4 | 2.40 | 2.90 | |
| Switch | ||||
| 050 | 651988-3 | 13.20 | 15.97 | |
| Support Plate | ||||
| 051 | 344898-8 | 2.40 | 2.90 | |
| Connection unit | ||||
| 052 | 643983-7 | 4.80 | 5.81 | |
| Handle cover Bsr730 * | ||||
| 053 | 417316-0 | 57.20 | 69.21 | |
| No longer available, no replacement | ||||
| 054 | 416644-0 | |||
| DRUKVEER 4 UC120DW A | ||||
| 055 | 233194-8 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 056 | 265A48-7 | 1.00 | 1.21 | |
| Vergrendelhefboom | ||||
| 057 | 272230-5 | 2.40 | 2.90 | |
| Hex nut M8 | ||||
| 059 | 252141-0 | 3.60 | 4.36 | |
| Tap screw 4x18 | ||||
| 060 | 265A48-7 | 1.00 | 1.21 | |
| Tail Cover | ||||
| 061 | 416639-3 | 6.00 | 7.26 | |
| Carbon Brush Holder Bsr730 * | ||||
| 062 | 643966-7 | 3.60 | 4.36 | |
| Brush holder Ls800Dw * | ||||
| 063 | 643945-5 | 3.60 | 4.36 | |
| KOOLBORSTEL SET CB-441 A | ||||
| 064 | 195022-4 | 4.80 | 5.81 | |
| Brush holder cap | ||||
| 065 | 643941-3 | 2.40 | 2.90 | |
| Screw 5x40 | ||||
| 066 | 911263-2 | 1.00 | 1.21 | |
| Crosshead screw M5 | ||||
| 067 | 265084-7 | 2.40 | 2.90 | |
| O-ring 9 | ||||
| 068 | 213062-1 | 1.00 | 1.21 | |
| Aanslag Bsr730 * | ||||
| 069 | 317404-2 | 13.20 | 15.97 | |
| Hex lock nut 5x8 | ||||
| 070 | 252103-8 | 1.20 | 1.45 | |
| Wing Bolt 6x15 | ||||
| 071 | 265726-3 | 1.20 | 1.45 | |
| Compression Spring 7 | ||||
| 072 | 231316-4 | 1.00 | 1.21 | |
| Angle Guide Bsr730 * | ||||
| 073 | 168348-7 | 34.10 | 41.26 | |
| Washer 6x12mm | ||||
| 074 | 941151-9 | 1.00 | 1.21 | |
| Spring Washer 6 A | ||||
| 075 | 253903-9 | 1.00 | 1.21 | |
| Wing Bolt 6x15 | ||||
| 076 | 265726-3 | 1.20 | 1.45 | |
| Countersunk screw 5x8 | ||||
| 077 | 912202-5 | 1.00 | 1.21 | |
| Hex bolt M5X12 5621Rd * | ||||
| 078 | 266213-5 | 1.00 | 1.21 | |
| Hexagon bolt 5x6 | ||||
| 079 | 266264-8 | 1.00 | 1.21 | |
| Foot pad | ||||
| 080 | 152633-8 | 56.10 | 67.88 | |
| Countersunk screw 5x8 | ||||
| 081 | 912202-5 | 1.00 | 1.21 | |
