Here you will find all available parts and drawings of the 'Makita BO5041'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

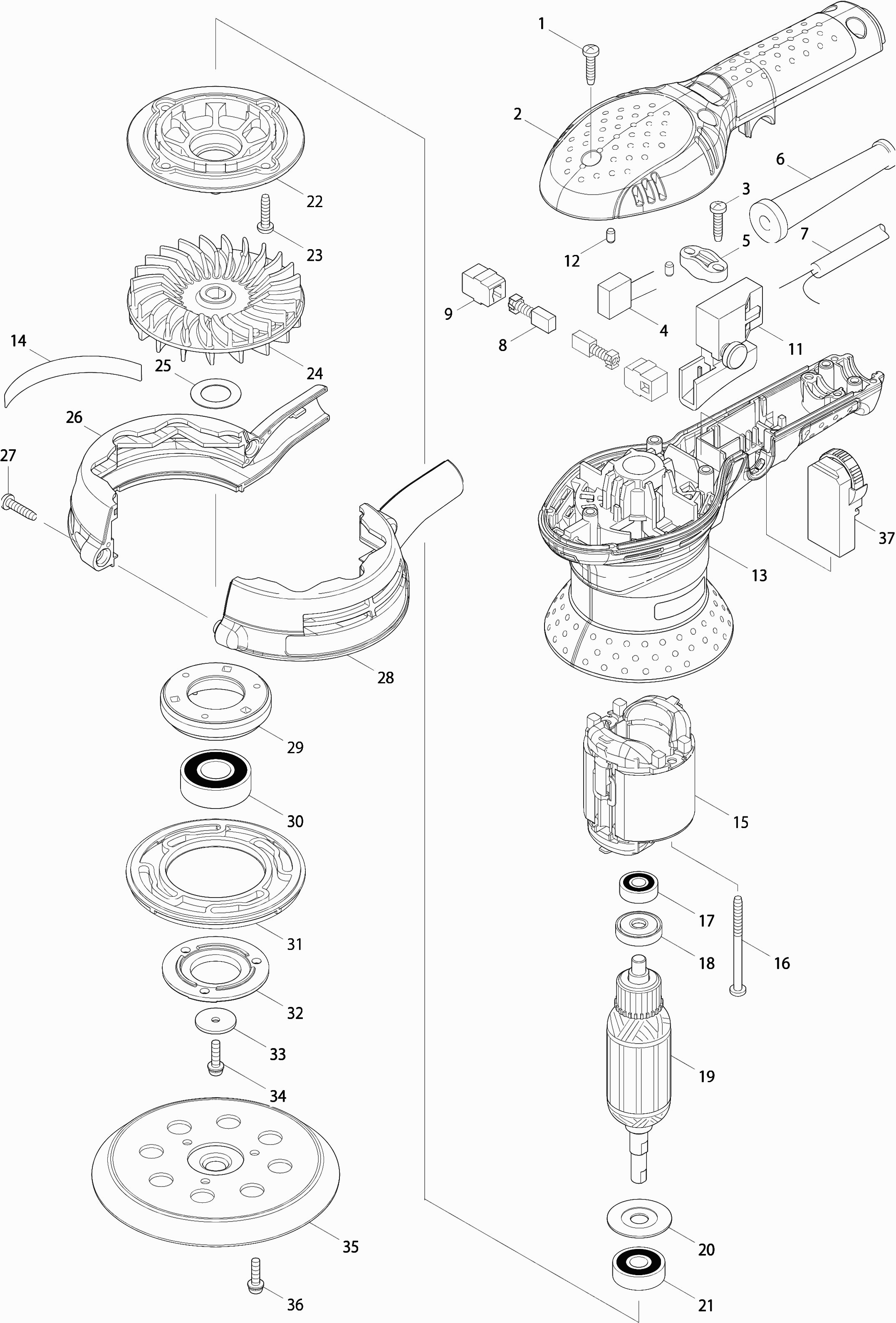

Technical drawing of model Makita BO5041
Spare parts list of model Makita BO5041
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tap screw 4x18 | ||||
| 001 | 265A48-7 | 1.00 | 1.21 | |
| Top cover | ||||
| 002 | 451619-2 | 7.20 | 8.71 | |
| Tap screw 4x18 | ||||
| 003 | 265A48-7 | 1.00 | 1.21 | |
| Capacitor 0,1uf | ||||
| 004 | 645105-5 | 3.60 | 4.36 | |
| Clamp Bracket | ||||
| 005 | 687124-5 | 1.00 | 1.21 | |
| Cable grommet 8-85 | ||||
| 006 | 682502-4 | 2.40 | 2.90 | |
| Power cord 2x1.00 2.2mtr | ||||
| 007 | 665383-1 | 10.80 | 13.07 | |
| KOOLBORSTEL SET CB-64 A | ||||
| 008 | 194968-1 | 4.80 | 5.81 | |
| Brush Holder | ||||
| 009 | 643552-4 | 1.20 | 1.45 | |
| Switch | ||||
| 011 | 651286-5 | 6.00 | 7.26 | |
| Rubber Pin 4 | ||||
| 012 | 263002-9 | 1.00 | 1.21 | |
| Motor Housing | ||||
| 013 | 451617-6 | 9.60 | 11.62 | |
| Label | ||||
| 014 | 867887-1 | 3.60 | 4.36 | |
| Field BO5041 A | ||||
| 015 | 520158-4 | 26.40 | 31.94 | |
| Field BO5041 A | ||||
| 015-1 | 520158-4 | 26.40 | 31.94 | |
| No information available, not orderable | ||||
| 015C10 | 654183-4 | |||
| Tapping screw Pf 4x55 | ||||
| 016 | 266147-2 | 1.20 | 1.45 | |
| Ball bearing 607llb | ||||
| 017 | 211021-9 | 4.80 | 5.81 | |
| Insulation ring | ||||
| 018 | 681652-2 | 1.00 | 1.21 | |
| Armature | ||||
| 019 | 515734-7 | 41.80 | 50.58 | |
| Rivet 9 | ||||
| 020 | 267806-1 | 1.00 | 1.21 | |
| Ball bearing 629ddw | ||||
| 021 | 211092-6 | 4.80 | 5.81 | |
| Holder | ||||
| 022 | 450672-5 | 2.40 | 2.90 | |
| Tap screw 4x18 | ||||
| 023 | 265A48-7 | 1.00 | 1.21 | |
| Fan 88 | ||||
| 024 | 241673-2 | 7.20 | 8.71 | |
| Flat Washer 15 | ||||
| 025 | 267164-5 | 1.00 | 1.21 | |
| Dust Ring Set | ||||
| 026 | 188835-0 | 9.60 | 11.62 | |
| Tap screw 4x18 | ||||
| 027 | 265A48-7 | 1.00 | 1.21 | |
| Dust Ring Set | ||||
| 028 | 188835-0 | 9.60 | 11.62 | |
| Bearing Housing | ||||
| 029 | 318304-9 | 3.60 | 4.36 | |
| Ball bearing 6202llb | ||||
| 030 | 211228-7 | 8.40 | 10.16 | |
| Intermediate Ring | ||||
| 031 | 424131-5 | 6.00 | 7.26 | |
| Bearing Housing | ||||
| 032 | 318303-1 | 1.20 | 1.45 | |
| 4 Washer | ||||
| 033 | 253739-6 | 1.00 | 1.21 | |
| Screw 4x16 A | ||||
| 034 | 911526-6 | 1.00 | 1.21 | |
| STEUNSCHIJF 125MM | ||||
| 035 | 743081-8 | 23.00 | 27.83 | |
| Screw 4x16 A | ||||
| 036 | 911526-6 | 1.00 | 1.21 | |
| Speed control circuit | ||||
| 037 | 631956-2 | 16.50 | 19.96 | |
