Here you will find all available parts and drawings of the 'Makita BO5021'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

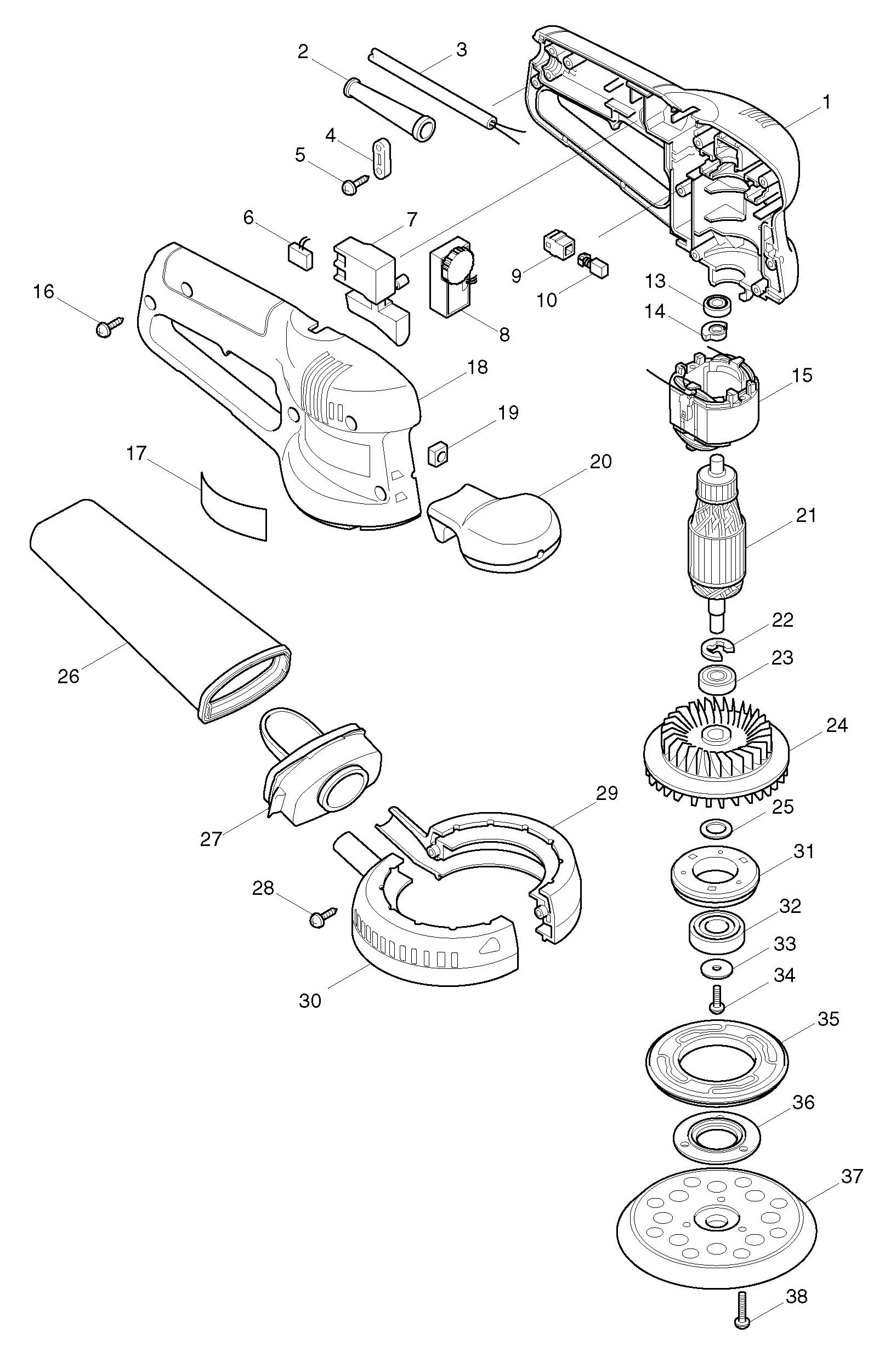

Technical drawing of model Makita BO5021
Spare parts list of model Makita BO5021
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 001 | 183108-6 | 22.00 | 26.62 | |
| Cable grommet 8-85 | ||||
| 002 | 682502-4 | 2.40 | 2.90 | |
| Power cord 2x1.00 2.2mtr | ||||
| 003 | 665383-1 | 10.80 | 13.07 | |
| Clamp Bracket | ||||
| 004 | 687053-2 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 004 | 687124-5 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 005 | 265A48-7 | 1.00 | 1.21 | |
| Capacitor 0,47uf | ||||
| 006 | 645006-7 | 2.40 | 2.90 | |
| Switch | ||||
| 007 | 651286-5 | 6.00 | 7.26 | |
| Speed control circuit Bo5021 * | ||||
| 008 | 631352-4 | 30.80 | 37.27 | |
| Brush Holder | ||||
| 009 | 643552-4 | 1.20 | 1.45 | |
| KOOLBORSTEL SET CB-64 A | ||||
| 010 | 194968-1 | 4.80 | 5.81 | |
| Ball bearing 607llb | ||||
| 013 | 211021-9 | 4.80 | 5.81 | |
| Balance Weight Bo5010 * | ||||
| 014 | 313080-0 | 2.40 | 2.90 | |
| Field | ||||
| 015 | 633433-0 | 23.10 | 27.95 | |
| Tap screw 4x18 | ||||
| 016 | 265A48-7 | 1.00 | 1.21 | |
| Motor Housing | ||||
| 018 | 183108-6 | 22.00 | 26.62 | |
| Square nut DIN 557-M5-05 | ||||
| 019 | 252045-6 | 1.20 | 1.45 | |
| Front handle Bo5021 | ||||
| 020 | 168324-1 | 7.20 | 8.71 | |
| Armature | ||||
| 021 | 517233-5 | 29.70 | 35.94 | |
| Retaining Ring E-9 | ||||
| 022 | 961015-1 | 1.00 | 1.21 | |
| Ball bearing 6000ddu | ||||
| 023 | 210020-8 | 4.80 | 5.81 | |
| Fan 88 | ||||
| 024 | 241896-2 | 11.00 | 13.31 | |
| Thin Ring 15 | ||||
| 025 | 253315-6 | 1.00 | 1.21 | |
| LINNEN STOFZAK HANDPALM VLAK- EN EXCENTERSCHUURMAC | ||||
| 026 | 151517-7 | 7.00 | 8.47 | |
| STOFZAKHOUDER HANDPALM VLAK- EN EXCENTERSCHUURMACH | ||||
| 027 | 151518-5 | 6.00 | 7.26 | |
| Tap screw 4x18 | ||||
| 028 | 265A48-7 | 1.00 | 1.21 | |
| Dust Ring Set | ||||
| 029 | 183088-6 | 10.80 | 13.07 | |
| Dust Ring Set | ||||
| 030 | 183088-6 | 10.80 | 13.07 | |
| Bearing Housing | ||||
| 031 | 316835-2 | 8.40 | 10.16 | |
| Ball bearing 6002ddw | ||||
| 032 | 211236-8 | 9.60 | 11.62 | |
| 4 Washer | ||||
| 033 | 253739-6 | 1.00 | 1.21 | |
| Screw 4x12 | ||||
| 034 | 911116-5 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 035 | 421866-9 | |||
| Bearing Housing Cover | ||||
| 036 | 316834-4 | 3.60 | 4.36 | |
| STEUNSCHIJF 125MM | ||||
| 037 | 743081-8 | 23.00 | 27.83 | |
| Screw 4x16 A | ||||
| 038 | 911526-6 | 1.00 | 1.21 | |
