Here you will find all available parts and drawings of the 'Makita BO4900V'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

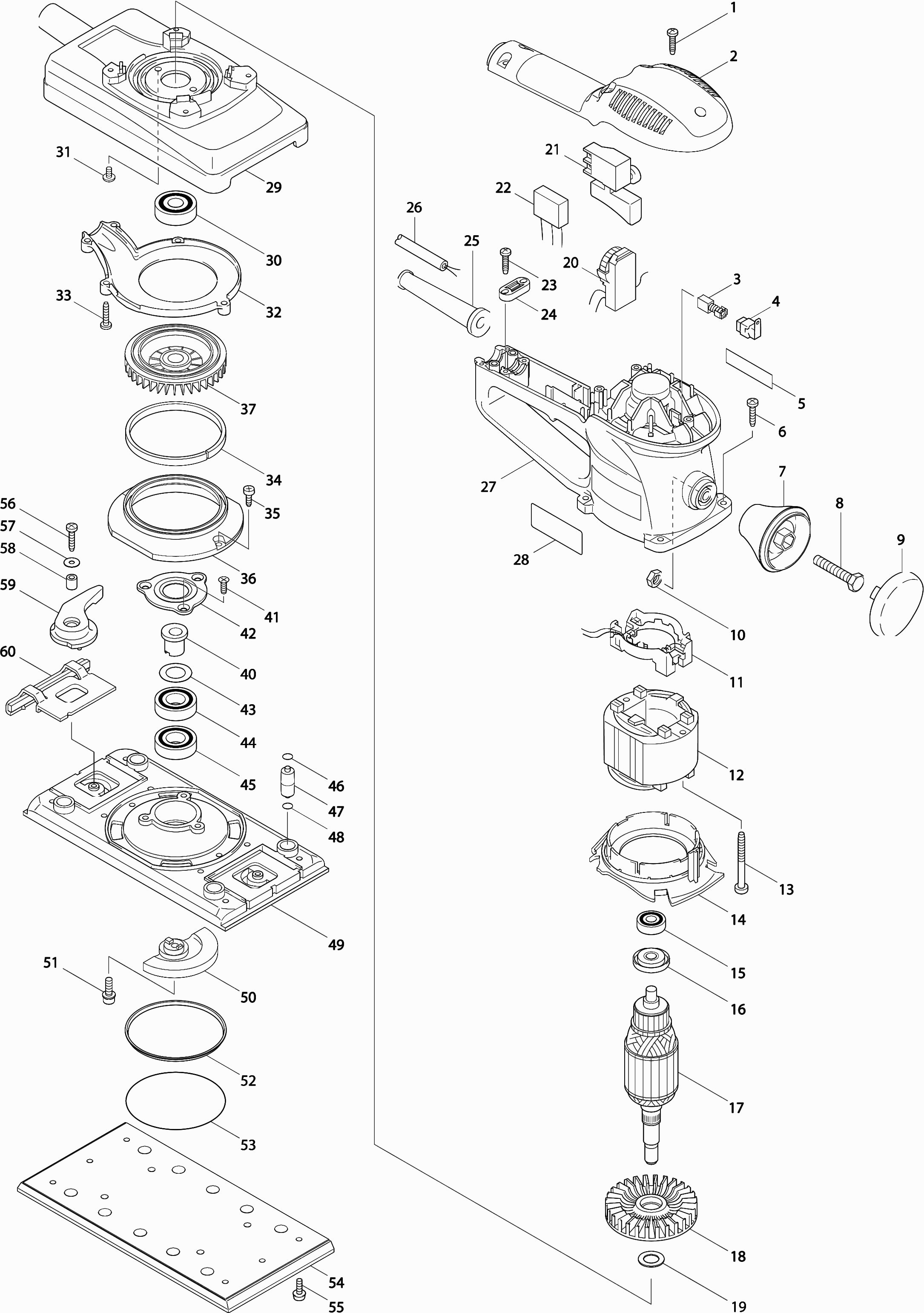

Technical drawing of model Makita BO4900V
Spare parts list of model Makita BO4900V
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tap screw 4x18 | ||||
| 001 | 265A48-7 | 0.83 | 1.00 | |
| Top cover | ||||
| 002 | 417778-2 | 13.78 | 16.67 | |
| Brush Set CB-419 | ||||
| 003 | 195015-1 | 4.45 | 5.38 | |
| Brush Holder | ||||
| 004 | 643923-5 | 1.18 | 1.43 | |
| Label Makita | ||||
| 005 | 819063-3 | 2.71 | 3.28 | |
| Self-tapping screw 4x20 | ||||
| 006 | 266042-6 | 0.83 | 1.00 | |
| Knob | ||||
| 007 | 417774-0 | 2.48 | 3.00 | |
| Hexagonal bolt M8X45 * | ||||
| 008 | 921467-8 | 0.83 | 1.00 | |
| Button cover | ||||
| 009 | 417775-8 | 2.10 | 2.54 | |
| Hex nut M8 | ||||
| 010 | 931403-6 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 011 | 638135-3 | |||
| Field | ||||
| 012 | 634464-2 | 22.09 | 26.73 | |
| Screw 5x50mm | ||||
| 013 | 266046-8 | 3.12 | 3.78 | |
| Intermediate Plate | ||||
| 014 | 417777-4 | 2.02 | 2.44 | |
| Ball Bearing 608ddw | ||||
| 015 | 210005-4 | 4.45 | 5.38 | |
| Insulation ring | ||||
| 016 | 681644-1 | 0.83 | 1.00 | |
| Armature Bo4900V | ||||
| 017 | 513504-8 | 62.04 | 75.07 | |
| Fan 70 | ||||
| 018 | 240043-2 | 5.06 | 6.12 | |
| Washer 12 | ||||
| 019 | 253744-3 | 0.83 | 1.00 | |
| Speed control circuit | ||||
| 020 | 631482-1 | 29.35 | 35.51 | |
| Switch | ||||
| 021 | 651286-5 | 5.71 | 6.91 | |
| Capacitor | ||||
| 022 | 645253-0 | 4.45 | 5.38 | |
| Tap screw 4x18 | ||||
| 023 | 265A48-7 | 0.83 | 1.00 | |
| Clamp Bracket | ||||
| 024 | 687053-2 | 0.83 | 1.00 | |
| Cable grommet 8-85 | ||||
| 025 | 682502-4 | 1.67 | 2.02 | |
| Power cord 2x1.00 2.2mtr | ||||
| 026 | 665383-1 | 10.50 | 12.70 | |
| Motor Housing | ||||
| 027 | 183419-9 | 18.20 | 22.02 | |
| Label | ||||
| 028 | 853497-0 | 2.71 | 3.28 | |
| Frame | ||||
| 029 | 317538-1 | 33.35 | 40.35 | |
| Ball Bearing 6201dw1 | ||||
| 030 | 211129-9 | 7.22 | 8.74 | |
| Screw 4x8 | ||||
| 031 | 251291-8 | 0.83 | 1.00 | |
| Fan cover | ||||
| 032 | 417773-2 | 3.12 | 3.78 | |
| Self-tapping screw 4x20 | ||||
| 033 | 266042-6 | 0.83 | 1.00 | |
| Felt ring 6x225x3 | ||||
| 034 | 443108-1 | 2.02 | 2.44 | |
| Tapping screw M4x12mm Ck | ||||
| 035 | 266026-4 | 0.83 | 1.00 | |
| Dust Guide | ||||
| 036 | 417772-4 | 2.71 | 3.28 | |
| Fan 78 | ||||
| 037 | 240051-3 | 7.57 | 9.16 | |
| Bearing Sleeve Bo4900V | ||||
| 040 | 313104-2 | 0.98 | 1.19 | |
| Self Tapping Screw M4x12mm Vk | ||||
| 041 | 266058-1 | 0.83 | 1.00 | |
| Bearing Lock Ring 24 | ||||
| 042 | 162171-2 | 6.41 | 7.76 | |
| Thin Ring 15 | ||||
| 043 | 253315-6 | 0.83 | 1.00 | |
| Ball Bearing 6002llb | ||||
| 044 | 211201-7 | 7.22 | 8.74 | |
| Ball Bearing 6002llb | ||||
| 045 | 211201-7 | 7.22 | 8.74 | |
| O-Ring 4 Bo3700 | ||||
| 046 | 213047-7 | 0.83 | 1.00 | |
| Footrest | ||||
| 047 | 317535-7 | 0.98 | 1.19 | |
| O-Ring 4 Bo3700 | ||||
| 048 | 213047-7 | 0.83 | 1.00 | |
| Foot pad | ||||
| 049 | 317537-3 | 26.55 | 32.13 | |
| Counterweight | ||||
| 050 | 317536-5 | 5.71 | 6.91 | |
| Bout 5X16 | ||||
| 051 | 266071-9 | 1.02 | 1.23 | |
| Bottom washer | ||||
| 052 | 345211-3 | 2.10 | 2.54 | |
| O-ring 75 | ||||
| 053 | 213755-0 | 2.71 | 3.28 | |
| Steunzool velcro 115x228 mm | ||||
| 054 | 193521-0 | 24.00 | 29.04 | |
| Screw 4x12 | ||||
| 055 | 911116-5 | 0.83 | 1.00 | |
| Self-tapping screw 4x20 | ||||
| 056 | 266042-6 | 0.83 | 1.00 | |
| 4 Washer | ||||
| 057 | 253874-0 | 0.83 | 1.00 | |
| Sleeve 4 | ||||
| 058 | 257659-6 | 1.18 | 1.43 | |
| Clamp handle cpl | ||||
| 059 | 153361-8 | 3.12 | 3.78 | |
| Paper clamp cpl | ||||
| 060 | 153362-6 | 7.22 | 8.74 | |
