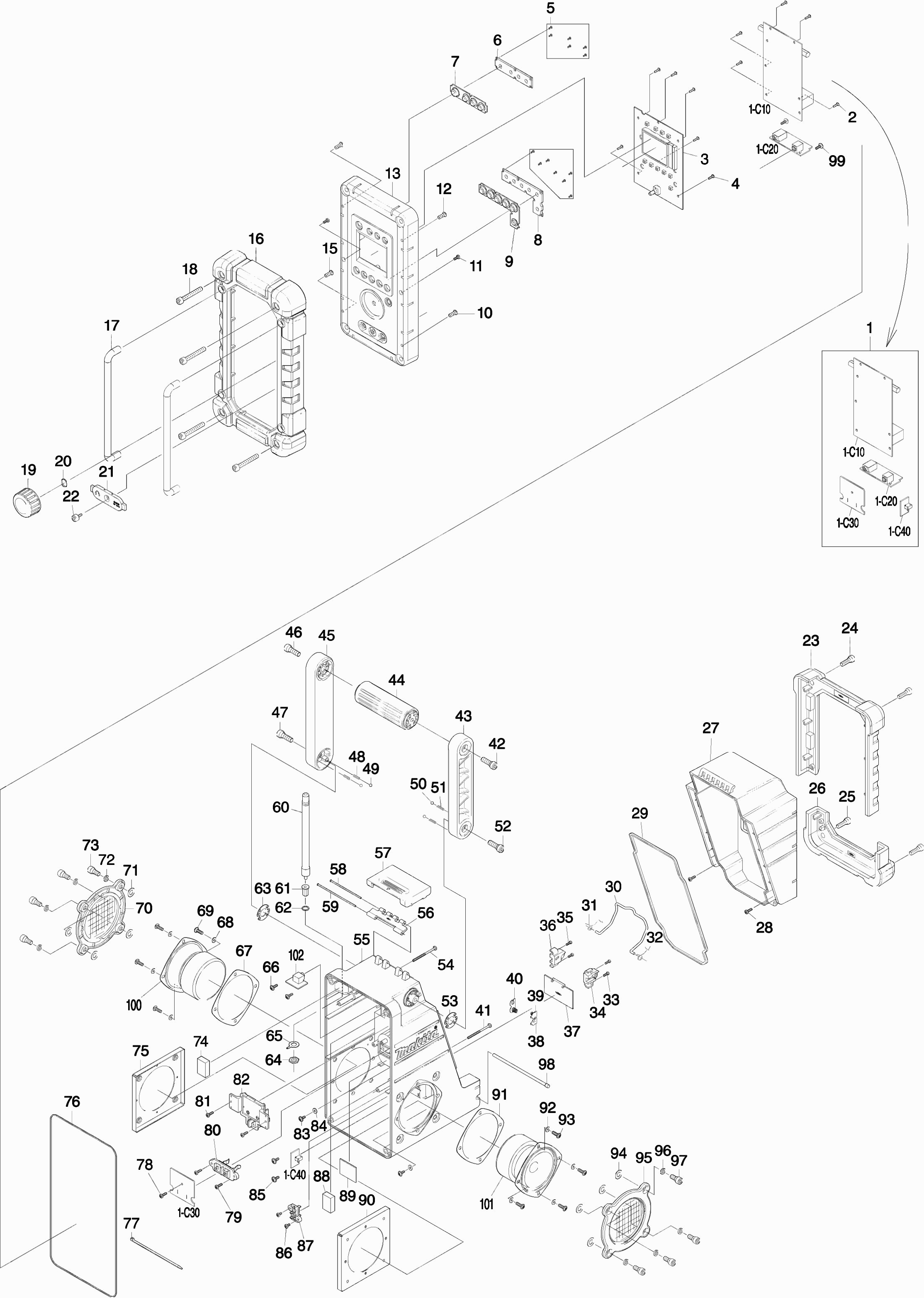

Technical drawing of model Makita BMR102
Spare parts list of model Makita BMR102
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Circuit "a" | ||||
| 001A | SE00000140 | 81.40 | 98.49 | |
| No information available, not orderable | ||||
| 001AA | SE00000141 | |||
| Circuit A "jack" Mp3 Bmr102 | ||||
| 001AB | SE00000142 | 13.20 | 15.97 | |
| Circuit board A battery | ||||
| 001AC | SE00000143 | 13.20 | 15.97 | |
| No longer available, no replacement | ||||
| 001AD | SE00000144 | |||
| Circuit "pcb-a" | ||||
| 001B | SE00000266 | 105.60 | 127.78 | |
| No information available, not orderable | ||||
| 001BA | SE00000267 | |||
| Circuit Pcba "jack" Mp3 | ||||
| 001BB | SE00000268 | 10.80 | 13.07 | |
| Speaker wire Bmr102 | ||||
| 001BC | SE00000269 | 10.80 | 13.07 | |
| Overload Protection Bmr102 | ||||
| 001BD | SE00000270 | 8.40 | 10.16 | |
| Screw M3x10 | ||||
| 002 | SE09163102 | 1.00 | 1.21 | |
| Circuit "c" | ||||
| 003A | SE00000155 | 51.70 | 62.56 | |
| Circuit "c" | ||||
| 003B | SE00000297 | 62.70 | 75.87 | |
| Circuit "c" aux-2 | ||||
| 003B1 | SE00000220 | 9.60 | 11.62 | |
| Screw M3x10 | ||||
| 004 | SE09163102 | 1.00 | 1.21 | |
| Tapping screw 1.7 | ||||
| 005 | SE09090011 | 1.00 | 1.21 | |
| Control Switch | ||||
| 006 | SE020PC020 | 1.20 | 1.45 | |
| Control Switch | ||||
| 007 | SE00000157 | 2.40 | 2.90 | |
| Belt button holder | ||||
| 008 | SE020PC030 | 1.20 | 1.45 | |
| Preset button | ||||
| 009 | SE00000158 | 2.40 | 2.90 | |
| Screw M4x16 | ||||
| 010 | SE09064161 | 1.00 | 1.21 | |
| Screw M3x10 | ||||
| 011 | SE09163102 | 1.00 | 1.21 | |
| Screw M4x16 | ||||
| 012 | SE09064161 | 1.00 | 1.21 | |
| Front plate BR 10 D | ||||
| 013 | SE00000204 | 15.40 | 18.63 | |
| Screw M4x16 | ||||
| 015 | SE09064161 | 1.00 | 1.21 | |
| Leg | ||||
| 016 | SE00000159 | 28.60 | 34.61 | |
| Impact handle | ||||
| 017 | SE0338PC5Z | 9.60 | 11.62 | |
| Point screw 6x47mm | ||||
| 018 | SE00000160 | 1.20 | 1.45 | |
| Rotary Knob | ||||
| 019 | SE00000161 | 2.40 | 2.90 | |
| Volume knob ring | ||||
| 020 | SE21B1110A | 1.00 | 1.21 | |
| Covering rubber | ||||
| 021 | SE0335PC5Z | 2.40 | 2.90 | |
| Screw M3x10 | ||||
| 022 | SE09173106 | 1.00 | 1.21 | |
| Battery cover buffer | ||||
| 023 | SE00000162 | 14.30 | 17.30 | |
| BOLT M6X16 | ||||
| 024 | SE09176166 | 1.00 | 1.21 | |
| BOLT M6X16 | ||||
| 025 | SE09176166 | 1.00 | 1.21 | |
| Shock rubber "back" | ||||
| 026 | SE00000165 | 11.00 | 13.31 | |
| Battery cover | ||||
| 027 | SE00000166 | 16.50 | 19.96 | |
| Screw M3x10 | ||||
| 028 | SE09163102 | 1.00 | 1.21 | |
| Gasket | ||||
| 029 | SE00000168 | 8.40 | 10.16 | |
| Fall protection | ||||
| 030 | SE00000169 | 3.60 | 4.36 | |
| Pressure spring "l" | ||||
| 031 | SE00000170 | 1.00 | 1.21 | |
| Pressure spring "r" | ||||
| 032 | SE00000171 | 1.00 | 1.21 | |
| Screw M3x10 | ||||
| 033 | SE09163102 | 1.00 | 1.21 | |
| Pressure spring holder "r" | ||||
| 034 | SE00000173 | 1.00 | 1.21 | |
| Screw M3x10 | ||||
| 035 | SE09163102 | 1.00 | 1.21 | |
| Pressure spring holder "l" | ||||
| 036 | SE00000175 | 1.00 | 1.21 | |
| Battery Plate | ||||
| 037 | SE0307PC5Z | 1.20 | 1.45 | |
| Contact strip + | ||||
| 038 | SE021E9010 | 1.00 | 1.21 | |
| Contact strip - | ||||
| 039 | SE021E9020 | 1.00 | 1.21 | |
| Contact strip +/- | ||||
| 040 | SE021E9030 | 1.20 | 1.45 | |
| Screw M3x45 | ||||
| 041 | SE09163452 | 1.00 | 1.21 | |
| Tap screw 6x20mm | ||||
| 042 | SE00000176 | 1.00 | 1.21 | |
| Handle holder "r" | ||||
| 043 | SE00000177 | 2.40 | 2.90 | |
| Handle | ||||
| 044 | SE00000179 | 4.80 | 5.81 | |
| Handle holder "l" | ||||
| 045 | SE00000180 | 2.40 | 2.90 | |
| Tap screw 6x20mm | ||||
| 046 | SE00000176 | 1.00 | 1.21 | |
| BOLT M6X16 | ||||
| 047 | SE09176166 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 048 | SE00000184 | 1.00 | 1.21 | |
| Ball | ||||
| 049 | SE09994007 | 1.00 | 1.21 | |
| Ball | ||||
| 050 | SE09994007 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 051 | SE00000184 | 1.00 | 1.21 | |
| BOLT M6X16 | ||||
| 052 | SE09176166 | 1.00 | 1.21 | |
| Handle plate "r" | ||||
| 053 | SE00000187 | 1.20 | 1.45 | |
| Screw M3x45 | ||||
| 054 | SE09163452 | 1.00 | 1.21 | |
| Tail Cover | ||||
| 055 | SE00000188 | 30.80 | 37.27 | |
| Closing Plate | ||||
| 056 | SE00000067 | 1.20 | 1.45 | |
| Battery cover lock | ||||
| 057 | SE00000190 | 1.20 | 1.45 | |
| Mounting Pin | ||||
| 058 | SE021PC050 | 1.00 | 1.21 | |
| Mounting Pin | ||||
| 059 | SE021PC040 | 1.00 | 1.21 | |
| Aerial | ||||
| 060 | SE00000191 | 6.00 | 7.26 | |
| Antenna holder | ||||
| 061 | SE021J9032 | 1.20 | 1.45 | |
| Gasket | ||||
| 062 | SE024J9050 | 1.00 | 1.21 | |
| Handle plate "l" | ||||
| 063 | SE00000192 | 1.20 | 1.45 | |
| Nut | ||||
| 064 | SE021P0020 | 1.00 | 1.21 | |
| Antenna connection | ||||
| 065 | SE021PC100 | 1.20 | 1.45 | |
| Tap screw 3x10mm | ||||
| 066 | SE00000193 | 1.00 | 1.21 | |
| Gasket | ||||
| 067 | SE024J9030 | 2.40 | 2.90 | |
| Gasket | ||||
| 068 | SE024J9070 | 1.00 | 1.21 | |
| Screw,M4x12 | ||||
| 069 | SE09090023 | 1.00 | 1.21 | |
| Speaker grille | ||||
| 070 | SE00000205 | 4.80 | 5.81 | |
| Gasket | ||||
| 071 | SE024J9090 | 1.00 | 1.21 | |
| Gasket | ||||
| 072 | SE024J9040 | 1.00 | 1.21 | |
| Screw M6X14 | ||||
| 073 | SE9076146A | 1.00 | 1.21 | |
| Damper 25x18x5.5 | ||||
| 074 | SE023PC020 | 1.00 | 1.21 | |
| Speaker holder | ||||
| 075 | SE021J9010 | 2.40 | 2.90 | |
| Gasket | ||||
| 076 | SE024PC040 | 2.40 | 2.90 | |
| W/ties 100mm | ||||
| 077 | SE00000195 | 1.00 | 1.21 | |
| Screw M3x10 | ||||
| 078 | SE09163102 | 1.00 | 1.21 | |
| Screw M3x10 | ||||
| 079 | SE09163102 | 1.00 | 1.21 | |
| Block battery holder | ||||
| 080 | SE00000098 | 2.40 | 2.90 | |
| Screw M3x10 | ||||
| 081 | SE09163102 | 1.00 | 1.21 | |
| Connection unit "d" | ||||
| 082 | SE00000197 | 4.80 | 5.81 | |
| Tap screw 3x10mm | ||||
| 083 | SE00000193 | 1.00 | 1.21 | |
| Rivet | ||||
| 084 | SE00000199 | 1.00 | 1.21 | |
| Tap screw 3x10mm | ||||
| 085 | SE00000193 | 1.00 | 1.21 | |
| Screw M3X6 | ||||
| 086 | SE09163062 | 1.00 | 1.21 | |
| Connection unit "c" | ||||
| 087 | SE00000200 | 3.60 | 4.36 | |
| Damper 25x18x5.5 | ||||
| 088 | SE023PC020 | 1.00 | 1.21 | |
| Rivet | ||||
| 089 | SE02311000 | 1.00 | 1.21 | |
| Speaker holder | ||||
| 090 | SE021J9010 | 2.40 | 2.90 | |
| Gasket | ||||
| 091 | SE024J9030 | 2.40 | 2.90 | |
| Gasket | ||||
| 092 | SE024J9070 | 1.00 | 1.21 | |
| Screw,M4x12 | ||||
| 093 | SE09090023 | 1.00 | 1.21 | |
| Gasket | ||||
| 094 | SE024J9090 | 1.00 | 1.21 | |
| Speaker grille | ||||
| 095 | SE00000205 | 4.80 | 5.81 | |
| Gasket | ||||
| 096 | SE024J9040 | 1.00 | 1.21 | |
| Screw M6X14 | ||||
| 097 | SE9076146A | 1.00 | 1.21 | |
| Hinge pin battery cover | ||||
| 098 | SE021PC030 | 1.20 | 1.45 | |
| Tap screw 3x10mm | ||||
| 099 | SE00000193 | 1.00 | 1.21 | |
| SPEAKER | ||||
| 100 | SE01620771 | 17.60 | 21.30 | |
| SPEAKER | ||||
| 101 | SE01620771 | 17.60 | 21.30 | |
