Here you will find all available parts and drawings of the 'Makita BMR100'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

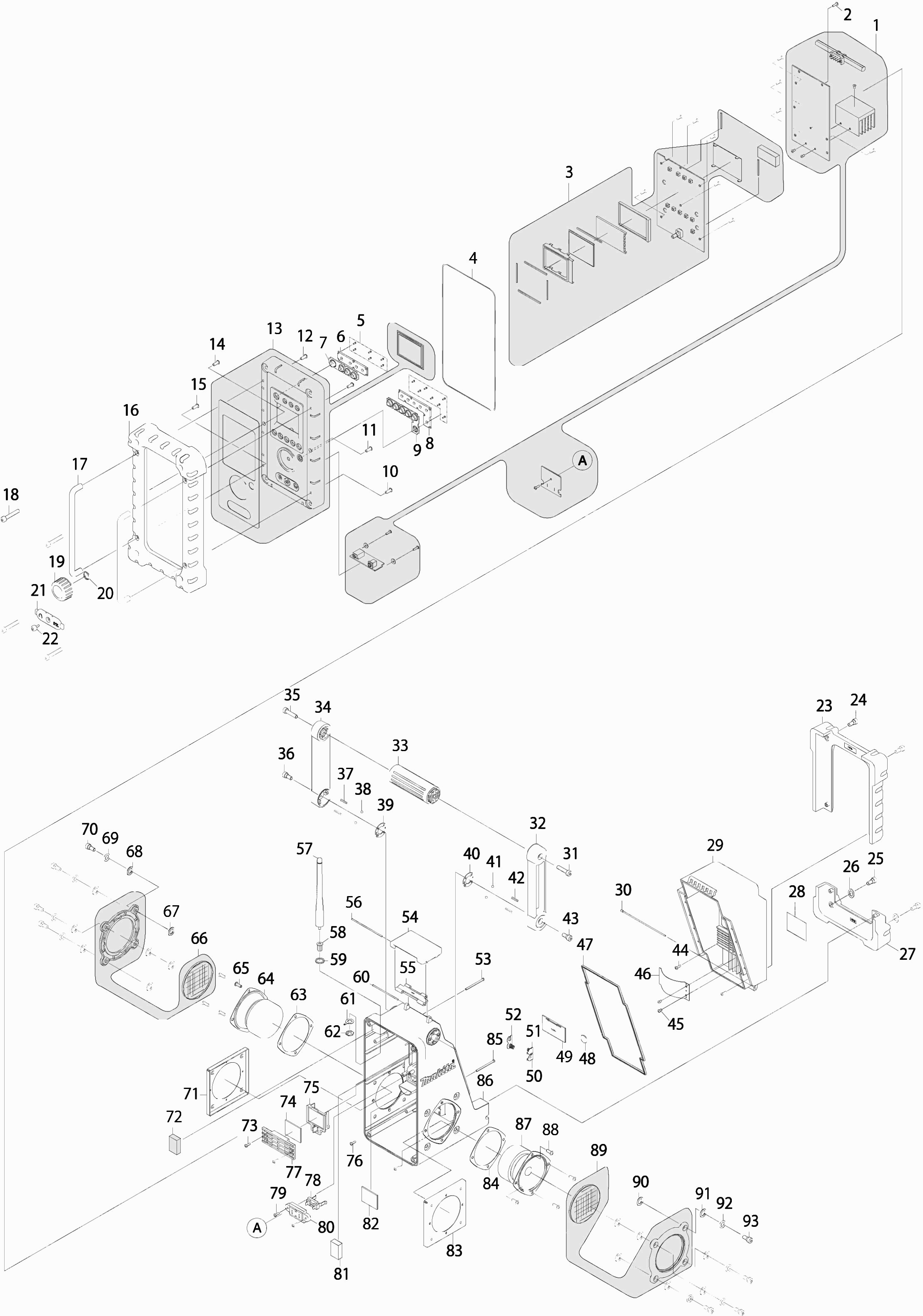

Technical drawing of model Makita BMR100
Spare parts list of model Makita BMR100
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Circuit A | ||||
| 001 | SE00000012 | 81.40 | 98.49 | |
| Circuit A Mp3 | ||||
| 001A | SE00000038 | 92.40 | 111.80 | |
| Circuit A "jack" Mp3 | ||||
| 001A1 | SE00000048 | 13.20 | 15.97 | |
| Screw M3x10 | ||||
| 002 | SE09163102 | 1.00 | 1.21 | |
| Display circuit | ||||
| 003 | SE00000013 | 62.70 | 75.87 | |
| Display circuit Mp3 | ||||
| 003A | SE00000039 | 62.70 | 75.87 | |
| Gasket | ||||
| 004 | SE024PC040 | 2.40 | 2.90 | |
| Tapping screw 1.7 | ||||
| 005 | SE09090011 | 1.00 | 1.21 | |
| Control Switch | ||||
| 006 | SE020PC020 | 1.20 | 1.45 | |
| Control Switch | ||||
| 007 | SE0310PC5Z | 2.40 | 2.90 | |
| Belt button holder | ||||
| 008 | SE020PC030 | 1.20 | 1.45 | |
| Band button Bmr100 | ||||
| 009 | SE0312PC5Z | 2.40 | 2.90 | |
| Screw M4x16 | ||||
| 010 | SE09064161 | 1.00 | 1.21 | |
| Screw M3X8 Bmr100 * | ||||
| 011 | SE09163082 | 1.00 | 1.21 | |
| Screw M4x16 | ||||
| 012 | SE09064161 | 1.00 | 1.21 | |
| Front plate BR 10 D | ||||
| 013 | SE00000005 | 15.40 | 18.63 | |
| Screw M3X8 Bmr100 * | ||||
| 014 | SE09163082 | 1.00 | 1.21 | |
| Screw M4x16 | ||||
| 015 | SE09064161 | 1.00 | 1.21 | |
| Leg | ||||
| 016 | SE0331PC5Z | 28.60 | 34.61 | |
| Impact handle | ||||
| 017 | SE0338PC5Z | 9.60 | 11.62 | |
| Screw M6x42 | ||||
| 018 | SE09176426 | 1.20 | 1.45 | |
| Volume knob | ||||
| 019 | SE0313PC5Z | 2.40 | 2.90 | |
| Volume knob ring | ||||
| 020 | SE21B1110A | 1.00 | 1.21 | |
| Covering rubber | ||||
| 021 | SE0335PC5Z | 2.40 | 2.90 | |
| Cover rubber Bmr100 (Mp3) | ||||
| 021A | SE00000042 | 2.40 | 2.90 | |
| Screw M3x10 | ||||
| 022 | SE09173106 | 1.00 | 1.21 | |
| Rear Bumper Rubber | ||||
| 023 | SE0334PC5Z | 15.40 | 18.63 | |
| Screw m6x10 | ||||
| 024 | SE09176106 | 1.00 | 1.21 | |
| Screw m6x10 | ||||
| 025 | SE09176106 | 1.00 | 1.21 | |
| Gasket | ||||
| 026 | SE024J9070 | 1.00 | 1.21 | |
| Rear Bumper Rubber | ||||
| 027 | SE0333PC5Z | 11.00 | 13.31 | |
| Label | ||||
| 028 | SE0340PC5Z | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 029 | SE0304PC5Z | |||
| Hinge pin battery cover | ||||
| 030 | SE021PC030 | 1.20 | 1.45 | |
| Screw M6X14 | ||||
| 031 | SE9076146A | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 032 | SE309PC5ZR | |||
| Handle | ||||
| 033 | SE0309J96A | 4.80 | 5.81 | |
| No longer available, no replacement | ||||
| 034 | SE309PC5ZL | |||
| Screw M6X14 | ||||
| 035 | SE9076146A | 1.00 | 1.21 | |
| BOLT M6X16 | ||||
| 036 | SE09176166 | 1.00 | 1.21 | |
| Spring | ||||
| 037 | SE021J9090 | 1.00 | 1.21 | |
| Ball | ||||
| 038 | SE09994007 | 1.00 | 1.21 | |
| Sliding plate Bmr100 | ||||
| 039 | SE021J9070 | 1.20 | 1.45 | |
| Sliding plate Bmr100 | ||||
| 040 | SE021J9070 | 1.20 | 1.45 | |
| Ball | ||||
| 041 | SE09994007 | 1.00 | 1.21 | |
| Spring | ||||
| 042 | SE021J9090 | 1.00 | 1.21 | |
| BOLT M6X16 | ||||
| 043 | SE09176166 | 1.00 | 1.21 | |
| Screw M3x10 | ||||
| 044 | SE09163102 | 1.00 | 1.21 | |
| Screw M3X6 | ||||
| 045 | SE09163062 | 1.00 | 1.21 | |
| Battery Holder | ||||
| 046 | SE021PC000 | 3.60 | 4.36 | |
| Gasket | ||||
| 047 | SE024PC010 | 8.40 | 10.16 | |
| Rivet Bmr100 * | ||||
| 048 | SE023PC030 | 1.00 | 1.21 | |
| Battery Plate | ||||
| 049 | SE0307PC5Z | 1.20 | 1.45 | |
| Contact strip + | ||||
| 050 | SE021E9010 | 1.00 | 1.21 | |
| Contact strip - | ||||
| 051 | SE021E9020 | 1.00 | 1.21 | |
| Contact strip +/- | ||||
| 052 | SE021E9030 | 1.20 | 1.45 | |
| Screw M3x45 | ||||
| 053 | SE09163452 | 1.00 | 1.21 | |
| Battery cover lock | ||||
| 054 | SE0308PC5Z | 2.40 | 2.90 | |
| Closing Plate | ||||
| 055 | SE00000067 | 1.20 | 1.45 | |
| Mounting Pin | ||||
| 056 | SE021PC040 | 1.00 | 1.21 | |
| Aerial | ||||
| 057 | SE00000191 | 6.00 | 7.26 | |
| Aerial | ||||
| 057 | SE00000033 | 4.45 | 5.38 | |
| Antenna holder | ||||
| 058 | SE021J9032 | 1.20 | 1.45 | |
| Gasket | ||||
| 059 | SE024J9050 | 1.00 | 1.21 | |
| Mounting Pin | ||||
| 060 | SE021PC050 | 1.00 | 1.21 | |
| Antenna connection | ||||
| 061 | SE021PC100 | 1.20 | 1.45 | |
| Nut | ||||
| 062 | SE021P0020 | 1.00 | 1.21 | |
| Gasket | ||||
| 063 | SE024J9030 | 2.40 | 2.90 | |
| SPEAKER | ||||
| 064 | SE01620771 | 17.60 | 21.30 | |
| Screw,M4x12 | ||||
| 065 | SE09090023 | 1.00 | 1.21 | |
| Speaker grille | ||||
| 066 | SE00000006 | 4.80 | 5.81 | |
| Gasket | ||||
| 067 | SE024J9090 | 1.00 | 1.21 | |
| Gasket | ||||
| 068 | SE024J9070 | 1.00 | 1.21 | |
| Gasket | ||||
| 069 | SE024J9040 | 1.00 | 1.21 | |
| Screw M6X14 | ||||
| 070 | SE9076146A | 1.00 | 1.21 | |
| Speaker holder | ||||
| 071 | SE021J9010 | 2.40 | 2.90 | |
| Damper 25x18x5.5 | ||||
| 072 | SE023PC020 | 1.00 | 1.21 | |
| Screw M3x10 | ||||
| 073 | SE09163102 | 1.00 | 1.21 | |
| Rivet | ||||
| 074 | SE023PC000 | 1.00 | 1.21 | |
| Battery Holder | ||||
| 075 | GM00001117 | 4.80 | 5.81 | |
| Screw M3x10 | ||||
| 076 | SE09153102 | 1.00 | 1.21 | |
| Slide battery holder | ||||
| 077 | SE020PC050 | 1.20 | 1.45 | |
| Contact clip plate Ml902 Etc | ||||
| 078 | 643926-9 | 2.40 | 2.90 | |
| Block battery holder | ||||
| 078A | SE00000098 | 2.40 | 2.90 | |
| Screw M3x10 | ||||
| 079 | SE09163102 | 1.00 | 1.21 | |
| Block battery holder | ||||
| 080 | SE00000098 | 2.40 | 2.90 | |
| Damper 25x18x5.5 | ||||
| 081 | SE023PC020 | 1.00 | 1.21 | |
| Rivet | ||||
| 082 | SE02311000 | 1.00 | 1.21 | |
| Speaker holder | ||||
| 083 | SE021J9010 | 2.40 | 2.90 | |
| Gasket | ||||
| 084 | SE024J9030 | 2.40 | 2.90 | |
| Screw M3x45 | ||||
| 085 | SE09163452 | 1.00 | 1.21 | |
| Housing Bmr100 | ||||
| 086 | SE0303PC5Z | 27.50 | 33.28 | |
| Housing (mp3) | ||||
| 086A | SE00000041 | 26.40 | 31.94 | |
| SPEAKER | ||||
| 087 | SE01620771 | 17.60 | 21.30 | |
| Screw,M4x12 | ||||
| 088 | SE09090023 | 1.00 | 1.21 | |
| Speaker grille | ||||
| 089 | SE00000006 | 4.80 | 5.81 | |
| Gasket | ||||
| 090 | SE024J9090 | 1.00 | 1.21 | |
| Gasket | ||||
| 091 | SE024J9070 | 1.00 | 1.21 | |
| Gasket | ||||
| 092 | SE024J9040 | 1.00 | 1.21 | |
| Screw M6X14 | ||||
| 093 | SE9076146A | 1.00 | 1.21 | |
