Here you will find all available parts and drawings of the 'Makita BJS101'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

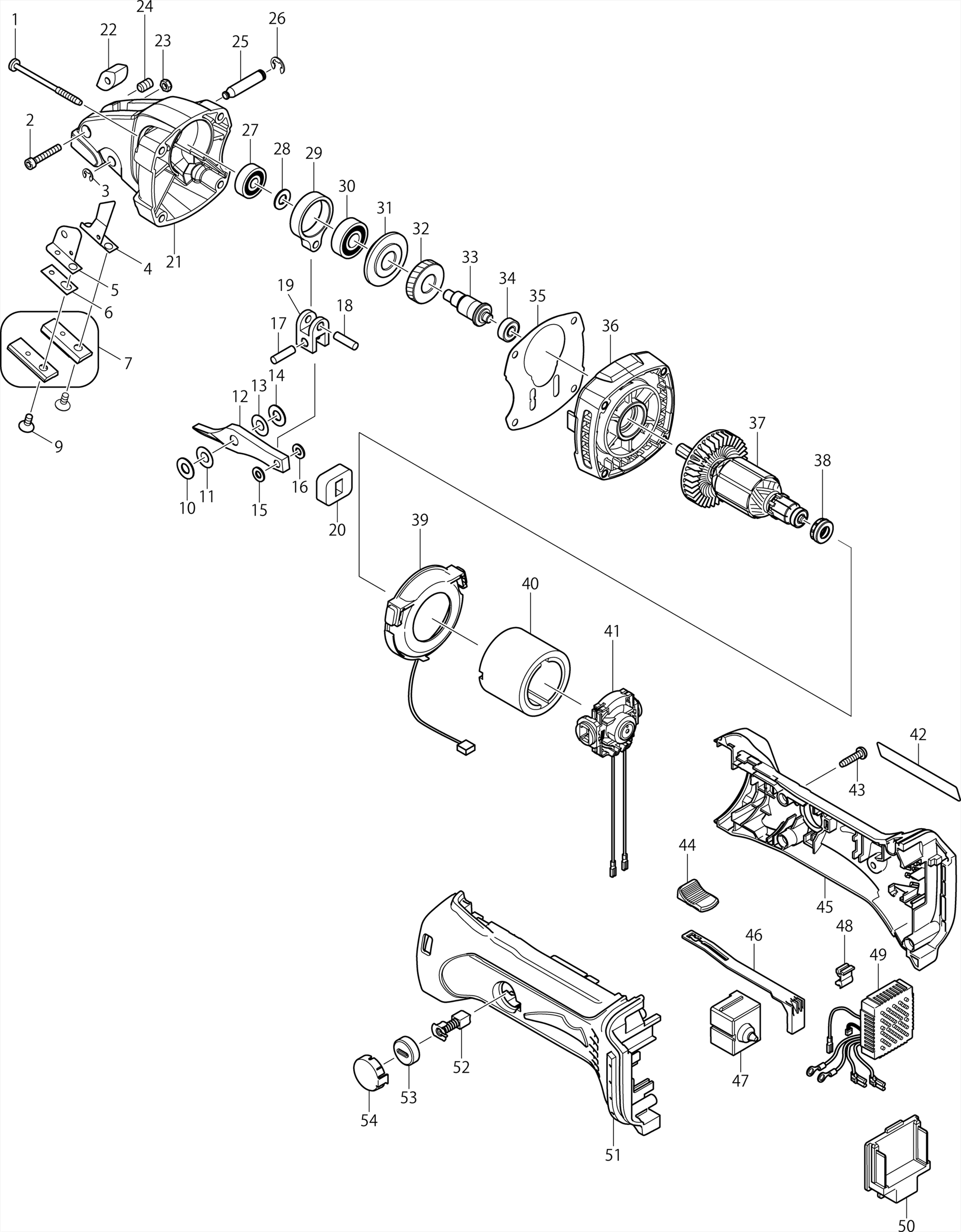

Technical drawing of model Makita BJS101
Spare parts list of model Makita BJS101
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| HAAKSE INBUSSLEUTEL 3MM | ||||
| A01 | 783201-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| A02 | ***DC18RA | |||
| No information available, not orderable | ||||
| A02-1 | ***DC18RC | |||
| No information available, not orderable | ||||
| A03 | 194204-5 | |||
| No information available, not orderable | ||||
| A03-1 | 194204-5 | |||
| No information available, not orderable | ||||
| A03-2 | 194204-5 | |||
| No information available, not orderable | ||||
| A03-3 | 194204-5 | |||
| No information available, not orderable | ||||
| A03-4 | 197600-6 | |||
| No information available, not orderable | ||||
| A03-5 | 197600-6 | |||
| AFDEKKAP LXT 14,4V/18V ACCU'S | ||||
| A04 | 450128-8 | 2.00 | 2.42 | |
| MBOX2 | ||||
| A05 | 821550-0 | 38.00 | 45.98 | |
| MBOX2 | ||||
| A05-1 | 821550-0 | 38.00 | 45.98 | |
| KOFFERINZET/INLAY DJS101/DJS161 | ||||
| A06 | 837636-0 | 7.00 | 8.47 | |
| No information available, not orderable | ||||
| A07 | 801D82-7 | |||
| No information available, not orderable | ||||
| A08 | 801D83-5 | |||
| Case closure | ||||
| C10 | 163455-1 | 2.40 | 2.90 | |
| MBOX SLUITING ZWART | ||||
| C10 | 453974-8 | 2.00 | 2.42 | |
| Rubber Pin 4 | ||||
| C10 | 263002-9 | 1.00 | 1.21 | |
| Rubber pen 6 | ||||
| C10 | 263005-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| F02-5 | 197606-4 | |||
| ACCU BL1815N LXT 18 V 1,5AH | ||||
| F06-2 | 196235-0 | 49.00 | 59.29 | |
| No information available, not orderable | ||||
| F07-1 | 196449-1 | |||
| No information available, not orderable | ||||
| F08-2 | 196449-1 | |||
| Self-tapping screw 4x50 | ||||
| 001 | 266091-3 | 1.00 | 1.21 | |
| Hexagon Socket Screw M4X25 | ||||
| 002 | 922147-9 | 1.00 | 1.21 | |
| Retaining Ring E-4 | ||||
| 003 | 961011-9 | 1.00 | 1.21 | |
| Blade Holder | ||||
| 004 | 346131-4 | 3.60 | 4.36 | |
| Blade Holder | ||||
| 005 | 343480-0 | 2.40 | 2.90 | |
| Spacer plate | ||||
| 006 | 343481-8 | 1.00 | 1.21 | |
| ZIJMESSEN SET | ||||
| 007 | 792536-0 | 42.00 | 50.82 | |
| Screw 5x10 | ||||
| 009 | 251951-2 | 1.00 | 1.21 | |
| Plastic Washer 7 Bjs160/Js1000 | ||||
| 010 | 261065-9 | 2.40 | 2.90 | |
| Plastic Washer 7 Bjs160/Js1000 | ||||
| 010-1 | 261065-9 | 2.40 | 2.90 | |
| Plastic Washer 7 Bjs160/Js1000 | ||||
| 010-2 | 261065-9 | 2.40 | 2.90 | |
| Thin Washer 7 | ||||
| 011 | 253338-4 | 1.20 | 1.45 | |
| MIDDENMES | ||||
| 012 | 792537-8 | 59.00 | 71.39 | |
| Thin Washer 7 | ||||
| 013 | 253338-4 | 1.20 | 1.45 | |
| Plastic Washer 7 Bjs160/Js1000 | ||||
| 014 | 261065-9 | 2.40 | 2.90 | |
| Plastic Washer 7 Bjs160/Js1000 | ||||
| 014-1 | 261065-9 | 2.40 | 2.90 | |
| Plastic Washer 7 Bjs160/Js1000 | ||||
| 014-2 | 261065-9 | 2.40 | 2.90 | |
| Lock washer 5 | ||||
| 015 | 267010-2 | 1.00 | 1.21 | |
| Lock washer 5 | ||||
| 016 | 267010-2 | 1.00 | 1.21 | |
| Pen 5 | ||||
| 017 | 256155-1 | 1.00 | 1.21 | |
| Pen 5 | ||||
| 018 | 256155-1 | 1.00 | 1.21 | |
| Drive lock | ||||
| 019 | 331329-6 | 13.20 | 15.97 | |
| Dust Seal Js1650-1660-167 | ||||
| 020 | 423118-4 | 1.20 | 1.45 | |
| Crank Case | ||||
| 021 | 140130-6 | 72.60 | 87.85 | |
| Crank Case | ||||
| 021-1 | 140130-6 | 72.60 | 87.85 | |
| Guide Block | ||||
| 022 | 325727-4 | 7.20 | 8.71 | |
| Hex lock nut 4x7 | ||||
| 023 | 252083-8 | 1.00 | 1.21 | |
| Adjusting screw M6x10mm | ||||
| 024 | 266085-8 | 1.20 | 1.45 | |
| Pin 7 | ||||
| 025 | 256733-7 | 2.40 | 2.90 | |
| STOPRING E-6 A | ||||
| 026 | 961012-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 027 | 210023-2 | |||
| Washer 7 | ||||
| 028 | 253133-2 | 1.00 | 1.21 | |
| Connecting Rod | ||||
| 029 | 331273-7 | 13.20 | 15.97 | |
| Ball Bearing 6000zz | ||||
| 030 | 210067-2 | 1.20 | 1.45 | |
| Lock Screw | ||||
| 031 | 325716-9 | 13.20 | 15.97 | |
| Gear 35 | ||||
| 032 | 227716-4 | 34.10 | 41.26 | |
| Crank Shaft | ||||
| 033 | 325715-1 | 28.60 | 34.61 | |
| Ball bearing 696ZZ A | ||||
| 034 | 210026-6 | 2.40 | 2.90 | |
| Gasket | ||||
| 035 | 442150-9 | 1.20 | 1.45 | |
| Gear Cover | ||||
| 036 | 140131-4 | 10.80 | 13.07 | |
| Armature | ||||
| 037 | 619249-7 | 44.00 | 53.24 | |
| Rubber Ring | ||||
| 038 | 421977-0 | 1.00 | 1.21 | |
| LED Circuit | ||||
| 039 | 631714-6 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 040 | 638376-1 | |||
| Magnet Unit | ||||
| 040-1 | 638627-2 | 24.20 | 29.28 | |
| No information available, not orderable | ||||
| 041 | 638448-2 | |||
| Brush Holder | ||||
| 041-1 | 638921-2 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 042 | 867849-9 | |||
| Tap screw 4x18 | ||||
| 043 | 265A48-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 043-1 | 266326-2 | |||
| Rotary knob ABB OHYS2AJ | ||||
| 044 | 419566-3 | 1.00 | 1.21 | |
| Bjs161 Housing | ||||
| 045 | 188736-2 | 24.20 | 29.28 | |
| Bjs161 housing 3 contacts | ||||
| 045-1 | 187839-9 | 15.40 | 18.63 | |
| Switch handle | ||||
| 046 | 419519-2 | 2.40 | 2.90 | |
| Switch GA5050 A | ||||
| 047 | 651396-8 | 10.80 | 13.07 | |
| Switch GA5050 A | ||||
| 047-1 | 651396-8 | 10.80 | 13.07 | |
| Damping felt | ||||
| 048 | 424476-1 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 049 | 631713-8 | |||
| Rotation Control 2 Contacts | ||||
| 049-1 | 620072-5 | 59.40 | 71.87 | |
| Speed regulation | ||||
| 049-2 | 620243-4 | 38.72 | 46.85 | |
| No information available, not orderable | ||||
| 050 | 643812-4 | |||
| Connection unit (3 contacts) | ||||
| 050-1 | 644808-8 | 3.60 | 4.36 | |
| Bjs161 Housing | ||||
| 051 | 188736-2 | 24.20 | 29.28 | |
| Bjs161 housing 3 contacts | ||||
| 051-1 | 187839-9 | 15.40 | 18.63 | |
| Carbon brush set Cb-430 | ||||
| 052 | 191971-3 | 3.60 | 4.36 | |
| Brush Cap | ||||
| 053 | 643929-3 | 1.00 | 1.21 | |
| Brush cover | ||||
| 054 | 419518-4 | 1.20 | 1.45 | |
