Here you will find all available parts and drawings of the 'Makita BJR141'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

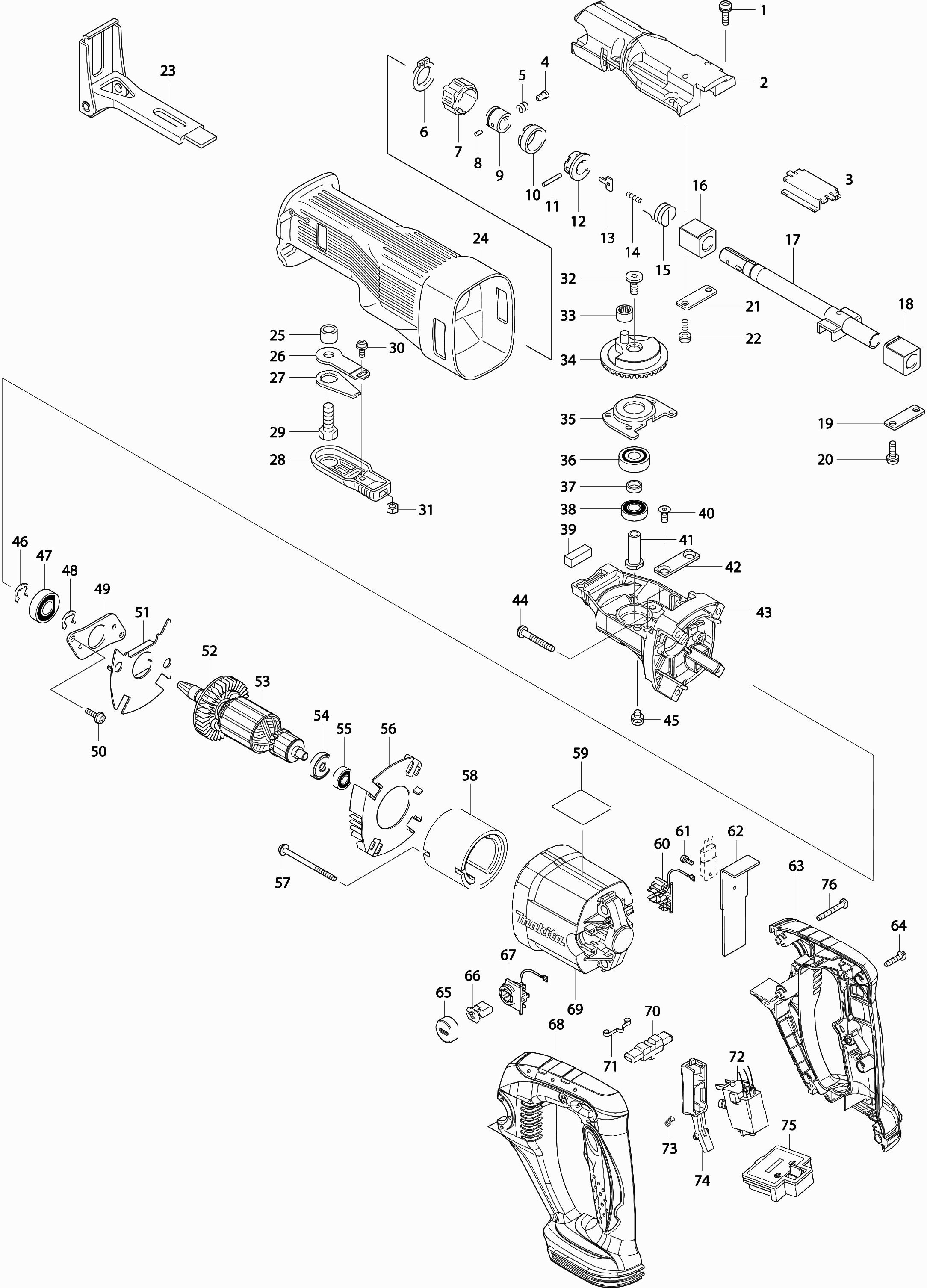

Technical drawing of model Makita BJR141
Spare parts list of model Makita BJR141
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw 5x20 | ||||
| 001 | 911228-4 | 1.00 | 1.21 | |
| Gear housing cover Jr180D * | ||||
| 002 | 151941-4 | 34.10 | 41.26 | |
| Seal | ||||
| 002A | 213177-4 | 6.00 | 7.26 | |
| Sliding Plate | ||||
| 003 | 344858-0 | 2.40 | 2.90 | |
| Collar Pin 5 | ||||
| 004 | 256492-3 | 1.20 | 1.45 | |
| Compression Spring 6 | ||||
| 005 | 233345-3 | 1.00 | 1.21 | |
| Lock Ring S-18 | ||||
| 006 | 961078-7 | 1.20 | 1.45 | |
| Control Bushing | ||||
| 007 | 162228-9 | 9.60 | 11.62 | |
| Pin 3 | ||||
| 008 | 268094-3 | 2.40 | 2.90 | |
| Guide bush Bjr181 A | ||||
| 009 | 327043-0 | 1.20 | 1.45 | |
| Steering sleeve guide | ||||
| 010 | 417791-0 | 2.40 | 2.90 | |
| Pen 3 | ||||
| 011 | 256158-5 | 1.20 | 1.45 | |
| Sleeve | ||||
| 012 | 418311-3 | 1.20 | 1.45 | |
| Pressure Plate | ||||
| 013 | 345214-7 | 1.20 | 1.45 | |
| Pressure Spring 2 | ||||
| 014 | 233025-1 | 1.00 | 1.21 | |
| Torsion Spring 17 | ||||
| 015 | 231687-9 | 1.00 | 1.21 | |
| Slide bearing 14 | ||||
| 016 | 214169-6 | 1.20 | 1.45 | |
| Rotary Saw Blade | ||||
| 017 | 168376-2 | 42.90 | 51.91 | |
| Slide bearing 14 | ||||
| 018 | 214169-6 | 1.20 | 1.45 | |
| Axle lock plate | ||||
| 019 | 341462-6 | 2.40 | 2.90 | |
| Screw 5X16 JR3051T A | ||||
| 020 | 265C32-4 | 1.00 | 1.21 | |
| Axle lock plate | ||||
| 021 | 341462-6 | 2.40 | 2.90 | |
| Screw 5X16 JR3051T A | ||||
| 022 | 265C32-4 | 1.00 | 1.21 | |
| Complete swivel saw foot | ||||
| 023 | 163441-2 | 10.80 | 13.07 | |
| Protection Sleeve | ||||
| 024 | 421693-4 | 13.20 | 15.97 | |
| Sleeve 9 | ||||
| 025 | 257558-2 | 1.20 | 1.45 | |
| Insert plate Jr3030T | ||||
| 026 | 344732-2 | 4.80 | 5.81 | |
| Blocking Plate | ||||
| 027 | 344733-0 | 3.60 | 4.36 | |
| Locking Handle Jr3030T | ||||
| 028 | 272240-2 | 1.20 | 1.45 | |
| Hexagonal bolt M8X25 | ||||
| 029 | 921442-4 | 1.20 | 1.45 | |
| Screw 4X10 | ||||
| 030 | 911114-9 | 1.00 | 1.21 | |
| Hex nut M4 | ||||
| 031 | 931102-0 | 1.00 | 1.21 | |
| Torx bolt M6X15 * | ||||
| 032 | 266220-8 | 2.40 | 2.90 | |
| Needle bearing 708 | ||||
| 033 | 212959-1 | 3.60 | 4.36 | |
| Gear Jr180D * | ||||
| 034 | 153267-0 | 72.60 | 87.85 | |
| Bearing Lock A Jr180D * | ||||
| 035 | 285696-0 | 3.60 | 4.36 | |
| Ball bearing 6000llb | ||||
| 036 | 211061-7 | 8.40 | 10.16 | |
| Ring 10 | ||||
| 037 | 257146-5 | 2.40 | 2.90 | |
| Ball Bearing 6900llb | ||||
| 038 | 210057-5 | 3.60 | 4.36 | |
| Felt 8x24 | ||||
| 039 | 443107-3 | 1.00 | 1.21 | |
| Hex bolt 5x12 | ||||
| 040 | 251969-3 | 1.00 | 1.21 | |
| Gear Shaft Jr180D * | ||||
| 041 | 323887-6 | 4.80 | 5.81 | |
| Plate C | ||||
| 042 | 344795-8 | 2.40 | 2.90 | |
| Gear Housing Jr180D * | ||||
| 043 | 317229-4 | 28.60 | 34.61 | |
| No information available, not orderable | ||||
| 044 | 266012-5 | |||
| Screw 5x8 | ||||
| 045 | 911601-8 | 1.00 | 1.21 | |
| Retaining Ring E-10 | ||||
| 046 | 961016-9 | 1.00 | 1.21 | |
| Ball Bearing 6001dw | ||||
| 047 | 211131-2 | 9.60 | 11.62 | |
| Retaining Ring E-10 | ||||
| 048 | 961016-9 | 1.00 | 1.21 | |
| Bearing Lock B Jr180D * | ||||
| 049 | 285697-8 | 2.40 | 2.90 | |
| Screw 4x12 | ||||
| 050 | 911516-9 | 2.40 | 2.90 | |
| Fan Guide Plate Jr180D * | ||||
| 051 | 416960-0 | 2.40 | 2.90 | |
| Fan 55 | ||||
| 052 | 241869-5 | 3.60 | 4.36 | |
| Armature Jr140D * | ||||
| 053 | 519052-5 | 78.10 | 94.50 | |
| Insulation ring | ||||
| 054 | 681652-2 | 1.00 | 1.21 | |
| Ball bearing 607llb | ||||
| 055 | 211021-9 | 4.80 | 5.81 | |
| Intermediate Plate Jr180D * | ||||
| 056 | 416959-5 | 2.40 | 2.90 | |
| Tapping screw 4x60 | ||||
| 057 | 266209-6 | 1.20 | 1.45 | |
| Magnet holder | ||||
| 058 | 632828-4 | 23.10 | 27.95 | |
| Label | ||||
| 059 | 862768-4 | 3.60 | 4.36 | |
| Brush Holder | ||||
| 060 | 643990-0 | 3.60 | 4.36 | |
| Schroef 3x8 | ||||
| 061 | 652066-2 | 1.00 | 1.21 | |
| Heat conduction plate | ||||
| 062 | 689116-0 | 3.60 | 4.36 | |
| Set Of Handles | ||||
| 063 | 188179-8 | 34.10 | 41.26 | |
| Tap screw 4x18 | ||||
| 064 | 265A48-7 | 1.00 | 1.21 | |
| Brush holder cap | ||||
| 065 | 643941-3 | 2.40 | 2.90 | |
| KOOLBORSTEL SET CB-441 A | ||||
| 066 | 195022-4 | 4.80 | 5.81 | |
| Brush Holder | ||||
| 067 | 643949-7 | 3.60 | 4.36 | |
| Set Of Handles | ||||
| 068 | 188179-8 | 34.10 | 41.26 | |
| Motor Housing | ||||
| 069 | 416957-9 | 14.30 | 17.30 | |
| Lock button Bjr141 | ||||
| 070 | 419613-0 | 6.00 | 7.26 | |
| Leaf Spring | ||||
| 071 | 232152-1 | 2.40 | 2.90 | |
| Switch | ||||
| 072 | 650582-8 | 36.30 | 43.92 | |
| Compression Spring 4 | ||||
| 073 | 233118-4 | 1.00 | 1.21 | |
| Rotary knob ABB OHYS2AJ | ||||
| 074 | 419612-2 | 4.80 | 5.81 | |
| Connection Unit (2 contacts) | ||||
| 075 | 643847-5 | 3.60 | 4.36 | |
| Self Tapping Screw Pt4x30 | ||||
| 076 | 266050-7 | 1.00 | 1.21 | |
