Here you will find all available parts and drawings of the 'Makita BJN161ZJ'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

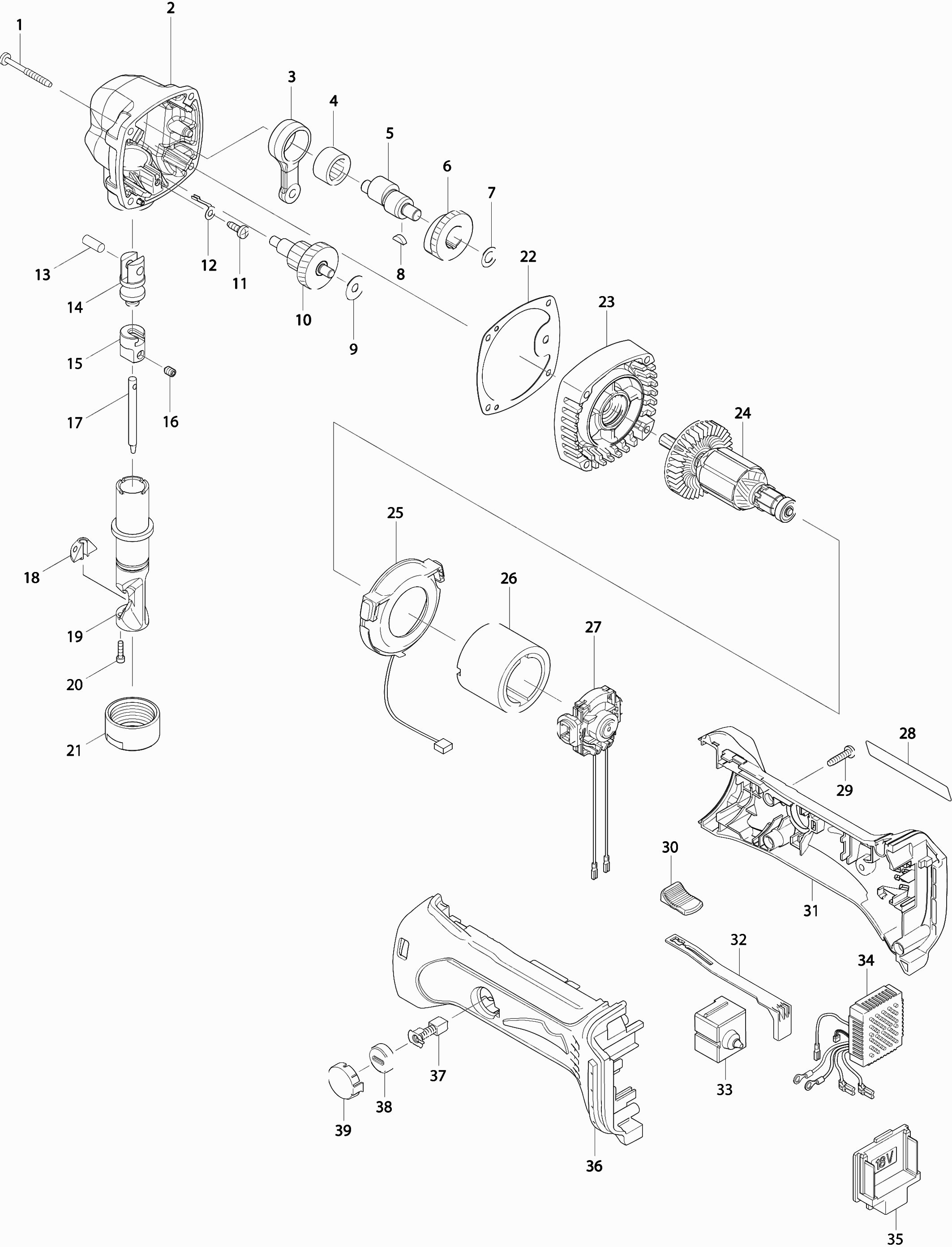

Technical drawing of model Makita BJN161ZJ
Spare parts list of model Makita BJN161ZJ
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Self-tapping screw 4x40 | ||||
| 001 | 266048-4 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 002 | 141878-3 | 41.80 | 50.58 | |
| Indicator label "bjn160" | ||||
| 002A | 800P78-7 | 2.40 | 2.90 | |
| Connecting Rod | ||||
| 003 | 331438-1 | 16.50 | 19.96 | |
| Needle Bearing 1612 | ||||
| 004 | 212222-2 | 8.40 | 10.16 | |
| Crank Shaft | ||||
| 005 | 326249-7 | 22.00 | 26.62 | |
| Gear 31 BJN161 | ||||
| 006 | 227314-4 | 23.10 | 27.95 | |
| Washer 8 x 14 x 1mm | ||||
| 007 | 253835-0 | 1.00 | 1.21 | |
| Inlegspie 3 | ||||
| 008 | 254002-0 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 009 | 267133-6 | 1.20 | 1.45 | |
| Gear 16-36 | ||||
| 010 | 226158-9 | 26.40 | 31.94 | |
| Tapping screw M4x12mm Ck | ||||
| 011 | 266026-4 | 1.00 | 1.21 | |
| End stop | ||||
| 012 | 344116-4 | 2.40 | 2.90 | |
| Pin | ||||
| 013 | 256111-1 | 2.40 | 2.90 | |
| Striker | ||||
| 014 | 322703-9 | 12.10 | 14.64 | |
| Stamp holder | ||||
| 015 | 322702-1 | 30.80 | 37.27 | |
| Hexagonal socket screw M5x8 | ||||
| 016 | 265880-3 | 1.00 | 1.21 | |
| Die | ||||
| 017 | A-83951 | 23.00 | 27.83 | |
| Lower Die | ||||
| 018 | A-15051 | 19.00 | 22.99 | |
| Die Holder | ||||
| 019 | 322701-3 | 139.70 | 169.04 | |
| Allen Screw 3x12 | ||||
| 020 | 266080-8 | 1.20 | 1.45 | |
| Lock Nut | ||||
| 021 | 322748-7 | 13.20 | 15.97 | |
| Gasket | ||||
| 022 | 442191-5 | 2.40 | 2.90 | |
| Gear Cover | ||||
| 023 | 141877-5 | 36.30 | 43.92 | |
| O-ring 22 | ||||
| 023A | 213961-7 | 1.00 | 1.21 | |
| Armature | ||||
| 024 | 619312-6 | 41.80 | 50.58 | |
| LED Circuit | ||||
| 025 | 631714-6 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 026 | 638376-1 | |||
| Brush/bearing holder | ||||
| 027 | 632A66-4 | 6.00 | 7.26 | |
| Line filter | ||||
| 027A | 688172-7 | 1.20 | 1.45 | |
| Nameplate "bjn161" | ||||
| 028 | 814B66-4 | 3.60 | 4.36 | |
| Tap screw 4x18 | ||||
| 029 | 265A48-7 | 1.00 | 1.21 | |
| Rotary knob ABB OHYS2AJ | ||||
| 030 | 419566-3 | 1.00 | 1.21 | |
| Bjs161 Housing | ||||
| 031A | 188736-2 | 24.20 | 29.28 | |
| Rubber pen 6 | ||||
| 031AA | 263005-3 | 1.00 | 1.21 | |
| Bjs161 housing 3 contacts | ||||
| 031B | 187839-9 | 15.40 | 18.63 | |
| Switch handle | ||||
| 032 | 419519-2 | 2.40 | 2.90 | |
| Switch GA5050 A | ||||
| 033 | 651396-8 | 10.80 | 13.07 | |
| Rotation Control 2 Contacts | ||||
| 034A | 620072-5 | 59.40 | 71.87 | |
| Speed regulation | ||||
| 034B | 620243-4 | 38.72 | 46.85 | |
| No information available, not orderable | ||||
| 035A | 643812-4 | |||
| Connection unit (3 contacts) | ||||
| 035B | 644808-8 | 3.60 | 4.36 | |
| Bjs161 Housing | ||||
| 036A | 188736-2 | 24.20 | 29.28 | |
| Rubber pen 6 | ||||
| 036AA | 263005-3 | 1.00 | 1.21 | |
| Bjs161 housing 3 contacts | ||||
| 036B | 187839-9 | 15.40 | 18.63 | |
| Carbon brush set Cb-430 | ||||
| 037 | 191971-3 | 3.60 | 4.36 | |
| Brush Cap | ||||
| 038 | 643929-3 | 1.00 | 1.21 | |
| Brush cover | ||||
| 039 | 419518-4 | 1.20 | 1.45 | |
