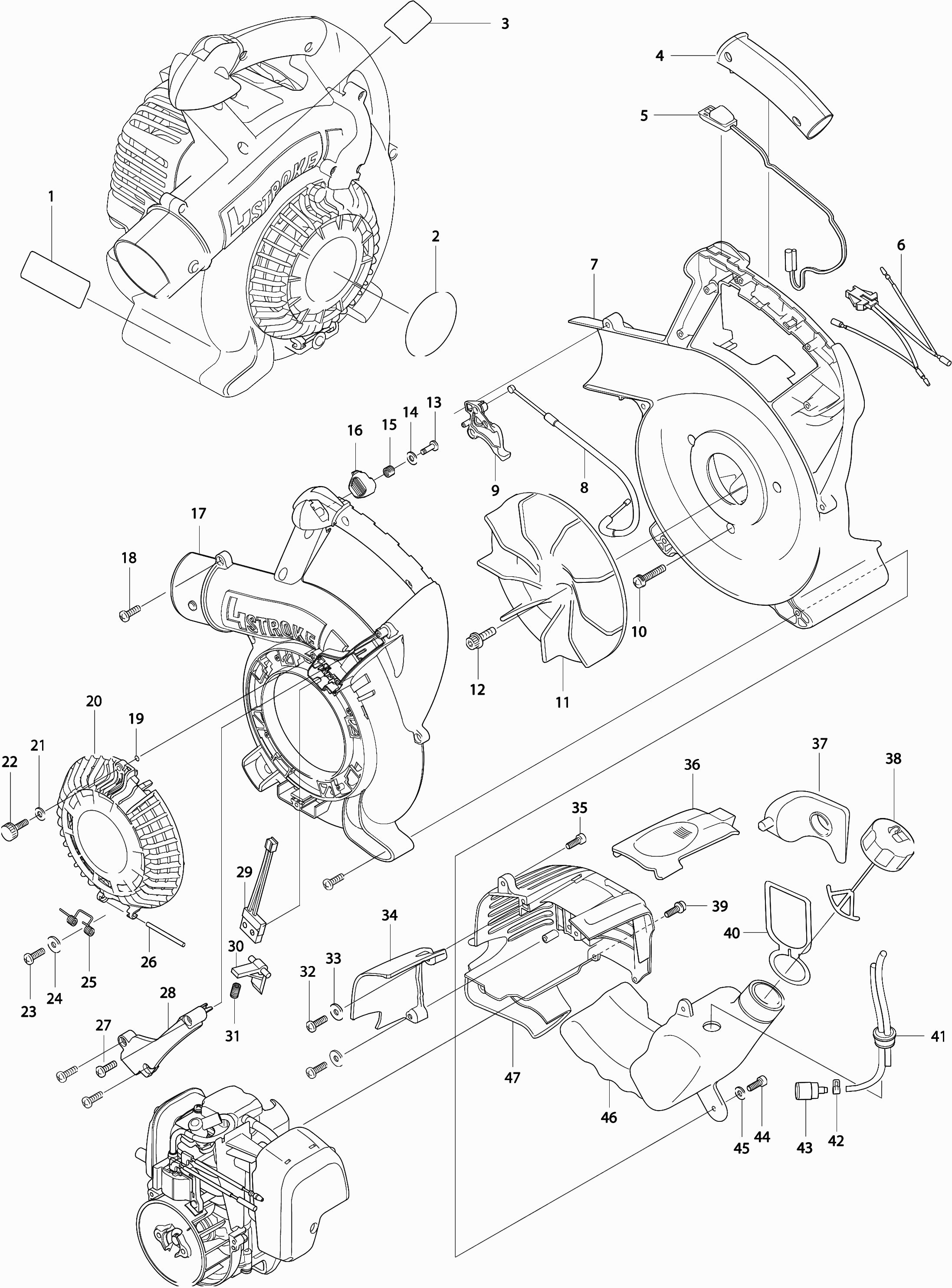

Technical drawing of model Makita BHX2501

Spare parts list of model Makita BHX2501

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Danger label Bhx2500 A
001 892460-8 1.07 1.29
Label "bhx2501"
002 892426-8 2.84 3.44
No information available, not orderable
003 810450-9
Handle cover
004 273665-3 5.30 6.41
Switch
005 638640-0 8.27 10.01
Connecting cable
006 638758-7 8.21 9.93
No information available, not orderable
007 450958-7
Control cable
008 168518-8 6.70 8.11
No information available, not orderable
009 452607-2
Screw 5x30
010 911253-5 0.83 1.00
Fan
011 240113-7 12.22 14.79
Screw 6x20
012 911333-7 0.83 1.00
Tap screw 4x18
013 265A48-7 0.83 1.00
Pt Screw 5x16mm
013 265878-0 0.83 1.00
4 Washer
014 253874-0 0.83 1.00
Compression Spring 8
015 231025-5 0.83 1.00
Locking Button
016 452608-0 3.96 4.79
No information available, not orderable
017 125921-6
Pt Screw 5x16mm
018 265878-0 0.83 1.00
Tap screw 4x18
018 265A48-7 0.83 1.00
O-ring 3
019 213022-3 0.83 1.00
Guard
020 452604-8 11.34 13.72
Ring
021 424180-2 0.98 1.19
Screw
022 265782-3 2.02 2.44
Pt Screw 5x16mm
023 265878-0 0.83 1.00
Tap screw 4x18
023 265A48-7 0.83 1.00
Rivet 5mm
024 267394-8 0.83 1.00
Spring 5mm
025 233536-6 2.10 2.54
Axle 4mm
026 268230-1 1.46 1.77
Tap screw 4x18
027 265A48-7 0.83 1.00
Pt Screw 5x16mm
027 265878-0 0.83 1.00
Switch cover
028 452606-4 5.06 6.12
Switch Housing
029 638759-5 10.99 13.30
Switch handle
030 452609-8 3.54 4.28
Compression Spring 4
031 233133-8 0.83 1.00
Pt Screw 5x16mm
032 265878-0 0.83 1.00
Tap screw 4x18
032 265A48-7 0.83 1.00
4 Washer
033 941051-3 0.83 1.00
Inner shield
034 452605-6 12.22 14.79
Tap screw 4x18
035 265A48-7 0.83 1.00
Pt Screw 5x16mm
035 265878-0 0.83 1.00
Spark plug cap
036 450964-2 1.67 2.02
Oil Reservoir
037 424395-1 6.38 7.72
No information available, not orderable
038 125472-9
Screw 4x16 A
039 911526-6 0.83 1.00
Screw 4x16 A
039A 911526-6 0.83 1.00
Warning label "fuel"
040 810455-9 2.84 3.44
Fuel Line Bhx2500/01 A
041 158911-4 5.09 6.16
Hose clamp IAS 3
042 345920-4 0.83 1.00
Fuel filter
043 163447-0 3.11 3.76
Pt Screw 5x16mm
044 265878-0 0.83 1.00
Tap screw 4x18
044 265A48-7 0.83 1.00
Rivet 5mm
045 267394-8 0.83 1.00
Fuel Cap
046 450988-8 13.83 16.73
Motor Housing
047 452630-7 20.02 24.22
Met. Screw Ph2 M5X16Mm Ck A
048 922223-9 0.83 1.00
Valve Cover
049 140B46-7 5.71 6.91
No information available, not orderable
050 965603030
Valve cover gasket
051 162275-0 1.67 2.02
Cylinder Block Set
052 125914-3 71.38 86.37
Control valve
053 424201-0 1.67 2.02
No information available, not orderable
054 325666-8
No information available, not orderable
055 424202-8
Hose clamp IAS 3
056 282020-8 0.83 1.00
No information available, not orderable
057 922217-4
Crankcase cover gasket
058 162274-2 1.67 2.02
Housing Cover
059 318443-5 4.14 5.01
No information available, not orderable
060 922217-4
O-ring
061 213591-4 2.02 2.44
Allen Bolt M5x12mm Ck
062 922213-2 0.83 1.00
Oil Pipe
063 140813-8 2.36 2.86
Oil Dipstick
064 452610-3 3.12 3.78
Gasket
065 424343-0 0.83 1.00
Oil Cap
066 452047-4 1.39 1.68
Crankcase gasket
067 162276-8 2.02 2.44
Feed valve
068 346083-9 1.39 1.68
Holding Plate
069 318440-1 1.67 2.02
Allen bolt M4x10
070 922112-8 0.83 1.00
Carter Ebh253U A
071 318442-7 6.68 8.08
No information available, not orderable
072 922217-4
Parts Set
073 196595-0 21.08 25.51
Lock ring for piston pin
074 233976-8 0.83 1.00
Piston
075 318441-9 9.24 11.18
Piston Pin
076 257781-9 2.71 3.28
Seal ring 12
077 213147-3 2.02 2.44
Washer 23
078 267400-9 1.39 1.68
Inlegspie 3
079 254040-2 2.71 3.28
No information available, not orderable
080 188608-1
No longer available, no replacement
081 213148-1
Valve arm
082 125554-7 4.45 5.38
Valve pin
083 256865-0 0.83 1.00
Valve Locking Ring
084 325668-4 2.02 2.44
Compression Spring 9
085 234108-0 2.48 3.00
Pen 5mm
086 256200-2 0.83 1.00
Intake valve
087 326367-1 4.67 5.65
Exhaust valve
088 326366-3 3.96 4.79
Spacer Ebh253U A
089 424200-2 0.83 1.00
Rocker gear
090 125552-1 23.06 27.90
Pen 5Mm Ebh253U A
091 268238-5 0.83 1.00
Pin 4mm Ebh253U A
092 268239-3 0.83 1.00
Cam Tiller
093 313169-4 2.71 3.28
Startinrichting
094 125917-7 15.60 18.88
Start pulley
095 168483-1 2.10 2.54
No information available, not orderable
096 266585-8
Swing arm
097 325923-4 1.39 1.68
Inner Bush
098 451938-6 1.67 2.02
Starter cord drum
099 451937-8 4.45 5.38
Starter Spring
100 232258-5 5.71 6.91
Starter Handle
101 424319-7 2.71 3.28
No information available, not orderable
102 444019-3
No information available, not orderable
103 893304-5
Screw 4x16 A
104 911526-6 0.83 1.00
Screw 4x16 A
104A 911526-6 0.83 1.00
Air Intake Ebh253U A
105 324961-3 3.12 3.78
No information available, not orderable
106 5923504700
O-Ring 10 Ebh253U A
107 213078-6 0.83 1.00
Manifold
108 125916-9 8.27 10.01
No information available, not orderable
109 266643-0
No information available, not orderable
110 922228-9
Gasket "carburetor"
111 413138-6 1.18 1.43
Allen Bolt M5x12mm Ck
112 922213-2 0.83 1.00
Carburetor Bhx2500/01 A
113 168641-9 56.35 68.18
Pump Cover
114 140808-1 16.35 19.78
No information available, not orderable
115 352010-6
Diaphragm Gasket
116 442154-1 2.36 2.86
Diaphragm
117 168620-7 13.82 16.72
Air Purifier Case Ebh253U A
118 140438-8 10.50 12.70
Booster pump
119 424314-7 3.54 4.28
Pump cover Ebh253U A
120 346270-0 3.54 4.28
Parker 3X24Mm Ck A
121 266582-4 0.83 1.00
Met.screw Ph2 M3x18mm Ck
122 266581-6 1.18 1.43
Swivel element
123 325922-6 4.14 5.01
No information available, not orderable
124 413140-9
Seegering E-3 A
125 257964-1 2.02 2.44
Compression Spring 5-9mm
126 234183-6 2.84 3.44
O-ring 2
127 213538-8 2.02 2.44
Sprayer Ebh253U P
128 326027-5 11.82 14.30
Diaphragm Gasket
129 442155-9 2.36 2.86
Pump diaphragm
130 WJ00009599 3.96 4.79
Hose clamp IAS 3
131 345918-1 0.83 1.00
Vent Pipe
132 422041-0 1.75 2.12
Gas hose
133 422070-3 2.48 3.00
Air Filter Housing Ebh253U A
134 123845-0 17.45 21.11
No longer available, no replacement
135 451925-5
O-ring 15
136 213540-1 0.83 1.00
Air Filter Housing Ebh253U A
137 123845-0 17.45 21.11
Overpressure valve
138 424316-3 2.71 3.28
O-ring 14
139 213539-6 0.83 1.00
Overpressure valve plate
140 451924-7 0.83 1.00
Overpressure valve
141 424315-5 0.83 1.00
Separation Gasket
142 168577-2 1.20 1.45
No longer available, no replacement
143 168576-4
Cleaner Element
144 443140-5 2.71 3.28
Cleaner Element
145 443141-3 2.71 3.28
Cleaner Cover
146 450561-4 5.71 6.91
Metal screw Ph M5x14mm Ck
147 266809-2 0.83 1.00
Metric screw Ph2 M5x68mm Ck
148 265188-5 0.83 1.00
Mounting plate Ebh253U A
149 346647-9 1.67 2.02
Washer
150 423376-2 0.83 1.00
Choke plate
151 450560-6 0.83 1.00
Allen bolt M5x40mm Ck
152 266440-4 1.02 1.23
Exhaust Bhx2500 A
153 168643-5 8.30 10.04
Spark Arrestor Ebh253U A
154 324980-9 6.11 7.39
Exhaust Gasket
155 168593-4 3.28 3.97
Cable 1 Bhx2500 A
156 632F44-4 0.83 1.00
Cable 1 Bhx2500 A
156A 632F44-4 0.83 1.00
No information available, not orderable
157 638710-5
Cable 2 Bhx2500 A
157A 632F45-2 0.98 1.19
Spark plug cap Ebh253U A
158 424105-6 2.71 3.28
Bougieveer Ebh253U A
159 324891-8 1.18 1.43
No information available, not orderable
160 168501-5
Ignition
160A 168816-0 12.22 14.79
Hexagon socket screw M4x20 Ck
161 922138-0 0.83 1.00
Bolt M6x16mm / rivet EM4250 A
162 265577-4 0.83 1.00
Flywheel Bhx2500/01 A
163 319205-4 13.83 16.73
Hose clamp IAS 3
164 140352-8 12.80 15.49
No information available, not orderable
165 6659500901
No information available, not orderable
166 6659500901
No information available, not orderable
167 451753-8
