Here you will find all available parts and drawings of the 'Makita BHR242'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

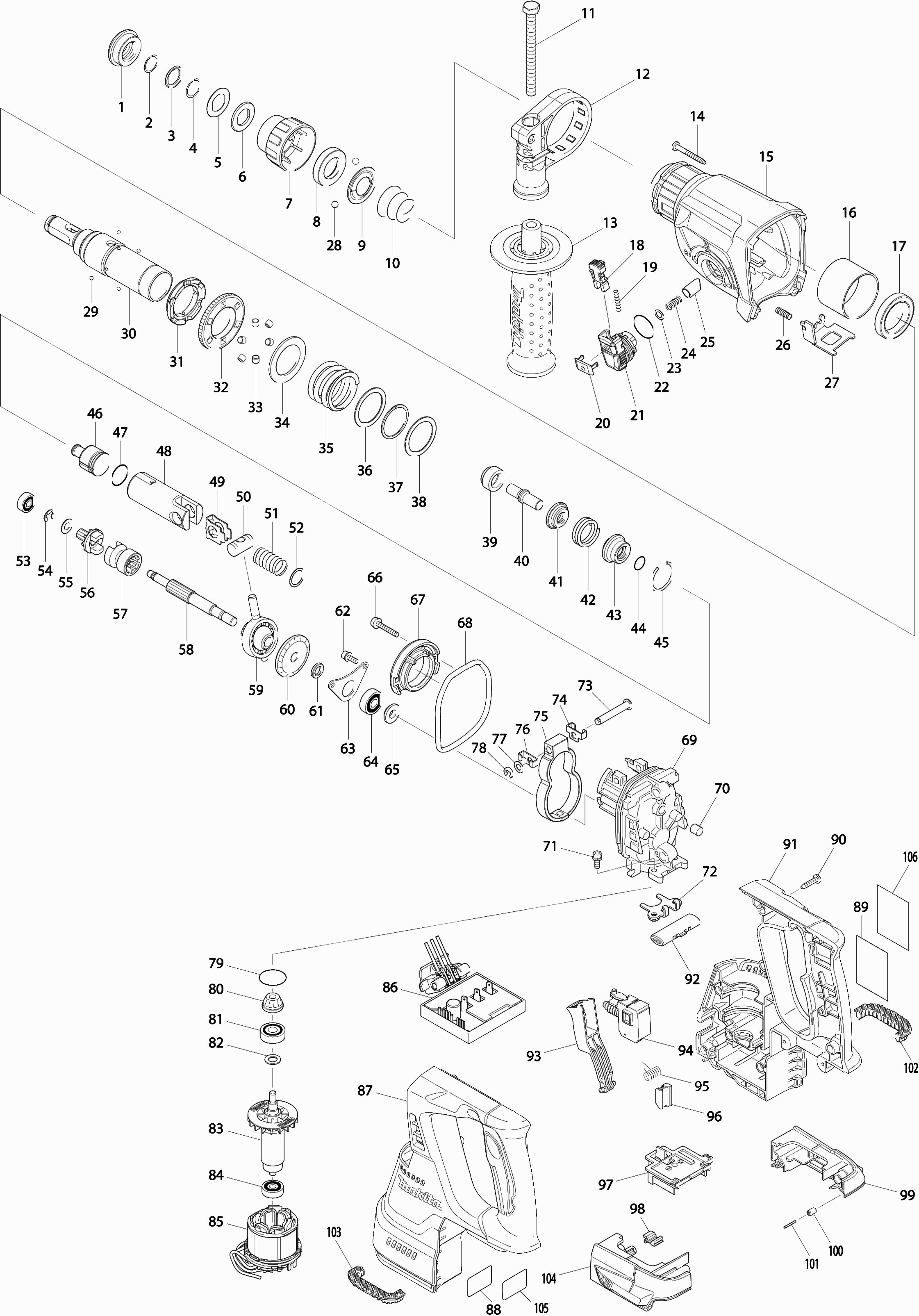

Technical drawing of model Makita BHR242
Spare parts list of model Makita BHR242
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Rubber dust cap 35 | ||||
| 001 | 286288-8 | 1.20 | 1.45 | |
| Washer 14 | ||||
| 002 | 233989-9 | 1.00 | 1.21 | |
| Rivet 16mm | ||||
| 003 | 346834-0 | 1.21 | 1.46 | |
| Lock washer 15 | ||||
| 004 | 233992-0 | 1.00 | 1.21 | |
| Washer 17 | ||||
| 005 | 267114-0 | 1.00 | 1.21 | |
| Rubber ring 16 | ||||
| 006 | 424364-2 | 1.00 | 1.21 | |
| Chisel lock cap | ||||
| 007 | 455393-4 | 1.00 | 1.21 | |
| Locking Ring 21 | ||||
| 008 | 325813-1 | 1.20 | 1.45 | |
| Guide Ring | ||||
| 009 | 346177-0 | 1.00 | 1.21 | |
| Compression Spring 21-29 | ||||
| 010 | 233916-6 | 1.00 | 1.21 | |
| Nut Bolt M8x90mm | ||||
| 011 | 266745-2 | 1.20 | 1.45 | |
| Handle Bracket | ||||
| 012 | 453129-5 | 3.60 | 4.36 | |
| Handle | ||||
| 013 | 158057-6 | 9.60 | 11.62 | |
| Screw 4x35 | ||||
| 014 | 266351-3 | 1.00 | 1.21 | |
| Gearbox Bhr242 A | ||||
| 015 | 144354-6 | 8.40 | 10.16 | |
| Seal ring 25 | ||||
| 015A | 213345-9 | 2.40 | 2.90 | |
| Indicator label | ||||
| 015B | 810X86-8 | 2.40 | 2.90 | |
| Socket | ||||
| 016 | 331890-3 | 3.60 | 4.36 | |
| Ball Bearing 6806llu | ||||
| 017 | 211294-4 | 8.40 | 10.16 | |
| Locking Button | ||||
| 018 | 454112-5 | 1.20 | 1.45 | |
| Compression Spring 3x28mm | ||||
| 019 | 234264-6 | 1.00 | 1.21 | |
| Switch lever cap | ||||
| 020 | 453131-8 | 1.20 | 1.45 | |
| Shift lever | ||||
| 021 | 453125-3 | 3.60 | 4.36 | |
| O-ring 21 | ||||
| 022 | 213381-5 | 3.60 | 4.36 | |
| Thin Lock Washer 6 | ||||
| 023 | 253308-3 | 1.00 | 1.21 | |
| Compression Spring 5 | ||||
| 024 | 234147-0 | 1.00 | 1.21 | |
| Push Pin | ||||
| 025 | 326850-8 | 1.20 | 1.45 | |
| Compression Spring 4 | ||||
| 026 | 233360-7 | 1.00 | 1.21 | |
| Blocking Plate | ||||
| 027 | 346537-6 | 1.20 | 1.45 | |
| Steel ball 7.0 | ||||
| 028 | 216022-2 | 1.00 | 1.21 | |
| Steel ball 3 | ||||
| 029 | 216019-1 | 1.00 | 1.21 | |
| Drill/Chisel Holder | ||||
| 030 | 142972-4 | 22.00 | 26.62 | |
| Seal ring 9 | ||||
| 030A | 213344-1 | 4.80 | 5.81 | |
| No longer available, no replacement | ||||
| 031 | 332139-4 | |||
| No longer available, no replacement | ||||
| 032 | 227360-7 | |||
| Pin 6 | ||||
| 033 | 268226-2 | 2.40 | 2.90 | |
| Washer 30 | ||||
| 034 | 267414-8 | 1.20 | 1.45 | |
| Compression spring 31mm | ||||
| 035 | 234148-8 | 1.20 | 1.45 | |
| Washer 30 | ||||
| 036 | 267153-0 | 1.00 | 1.21 | |
| Lock ring spiro30 | ||||
| 037 | 257932-4 | 3.60 | 4.36 | |
| Washer 30 | ||||
| 038 | 267153-0 | 1.00 | 1.21 | |
| Bushing 9b | ||||
| 039 | 325783-4 | 1.20 | 1.45 | |
| Slagstuk "a" | ||||
| 040 | 325789-2 | 1.20 | 1.45 | |
| Ring 10 | ||||
| 041 | 325792-3 | 1.20 | 1.45 | |
| Compression Spring 20 | ||||
| 042 | 234149-6 | 1.20 | 1.45 | |
| O-ring huis "b" | ||||
| 043 | 325793-1 | 3.60 | 4.36 | |
| O-ring 9 | ||||
| 044 | 213073-6 | 1.20 | 1.45 | |
| Spring washer 28 | ||||
| 045 | 233979-2 | 1.20 | 1.45 | |
| Jackhammer | ||||
| 046 | 326139-4 | 3.60 | 4.36 | |
| O-ring 17.5 | ||||
| 047 | 213258-4 | 2.40 | 2.90 | |
| Piston-cylinder | ||||
| 048 | 310345-1 | 8.40 | 10.16 | |
| Guide plate | ||||
| 049 | 346036-8 | 1.00 | 1.21 | |
| Piston Pin Hr2440/50 A | ||||
| 050 | 324215-8 | 2.40 | 2.90 | |
| Compression Spring 14 | ||||
| 051 | 234098-7 | 1.00 | 1.21 | |
| Sluitring 14mm | ||||
| 052 | 267447-3 | 1.00 | 1.21 | |
| Ball bearing 606Zz A | ||||
| 053 | 210137-7 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 054 | 259053-8 | |||
| Washer 7 LF1000 A | ||||
| 055 | 267322-3 | 1.00 | 1.21 | |
| Gear 10 | ||||
| 056 | 227231-8 | 26.40 | 31.94 | |
| Clutch Plate A | ||||
| 057 | 326849-3 | 4.80 | 5.81 | |
| Clutch | ||||
| 058 | 326140-9 | 6.00 | 7.26 | |
| Pendulum Bearing 10 | ||||
| 059 | 219020-5 | 28.60 | 34.61 | |
| No information available, not orderable | ||||
| 059-1 | 219040-9 | |||
| Gear 11 | ||||
| 060 | 227588-7 | 6.00 | 7.26 | |
| Washer 8 | ||||
| 061 | 257323-9 | 1.20 | 1.45 | |
| Allen bolt m4x12 | ||||
| 062 | 922118-6 | 1.00 | 1.21 | |
| Bearing Lock B | ||||
| 063 | 346038-4 | 1.00 | 1.21 | |
| Ball Bearing 608Zz A | ||||
| 064 | 210046-0 | 1.20 | 1.45 | |
| Washer 8 | ||||
| 065 | 324212-4 | 4.80 | 5.81 | |
| Hexagon Socket Screw M4X25 | ||||
| 066 | 922147-9 | 1.00 | 1.21 | |
| Locking Block | ||||
| 067 | 141230-5 | 3.60 | 4.36 | |
| O-ring 75 | ||||
| 068 | 213767-3 | 1.20 | 1.45 | |
| Inner Housing | ||||
| 069 | 318810-4 | 16.50 | 19.96 | |
| Damping felt | ||||
| 070 | 443153-6 | 1.00 | 1.21 | |
| Allen bolt m4x12 | ||||
| 071 | 922118-6 | 1.00 | 1.21 | |
| Bearing Lock A | ||||
| 072 | 346536-8 | 1.20 | 1.45 | |
| Flat head pin 6mm . | ||||
| 073 | 256536-9 | 1.20 | 1.45 | |
| Weight Holder | ||||
| 074 | 346538-4 | 1.00 | 1.21 | |
| Counterweight | ||||
| 075 | 313224-2 | 3.60 | 4.36 | |
| Weight Holder | ||||
| 076 | 346538-4 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 077 | 253726-5 | 1.00 | 1.21 | |
| Retaining Ring E-5 | ||||
| 078 | 961018-5 | 1.00 | 1.21 | |
| O-ring 22.4 | ||||
| 079 | 213008-7 | 1.20 | 1.45 | |
| Gear 11 | ||||
| 080 | 141458-5 | 6.00 | 7.26 | |
| Ball bearing 608 2rs | ||||
| 081 | 210024-0 | 3.60 | 4.36 | |
| Washer 8 x 14 x 1mm | ||||
| 082 | 253835-0 | 1.00 | 1.21 | |
| Armature A | ||||
| 083 | 619737-4 | 37.40 | 45.25 | |
| Ball bearing 626zz | ||||
| 084 | 210143-2 | 3.60 | 4.36 | |
| Field | ||||
| 085 | 529187-4 | 34.10 | 41.26 | |
| No information available, not orderable | ||||
| 085A | 529922-0 | |||
| Field | ||||
| 085B | 529187-4 | 34.10 | 41.26 | |
| Speed control circuit | ||||
| 086 | 620G68-8 | 99.00 | 119.79 | |
| Speed control circuit | ||||
| 086-1 | 620G68-8 | 99.00 | 119.79 | |
| Motor Housing Set Bhr242 A | ||||
| 087 | 183C02-0 | 17.60 | 21.30 | |
| No information available, not orderable | ||||
| 087A | 187687-6 | |||
| Motor Housing Set Bhr242 A | ||||
| 087B | 183C02-0 | 17.60 | 21.30 | |
| Serial number label | ||||
| 088 | 896787-8 | 2.40 | 2.90 | |
| Label | ||||
| 089 | 896773-9 | 3.60 | 4.36 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 090 | 265B67-9 | 1.00 | 1.21 | |
| Motor Housing Set Bhr242 A | ||||
| 091 | 183C02-0 | 17.60 | 21.30 | |
| No information available, not orderable | ||||
| 091A | 187687-6 | |||
| Motor Housing Set Bhr242 A | ||||
| 091B | 183C02-0 | 17.60 | 21.30 | |
| L+r switch lever | ||||
| 092 | 453124-5 | 2.40 | 2.90 | |
| Switch handle | ||||
| 093 | 453123-7 | 1.20 | 1.45 | |
| Switch c3jw-1p | ||||
| 094A | 650674-3 | 13.20 | 15.97 | |
| Switch c3jw-1p | ||||
| 094B | 650709-0 | 14.30 | 17.30 | |
| Torsion spring 6mm | ||||
| 095 | 233598-4 | 1.00 | 1.21 | |
| Blocking handle | ||||
| 096 | 313226-8 | 1.20 | 1.45 | |
| Connection unit (3 contacts) | ||||
| 097 | 644808-8 | 3.60 | 4.36 | |
| Damping felt | ||||
| 098 | 424476-1 | 1.00 | 1.21 | |
| Battery Housing | ||||
| 099 | 187377-1 | 6.00 | 7.26 | |
| Rubber pen 6 | ||||
| 099A | 263005-3 | 1.00 | 1.21 | |
| Rubber pen 5 | ||||
| 100 | 263036-2 | 1.20 | 1.45 | |
| Pin 1.5 | ||||
| 101 | 268184-2 | 1.00 | 1.21 | |
| Damping Rubber | ||||
| 102 | 424473-7 | 2.40 | 2.90 | |
| Damping Rubber | ||||
| 103 | 424473-7 | 2.40 | 2.90 | |
| Battery Housing | ||||
| 104 | 187377-1 | 6.00 | 7.26 | |
| Rubber pen 6 | ||||
| 104 | 263005-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 105 | 893072-0 | |||
| No information available, not orderable | ||||
| 106 | 890994-5 | |||
| Sponge DHR242/243 | ||||
| 107 | 424734-5 | 1.00 | 1.21 | |
