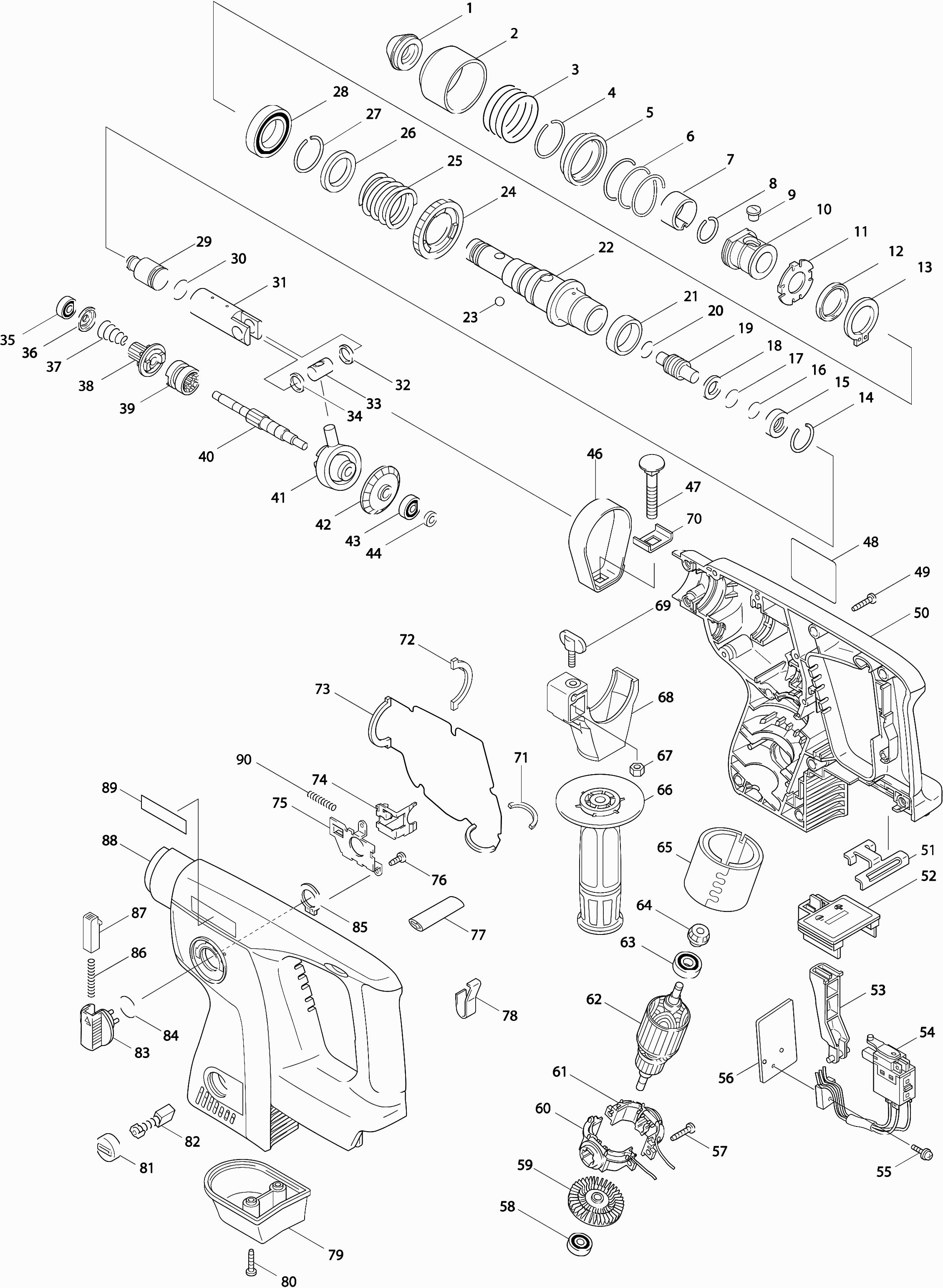

Technical drawing of model Makita BHR200
Spare parts list of model Makita BHR200
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cover cap 31 pressure | ||||
| 001* | 286265-0 | 1.20 | 1.45 | |
| Locking cap | ||||
| 002 | 417299-4 | 2.40 | 2.90 | |
| Compression Spring 38 | ||||
| 003 | 233203-3 | 1.20 | 1.45 | |
| Lock washer 30.5 | ||||
| 004 | 231936-4 | 1.00 | 1.21 | |
| Spring Guide | ||||
| 005 | 323819-3 | 3.60 | 4.36 | |
| Compression spring 35 new | ||||
| 006 | 233234-2 | 1.00 | 1.21 | |
| Leaf Spring 26 | ||||
| 007 | 232192-9 | 2.40 | 2.90 | |
| Lock washer 16 | ||||
| 008 | 231979-6 | 1.00 | 1.21 | |
| Pen 8 | ||||
| 009 | 256447-8 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 010 | 323820-8 | |||
| New guide ring | ||||
| 011 | 344690-2 | 1.20 | 1.45 | |
| Seal ring 25 | ||||
| 012 | 213360-3 | 4.80 | 5.81 | |
| Lock Ring S-25 | ||||
| 013 | 961105-0 | 1.00 | 1.21 | |
| Washer 21 | ||||
| 014 | 231987-7 | 1.00 | 1.21 | |
| O-ring housing | ||||
| 015 | 323846-0 | 3.60 | 4.36 | |
| O-ring 11 (3,5mm) | ||||
| 016* | 213117-2 | 2.40 | 2.90 | |
| O-ring 12 | ||||
| 017* | 213125-3 | 2.40 | 2.90 | |
| Washer 12 | ||||
| 018 | 257231-4 | 1.20 | 1.45 | |
| Striker Pin | ||||
| 019 | 324015-6 | 6.00 | 7.26 | |
| O-ring 12 | ||||
| 020* | 213124-5 | 2.40 | 2.90 | |
| Slide Bearing 26 | ||||
| 021 | 214405-0 | 1.20 | 1.45 | |
| Bit holder | ||||
| 022 | 324014-8 | 59.40 | 71.87 | |
| Steel ball 7.0 | ||||
| 023 | 216022-2 | 1.00 | 1.21 | |
| Gear 49 | ||||
| 024 | 227002-3 | 13.20 | 15.97 | |
| Compression spring 29 | ||||
| 025 | 233109-5 | 2.40 | 2.90 | |
| Washer 29 | ||||
| 026 | 267132-8 | 2.02 | 2.44 | |
| Lock Ring 26 | ||||
| 027 | 231962-3 | 1.00 | 1.21 | |
| Ball Bearing 66905llb | ||||
| 028 | 211377-0 | 8.40 | 10.16 | |
| Jackhammer | ||||
| 029 | 324016-4 | 4.80 | 5.81 | |
| O-ring 15 | ||||
| 030* | 213230-6 | 2.40 | 2.90 | |
| Piston-cylinder | ||||
| 031 | 317380-0 | 17.60 | 21.30 | |
| Washer 12 | ||||
| 032 | 267104-3 | 1.20 | 1.45 | |
| Piston connection | ||||
| 033 | 324017-2 | 4.80 | 5.81 | |
| Washer 12 | ||||
| 034 | 267104-3 | 1.20 | 1.45 | |
| Ball bearing 606Zz A | ||||
| 035 | 210137-7 | 1.20 | 1.45 | |
| Washer 6 | ||||
| 036 | 344905-7 | 1.20 | 1.45 | |
| Conical Compression Spring 7-14 | ||||
| 037 | 231999-0 | 1.20 | 1.45 | |
| Gear 10 | ||||
| 038 | 226399-7 | 16.50 | 19.96 | |
| Clutch Plate | ||||
| 039 | 323988-0 | 11.00 | 13.31 | |
| Clutch | ||||
| 040 | 324018-0 | 16.50 | 19.96 | |
| Pendulum Bearing 10 Bhr200 A | ||||
| 041 | 219014-0 | 45.10 | 54.57 | |
| Gear 32 | ||||
| 042 | 226792-5 | 16.50 | 19.96 | |
| Ball bearing 626zz | ||||
| 043 | 210143-2 | 3.60 | 4.36 | |
| Washer 6 | ||||
| 044 | 257235-6 | 4.80 | 5.81 | |
| Clamping Saddle | ||||
| 046 | 344901-5 | 3.60 | 4.36 | |
| Handle Bolt 8x50 | ||||
| 047 | 266250-9 | 2.40 | 2.90 | |
| Label | ||||
| 048 | 852433-3 | 3.60 | 4.36 | |
| Tap screw 4x18 | ||||
| 049 | 265A48-7 | 1.00 | 1.21 | |
| Motorhuis set | ||||
| 050 | 183891-5 | 48.40 | 58.56 | |
| Support Plate | ||||
| 051 | 344898-8 | 2.40 | 2.90 | |
| Connection unit | ||||
| 052 | 643983-7 | 4.80 | 5.81 | |
| Switch handle | ||||
| 053 | 417291-0 | 2.40 | 2.90 | |
| Switch Bhr200 | ||||
| 054 | 651990-6 | 38.50 | 46.58 | |
| Sponge rubber for switch | ||||
| 054A | 685730-0 | 1.00 | 1.21 | |
| Schroef 3x8 | ||||
| 055 | 652066-2 | 1.00 | 1.21 | |
| Heat conduction plate | ||||
| 056 | 689099-4 | 2.40 | 2.90 | |
| Tap screw 4x18 | ||||
| 057 | 265A48-7 | 1.00 | 1.21 | |
| Ball bearing 626zz | ||||
| 058 | 210143-2 | 3.60 | 4.36 | |
| Fan 44 | ||||
| 059 | 240037-7 | 3.60 | 4.36 | |
| Brush Holder | ||||
| 060 | 643963-3 | 3.60 | 4.36 | |
| Brush Holder | ||||
| 061 | 643964-1 | 3.60 | 4.36 | |
| Armature | ||||
| 062 | 519066-4 | 56.10 | 67.88 | |
| Ball bearing 608 2rs | ||||
| 063 | 210024-0 | 3.60 | 4.36 | |
| Gear 11 | ||||
| 064 | 226793-3 | 10.80 | 13.07 | |
| Magnet holder | ||||
| 065 | 632828-4 | 23.10 | 27.95 | |
| Handle TSC 55 | ||||
| 066 | 134901-1 | 10.00 | 12.10 | |
| Hex Nut M5 | ||||
| 067 | 931202-6 | 1.00 | 1.21 | |
| Handle TSC 55 | ||||
| 068 | 134901-1 | 10.00 | 12.10 | |
| Wing Bolt Hr2410 | ||||
| 069 | 265720-5 | 2.40 | 2.90 | |
| Support Plate | ||||
| 070 | 344902-3 | 2.40 | 2.90 | |
| Motor Housing Gasket Set | ||||
| 073 | 183474-1 | 8.40 | 10.16 | |
| Exchange Plate | ||||
| 074 | 344899-6 | 4.80 | 5.81 | |
| Guide plate | ||||
| 075 | 345457-1 | 2.40 | 2.90 | |
| Screw 4x12 | ||||
| 076 | 265C54-4 | 1.00 | 1.21 | |
| Adjustment Button | ||||
| 077 | 417292-8 | 2.40 | 2.90 | |
| Vibration plate | ||||
| 078 | 344903-1 | 2.40 | 2.90 | |
| Support | ||||
| 079 | 417297-8 | 3.60 | 4.36 | |
| Tap screw 4x18 | ||||
| 080 | 265A48-7 | 1.00 | 1.21 | |
| Brush holder cap | ||||
| 081 | 643941-3 | 2.40 | 2.90 | |
| Carbon brush set Cb-430 | ||||
| 082* | 191971-3 | 3.60 | 4.36 | |
| Adjustment Button | ||||
| 083 | 417293-6 | 6.00 | 7.26 | |
| O-ring 17 | ||||
| 084 | 213265-7 | 1.00 | 1.21 | |
| Lock Ring S-18 | ||||
| 085 | 961078-7 | 1.20 | 1.45 | |
| Compression Spring 4 | ||||
| 086 | 233279-0 | 1.20 | 1.45 | |
| Locking Button | ||||
| 087 | 417298-6 | 2.40 | 2.90 | |
| Motorhuis set | ||||
| 088 | 183891-5 | 48.40 | 58.56 | |
| Label Makita | ||||
| 089 | 819063-3 | 2.40 | 2.90 | |
| Compression Spring 4 | ||||
| 090 | 233278-2 | 2.40 | 2.90 | |
