Here you will find all available parts and drawings of the 'Makita BHP460'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

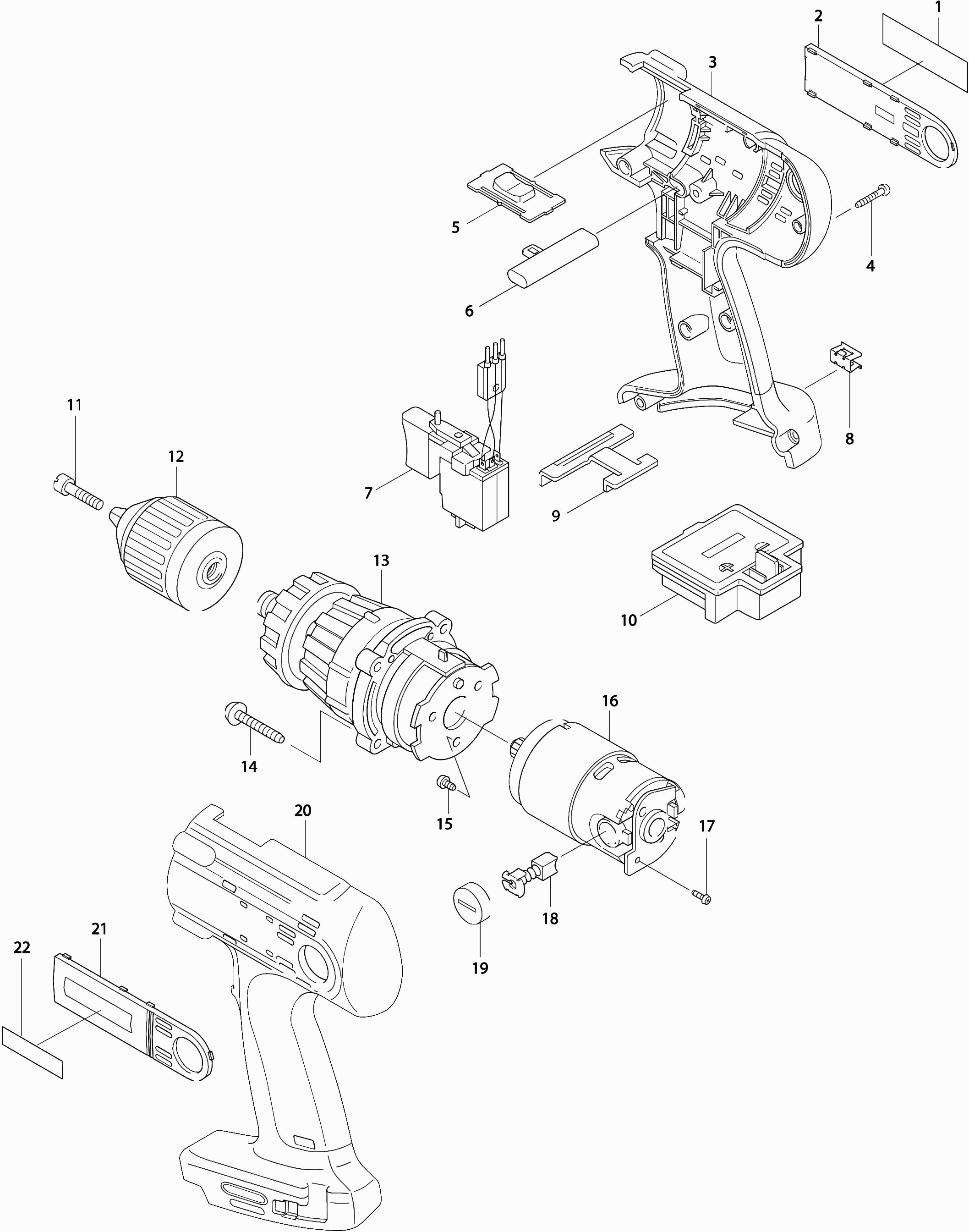

Technical drawing of model Makita BHP460

Spare parts list of model Makita BHP460

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
No information available, not orderable
001 852295-9
No information available, not orderable
002 183245-6
Motor Housing Set Bhp460
003 183244-8 29.35 35.51
Tapping Screw 3x16
004 266130-9 0.83 1.00
High/Low-speed Slider
005 125102-2 1.18 1.43
Compression Spring 4
005A 231433-0 0.83 1.00
L/r adjusting lever
006 416079-5 0.83 1.00
Switch
007 651992-2 33.36 40.37
Bit clamp
008 344391-2 0.83 1.00
Support Plate
009 344898-8 1.67 2.02
Connection unit
010 643983-7 3.96 4.79
Screw 6x32
011 251465-1 8.59 10.39
Boorkop snelspan 1,5-13mm
012 766027-7 26.00 31.46
Gear set
013 125165-8 92.17 111.53
Adjustable handle 6316D *
013A 417381-9 0.98 1.19
No information available, not orderable
014 265999-8
Self-tapping screw 4X8 *
015 266134-1 0.83 1.00
No longer available, no replacement
016 629755-4
Schroef 3x8
017 652066-2 0.83 1.00
Carbon brush set Cb-430
018 191971-3 3.54 4.28
Brush Cap
019 643929-3 0.83 1.00
Motor Housing Set Bhp460
020 183244-8 29.35 35.51
No information available, not orderable
021 183245-6
Label Makita
022 819063-3 2.71 3.28
