Here you will find all available parts and drawings of the 'Makita BHP456ZX'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

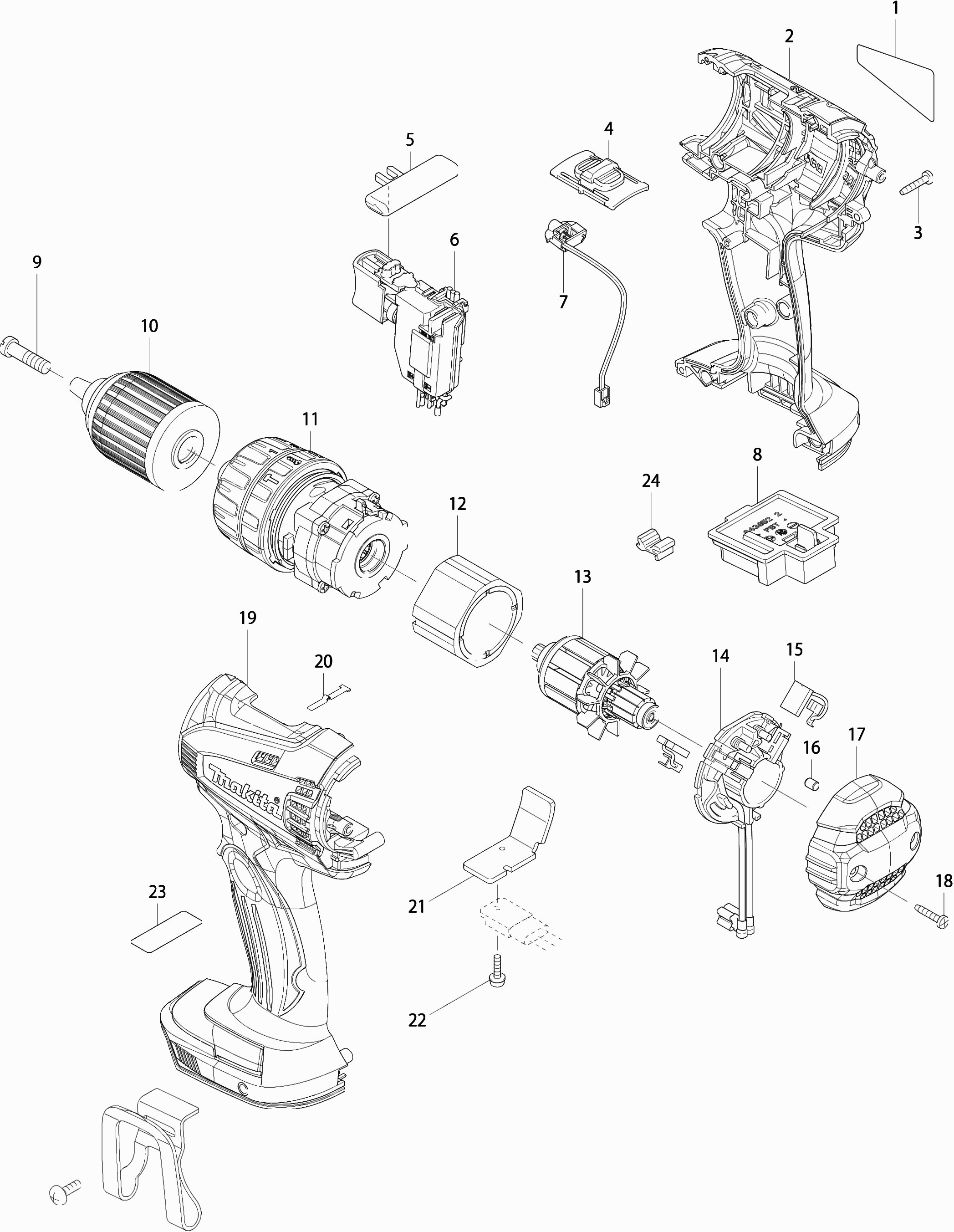

Technical drawing of model Makita BHP456ZX
Spare parts list of model Makita BHP456ZX
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Nameplate "bhp452" | ||||
| 001 | 864191-9 | 4.14 | 5.01 | |
| Label | ||||
| 001 | 868979-9 | 2.84 | 3.44 | |
| Motor Housing Set | ||||
| 002 | 188456-8 | 12.80 | 15.49 | |
| Motor Housing Set | ||||
| 002 | 188971-2 | 10.50 | 12.70 | |
| Rubber pen 6 | ||||
| 002A | 263005-3 | 0.83 | 1.00 | |
| Rubber pen 6 | ||||
| 002B | 263005-3 | 0.83 | 1.00 | |
| Tapping Screw 3x16 | ||||
| 003 | 266130-9 | 0.83 | 1.00 | |
| High/low speed slide | ||||
| 004 | 126289-3 | 0.83 | 1.00 | |
| High/low speed slide | ||||
| 004 | 125366-8 | 0.83 | 1.00 | |
| Compression Spring 4 | ||||
| 004A | 233438-6 | 0.83 | 1.00 | |
| L/r slide | ||||
| 005 | 419250-0 | 0.83 | 1.00 | |
| Switch (3 cont) | ||||
| 006 | 650747-2 | 28.02 | 33.90 | |
| LED Circuit | ||||
| 007 | 631735-8 | 5.98 | 7.24 | |
| Light Circuit Bdf456 A | ||||
| 007 | 620388-8 | 3.54 | 4.28 | |
| Connection Unit (2 contacts) | ||||
| 008 | 643844-1 | 3.54 | 4.28 | |
| Connection unit 18v (3 contacts) | ||||
| 008 | 643852-2 | 3.12 | 3.78 | |
| Drill Chuck Screw M6x22mm Li | ||||
| 009 | 251468-5 | 0.83 | 1.00 | |
| Boorkop snelspan 1,5-13mm | ||||
| 010 | 766027-7 | 26.00 | 31.46 | |
| Gear set | ||||
| 011 | 125387-0 | 36.05 | 43.62 | |
| Gear set | ||||
| 011 | 126460-9 | 36.05 | 43.62 | |
| Magnet Unit | ||||
| 012 | 632J71-5 | 21.08 | 25.51 | |
| Armature | ||||
| 013 | 619198-8 | 19.29 | 23.34 | |
| Armature | ||||
| 013 | 619263-3 | 19.23 | 23.27 | |
| Brush Holder | ||||
| 014 | 638845-2 | 9.24 | 11.18 | |
| Brush Holder | ||||
| 014 | 638494-5 | 2.71 | 3.28 | |
| Brush set Cb448 | ||||
| 015 | 196855-0 | 3.54 | 4.28 | |
| Rubber Pin 4 | ||||
| 016 | 263032-0 | 0.83 | 1.00 | |
| Tail Cover | ||||
| 017 | 419693-6 | 2.36 | 2.86 | |
| Tail Cover | ||||
| 017 | 452205-2 | 1.39 | 1.68 | |
| Tapping Screw 3x16 | ||||
| 018 | 266130-9 | 0.83 | 1.00 | |
| Motor Housing Set | ||||
| 019 | 188456-8 | 12.80 | 15.49 | |
| Motor Housing Set | ||||
| 019 | 188971-2 | 10.50 | 12.70 | |
| Rubber pen 6 | ||||
| 019 | 263005-3 | 0.83 | 1.00 | |
| Rubber pen 6 | ||||
| 019A | 263005-3 | 0.83 | 1.00 | |
| Leaf Spring | ||||
| 020 | 232182-2 | 0.83 | 1.00 | |
| HEATSHIELD | ||||
| 021 | 689150-0 | 0.83 | 1.00 | |
| HEATSHIELD | ||||
| 021 | 689170-4 | 0.83 | 1.00 | |
| Schroef 3x8 | ||||
| 022 | 652066-2 | 0.83 | 1.00 | |
| Screw,M4x12 | ||||
| 023 | 251314-2 | 0.83 | 1.00 | |
| Damping felt | ||||
| 024 | 424476-1 | 0.83 | 1.00 | |
| Damping felt | ||||
| 025 | 424476-1 | 0.83 | 1.00 | |
