Here you will find all available parts and drawings of the 'Makita BHP453'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

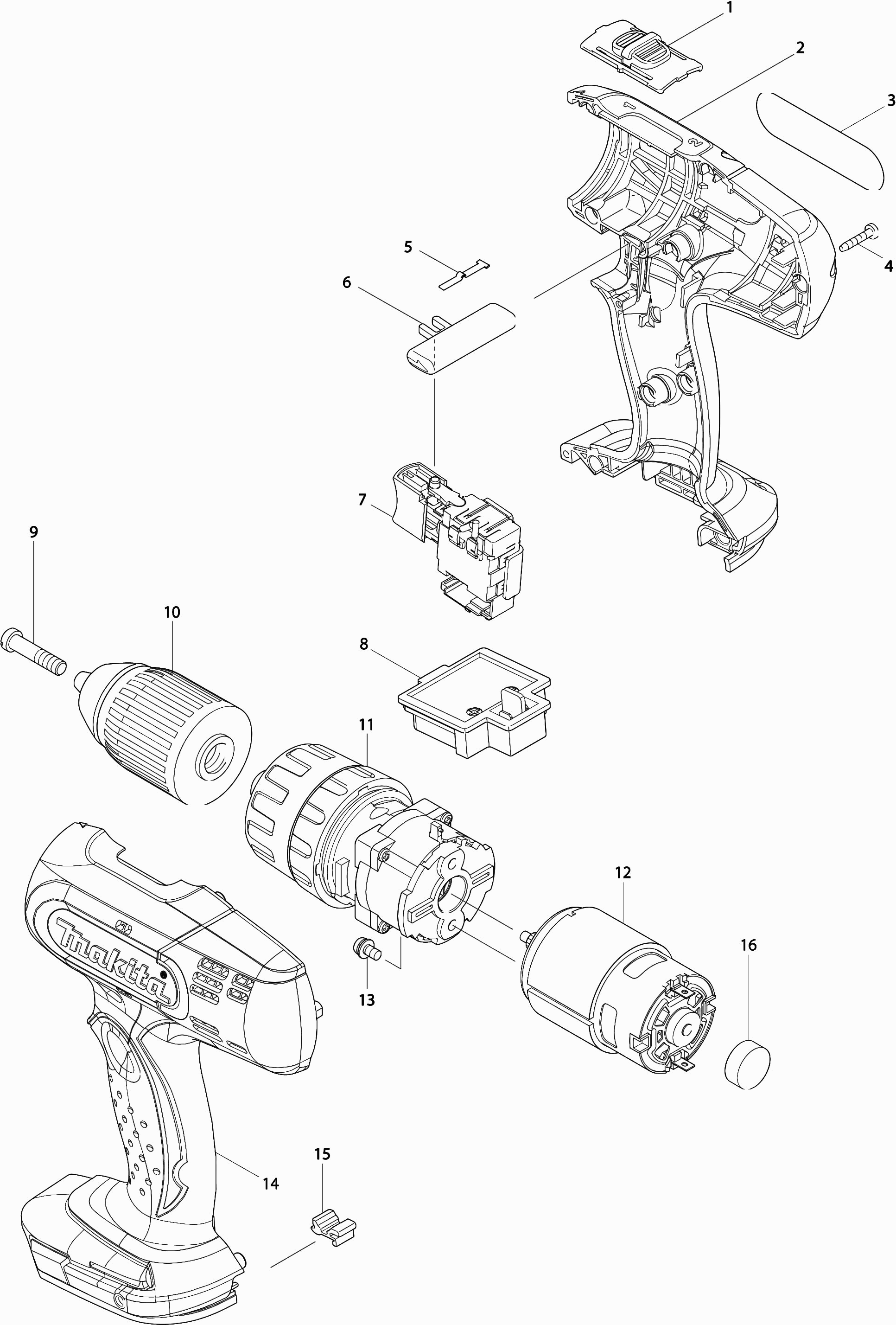

Technical drawing of model Makita BHP453
Spare parts list of model Makita BHP453
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| High/low speed slide | ||||
| 001 | 125310-5 | 1.20 | 1.45 | |
| Compression Spring 4 | ||||
| 001A | 231433-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 002A | 188615-4 | |||
| Motor housing (3 contacts) | ||||
| 002B | 187363-2 | 14.30 | 17.30 | |
| Rubber pen 6 | ||||
| 002C | 263005-3 | 1.00 | 1.21 | |
| Nameplate "bhp453" | ||||
| 003 | 865459-6 | 3.60 | 4.36 | |
| Tapping Screw 3x16 | ||||
| 004 | 266130-9 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 005 | 232182-2 | 1.00 | 1.21 | |
| L/r slide | ||||
| 006 | 419250-0 | 1.20 | 1.45 | |
| Switch (2 contacts) | ||||
| 007A | 650604-4 | 17.60 | 21.30 | |
| Switch (3 contacts) | ||||
| 007B | 632A23-2 | 26.40 | 31.94 | |
| Connection Unit (2 contacts) | ||||
| 008A | 643844-1 | 3.60 | 4.36 | |
| Connection unit 18v (3 contacts) | ||||
| 008B | 643852-2 | 3.60 | 4.36 | |
| Drill Chuck Screw M6x22mm Li | ||||
| 009 | 251468-5 | 1.00 | 1.21 | |
| BOORKOP SNELSPAN 1,5-13MM | ||||
| 010 | 766004-9 | 20.00 | 24.20 | |
| Gear set | ||||
| 011 | 125485-0 | 39.60 | 47.92 | |
| Motor 18.0v | ||||
| 012 | 629937-8 | 17.60 | 21.30 | |
| Screw 4x8 | ||||
| 013 | 911109-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 014A | 188615-4 | |||
| Motor housing (3 contacts) | ||||
| 014B | 187363-2 | 14.30 | 17.30 | |
| Rubber pen 6 | ||||
| 014C | 263005-3 | 1.00 | 1.21 | |
| Damping felt | ||||
| 015 | 424476-1 | 1.00 | 1.21 | |
| Cover Dbp181D | ||||
| 016 | 421940-3 | 1.00 | 1.21 | |
