Here you will find all available parts and drawings of the 'Makita BHP452'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

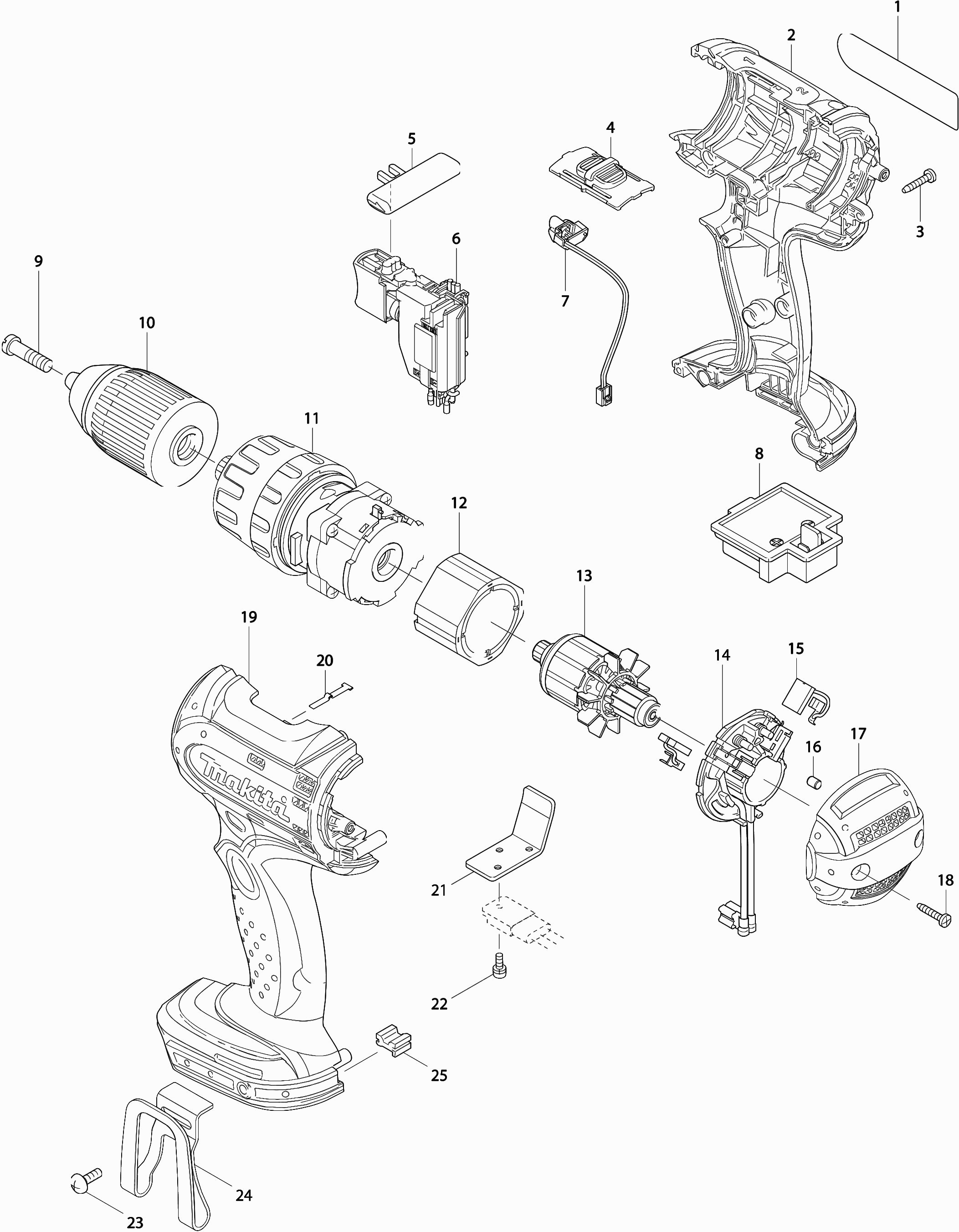

Technical drawing of model Makita BHP452
Spare parts list of model Makita BHP452
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Nameplate "bhp452" | ||||
| 001 | 864191-9 | 4.14 | 5.01 | |
| Motor Housing Set | ||||
| 002 | 188456-8 | 12.80 | 15.49 | |
| Rubber pen 6 | ||||
| 002B | 263005-3 | 0.83 | 1.00 | |
| Tapping Screw 3x16 | ||||
| 003 | 266130-9 | 0.83 | 1.00 | |
| High/low speed slide | ||||
| 004 | 125366-8 | 0.83 | 1.00 | |
| Compression Spring 4 | ||||
| 004A | 233438-6 | 0.83 | 1.00 | |
| L/r slide | ||||
| 005 | 419250-0 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 006 | 650583-6 | |||
| LED Circuit | ||||
| 007 | 631735-8 | 5.98 | 7.24 | |
| Connection Unit (2 contacts) | ||||
| 008 | 643844-1 | 3.54 | 4.28 | |
| Drill Chuck Screw M6x22mm Li | ||||
| 009 | 251468-5 | 0.83 | 1.00 | |
| Boorkop snelspan 1,5-13mm | ||||
| 010 | 766027-7 | 26.00 | 31.46 | |
| Gear set | ||||
| 011 | 125387-0 | 36.05 | 43.62 | |
| Magnet Unit | ||||
| 012 | 632J71-5 | 21.08 | 25.51 | |
| Armature | ||||
| 013 | 619198-8 | 19.29 | 23.34 | |
| Brush Holder | ||||
| 014 | 638494-5 | 2.71 | 3.28 | |
| Brush set Cb448 | ||||
| 015 | 196855-0 | 3.54 | 4.28 | |
| Rubber Pin 4 | ||||
| 016 | 263032-0 | 0.83 | 1.00 | |
| Tail Cover | ||||
| 017 | 419693-6 | 2.36 | 2.86 | |
| Tapping Screw 3x16 | ||||
| 018 | 266130-9 | 0.83 | 1.00 | |
| Motor Housing Set | ||||
| 019 | 188456-8 | 12.80 | 15.49 | |
| Rubber pen 6 | ||||
| 019 | 263005-3 | 0.83 | 1.00 | |
| Leaf Spring | ||||
| 020 | 232182-2 | 0.83 | 1.00 | |
| HEATSHIELD | ||||
| 021 | 689150-0 | 0.83 | 1.00 | |
| Schroef 3x8 | ||||
| 022 | 652066-2 | 0.83 | 1.00 | |
| Screw,M4x12 | ||||
| 023 | 251314-2 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 024 | 194654-4 | |||
| Damping felt | ||||
| 025 | 424476-1 | 0.83 | 1.00 | |
